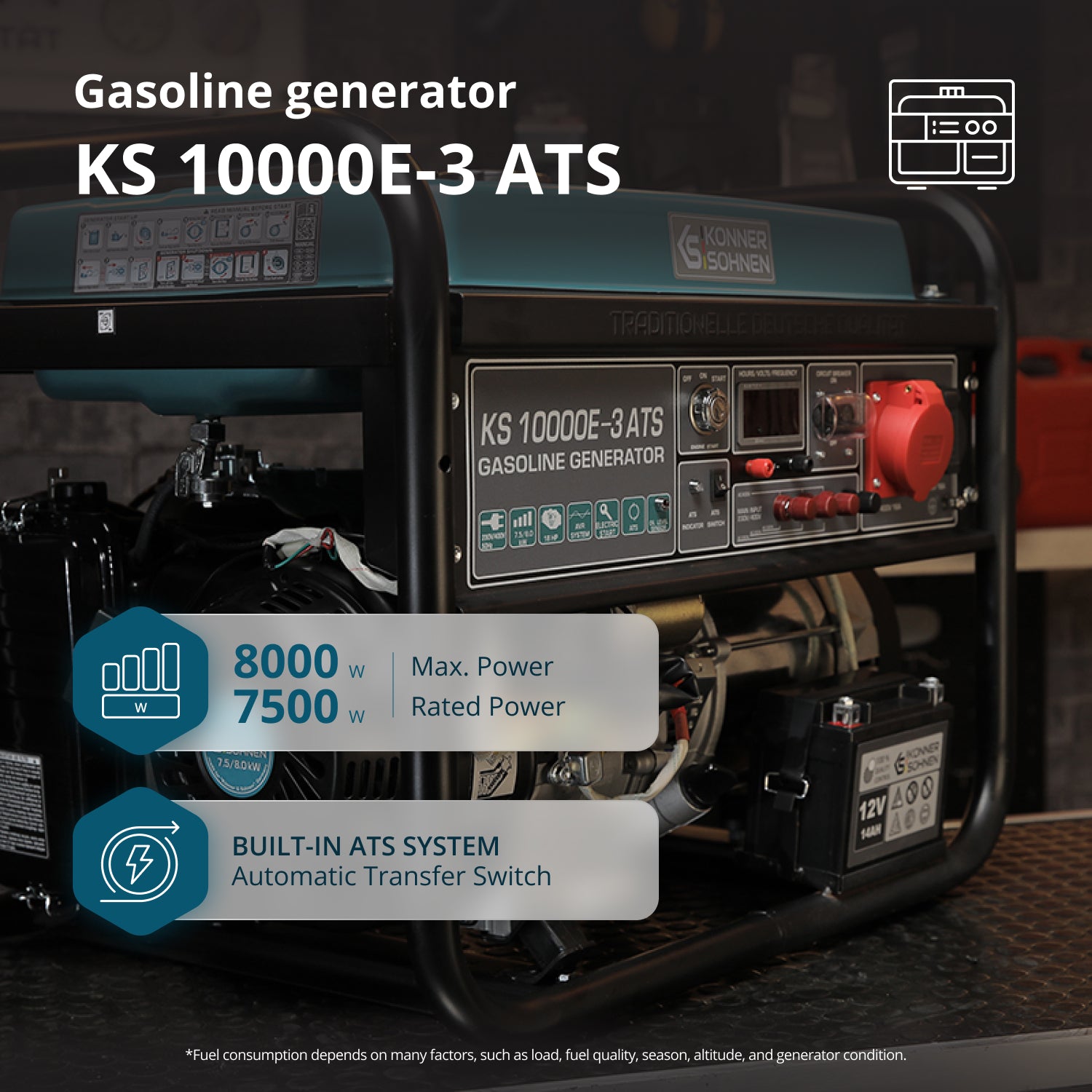

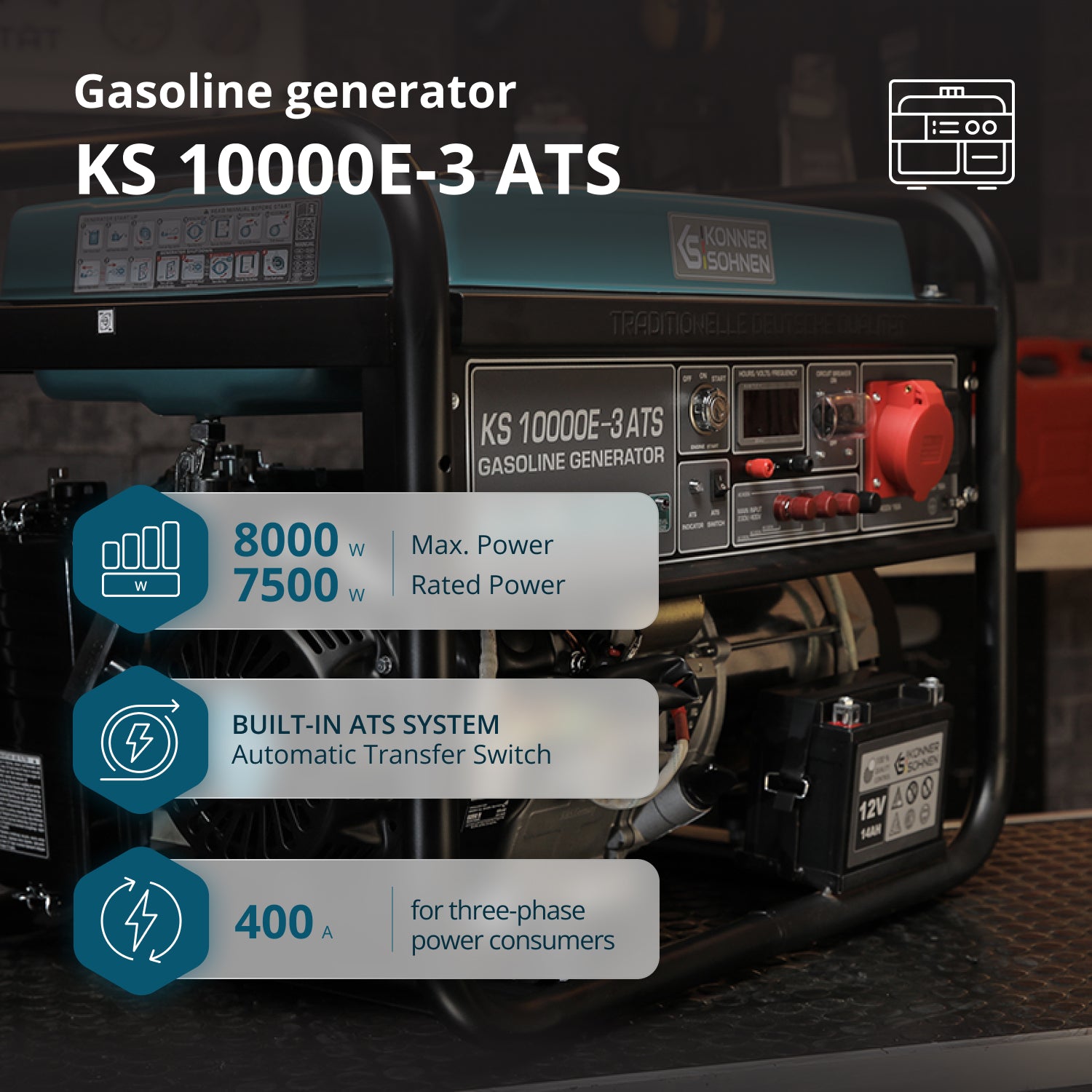

Gasoline generator "Könner & Söhnen" KS 10000E-3 ATS

Gasoline generator "Könner & Söhnen" KS 10000E-3 ATS

Name: Gasoline generator "Könner & Söhnen" KS 10000E-3 ATS
Brand: Könner & Söhnen
SKU: 4260405361700
Price: 49499.0 UAH
Availability: InStock

Available

₴49 499

Specification

Max power, kW:	8.0
Nominal power, kW:	7.5
Engine start:	Manual/electric/auto
Outlets:	1 x Schuko 230 V, 1 x CEE 400 V 16 A
Voltage, V:	400

Specification

Voltage, V	400
Max power, kW	8.0
Nominal power, kW	7.5
Power factor, cosφ	0.8
Frequency, Hz	50**
Current (max), A	14.45
Outlets	1 x Schuko 230 V, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Avg. working time (power 50%), h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric/auto
Alternator winding	Copper
Protection class	IP23M

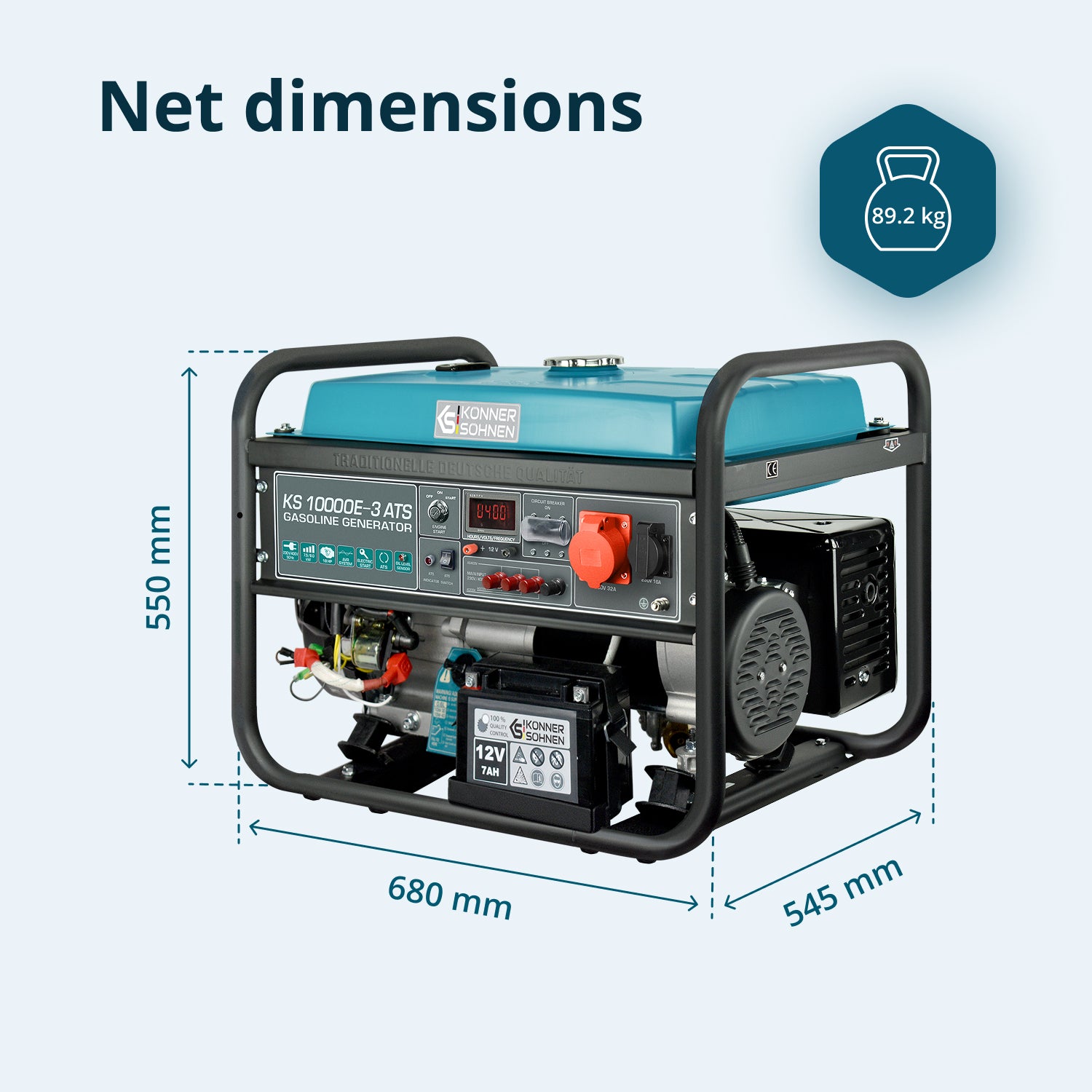

Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	89.2
Gross weight, kg	91.6
SKU	KS 10000E-3 ATS
Barcode	4260405361700

Variants

Max Power: 8.0 kW

5.5 kW 8.0 kW 11.5 kW 15.6 kW

Benefits

Features an AVR system that allows it to start and stop automatically without additional operator actions
Prevents counterfeiting: Unique serial number helps prevent engine fraud
Wide range of additional features: Automatic start, electrical protection, and hour meter
Includes anti-vibration pads that significantly reduce vibration and extend the generator's lifespan
Sturdy steel frame and rubber feet provide additional vibration reduction

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Könner & söhnen engines

02 Individual serial numbers on engines

03 Built-in ats system

04 Convenient ergonomic control panel with electic start

05 230v or 400v

06 Alternator with 100% copper winding

07 Switching contactors

08 Easy start system

09 Steel tank

10 Reinforced steel frame

11 Dampers to lower vibration

12 Optional KS 10 KIT

Könner & söhnen engines

Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable. High-performance K&S engines comply with the latest EURO V emission standards.

Individual serial numbers on engines

Könner & Söhnen engines meet all world and European standards of quality, including the harmful emissions level and noise level. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

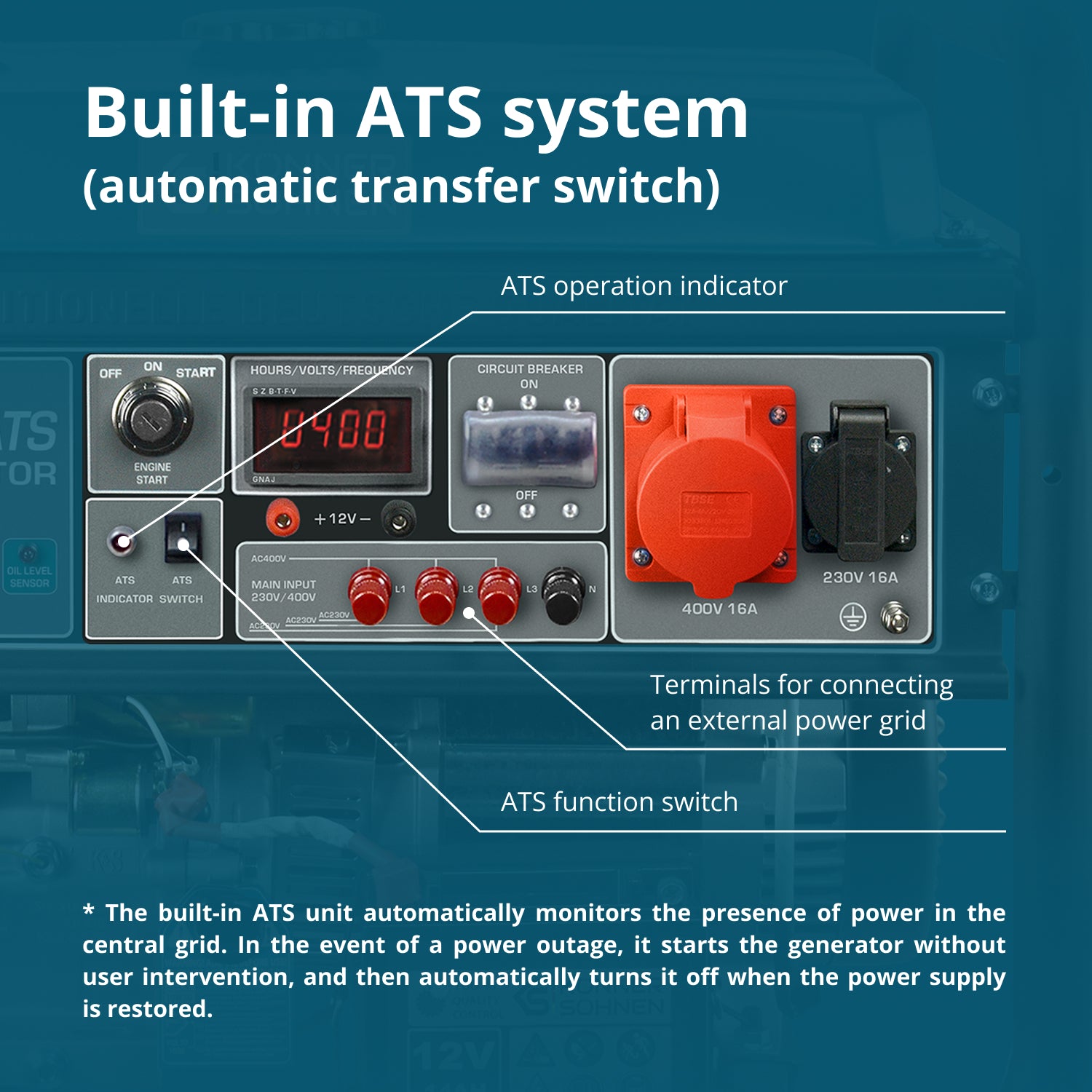

Built-in ats system

The generator control panel with the ATS function (automatic transfer switch) is equipped with power terminals, ATS switch and ATS operation indicator.

Convenient ergonomic control panel with electic start

Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

230v or 400v

The presented series includes models for single- and three-phase consumers. The generator control panel with the ATS function has corresponding 230V and 400V mains terminals.

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

Switching contactors

Reliable 100% copper switching contactors have an increased capacity of 40 A, which ensures long-term failsafe performance of the ATS system.

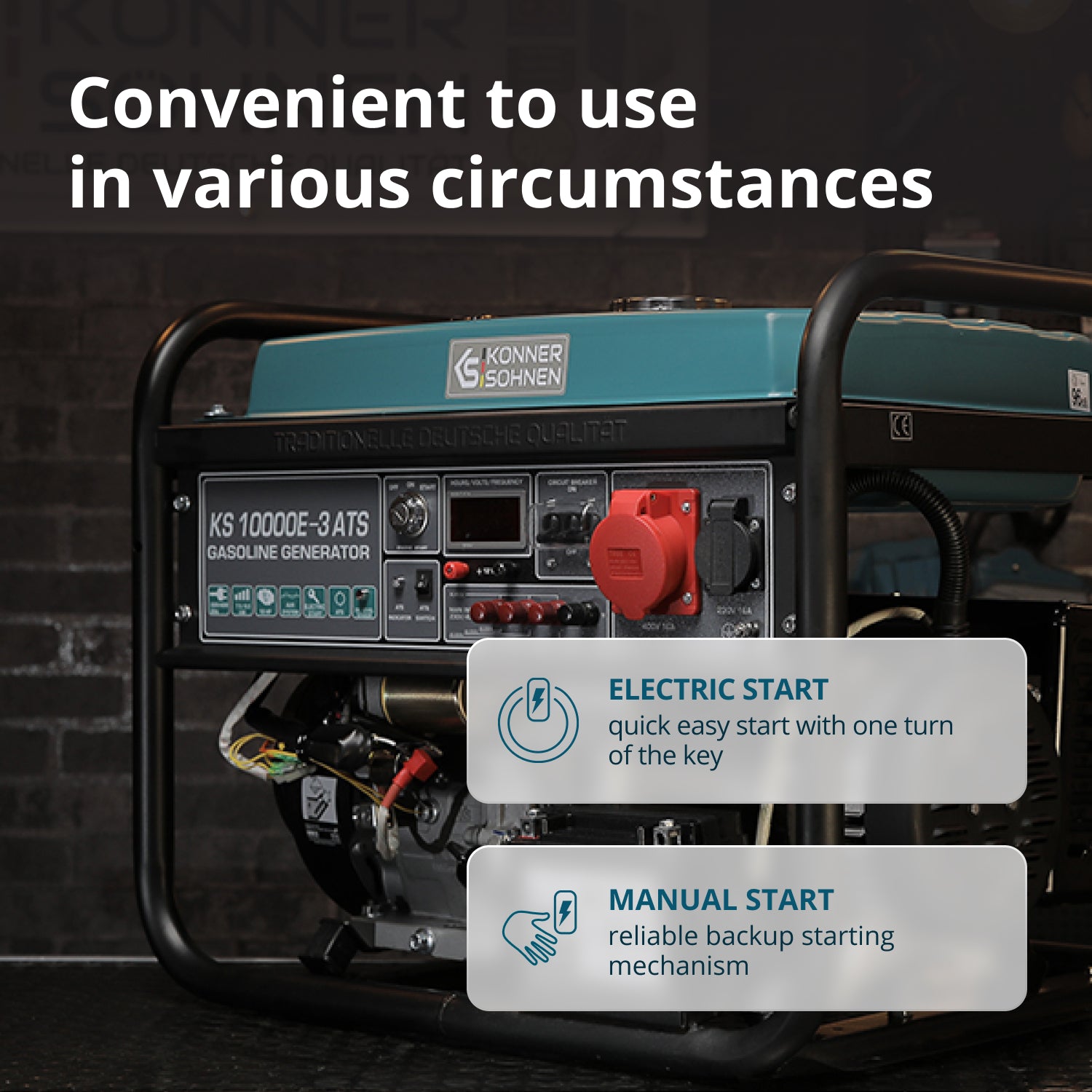

Easy start system

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have three types of startup - manual, electric and automatic. More powerful models are additionally equipped with an electric start system.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Reinforced steel frame

This model is equipped with a strong steel frame with a diameter of ø 32 mm, which serves to protect the generator from various kinds of damage and provides convenient transportation.

Dampers to lower vibration

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

Optional KS 10 KIT

The transport kit KS 10 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.

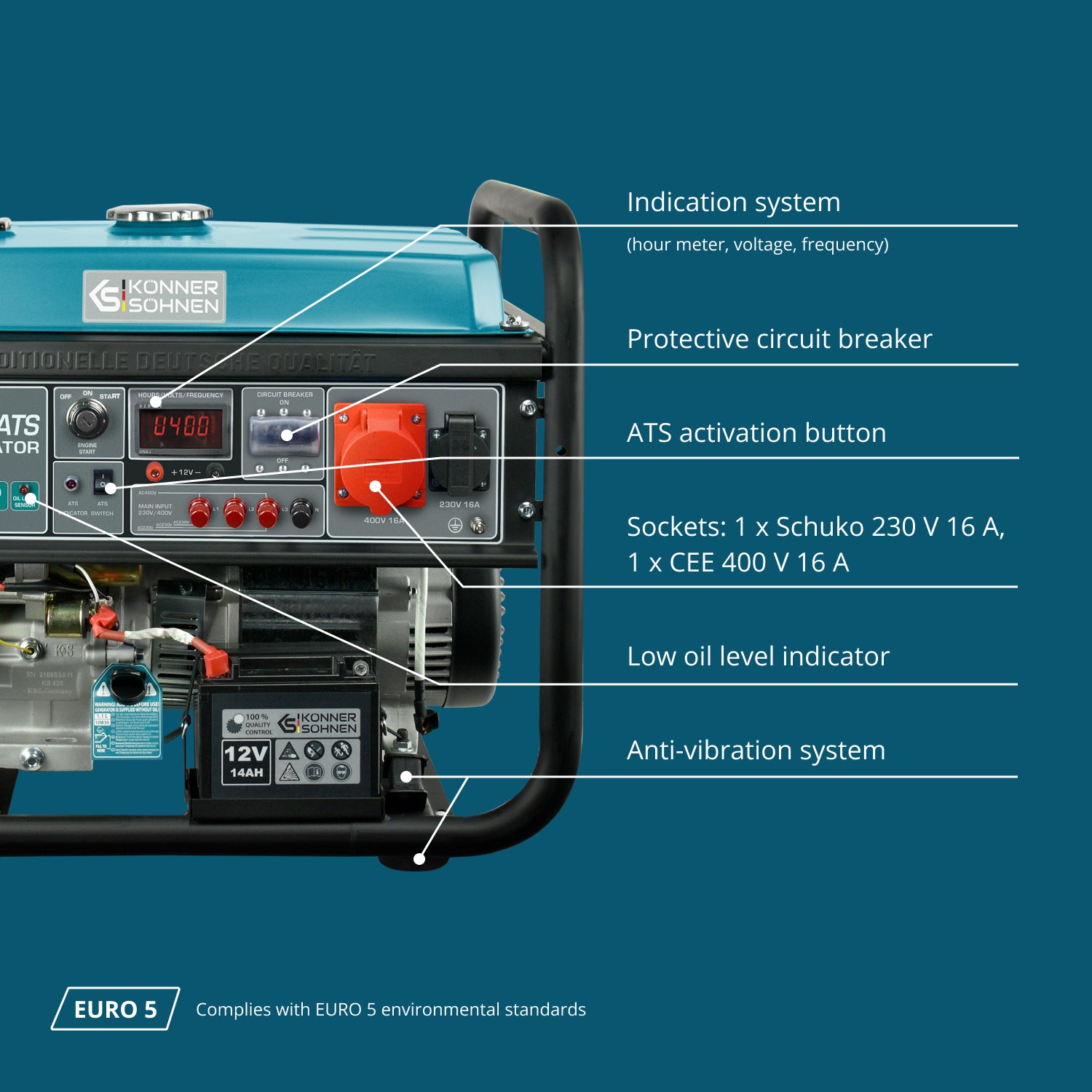

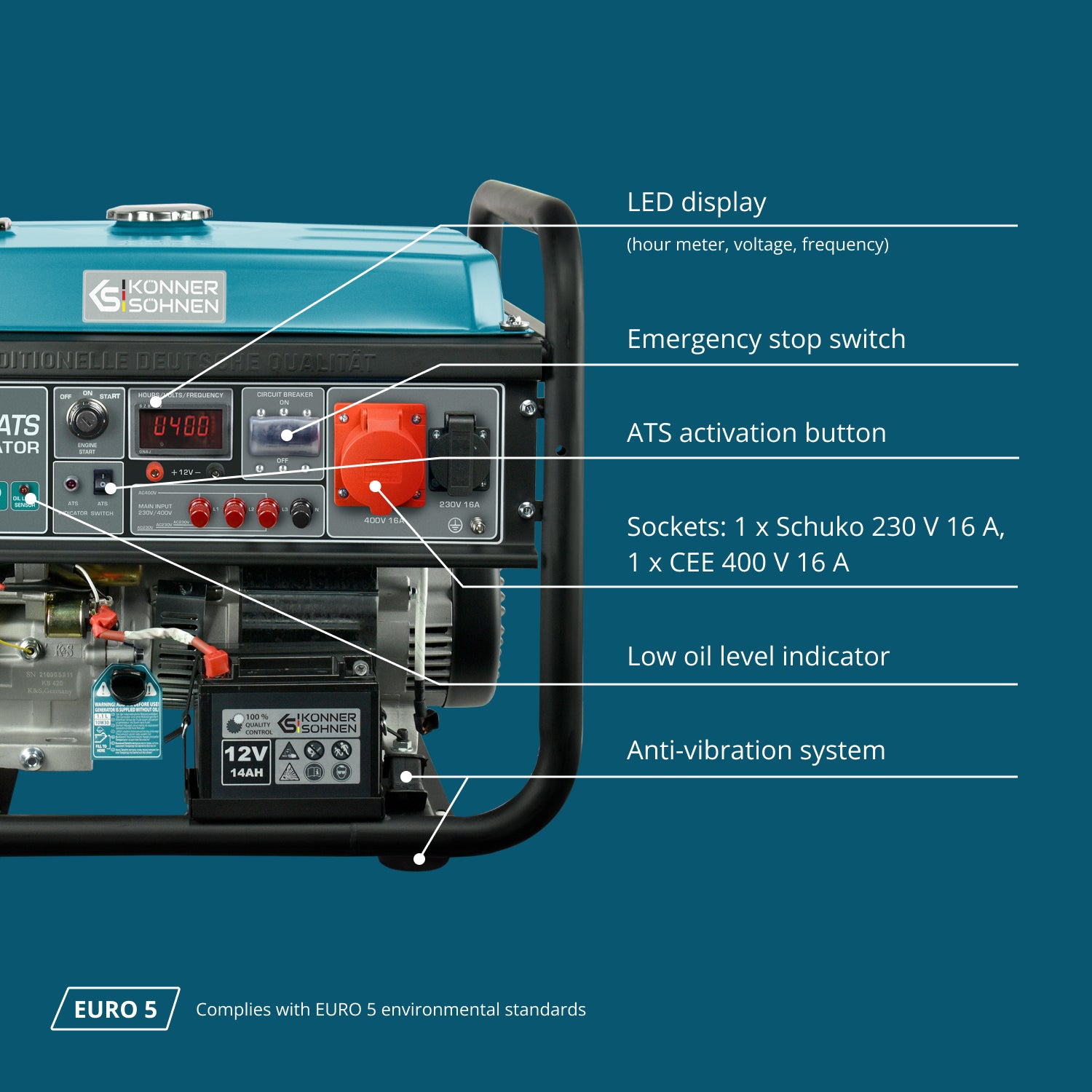

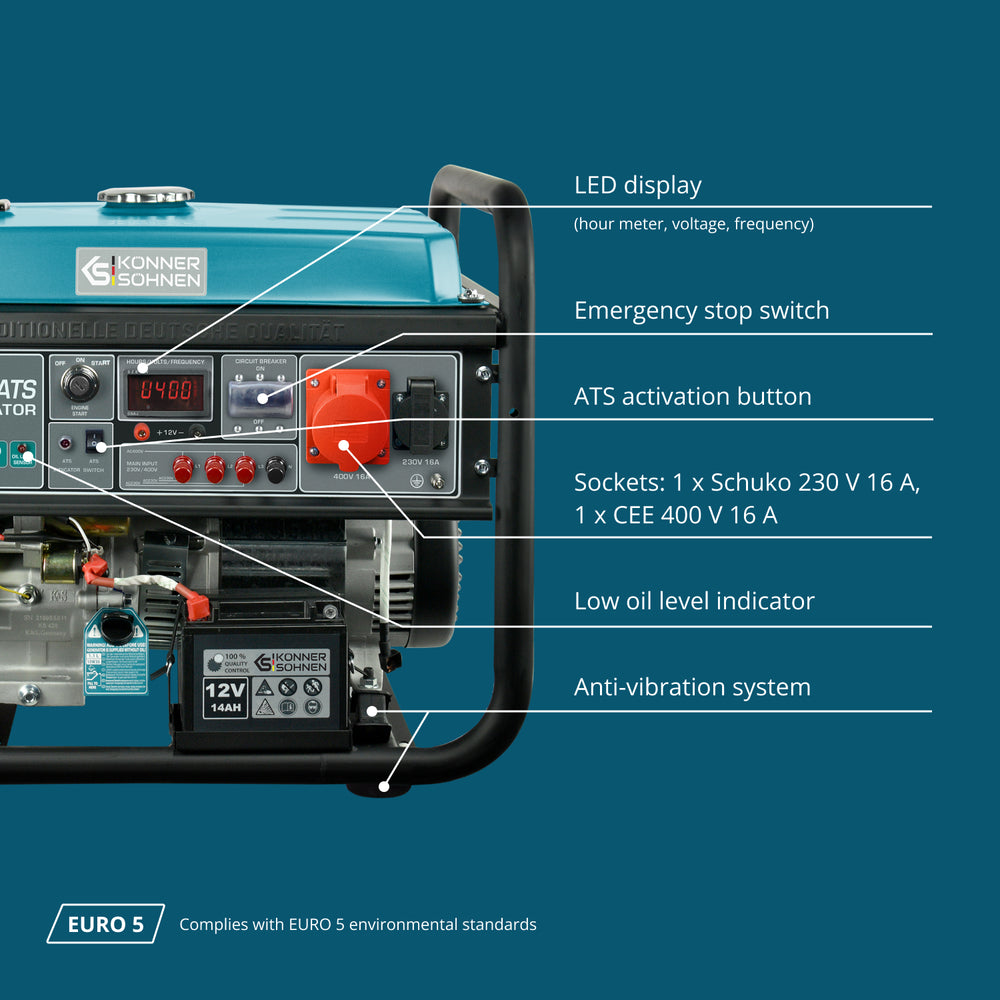

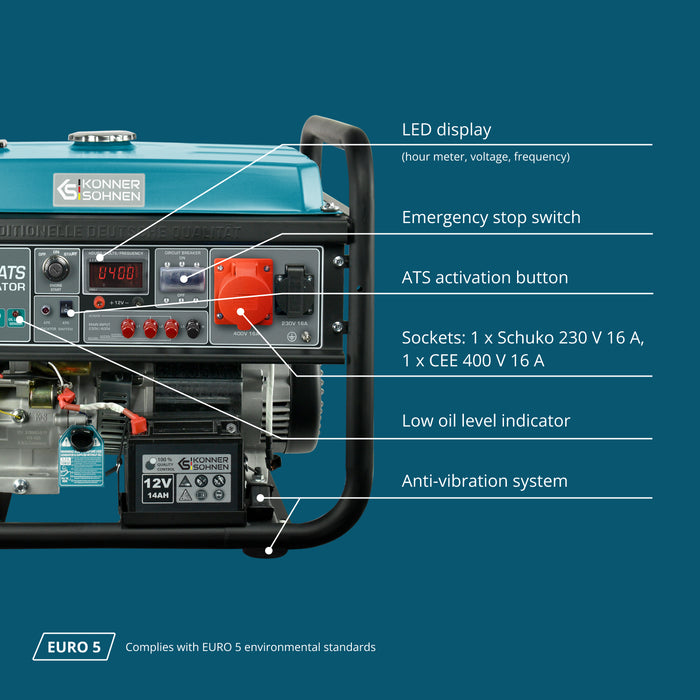

LED Display

Hour meter, frequency, voltage

Outlets

1 x Schuko 230 V, 1 x CEE 400 V 16 A

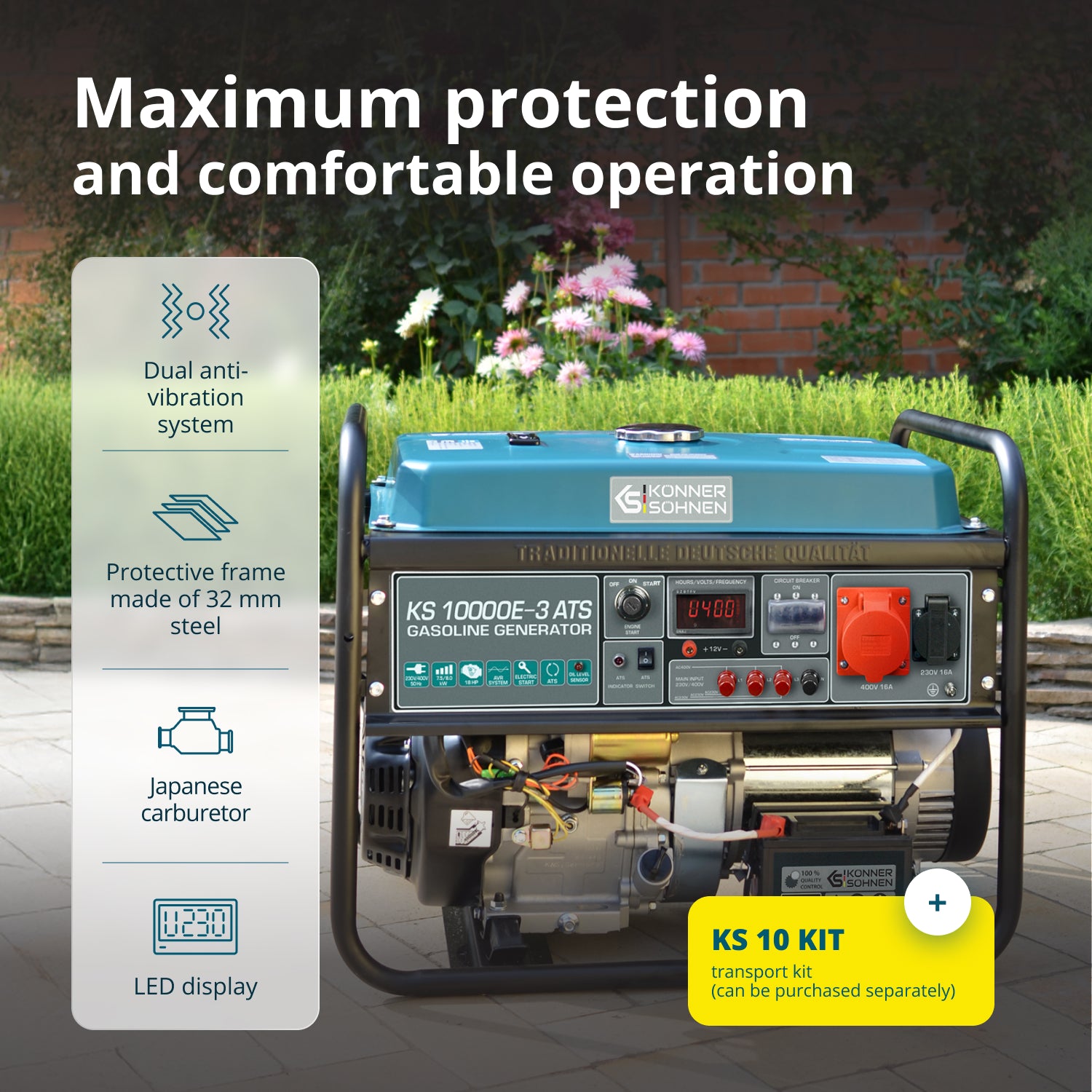

Double Anti-Vibration System

To ensure noise reduction and extend the service life of the generator

Low Oil Level Indicator

Enables oil level monitoring without requiring manual inspection

Electric Start

Easy and convenient start system

ATS Switch

Has a built-in ATS unit and can be operated both manually and automatically

Specification

Gasoline generator "Könner & Söhnen" KS 10000E-3 ATS

Voltage, V	400
Max power, kW	8.0
Nominal power, kW	7.5
Power factor, cosφ	0.8
Frequency, Hz	50**
Current (max), A	14.45
Outlets	1 x Schuko 230 V, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Avg. working time (power 50%), h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric/auto
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	89.2
Gross weight, kg	91.6
SKU	KS 10000E-3 ATS
Barcode	4260405361700

Assembled in PRC.

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
