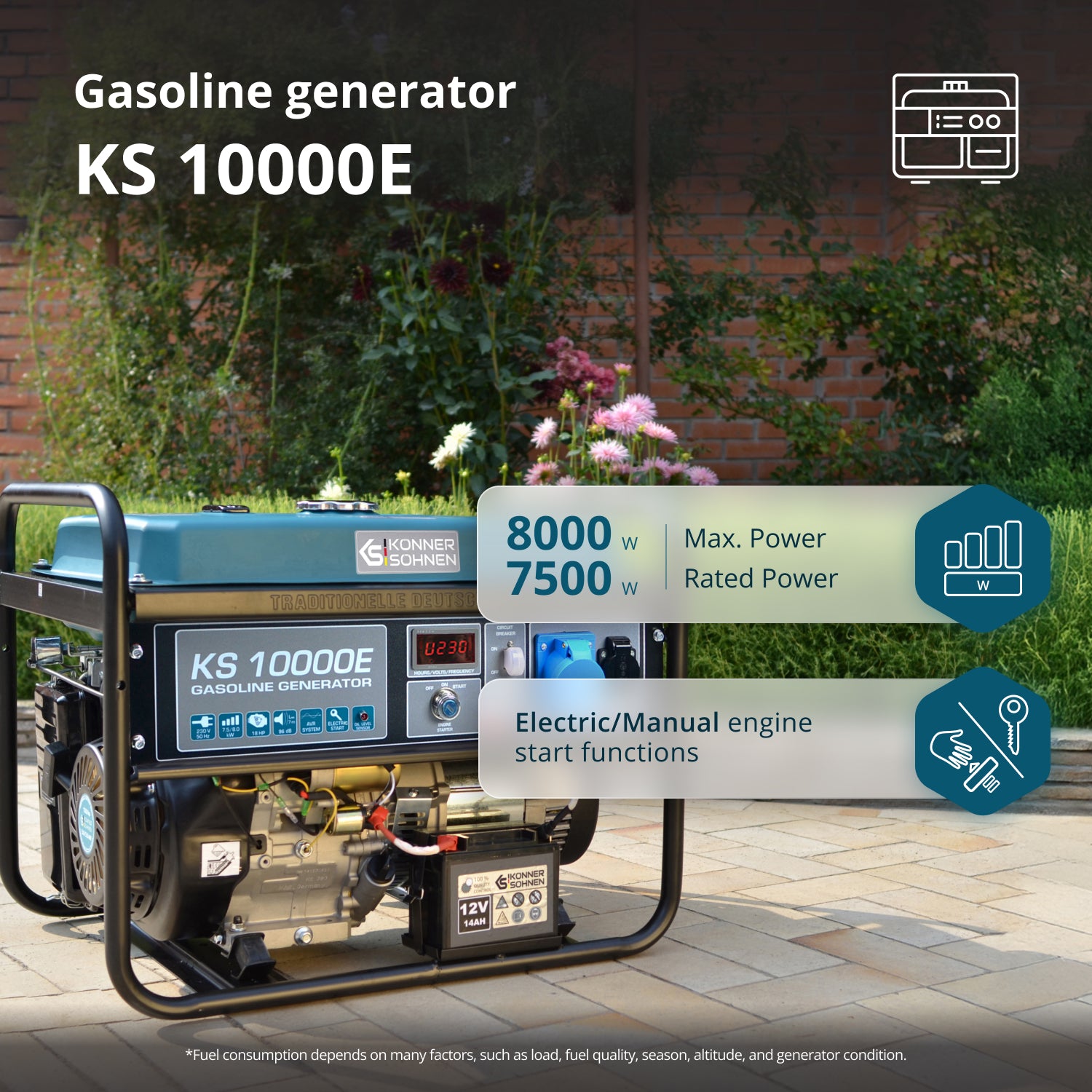

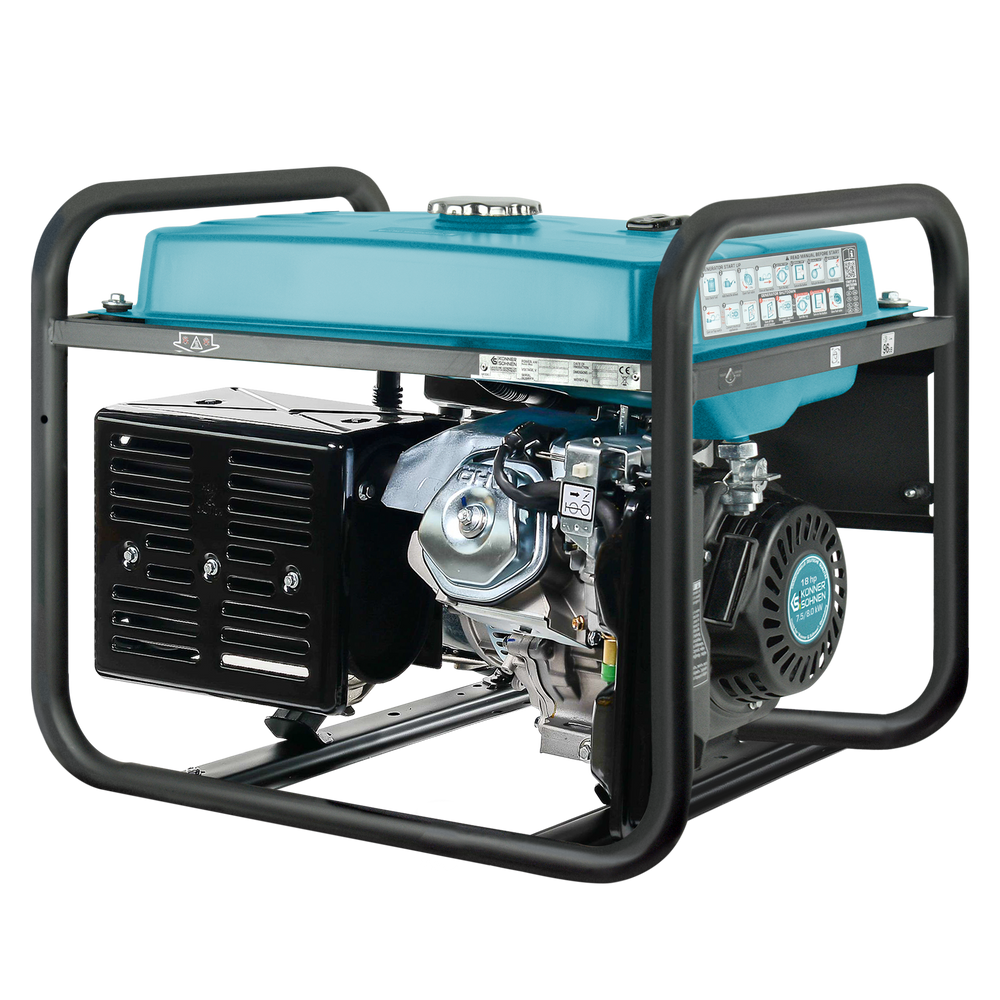

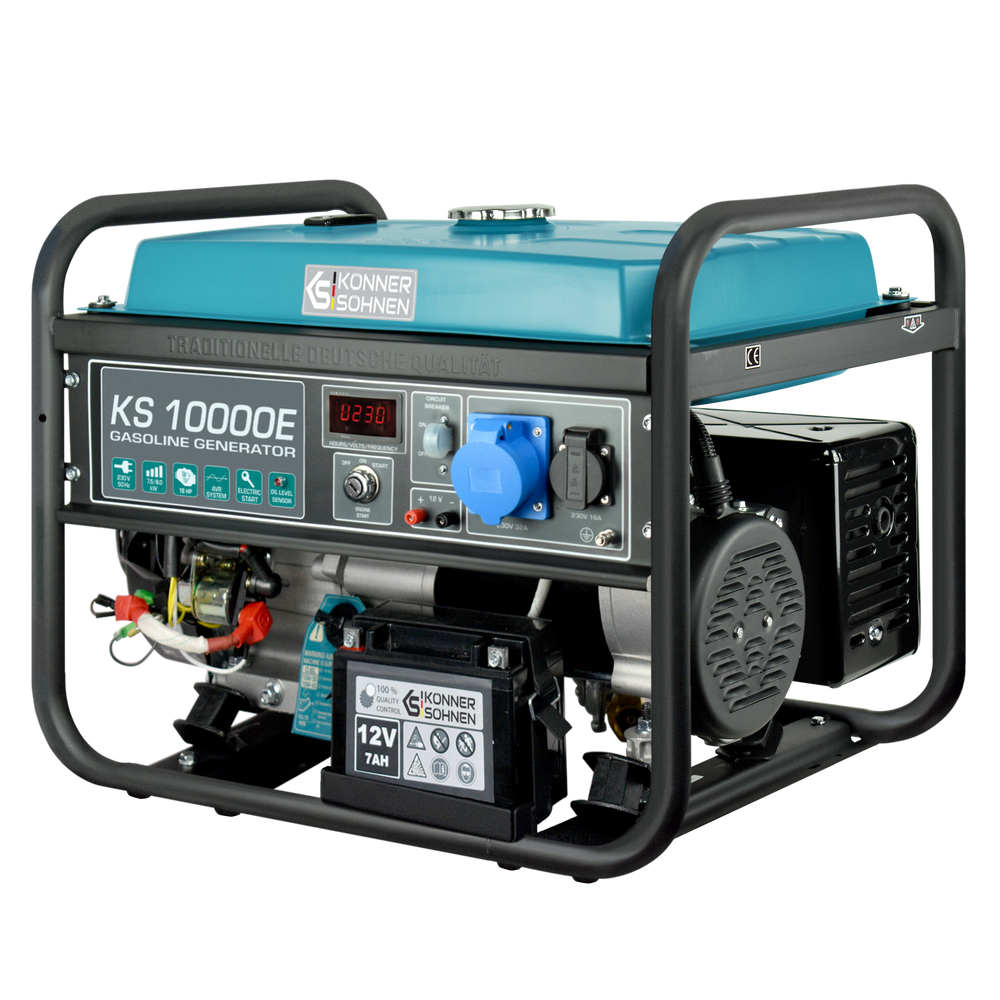

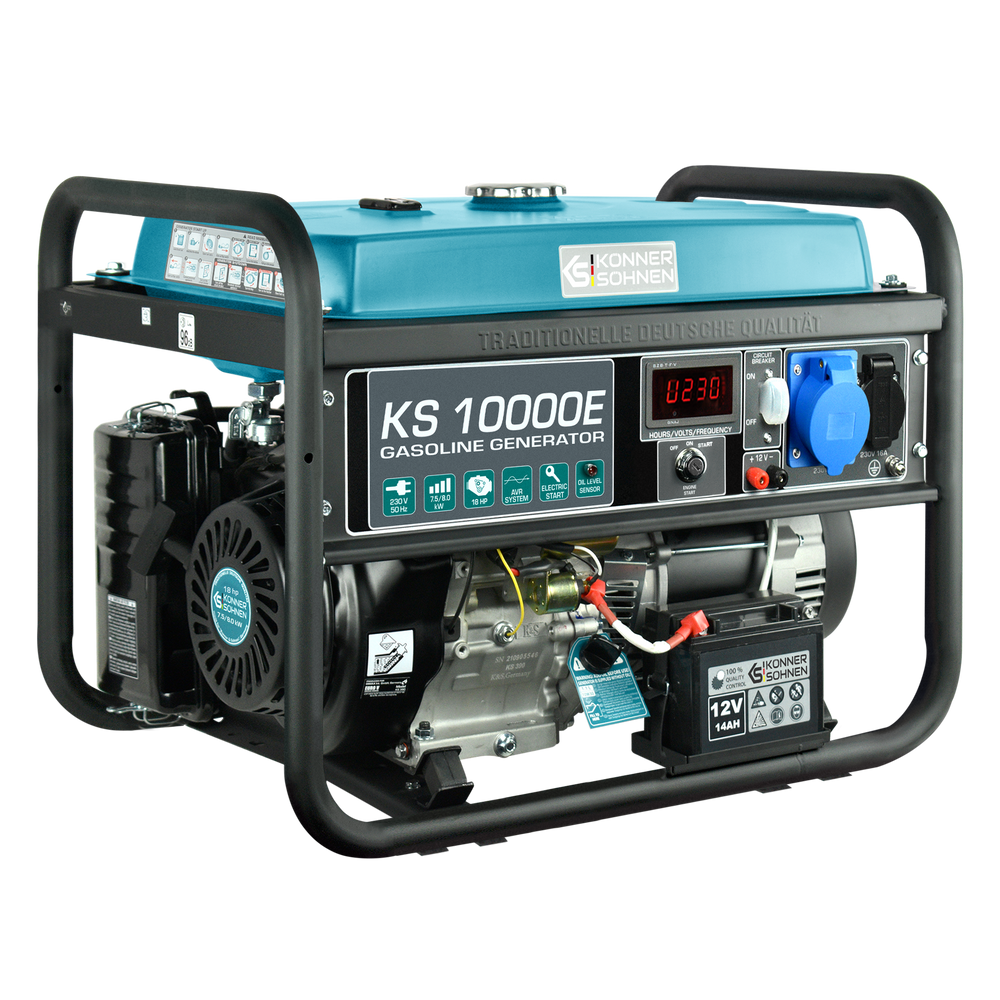

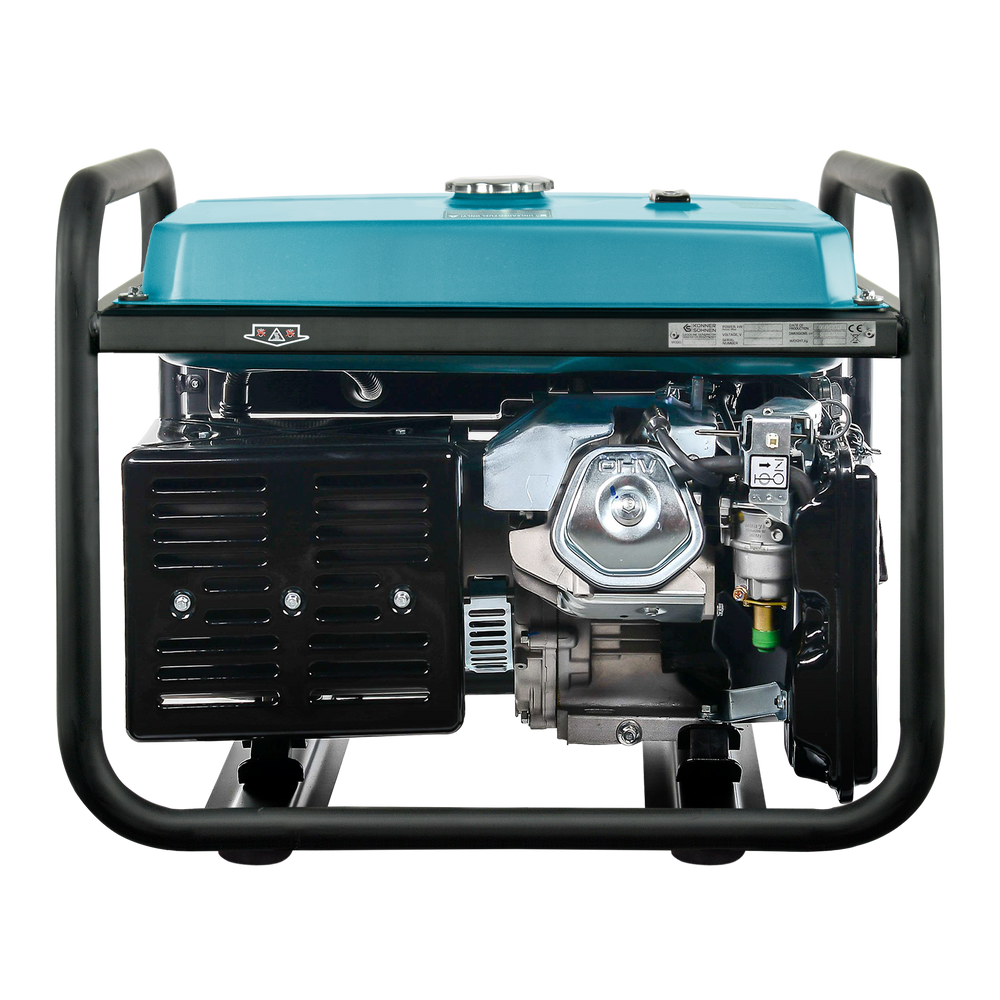

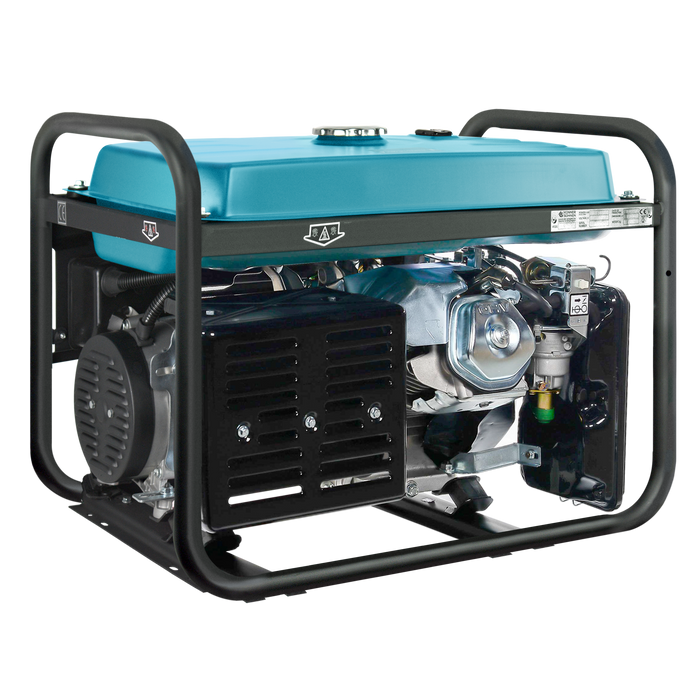

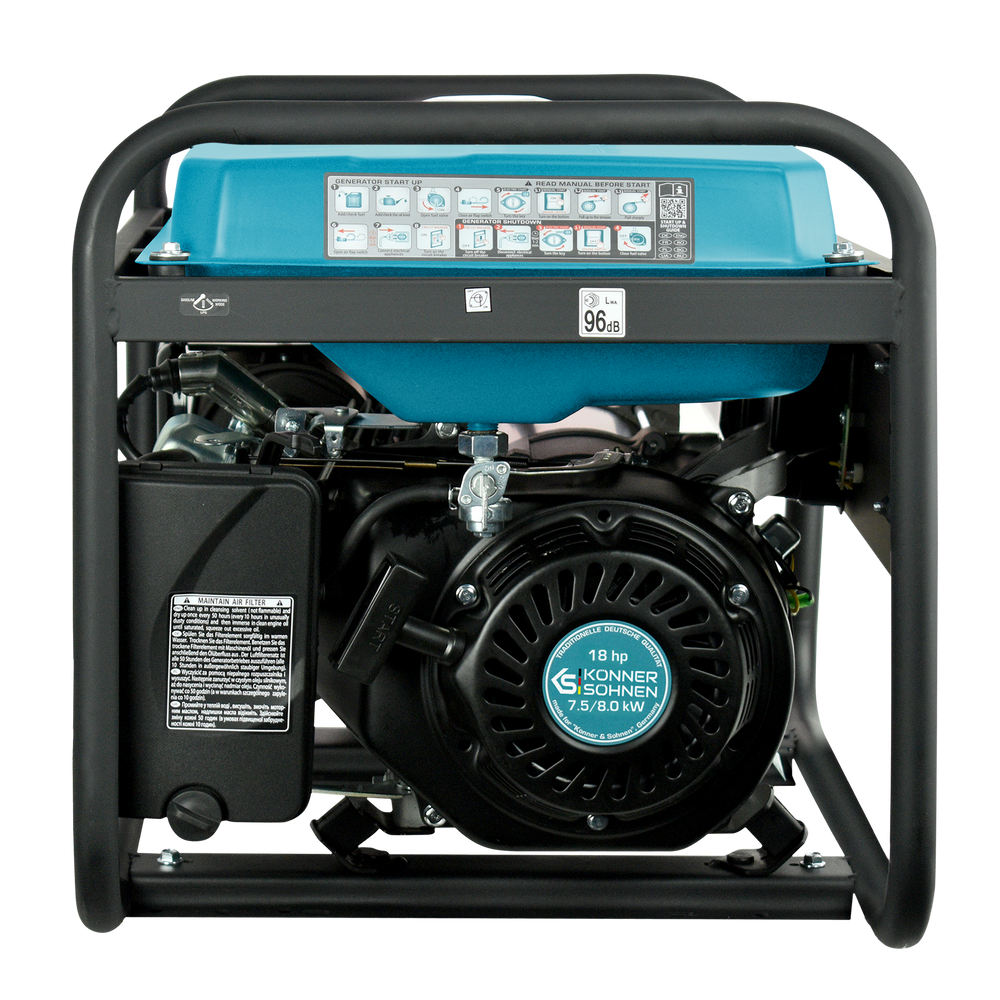

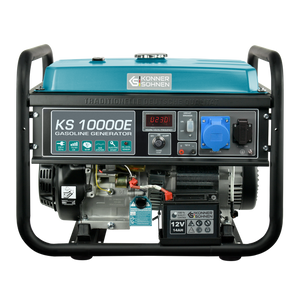

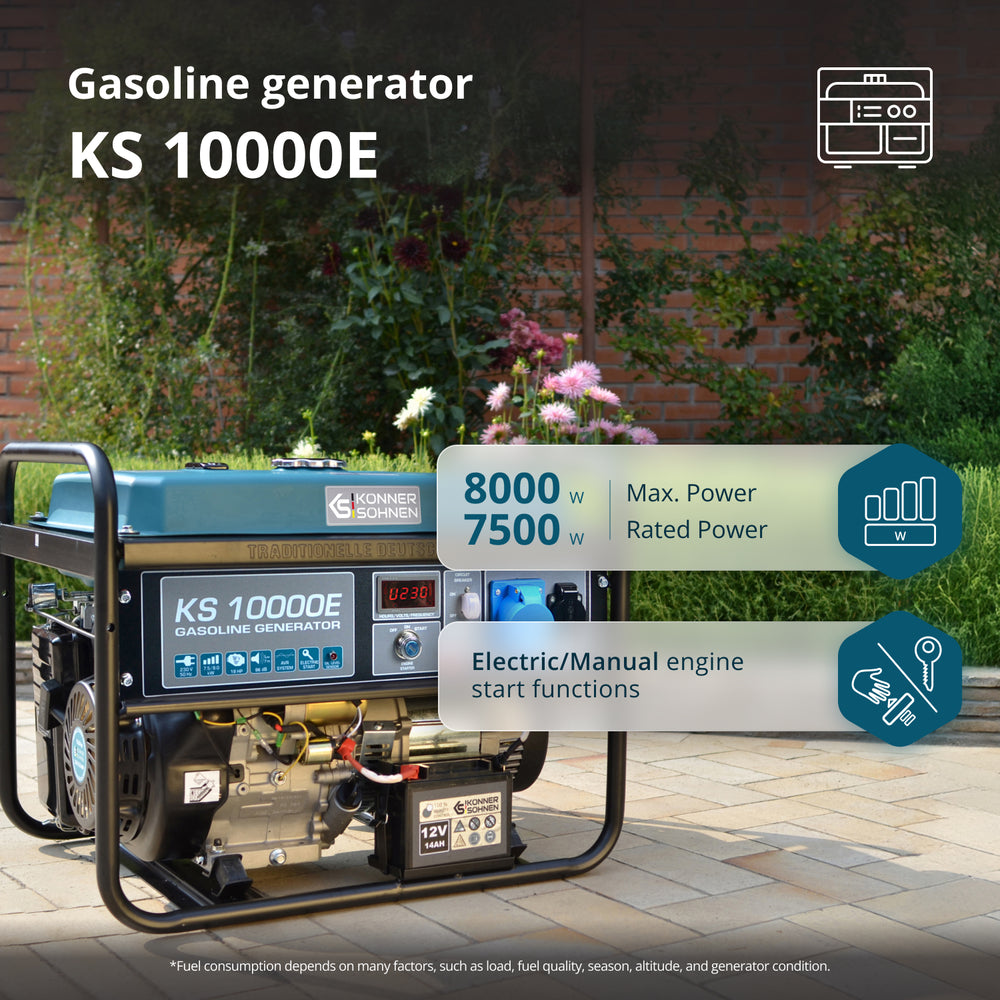

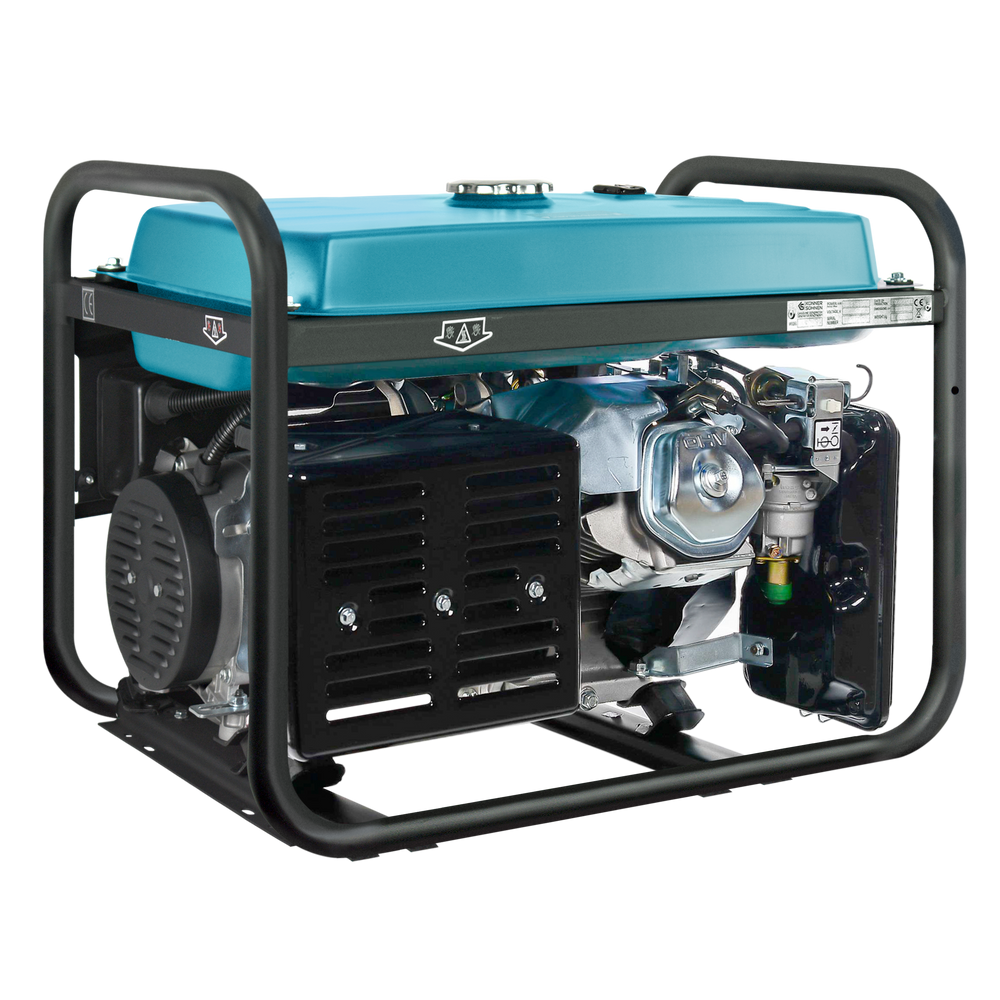

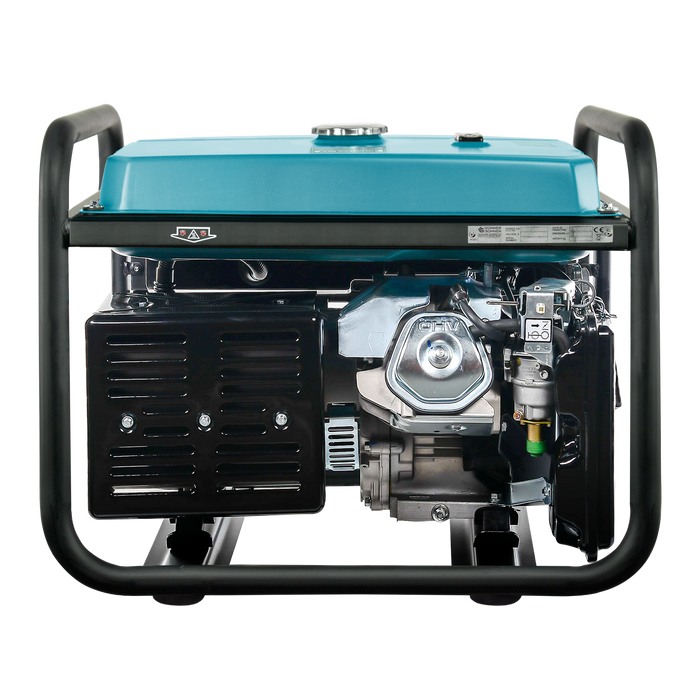

Gasoline generator "Könner & Söhnen" KS 10000E

Gasoline generator "Könner & Söhnen" KS 10000E

Name: Gasoline generator "Könner & Söhnen" KS 10000E
Brand: Könner & Söhnen
SKU: 4260405361168
Price: 49499.0 UAH
Availability: OutOfStock

Unavailable

₴49 499

Specification

Max power, kW:	8.0
Nominal power, kW:	7.5

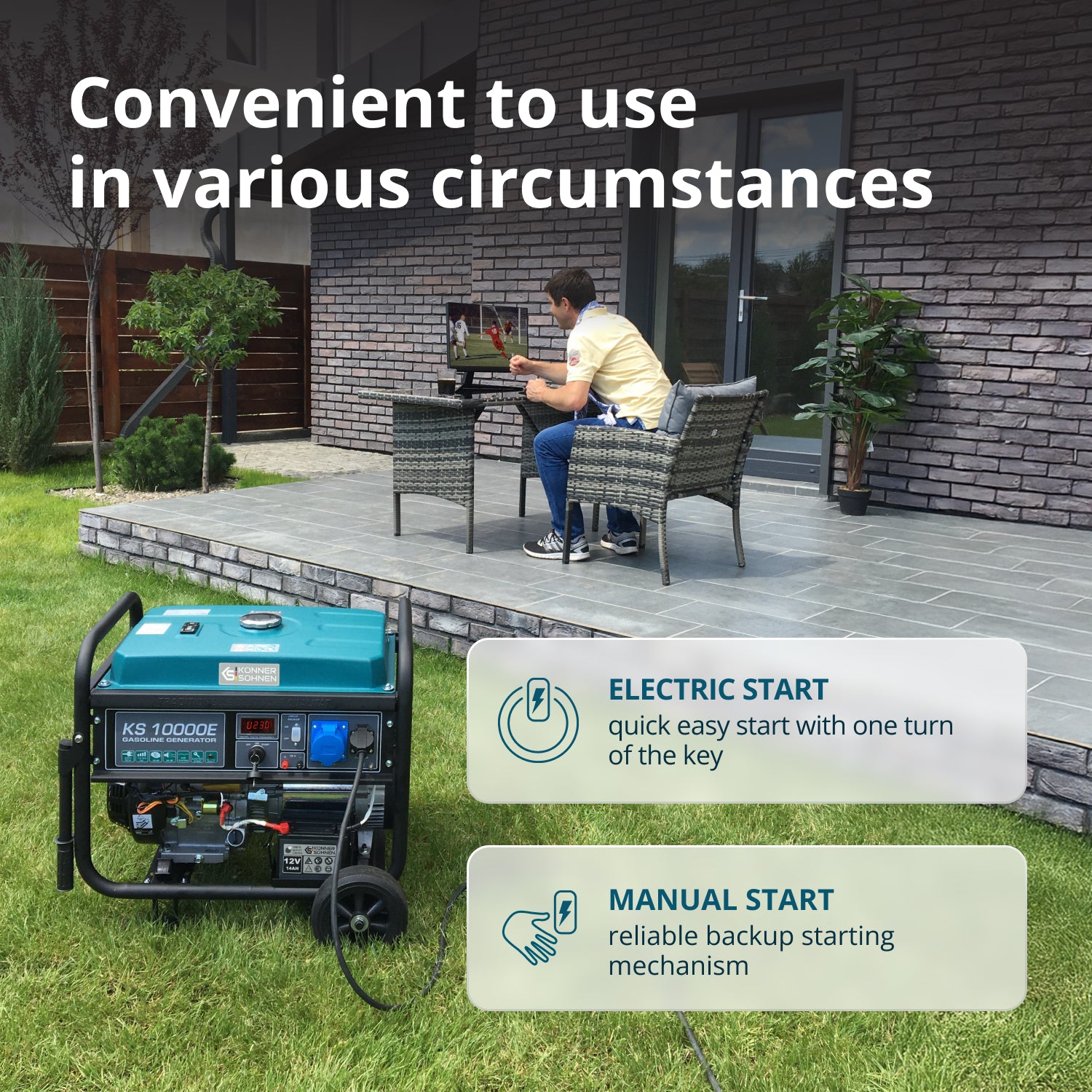

Engine start:	Manual/electric
Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Voltage, V:	230

Specification

Voltage, V	230
Max power, kW	8.0
Nominal power, kW	7.5
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	34.78
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Fuel tank volume, l	25
Avg. working time (power 50%), h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M

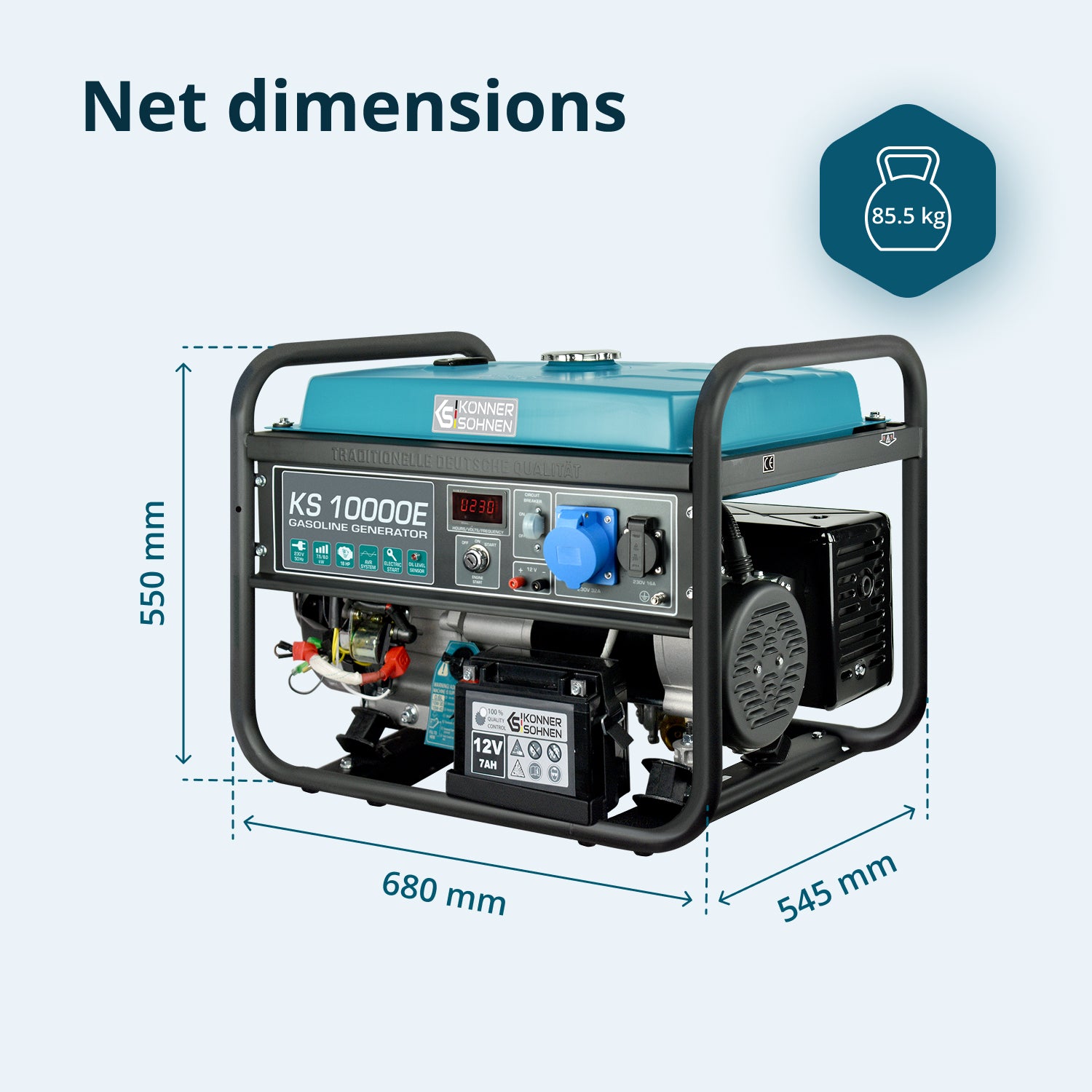

Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	85.5
Gross weight, kg	87.9
SKU	KS 10000E
Barcode	4260405361168

Variants

Max Power: 8.0 kW

5.5 kW 8.0 kW 9.2 kW

Benefits

Generator for reliable power supply to large electrical appliances
Engine mounted on high-quality rubber cushions significantly extends the generator's lifespan
Built-in electric starter allows for effortless ignition
Power output guarantee: You can be confident that the K&S generator will deliver the specified power
Reinforced steel frame for easy transportation

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Könner & söhnen engines

02 Individual serial numbers on engines

03 Convenient ergonomic control panel with electric start

04 Alternator with 100% copper winding

05 Easy start system

06 Steel tank

07 Dampers to lower vibration

08 Optional KS 10 KIT

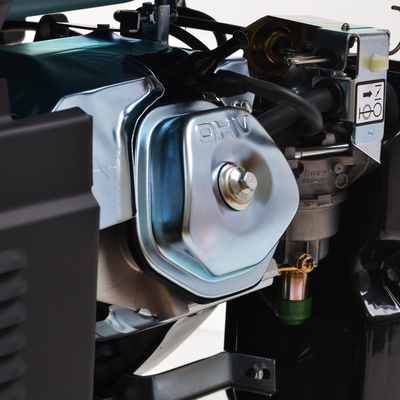

Könner & söhnen engines

Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable.

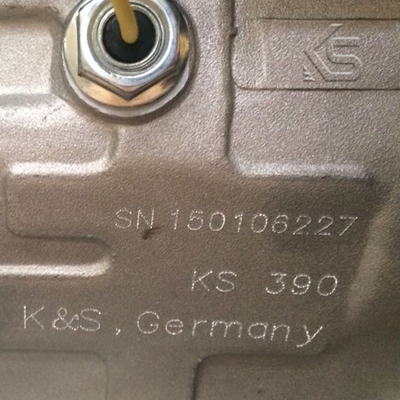

Individual serial numbers on engines

Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO V emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

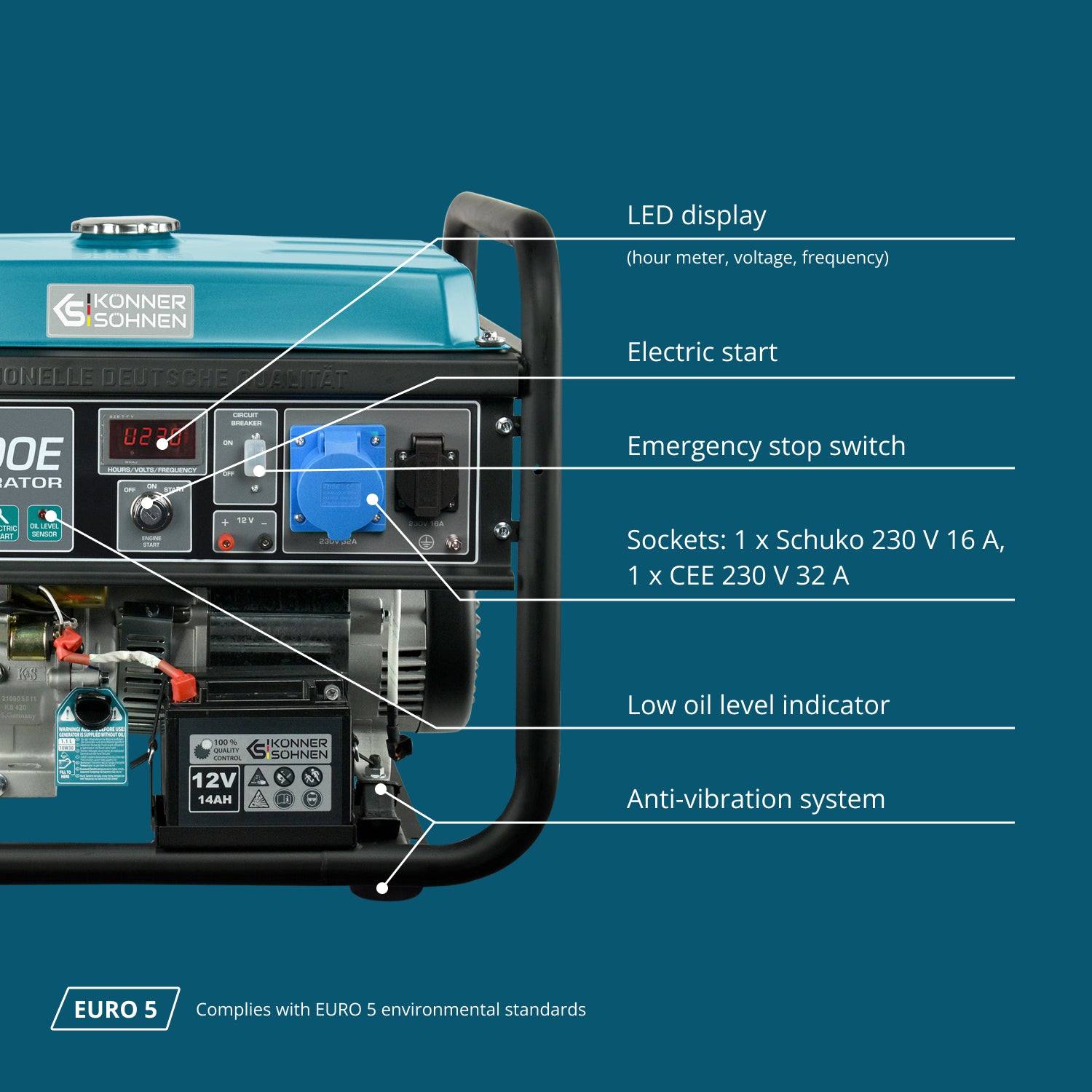

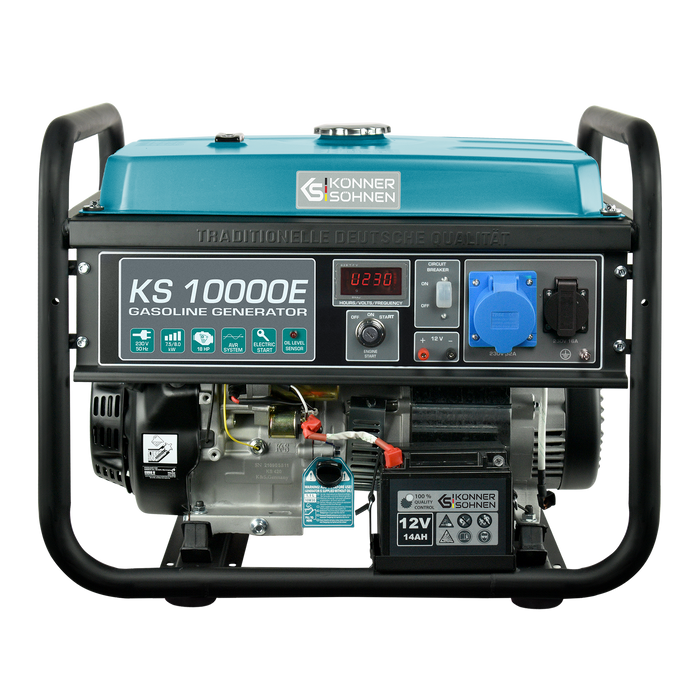

Convenient ergonomic control panel with electric start

Generator’s ergonomic control panel allows you to easily control its operation due to the convenient functions location: a modern LED display (counter hours, frequency, voltage), electric start, emergency (circuit breaker) switch, low oil level sensor, outlets, terminals and more.

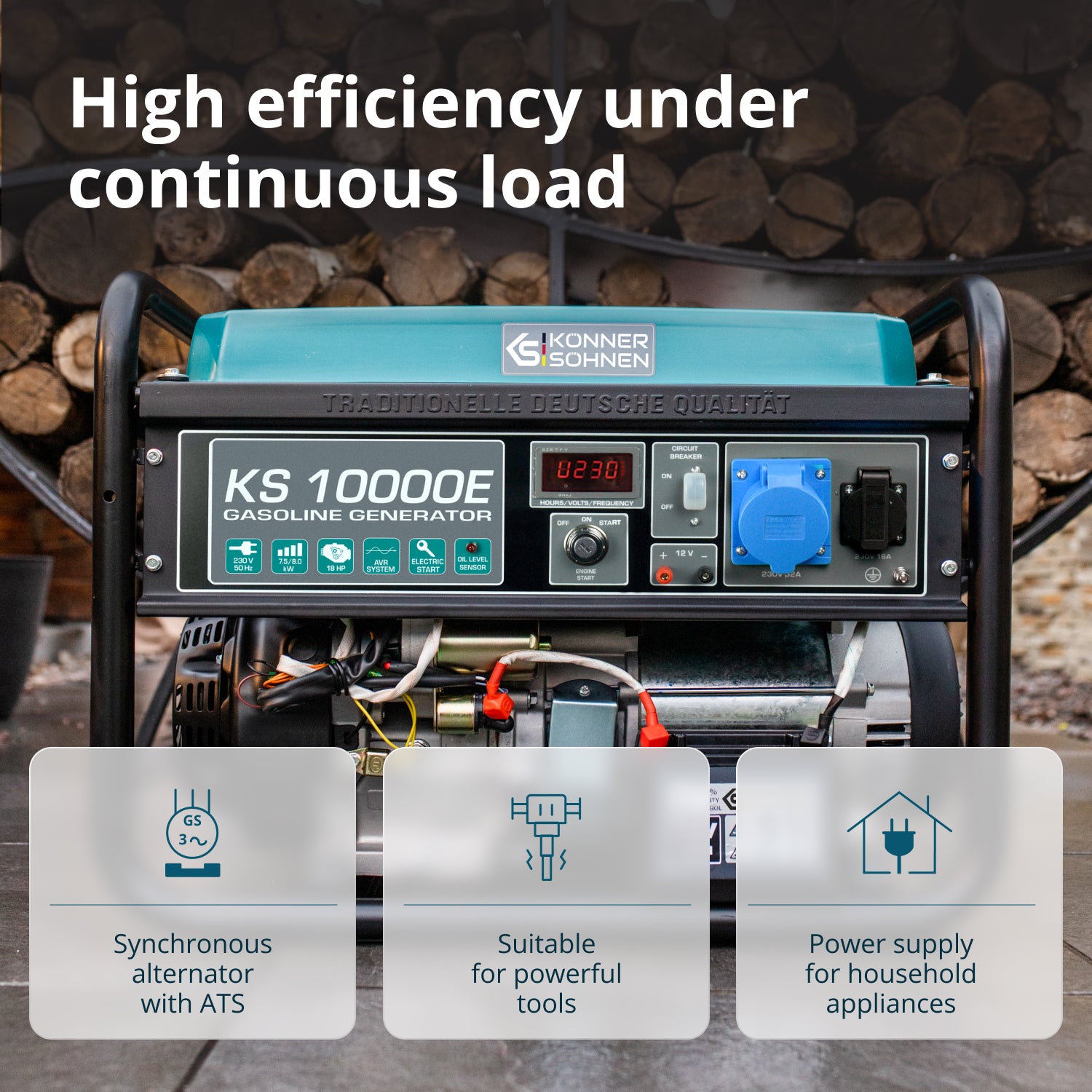

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

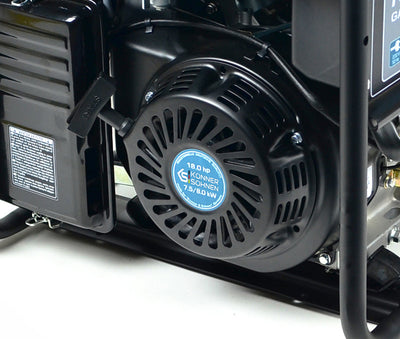

Easy start system

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup - manual and electric. More powerful models are additionally equipped with an electric start system.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Dampers to lower vibration

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

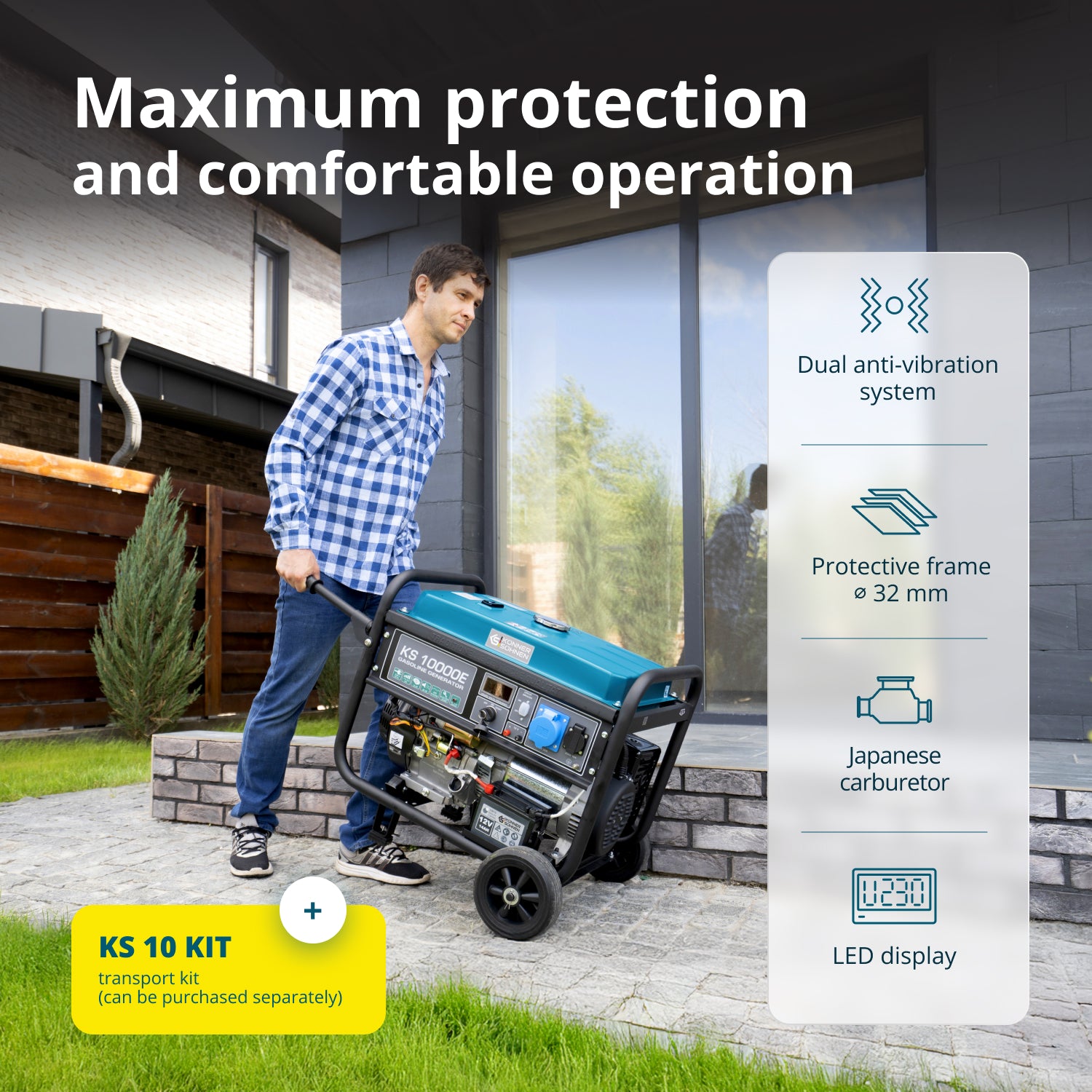

Optional KS 10 KIT

The transport kit KS 10 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.

Double Anti-Vibration System

To ensure noise reduction and extend the service life of the generator

Low Oil Level Indicator

Enables oil level monitoring without requiring manual inspection

LED Display

Hour meter, frequency, voltage

Circuit Breaker

Оverload and short circuit protection

Outlets

1 x Schuko 230 V, 1 × CEE 230 V 32 A

Electric Start

Easy and convenient start system

Specification

Gasoline generator "Könner & Söhnen" KS 10000E

Voltage, V	230
Max power, kW	8.0
Nominal power, kW	7.5
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	34.78
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Fuel tank volume, l	25
Avg. working time (power 50%), h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	85.5
Gross weight, kg	87.9
SKU	KS 10000E
Barcode	4260405361168

Assembled in PRC.

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
