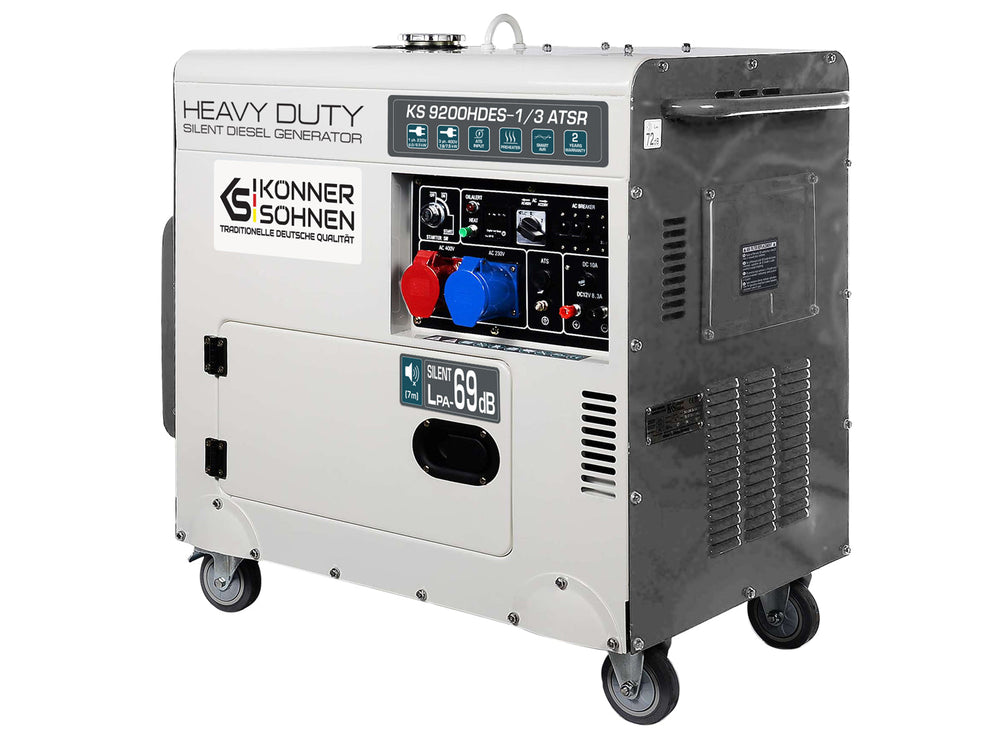

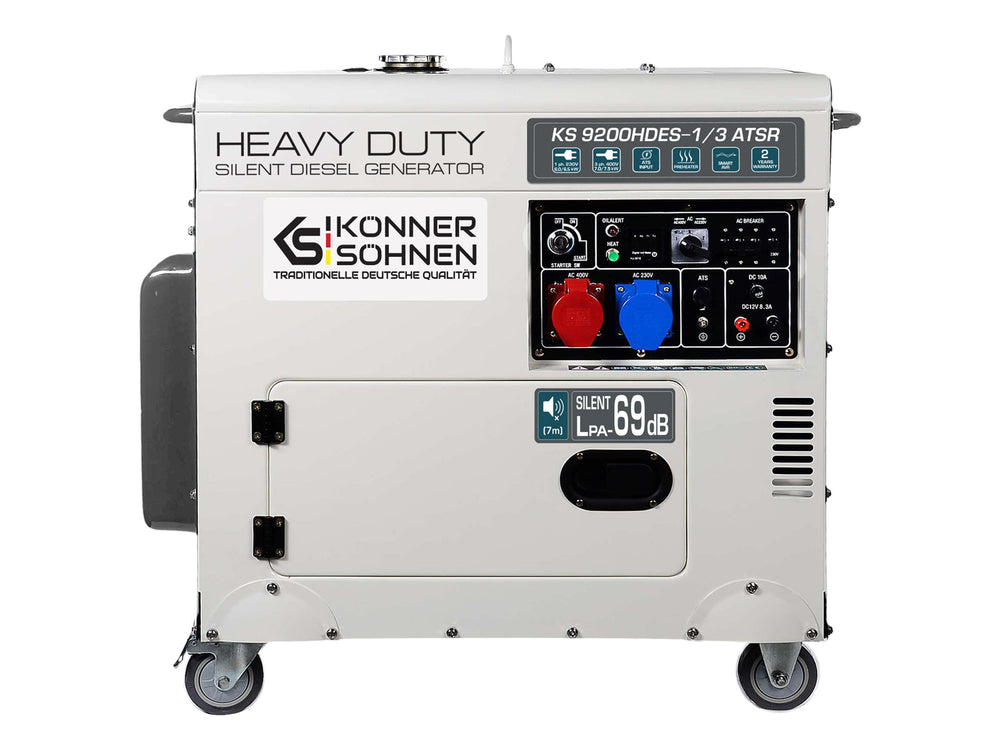

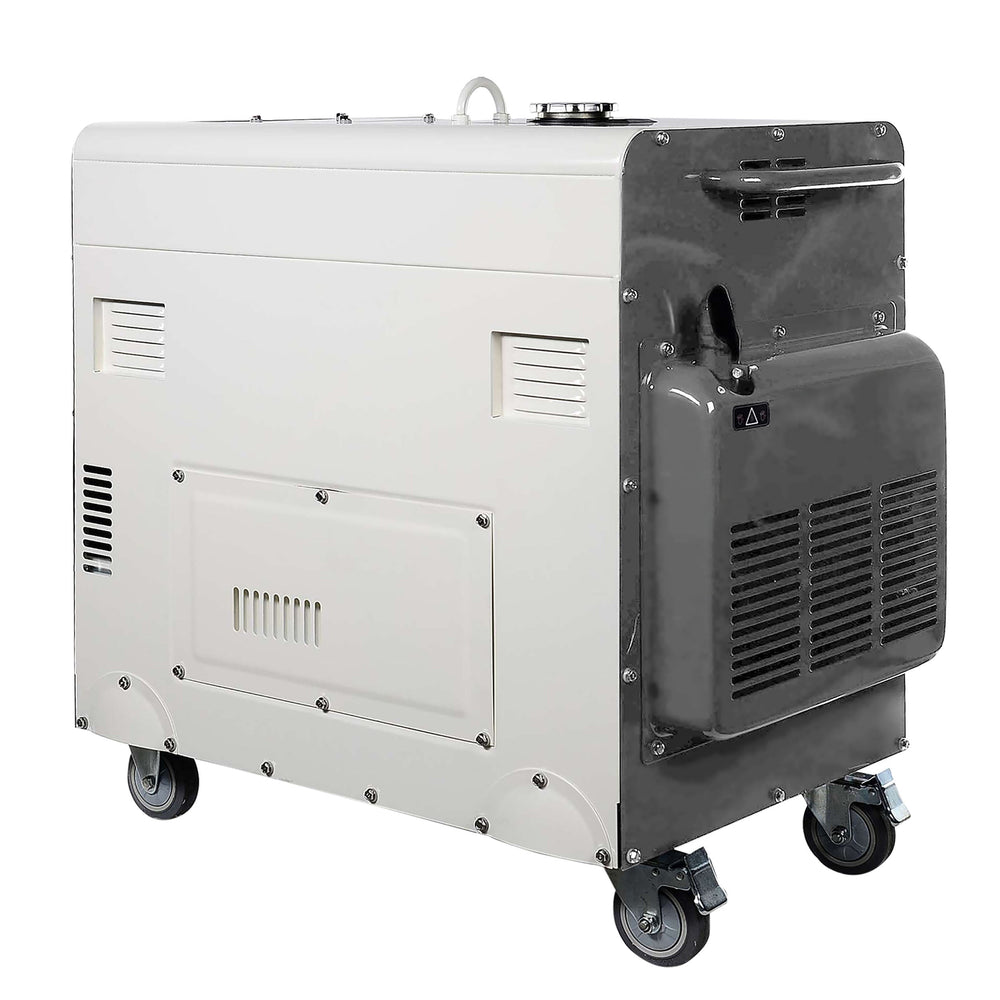

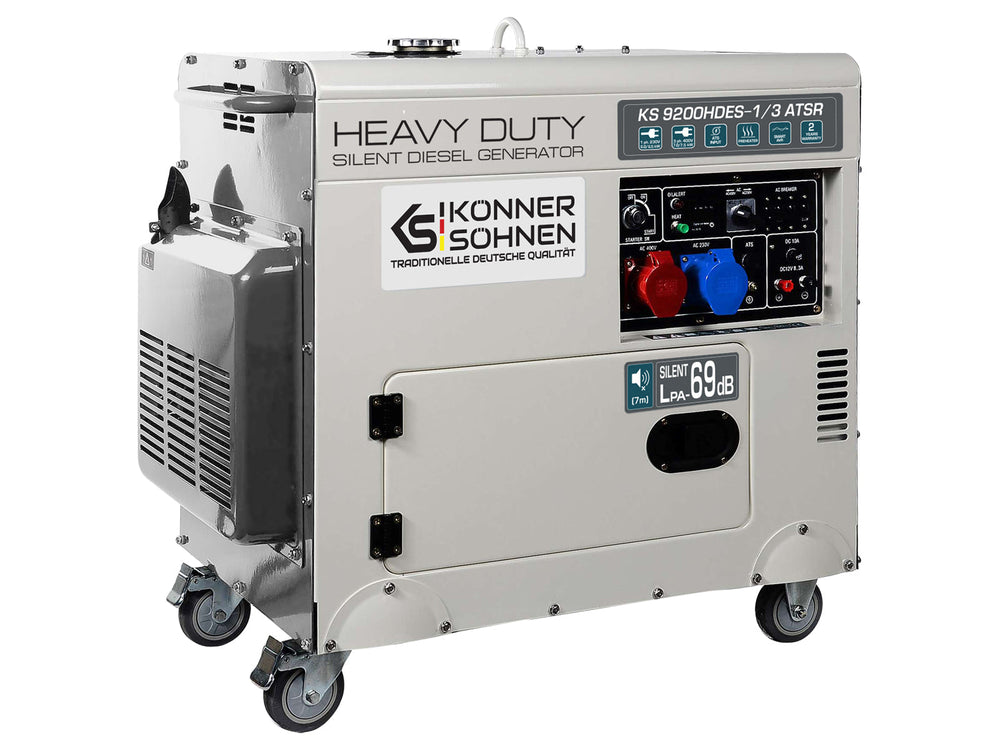

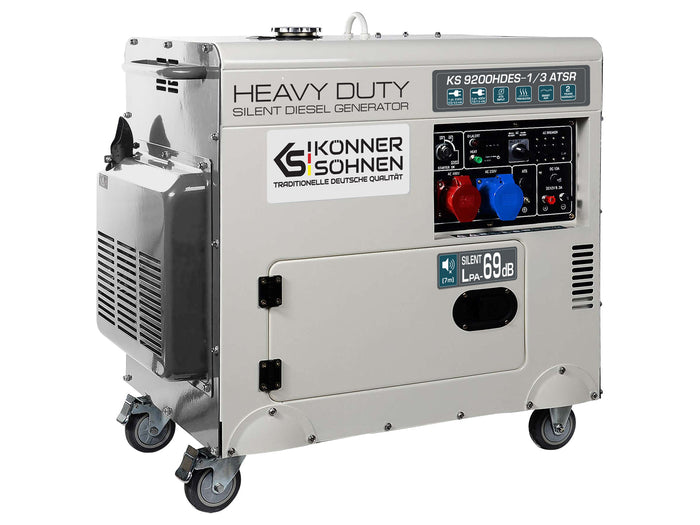

Diesel generator "Könner & Söhnen" KS 9200HDES-1/3 ATSR (EURO V)

Diesel generator "Könner & Söhnen" KS 9200HDES-1/3 ATSR (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 9200HDES-1/3 ATSR (EURO V)
Brand: Könner & Söhnen
SKU: 4260405362363
Price: 91999.0 UAH
Availability: OutOfStock

Unavailable

₴91 999

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	6.5/6.0
Max/Nominal power (400V), kW:	7.5/7.0
Fuel tank volume, l:	20
Avg. working time (power 50%), h***:	11.1

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Avg. working time (power 50%), h***	11.1

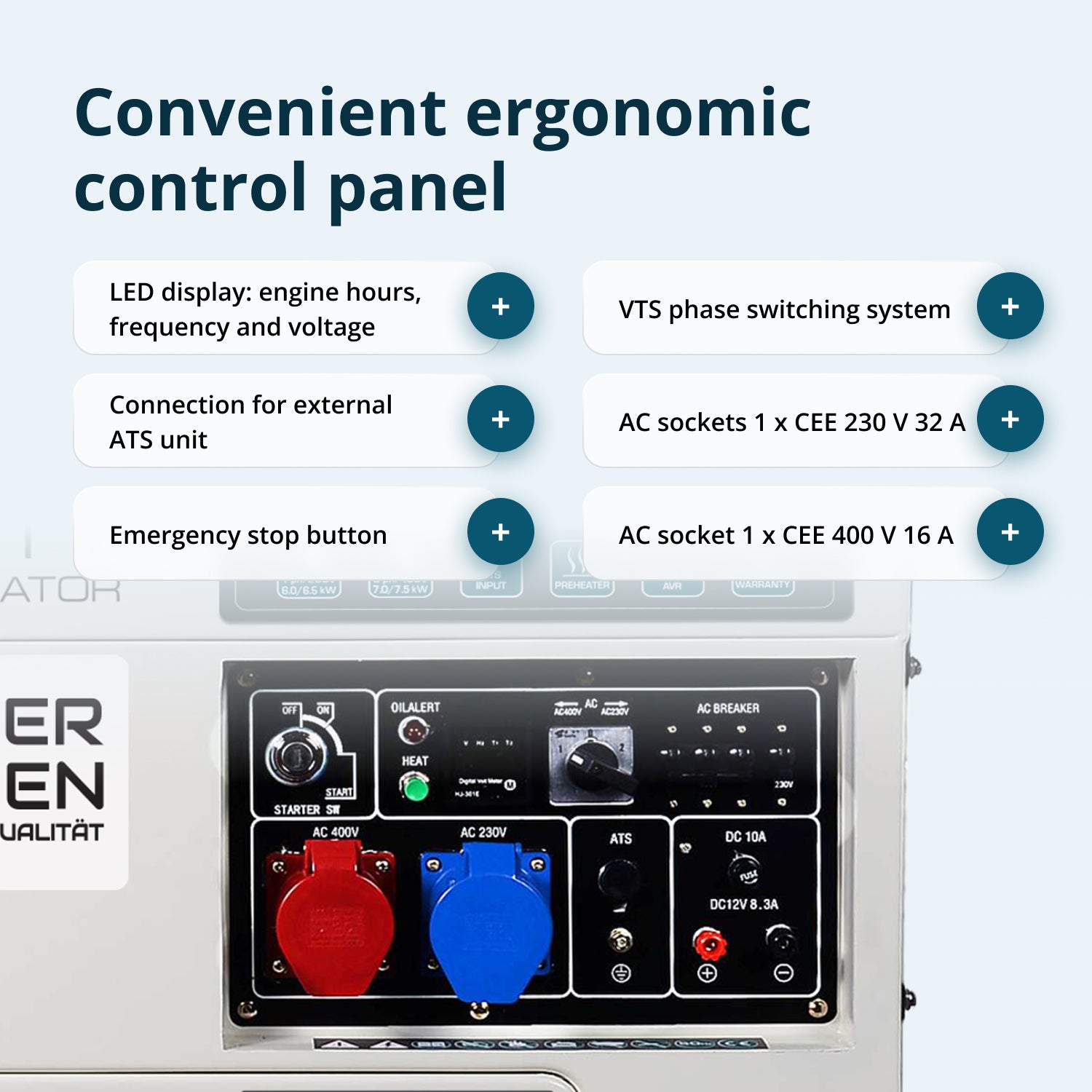

LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	69/94
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	20
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Output for ATS	+
Protection class	IP23M
Net dimensions (LxWxH), mm	900x545x905
Gross dimensions (LxWxH), mm	960x570x985
Net weight, kg	168
Gross weight, kg	178.0
SKU	KS 9200HDES-1/3 ATSR
Barcode	4260405362363

Variants

Max Power: 7.5 kW

5.5 kW 6.5 kW 7.5 kW

Benefits

The unique serial number on the engine ensures that you receive an original product with guaranteed quality
The VTS system makes the generator versatile for both household and industrial electrical devices
Compliance with European standards, including the modern environmental standard EURO V, minimizes the impact on the environment
The anti-vandal cover makes it more difficult to steal the generator
It features the capability to connect an ATS (automatic transfer switch) system

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Vts system

02 Branded engines

03 Automatic transfer switch

04 Increased warranty

05 Pre-start heating (preheater)

06 Housing

07 Transport wheels

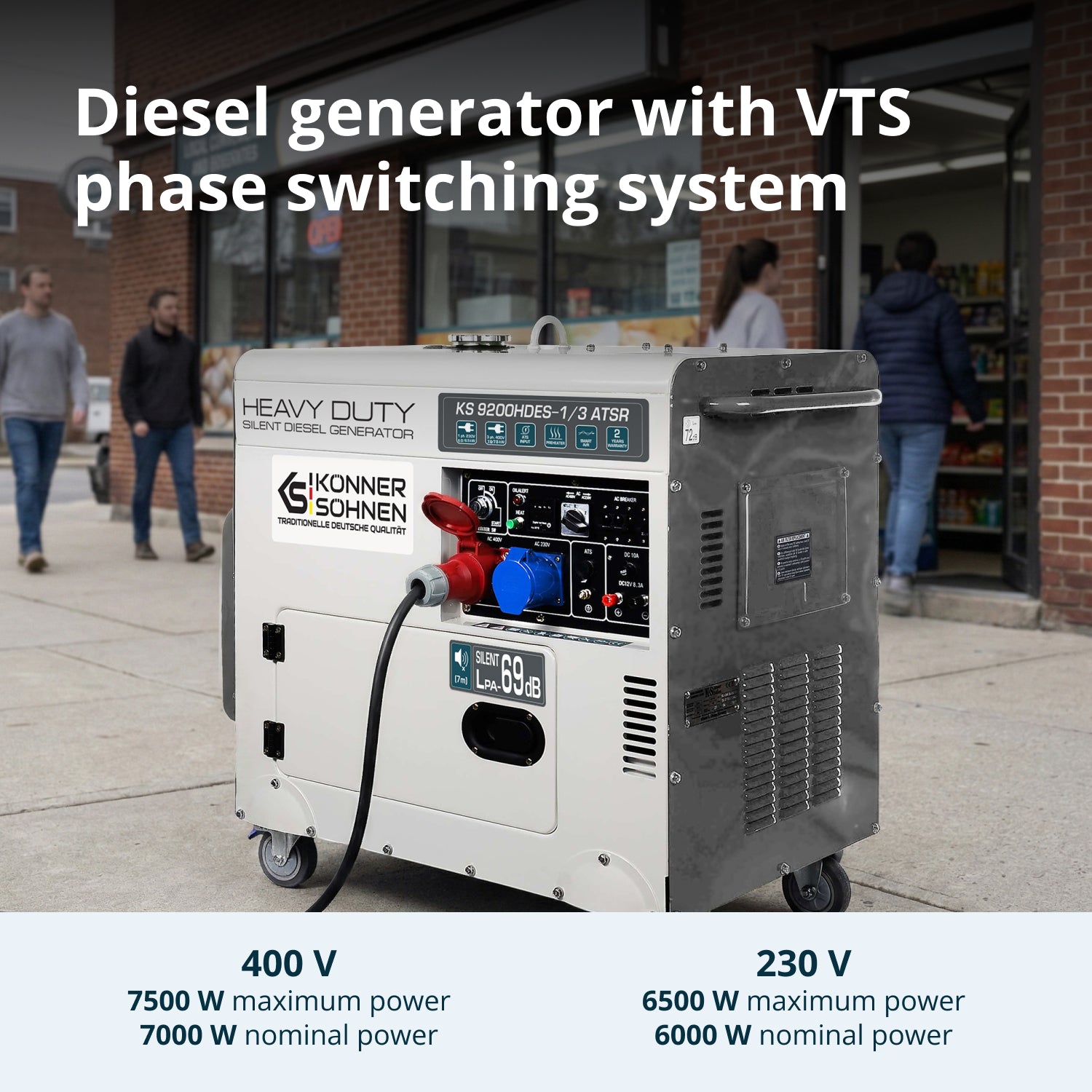

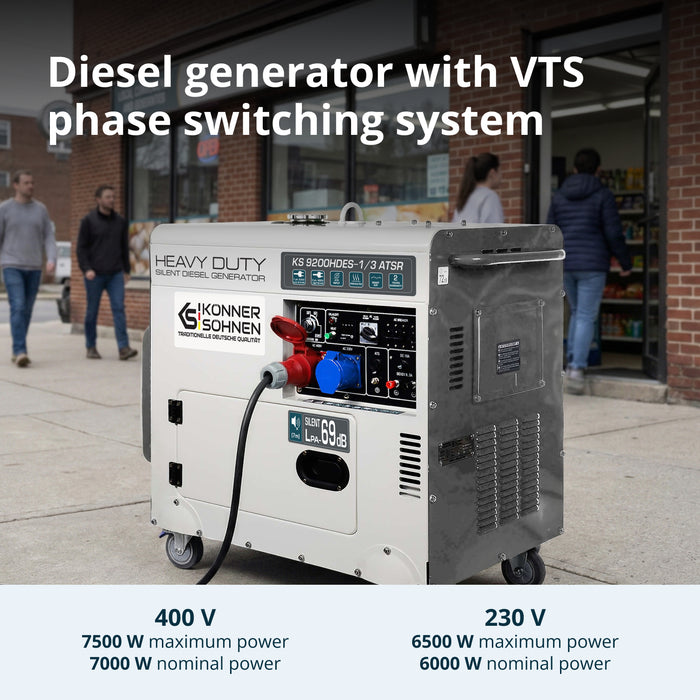

Vts system

Universal generators 2 in 1 with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own automatic protection. No need to buy two separate generators.

Branded engines

Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines comply with all international and European standards of quality, efficiency, environmental friendliness (including the level of harmful emissions and noise).

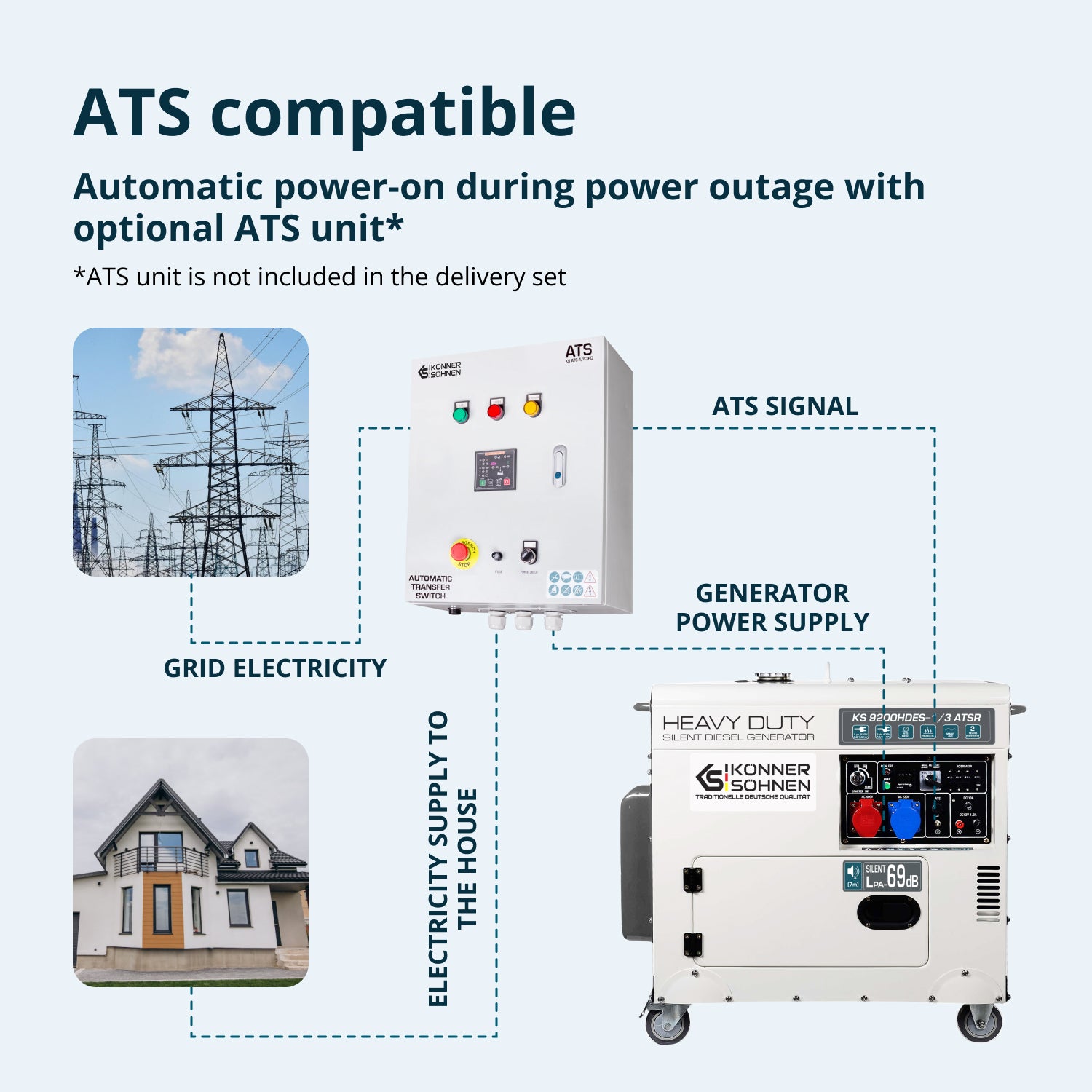

Automatic transfer switch

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Increased warranty

Heavy Duty series diesel generators have the extended warranty - 2 years or 2000 operating hours (whichever comes first). The extended warranty is subject to proper operation and scheduled maintenance by an authorised service centre after 1 year from the date of purchase (or after 1500 hours).

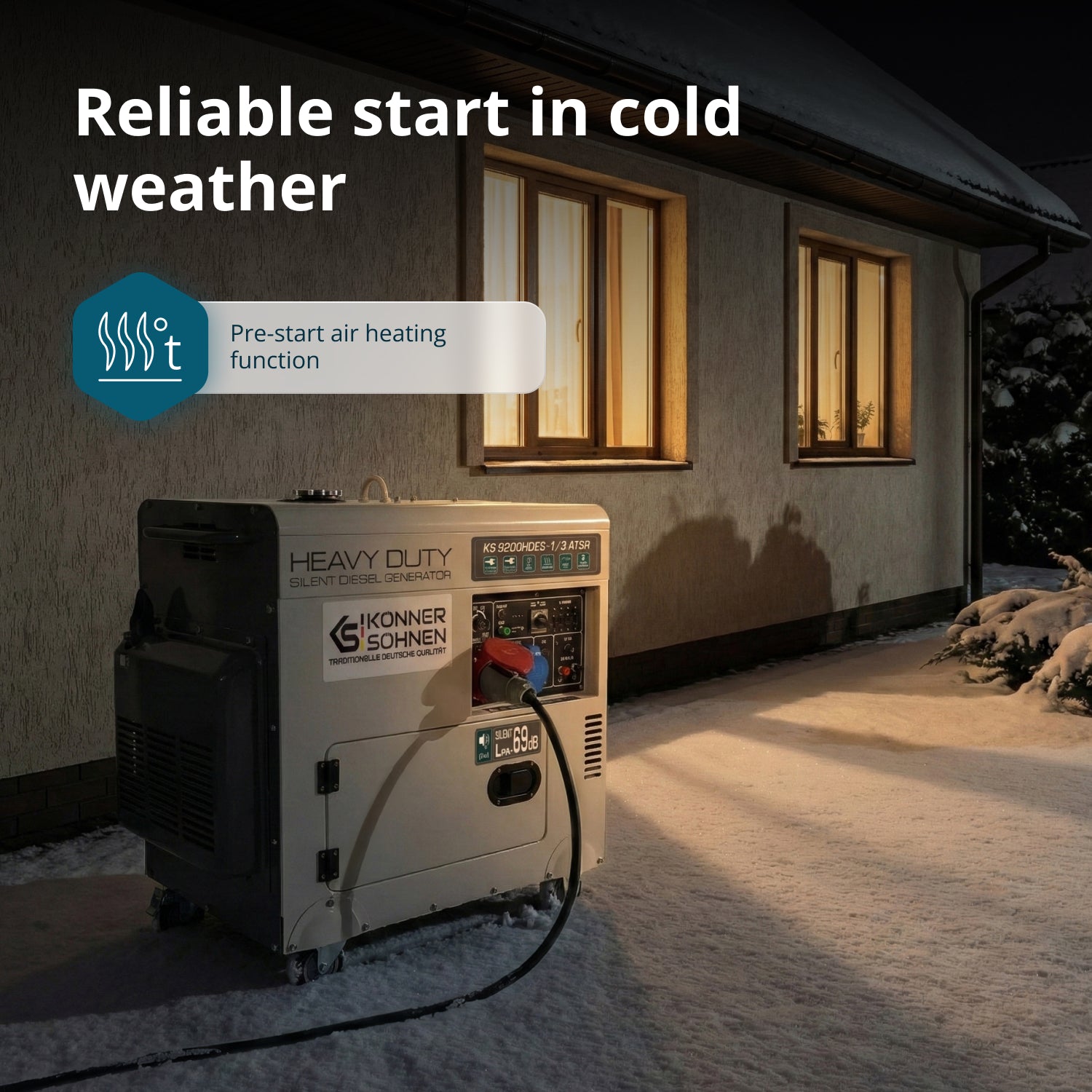

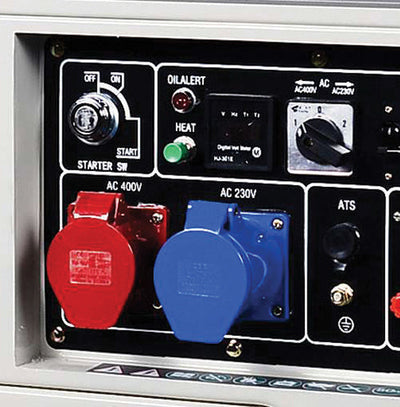

Pre-start heating (preheater)

Diesel generators series "HEAVY DUTY" are equipped with a pre-start heating function, which allows you to run the generator in the winter without much effort.

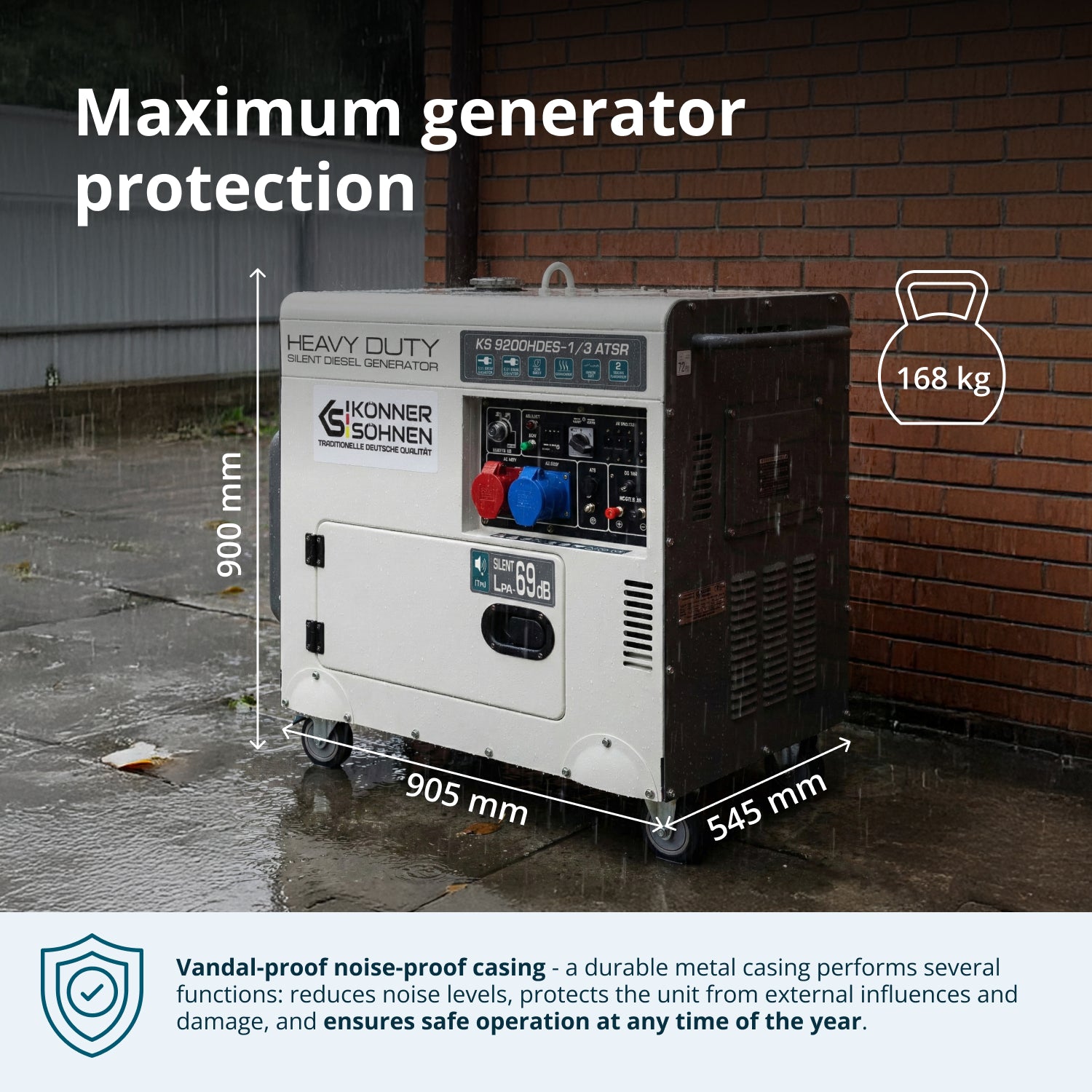

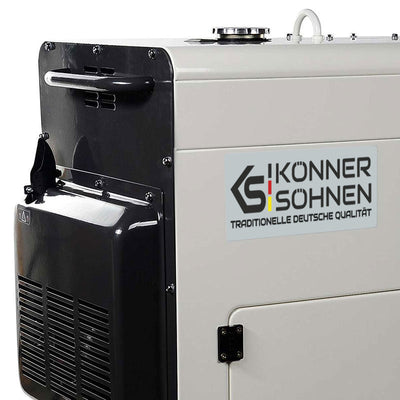

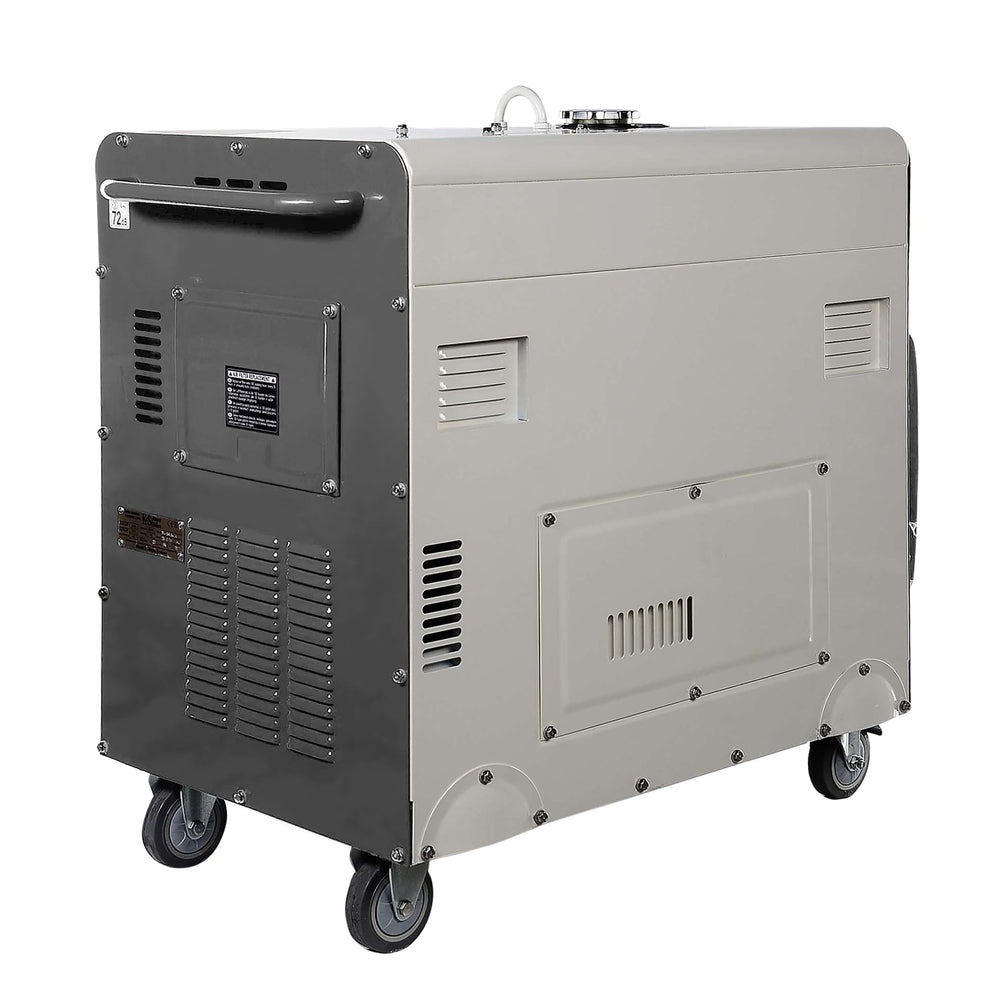

Housing

All-season, noise-absorbing, vandal-proof casing provides effective protection of the generator and prolongs its service life. The casing is equipped with handles and transport wheels for easy movement.

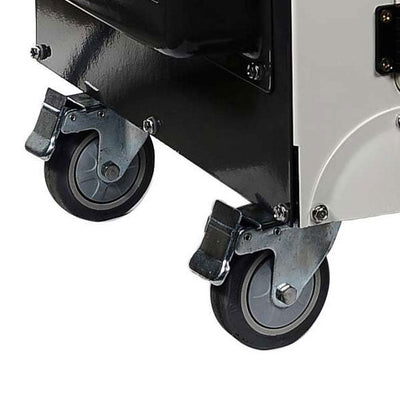

Transport wheels

The generator housing is equipped with a 4-wheel transport set for easy movement of the unit.

Specification

Diesel generator "Könner & Söhnen" KS 9200HDES-1/3 ATSR (EURO V)

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Avg. working time (power 50%), h***	11.1
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	69/94
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	20
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Output for ATS	+
Protection class	IP23M
Net dimensions (LxWxH), mm	900x545x905
Gross dimensions (LxWxH), mm	960x570x985
Net weight, kg	168
Gross weight, kg	178.0
SKU	KS 9200HDES-1/3 ATSR
Barcode	4260405362363

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
