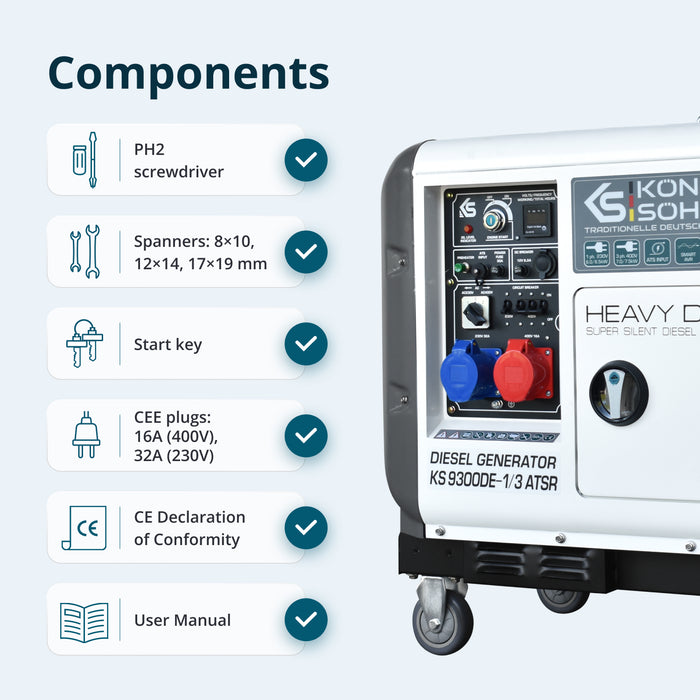

Diesel generator "Könner & Söhnen" KS 9300DE-1/3 ATSR (EURO V)

Diesel generator "Könner & Söhnen" KS 9300DE-1/3 ATSR (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 9300DE-1/3 ATSR (EURO V)
Brand: Könner & Söhnen
SKU: 4260405365210
Price: 101799.0 UAH
Availability: InStock

Available

₴101 799

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	6.5/6.0
Max/Nominal power (400V), kW:	7.5/7.0
Fuel tank volume, l:	15
Runtime at 50% load, h***:	8.3

Variants

Max Power: 7.5 kW

5.5 kW 6.5 kW 7.5 kW

Benefits

Guaranteed quality: you can be confident that you are purchasing a generator of the highest quality that will last for many years
Thanks to the pre-start heating, the generator can operate reliably in winter
The information on the display helps easily monitor the quality of the voltage output by the device
With its simple and intuitive control panel, you can easily operate the generator without specialized knowledge or skills
It features the capability to connect an ATS (automatic transfer switch) system.

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Branded engines

02 Vts system

03 Automatic transfer switch

04 Increased engine resource

05 the user-friendly ergonomic control panel

06 Increased warranty

07 Preheater function

08 Soundproof anti-vandal enclosure

09 Transport kit

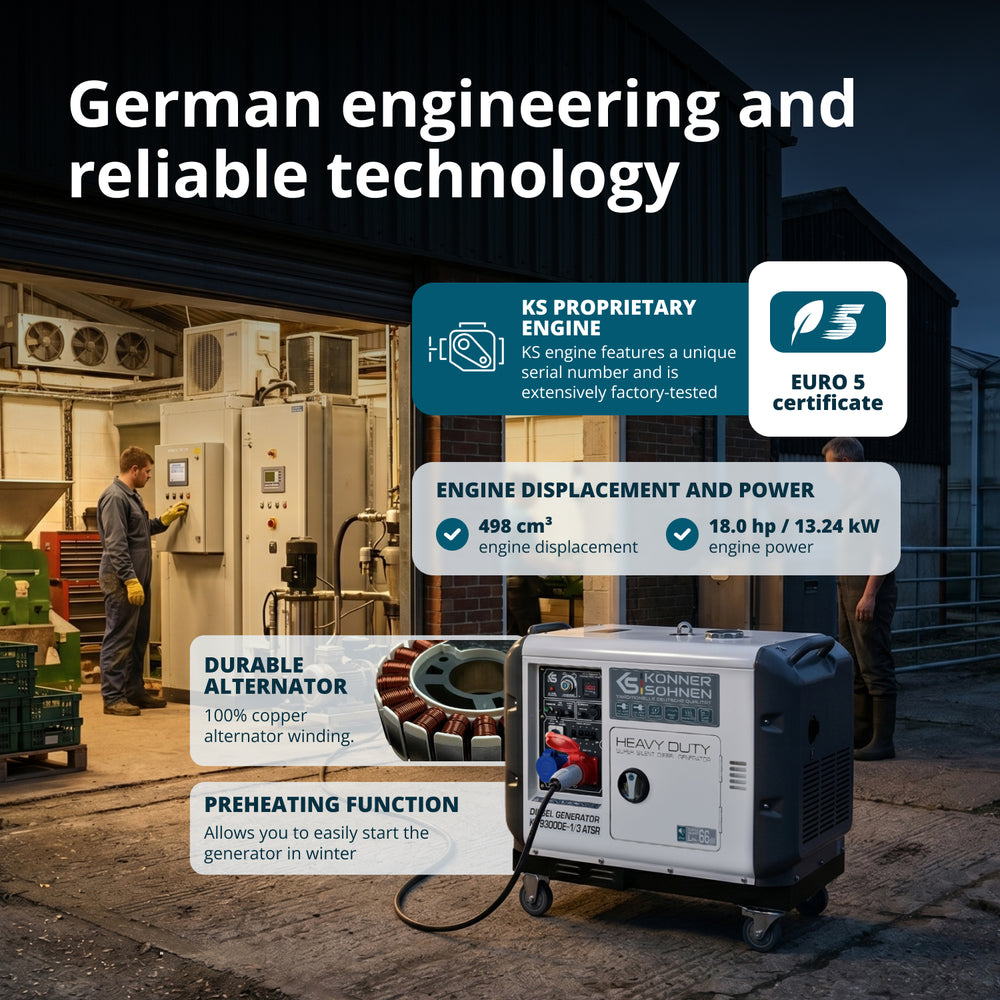

Branded engines

Engines for diesel generators, as well as for gasoline, are manufactured under license DIMAX Int. GmbH and are marked with their own brand with the logo. In all models, the power reserve of the engine in relation to the alternator allows you to issue the declared voltage and maintain its stability in the full range of voltages. All engines are tested for long continuous operation, and then disassembled and examined for faults. Each engine and each generator has an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the modern EURO-V environmental standard.

Vts system

Unique VTS phase switching system allows using a single generator both in single-phase (230 V) and three-phase mode (400 V) with almost no power loss.

Automatic transfer switch

6-pin connector for an external ATS unit ensures automatic generator start-up and shutdown and maintains the charge of the generator battery in standby mode.

Increased engine resource

Könner & Söhnen® diesel generators of the "HEAVY DUTY" series have an increased motor resource - so they have a longer service life, can work for more hours without a break. The engine resource exceeds 3000 working hours, this is confirmed by multi-hour, multi-level tests and warranty. To show high performance, machines should be maintained properly.

the user-friendly ergonomic control panel

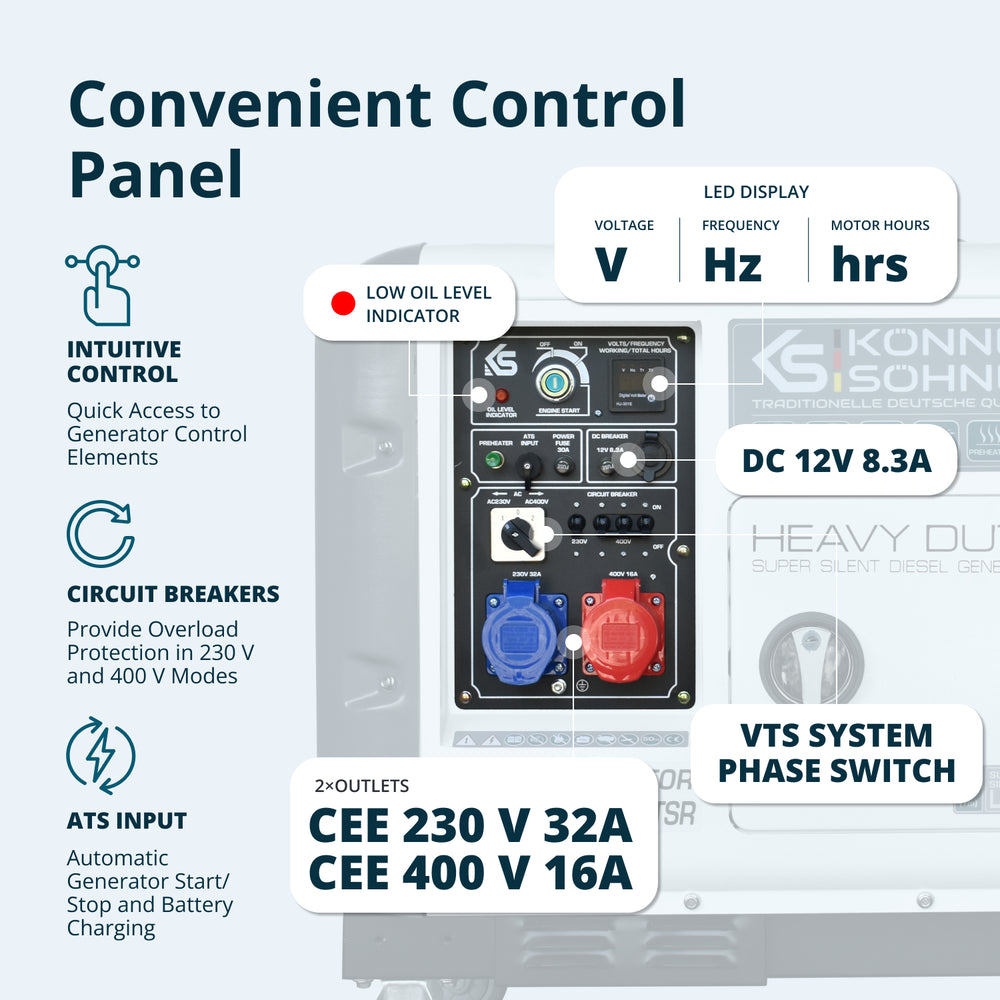

Ergonomic control panel allows easy operation of the generator thanks to the convenient location of the controls and connections: modern LED display (voltage, frequency, hour meter), automatic overload and short circuit protection, low oil level indicator, sockets, grounding bolt, terminals, etc.

Increased warranty

Heavy Duty series diesel generators have the extended warranty - 2 years or 2000 operating hours (whichever comes first). The extended warranty is subject to proper operation and scheduled maintenance by an authorised service centre after 1 year from the date of purchase (or after 1500 hours).

Preheater function

All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.

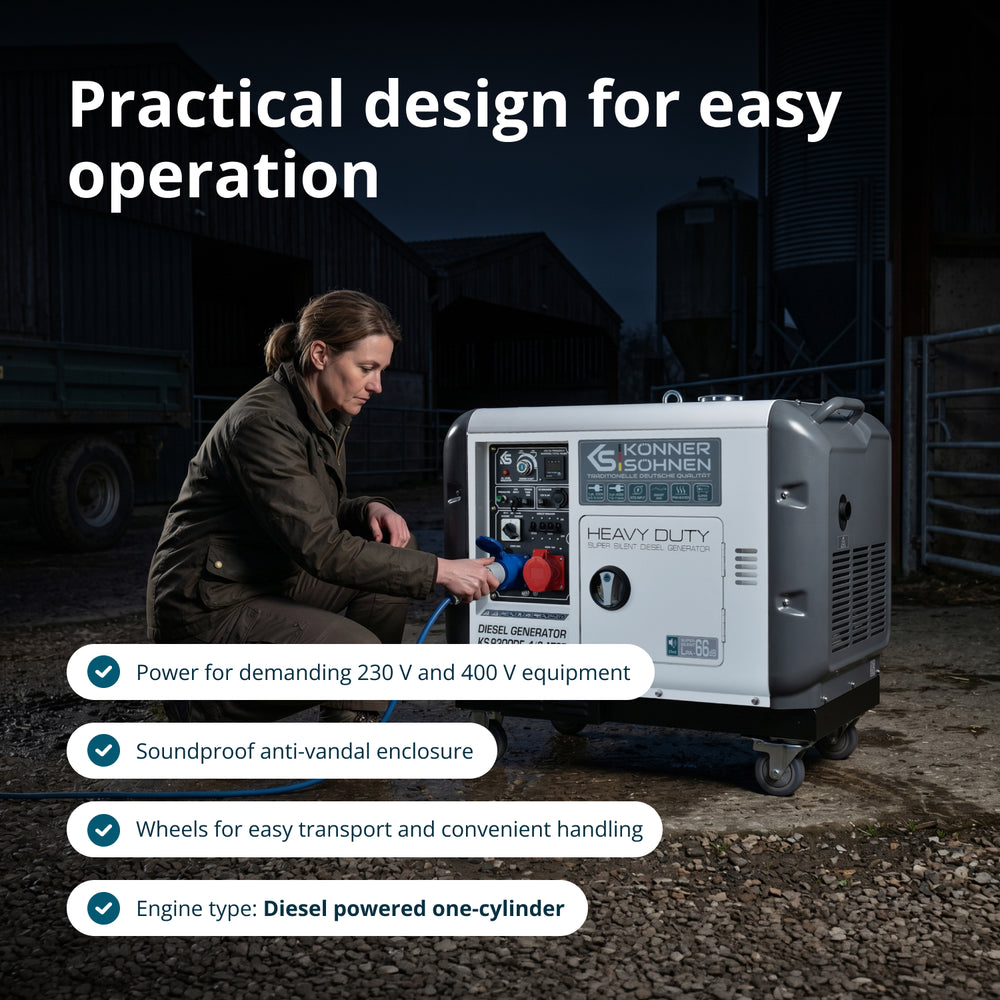

Soundproof anti-vandal enclosure

Anti-vandal enclosure provides a more efficient heat distribution inside the generator, which extends its service life.

Transport kit

The generator casing is equipped with a transport kit consisting of 4 wheels and 2 handles for easy handling.

Specification

Diesel generator "Könner & Söhnen" KS 9300DE-1/3 ATSR (EURO V)

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Runtime at 50% load, h***	8.3
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	66/91
Power output DC, V/А	12/8.3
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	15
Crank case volume, l	1.65
Engine cylinder volume, cm3	498

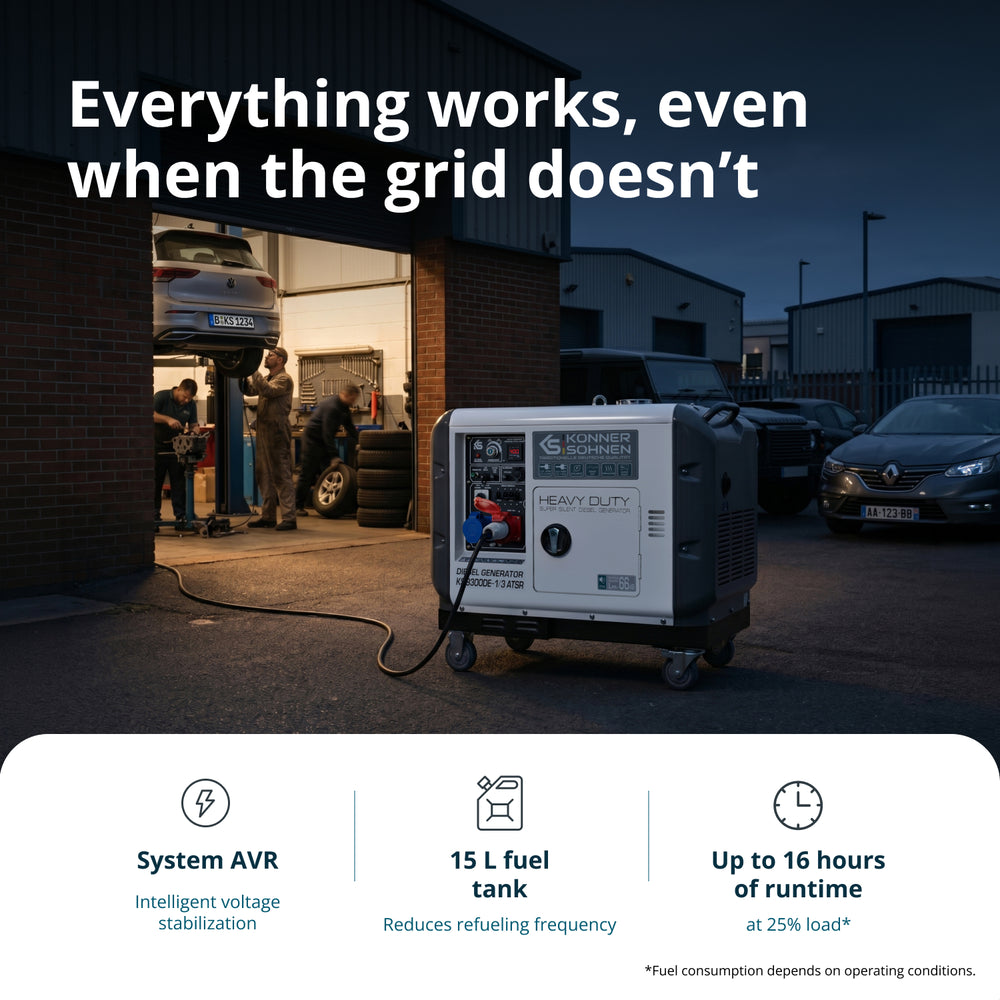

Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Output for ATS	+
Protection class	IP23M

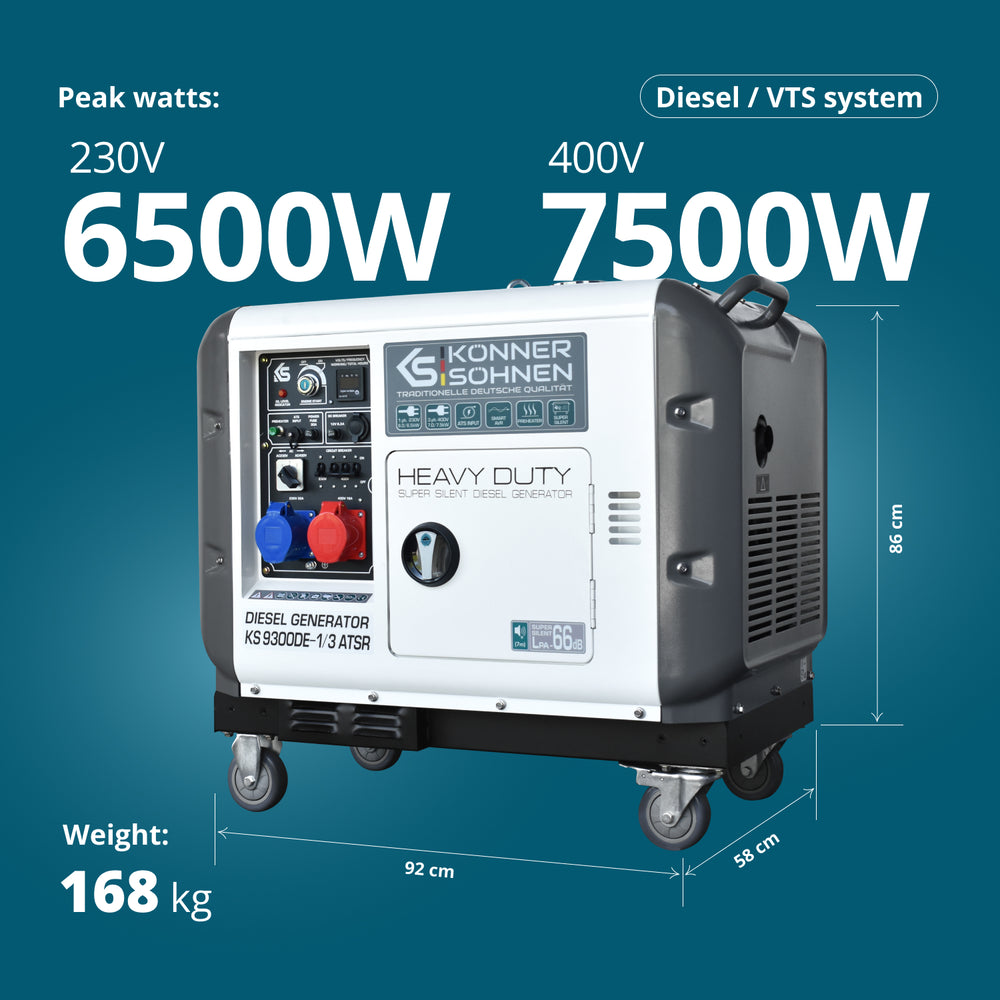

Net dimensions (LxWxH), mm	920 x 580 x 860
Gross dimensions (LxWxH), mm	940 х 600 х 880
Net weight, kg	168
Gross weight, kg	180.0
SKU	KS 9300DE-1/3 ATSR
Barcode	4260405365210

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
