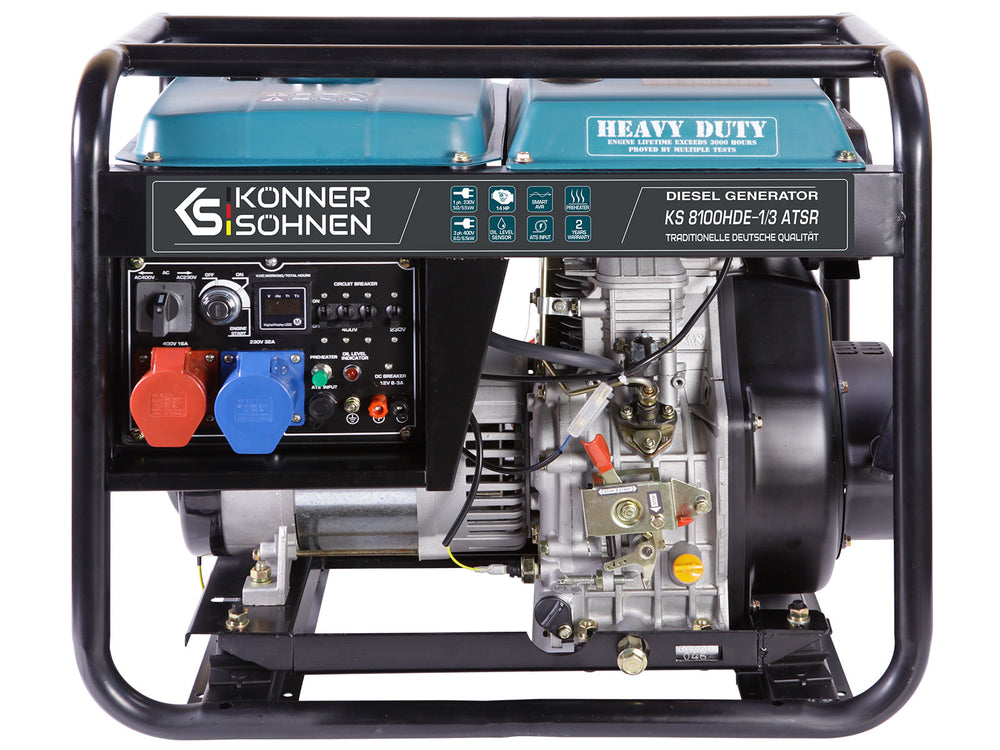

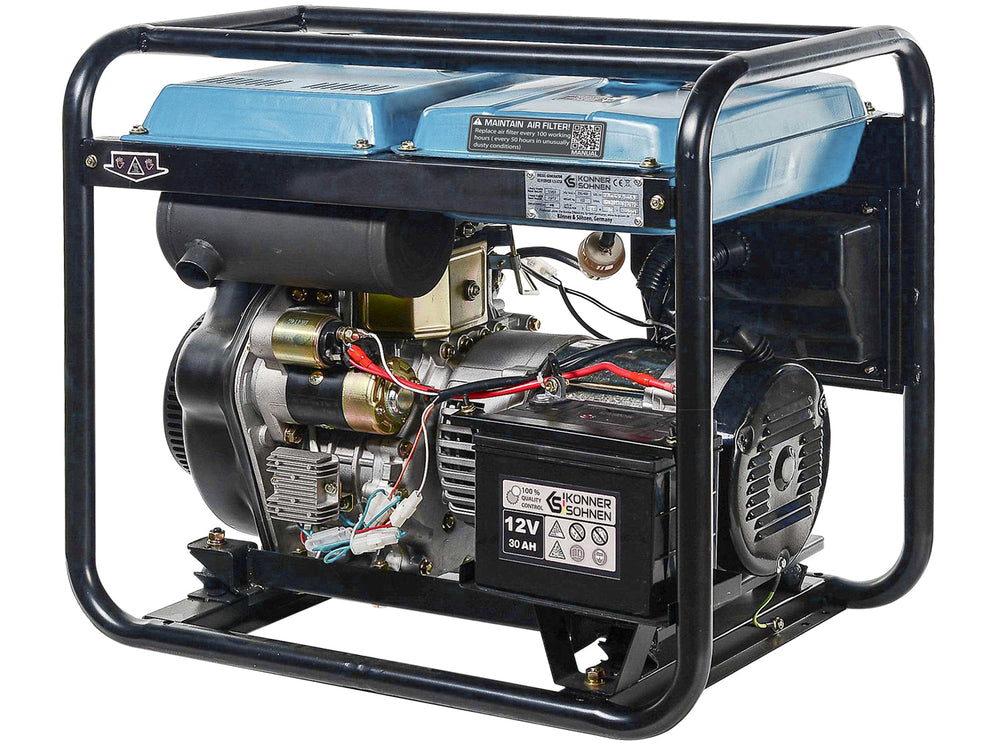

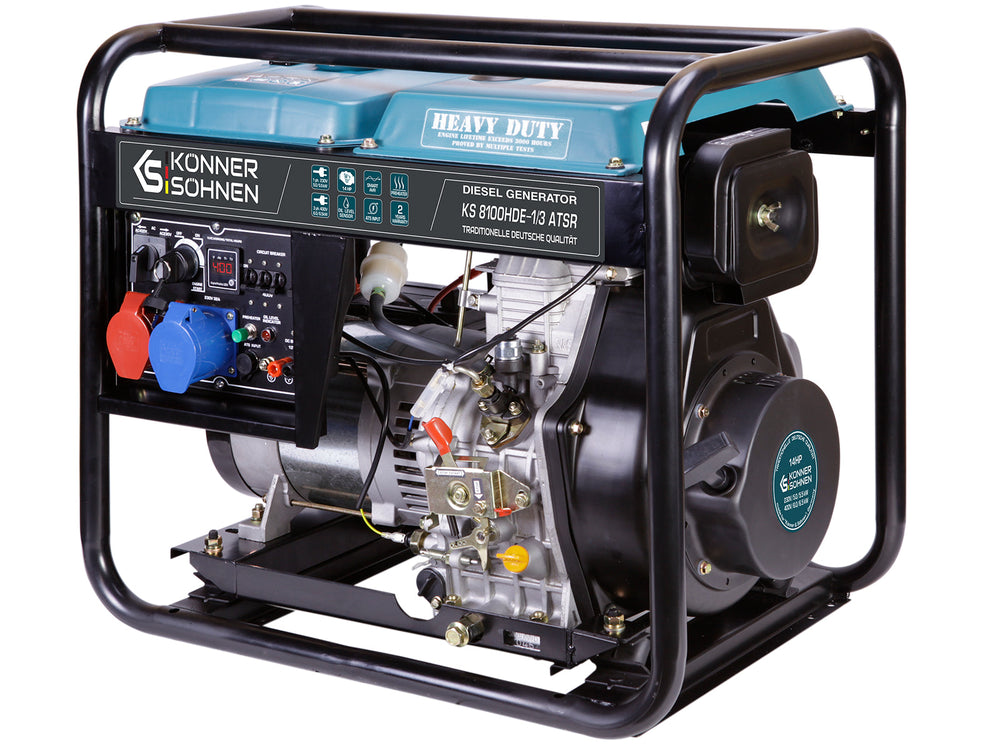

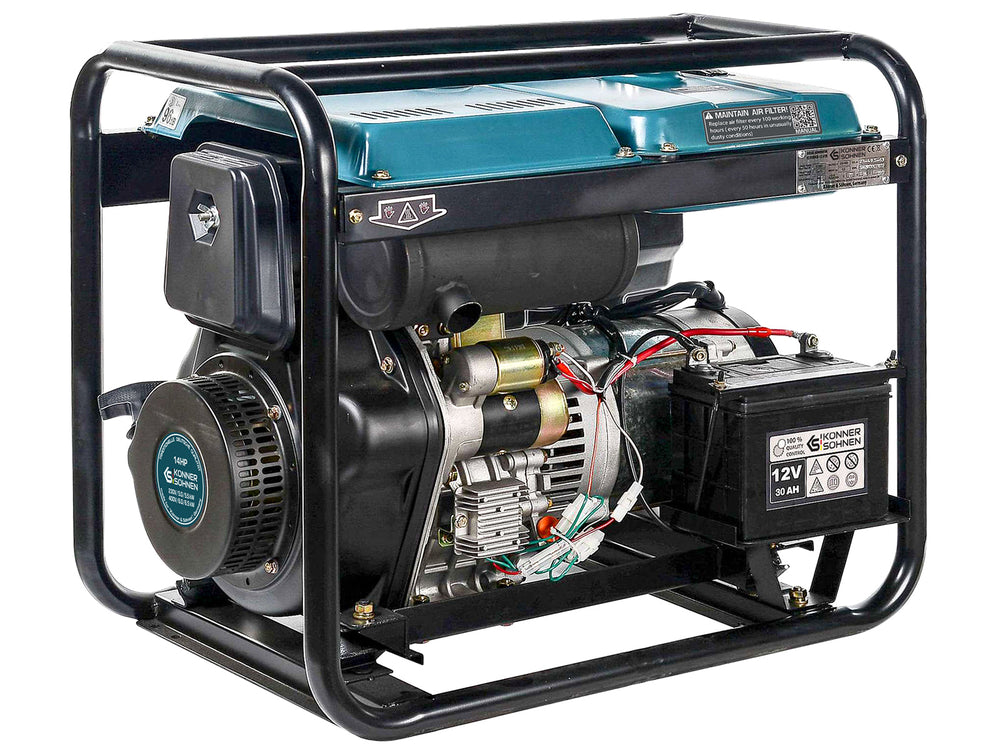

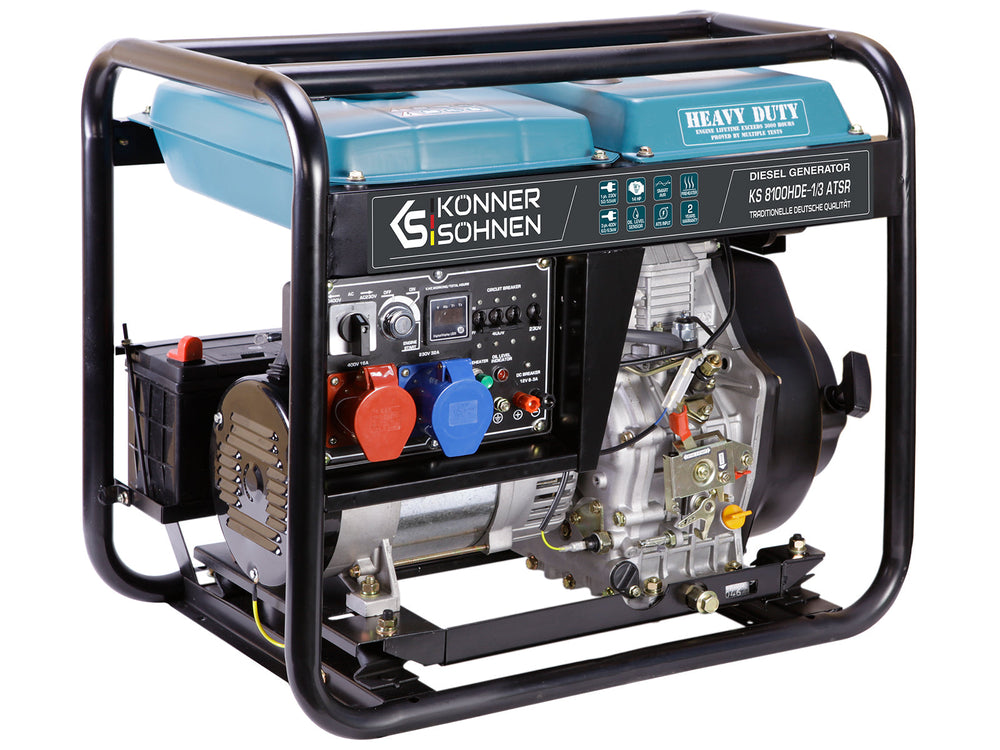

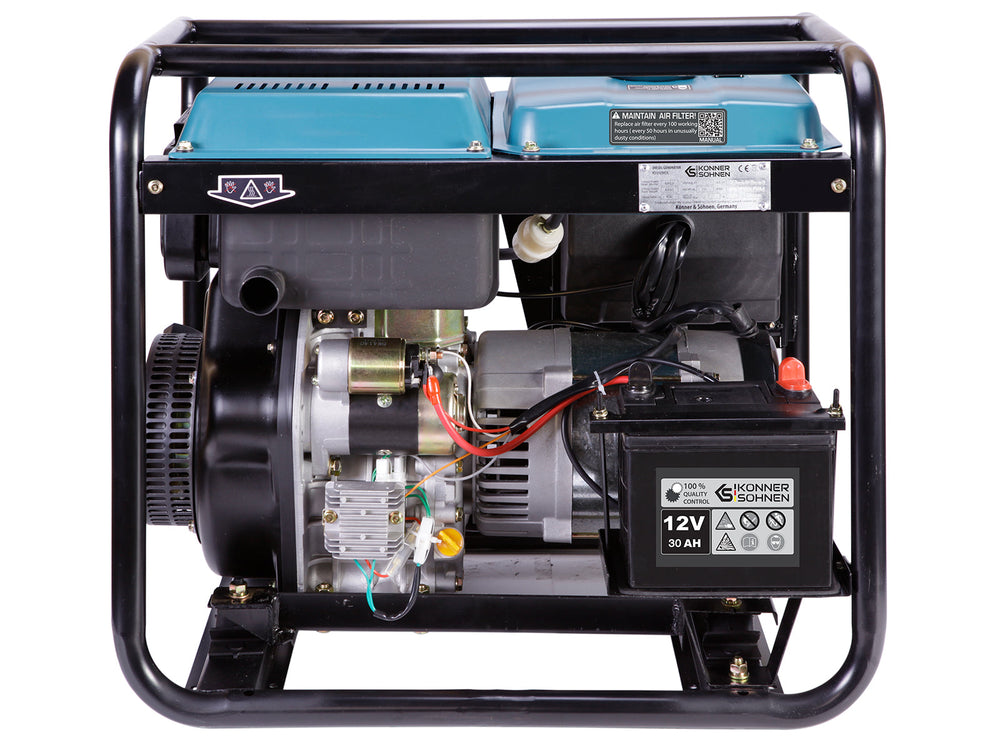

Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)

Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)
Brand: Könner & Söhnen
SKU: 4260405362202
Price: 69599.0 UAH
Availability: InStock

Available

₴69 599

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	5.5/5.0
Max/Nominal power (400V), kW:	6.5/6.0
Fuel tank volume, l:	11
Avg. working time (power 50%), h***:	6.9

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	5.5/5.0
Max/Nominal power (400V), kW	6.5/6.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	23.91/11.74
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Avg. working time (power 50%), h***	6.9
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 480HD-V
Engine power, hp/kW	14.0/10.3
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	456
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	+
Protection class	IP23M
Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	750×550×670
Net weight, kg	117
Gross weight, kg	125.0
SKU	KS 8100HDE-1/3 ATSR
Barcode	4260405362202

Variants

Max Power: 6.5 kW

5.5 kW 6.5 kW 7.5 kW

Benefits

The engine can operate up to 3000 hours, which is significantly more than most other generators
Before starting the generator, the pre-start heating function is activated, allowing for quicker startup
It features the capability to connect an ATS (automatic transfer switch) system.
Intuitive buttons on the control panel make operating the generator simple and straightforwardconnected devices will operate without the risk of damage
Long service life: due to their resistance to damage, generators with reinforced frames have a longer lifespan

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Könner & söhnen engines

02 VTS system

03 Automatic transfer switch

04 Increased engine resource

05 Ergonomic control panel

06 Increased warranty

07 Preheater function

08 Avr

09 Enforced frame

10 Dampers to lower vibration

11 Accessories set

12 Optional KS 6-9D KIT

Könner & söhnen engines

Engines for both diesel and gasoline generators are manufactured under the license of DIMAX Int. GmbH and are marked with K&S logo. High power of engines in relation to the alternator allows to receive the declared power output and maintain stable work at any load. All engines are tested for continuous operation, and then disassembled and examined for trouble-shooting purposes. Each engine and each generator have an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the latest EURO V emission standards.

VTS system

Universal generators 2 in 1 with a unique phase switching system VTS (Voltage Transfer Switch), which allows you to use one generator as a single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own automatic protection. No need to buy two separate generators.

Automatic transfer switch

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Increased engine resource

Könner & Söhnen® diesel generators of the "HEAVY DUTY" series have an increased motor resource - so they have a longer service life, can work for more hours without a break. The engine resource exceeds 3000 working hours, this is confirmed by multi-hour, multi-level tests and warranty. To show high performance, machines should be maintained properly.

Ergonomic control panel

Convenient and ergonomic generator's control panel allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintain the generator, extending the operation life.

Increased warranty

Heavy Duty series diesel generators have the extended warranty - 2 years or 2000 operating hours (whichever comes first). The extended warranty is subject to proper operation and scheduled maintenance by an authorised service centre after 1 year from the date of purchase (or after 1500 hours).

Preheater function

All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.

Avr

“Könner & Söhnen” series diesel generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the voltage at a constant value of 230 V and protects against unwanted short circuits.

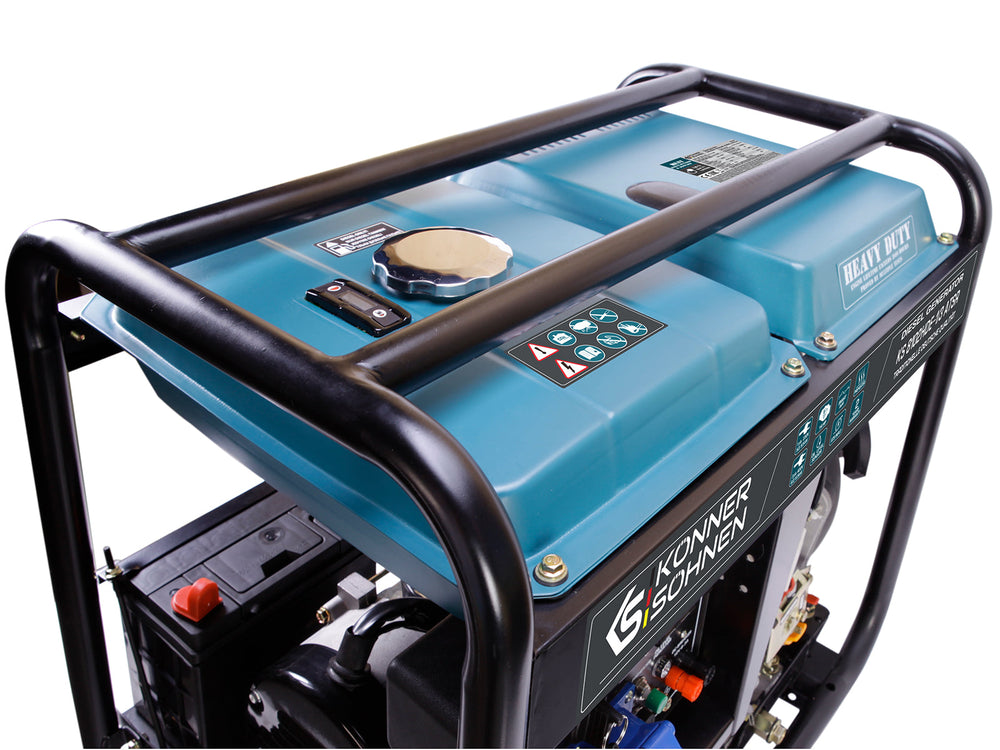

Enforced frame

Additional frame reinforcement with the upper protective strips allows HEAVY DUTY professional series generators to operate in a more rigid mode. The reinforced frame structure protects the tank against damage during operation and transportation.

Dampers to lower vibration

All models of Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. The working generator will not damage the floor covering, and the frame coating will not be scratched.

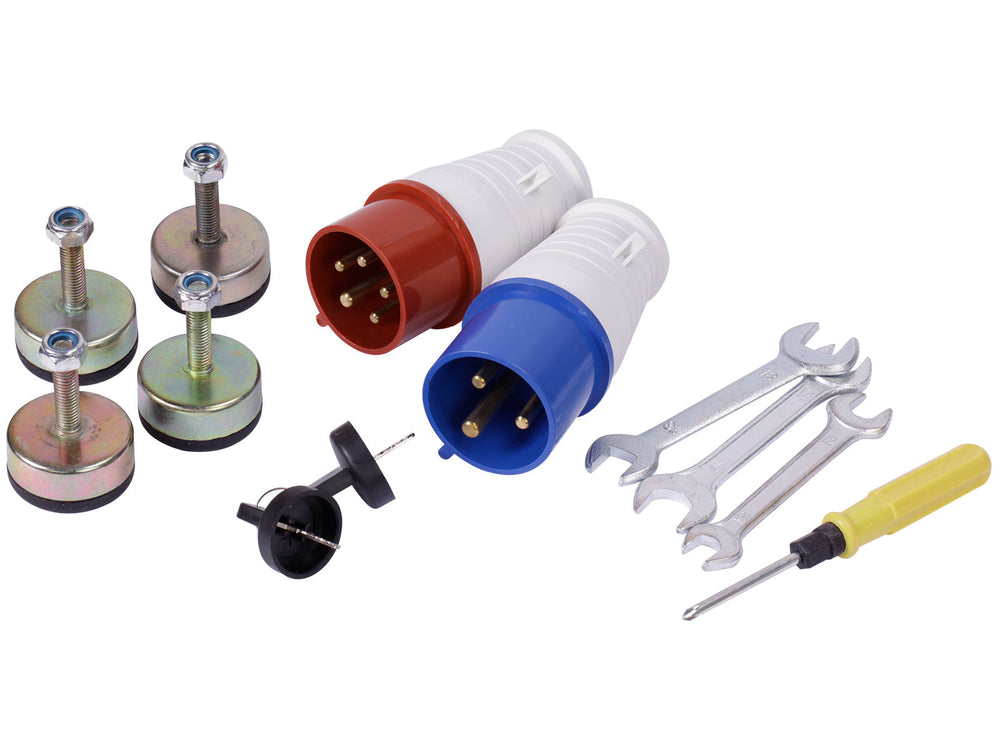

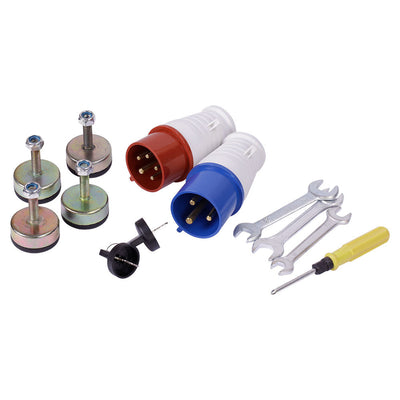

Accessories set

Generator is equipped with additional accessories: a portable 3Р+Е+N 16A 400V power plug, a portable 2P+Е 32A 230V power plug, a 8x10mm hook key, 12x14mm and 17x19mm keyholes and a two way 6.0mm PH2 screwdriver.

Optional KS 6-9D KIT

Transportation kit KS 6-9D KIT includes: wheels – 4 pcs.

Specification

Diesel generator "Könner & Söhnen" KS 8100HDE-1/3 ATSR (EURO V)

Voltage, V	230/400
Max/Nominal power (230V), kW	5.5/5.0
Max/Nominal power (400V), kW	6.5/6.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	23.91/11.74
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Avg. working time (power 50%), h***	6.9
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 480HD-V
Engine power, hp/kW	14.0/10.3
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	456
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	+
Protection class	IP23M
Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	750×550×670
Net weight, kg	117
Gross weight, kg	125.0
SKU	KS 8100HDE-1/3 ATSR
Barcode	4260405362202

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
