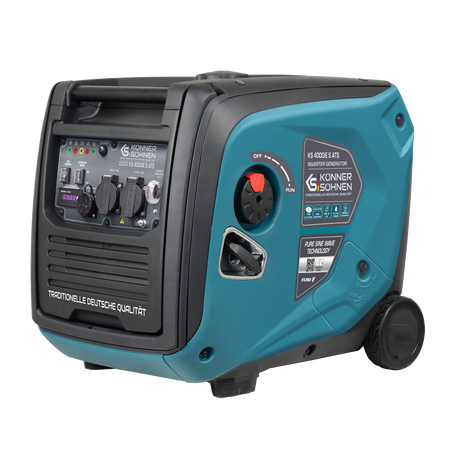

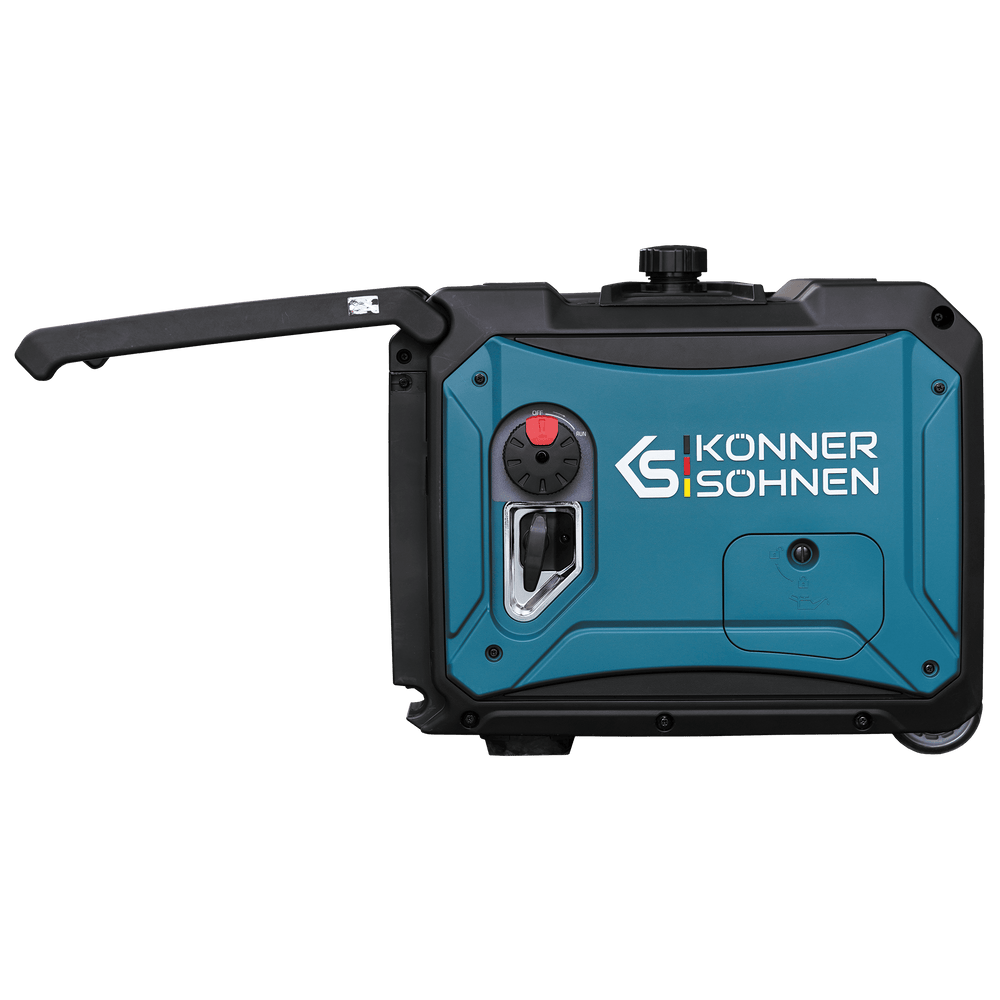

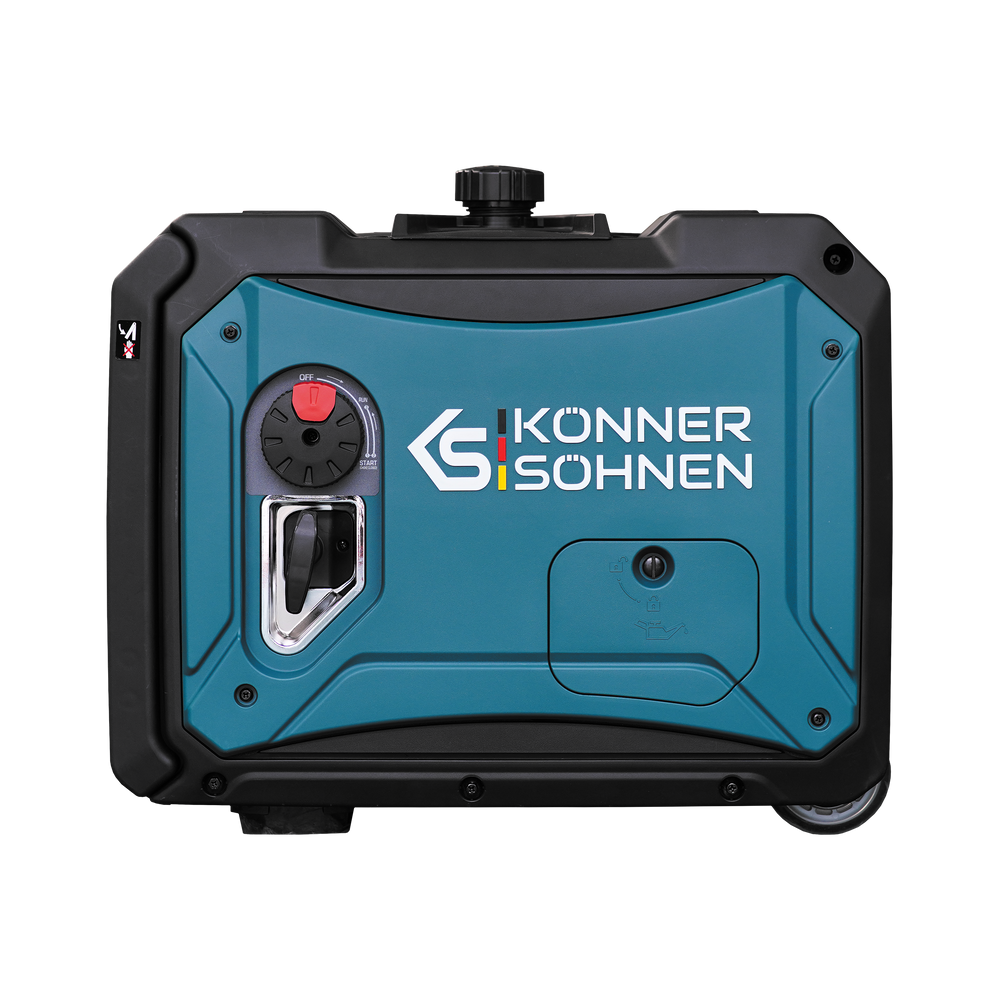

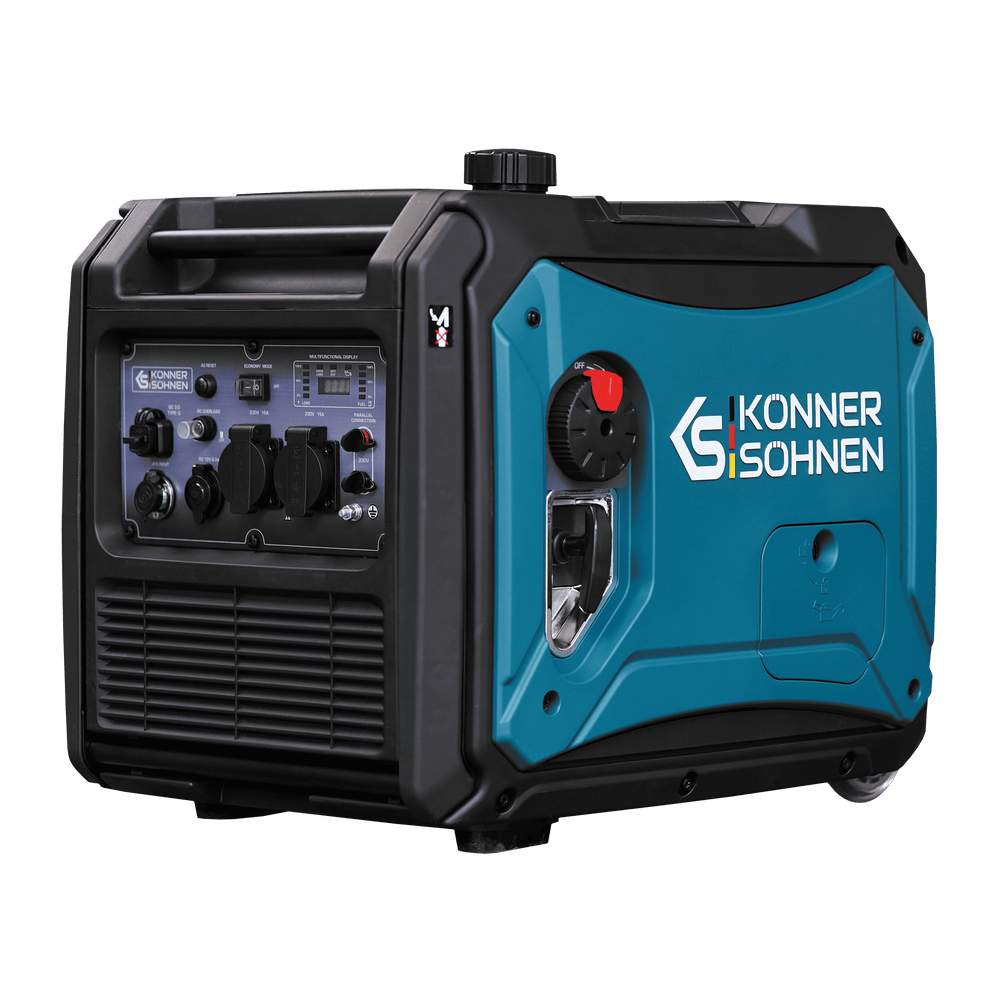

Inverter generator KS 4000iE S

Name: Inverter generator KS 4000iE S
Brand: Könner & Söhnen
SKU: 4260405363377
Price: 48509.0 UAH
Availability: OutOfStock

Unavailable

₴48 509

Specification

Max power, kW:	4.0
Nominal power, kW:	3.5

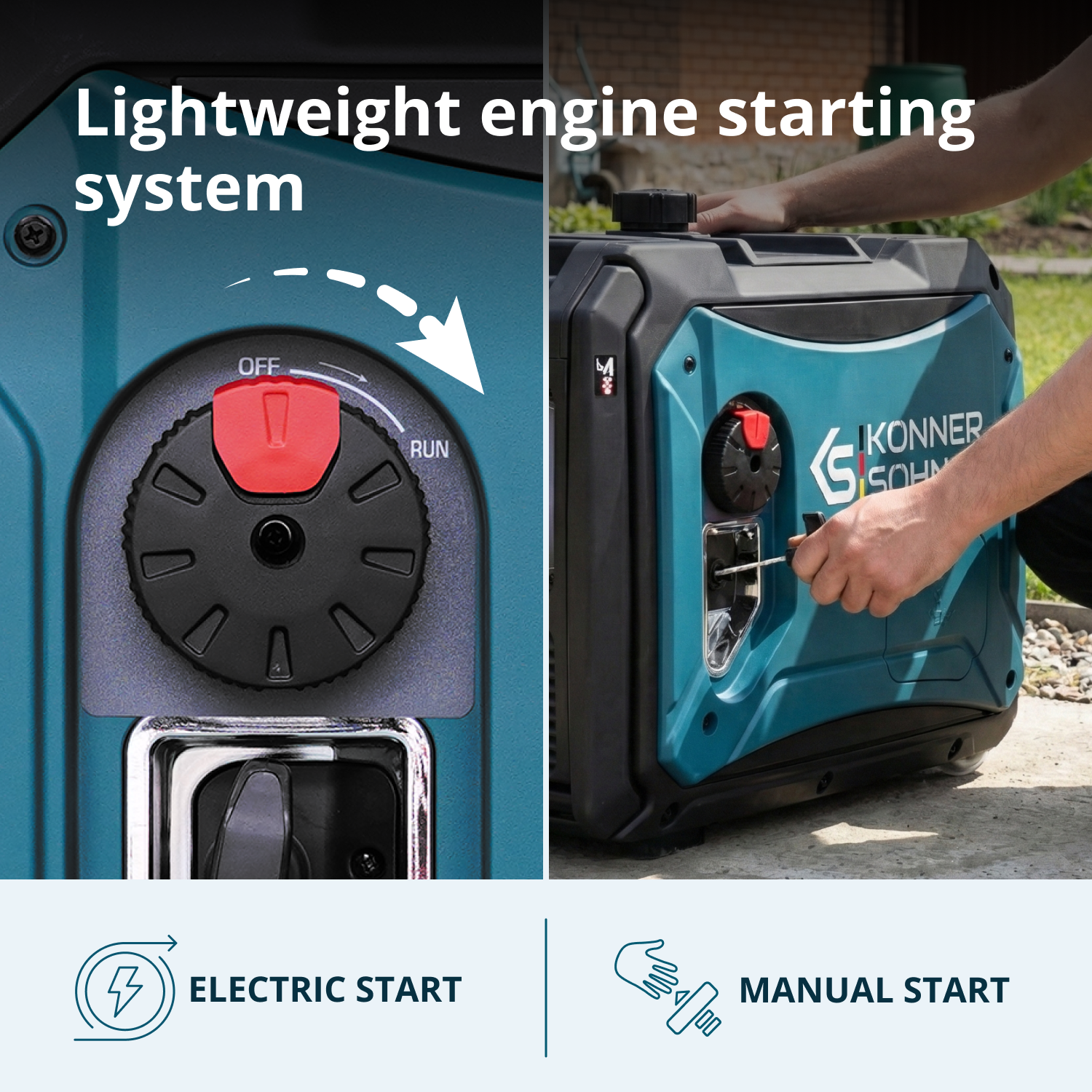

Engine start:	Manual/electric
Outlets:	2 x Schuko 230 V
Voltage, V:	230

Specification

Voltage, V	230
Max power, kW	4.0
Nominal power, kW	3.5
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	17.4
Outlets	2 x Schuko 230 V
Engine start	Manual/electric
Fuel tank volume, l	12
Avg. working time (power 50%), h***	7.8
LED display	Load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator.
Noise level Lpa (7m)/Lwa, dB	66/91
Power output DC, V/А	12V/8.3A
USB-Outputs	-
Engine model	KS 240i
Engine cylinder volume, cm3	223
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	7.5
Possibility of parallel connection	+
Output for ATS	+
Crank case volume, l	0.6
Accumulator (A·h)	1.6
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	620х440х510
Gross dimensions (LxWxH), mm	630х475х570
Net weight, kg	40
Gross weight, kg	43.4
SKU	KS 4000iE S
Barcode	4260405363377

Variants

Max Power: 4.0 kW

2.0 kW 3.1 kW 4.0 kW 5.5 kW 8.5 kW

Benefits

Ease of use with an electric starter, ensuring simple engine ignition
Cost-effective: The fuel-saving mode reduces fuel consumption by up to 50%
High efficiency: The brushless alternator with 100% copper windings provides maximum energy conversion efficiency
Versatile connectivity: Includes a 12-volt outlet for connecting low-voltage devices
Mobility: The generator is equipped with transport wheels, allowing for quick relocation to the working area

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

01 Pure sine wave

02 Robust engine

03 Economy mode

04 6-in-1 multifunction led display

05 Ergonomic control panel

06 Low noise level

07 High quality alternator

08 Parallel connection

09 Transportation kit

10 Additional accessories

11 Automatic transfer switch

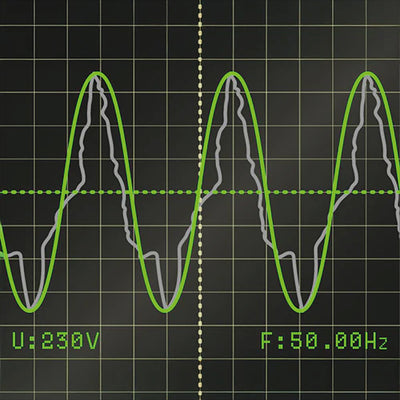

Pure sine wave

The built-in electronic unit with microprocessor control monitors the operation of the generator and provides a stable output voltage of 230V 50Hz sinusoidal form, which is suitable for the reliable operation of sensitive electronics.

Robust engine

The Könner & Söhnen reliable engine is characterized by increased durability, long and stable operation, and meets all European quality standards, including EURO V.

Economy mode

The ergonomic control panel is equipped with a fuel economy mode switch. This mode reduces fuel consumption by up to 50% at small loads due to lower engine revolutions.

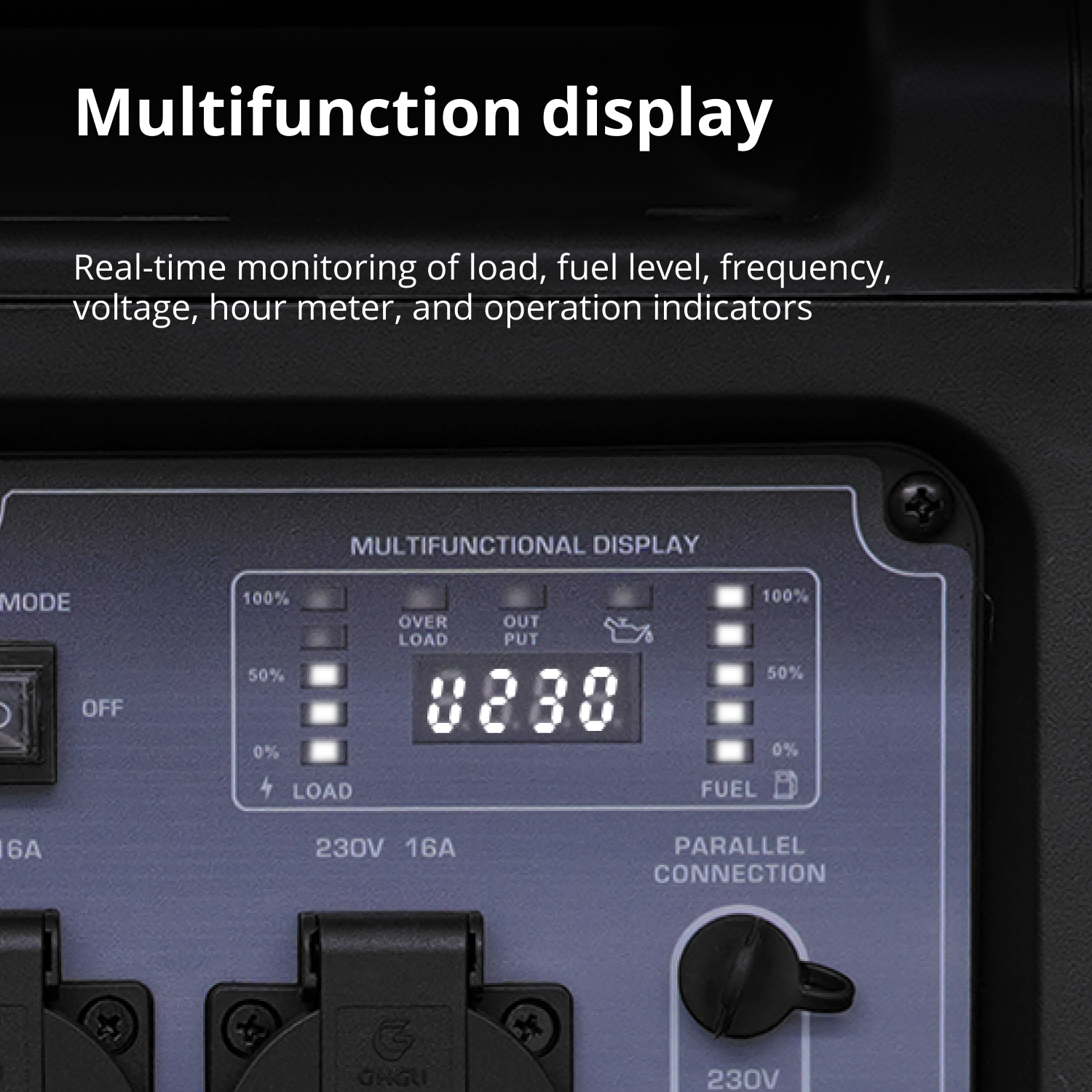

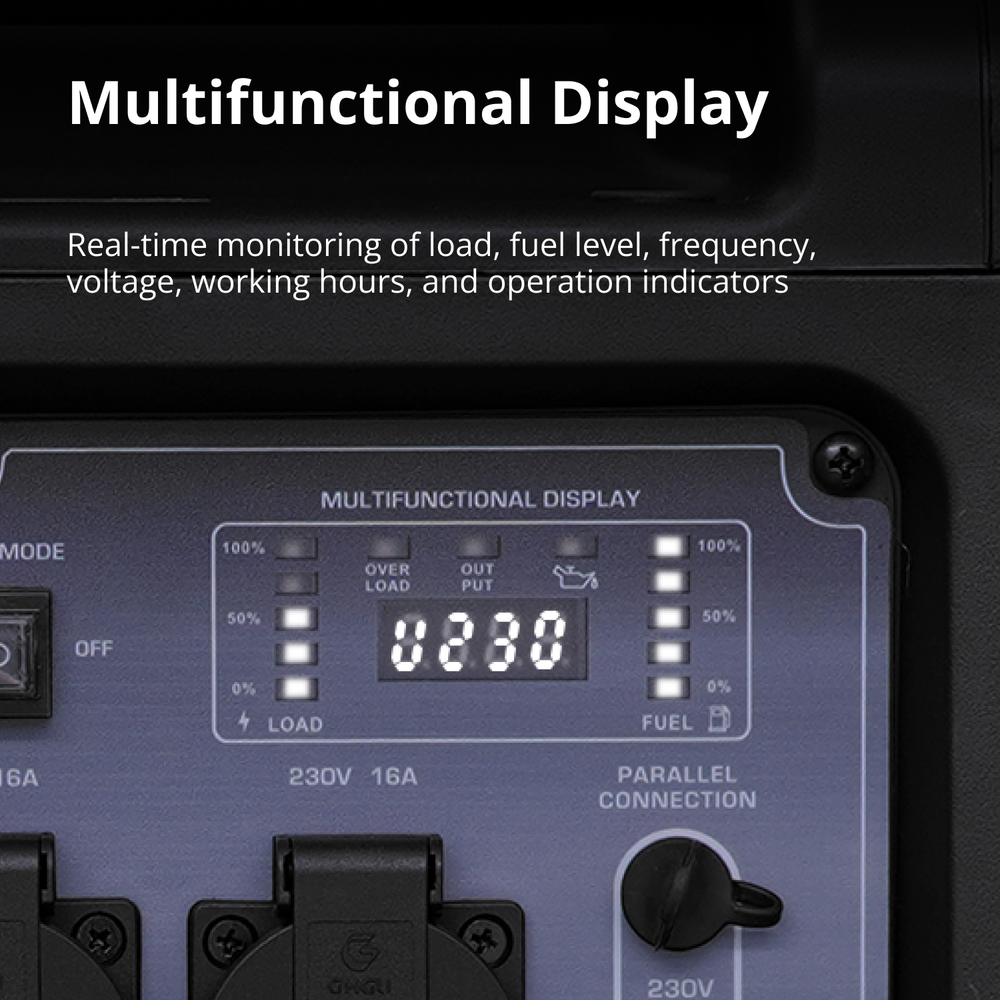

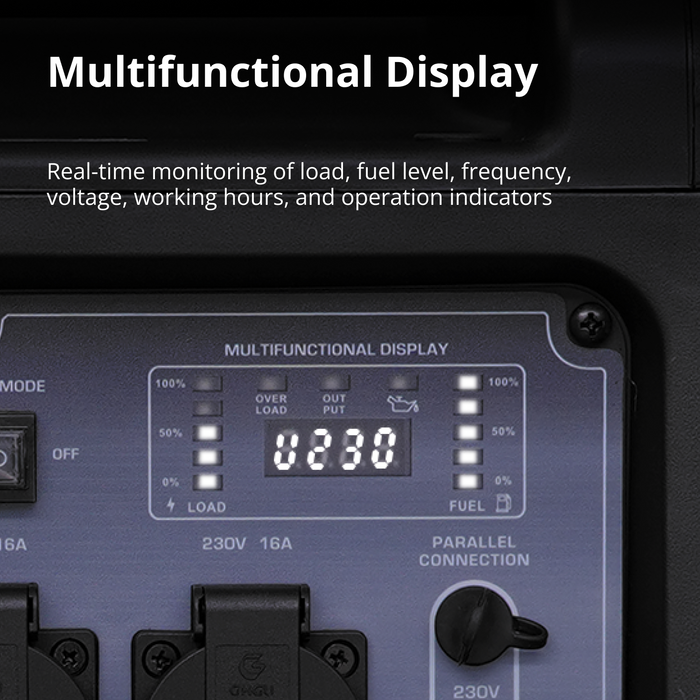

6-in-1 multifunction led display

The 6-in-1 multifunction LED display has the following indicators: load indicator, fuel level indicator, hour meter, voltage, frequency, oil level indicator, overload indicator, working mode indicator.

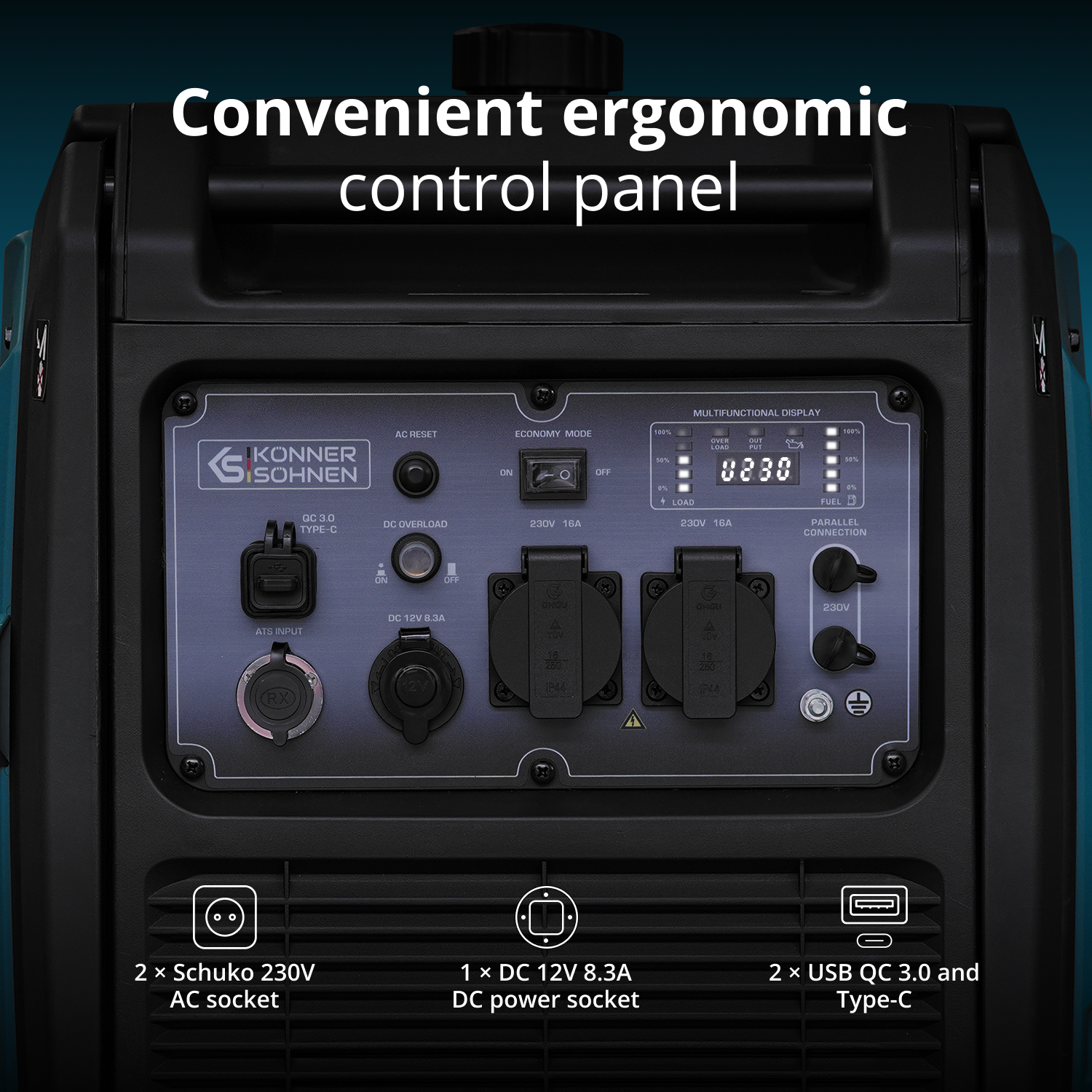

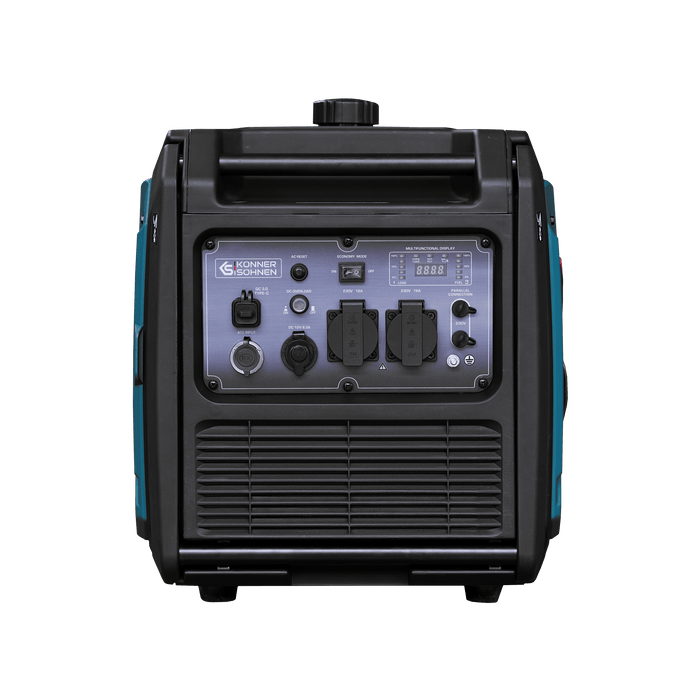

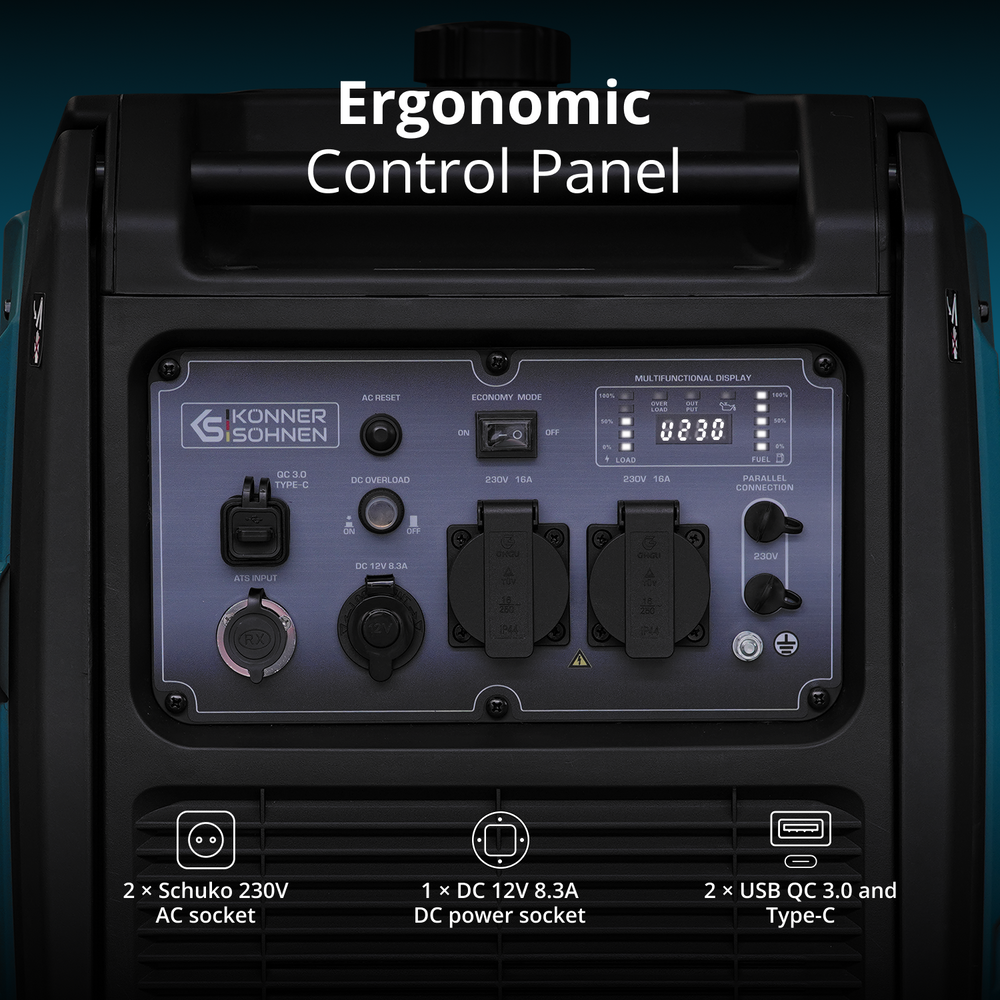

Ergonomic control panel

Convenient location of all functions: working mode indicator, overload and short circuit protection, low oil level sensor, Reset button to reset the control system and restore voltage supply, connector for parallel connection of generators, typical 12 V car socket for a wide range of car devices, gadgets and battery charging, 230 V sockets and grounding terminal.

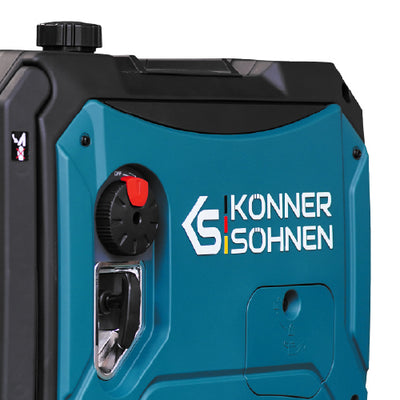

Low noise level

Thanks to a special protective housing, which provides a minimum noise level of 66 dB, the operation of the device will be as comfortable as possible and will not disturb others.

High quality alternator

Könner & Söhnen inverter generators are equipped with a robust brushless alternator with 100% copper winding. The high-end compact permanent magnet alternator is housed in a plastic casing and can withstand maximum loads without any damage to ensure long-term and reliable operation of the generator set.

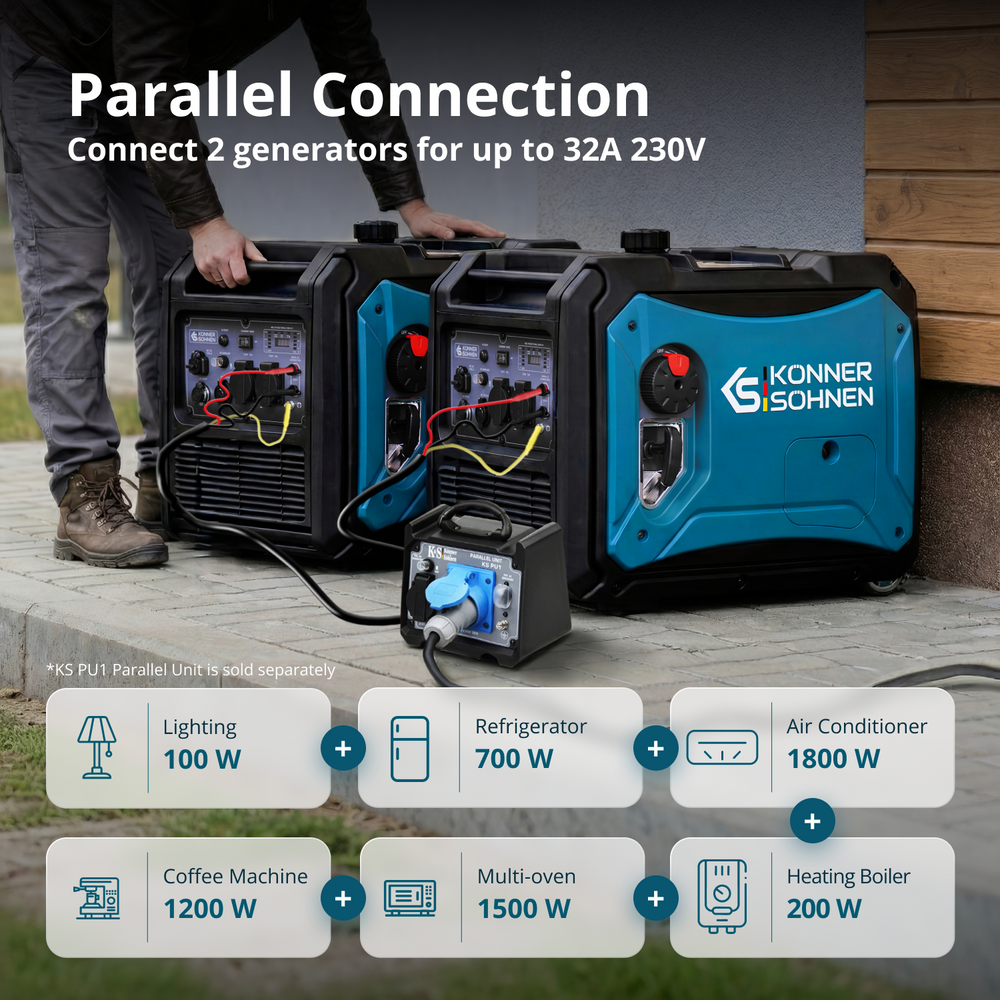

Parallel connection

KS PU1 generator parallel unit from Könner & Söhnen® allows to increase the total output power of generators by connecting two inverter generators together. Parallel connection of any two generator models provides output power equal to the combined rated powers of these models. At the same time, parallel connection of generators entails a power loss of 0.2 kW of the aggregate rated power which can be obtained. It is suitable for all Könner & Söhnen® inverter generators which are parallel ready: KS 2000i S, KS 2000iG S, KS 4000iE S, KS 4000iEG S, KS 4100iEG, KS 6000iE S

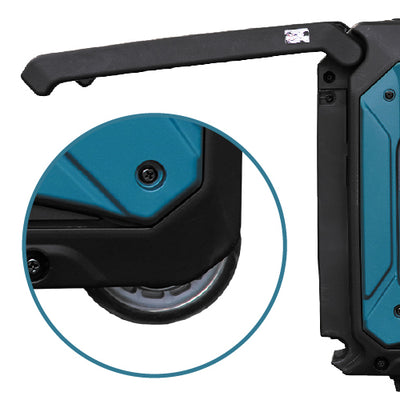

Transportation kit

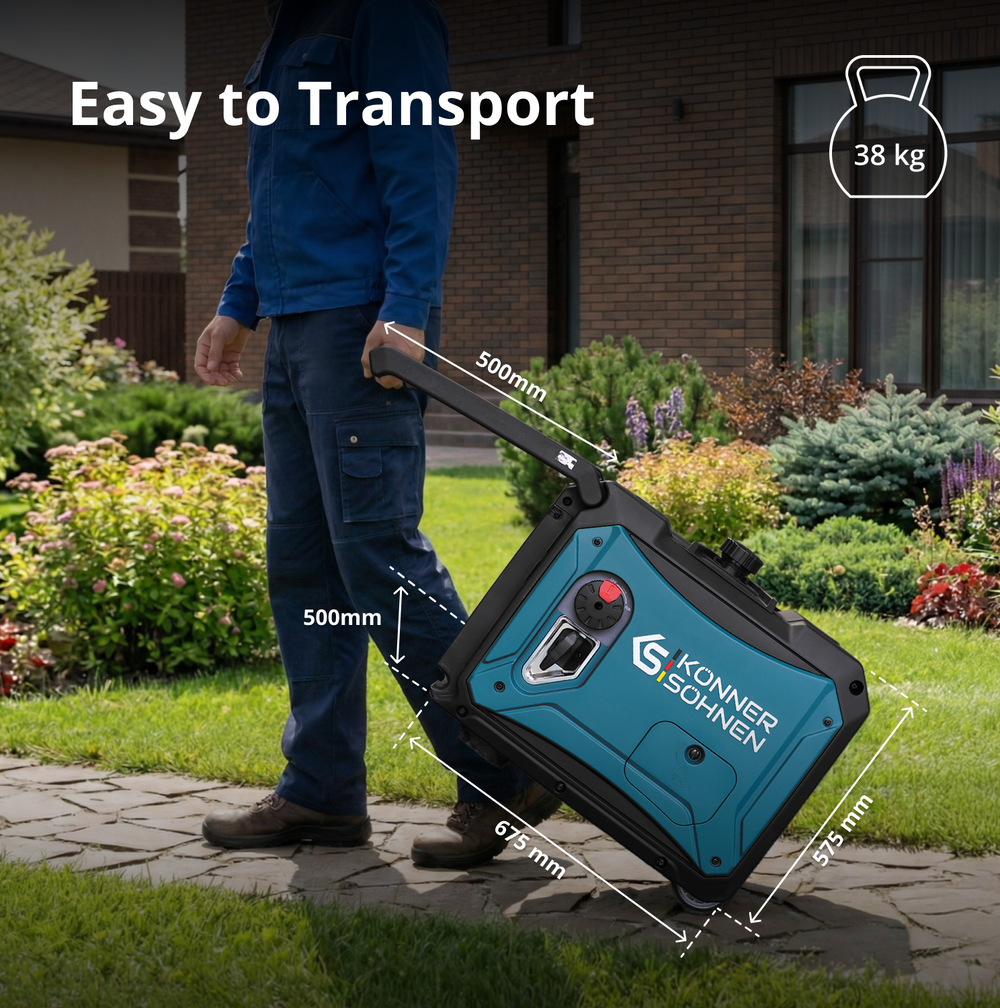

Könner & Söhnen Inverter generators are equipped with a transport system for easy movement. Two wheels and a handle that lifts when the generator is moved ensure comfortable transportation and mobility.

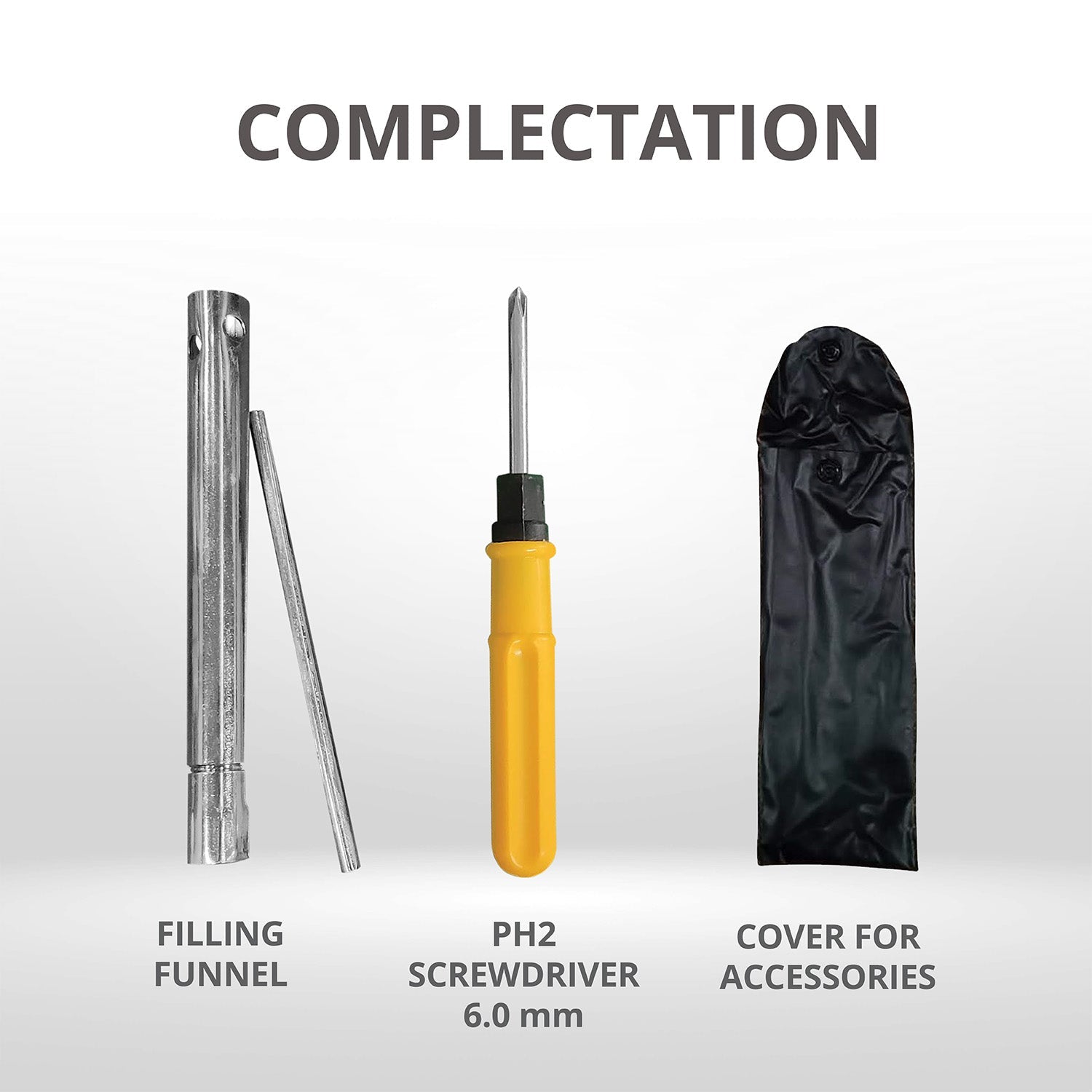

Additional accessories

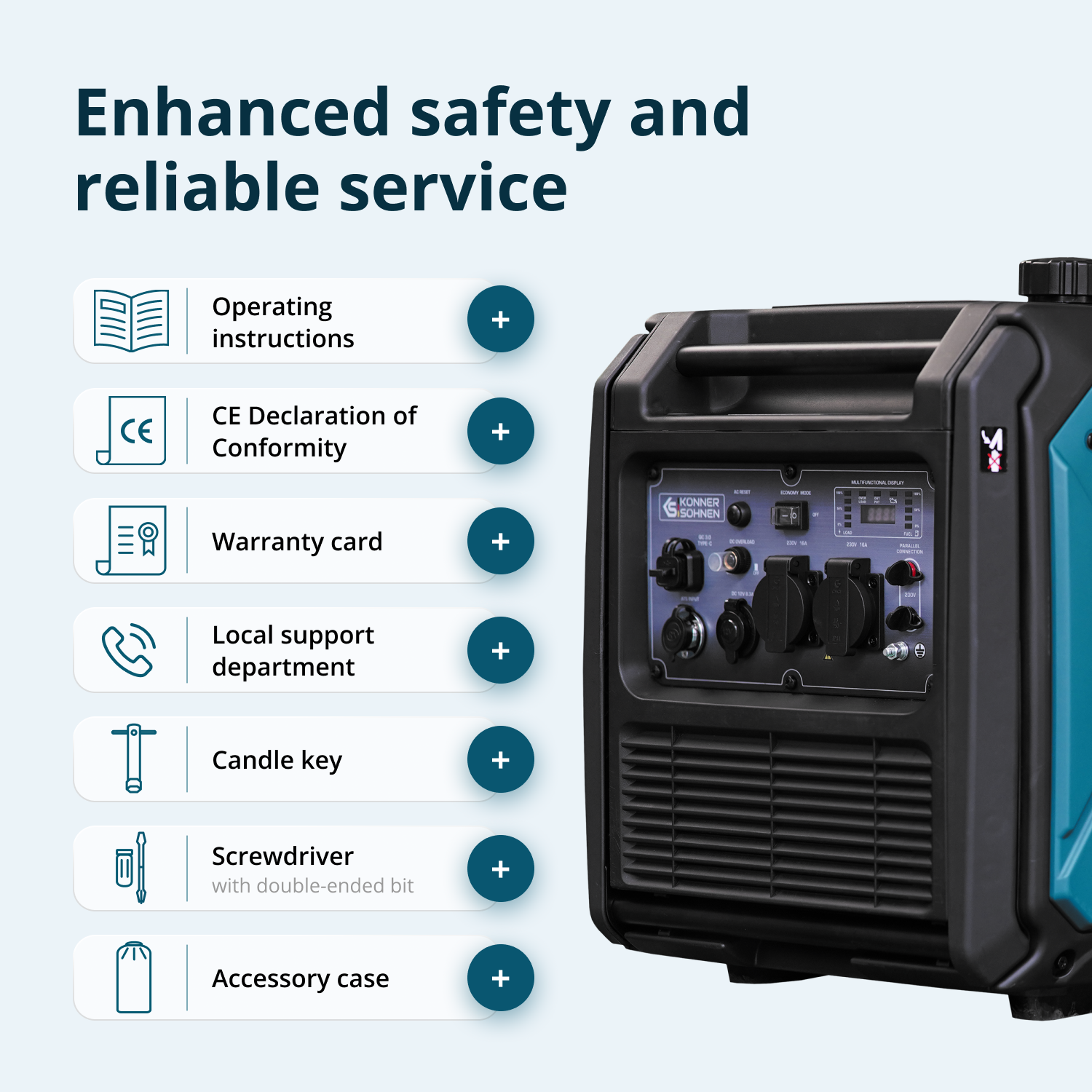

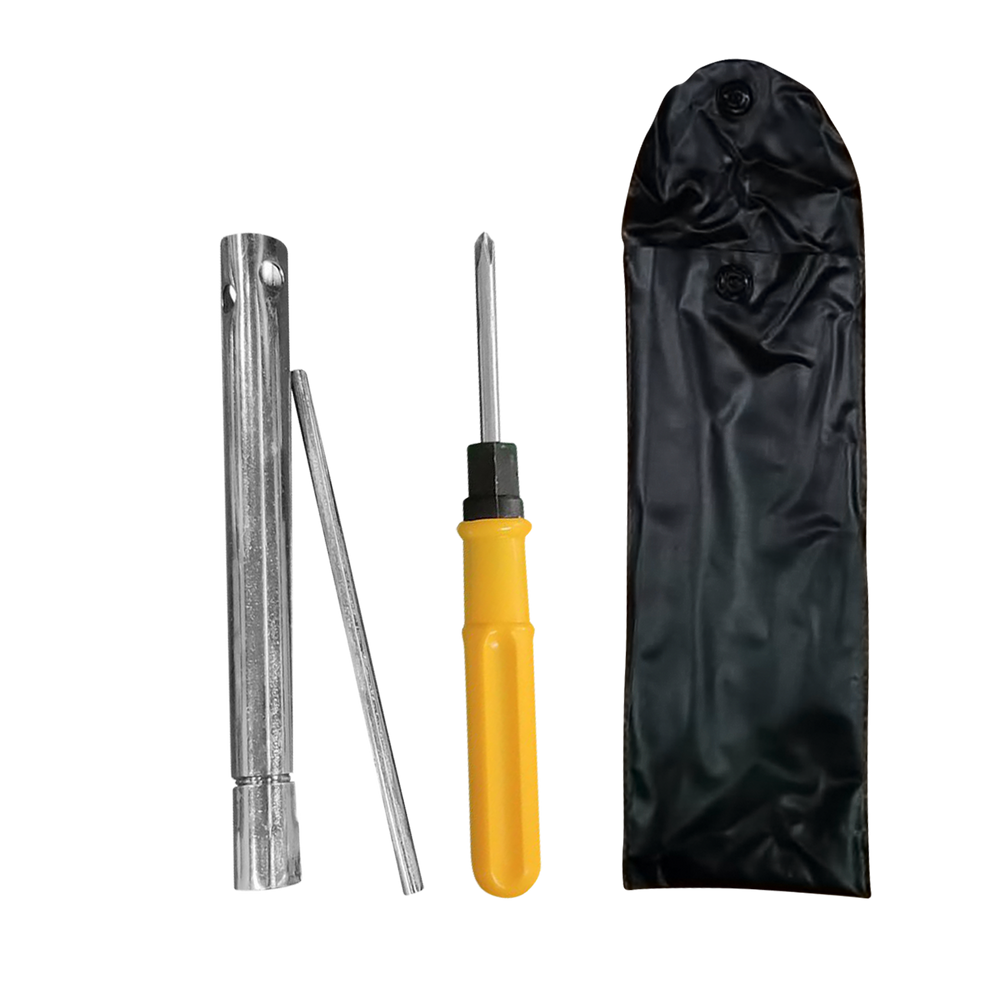

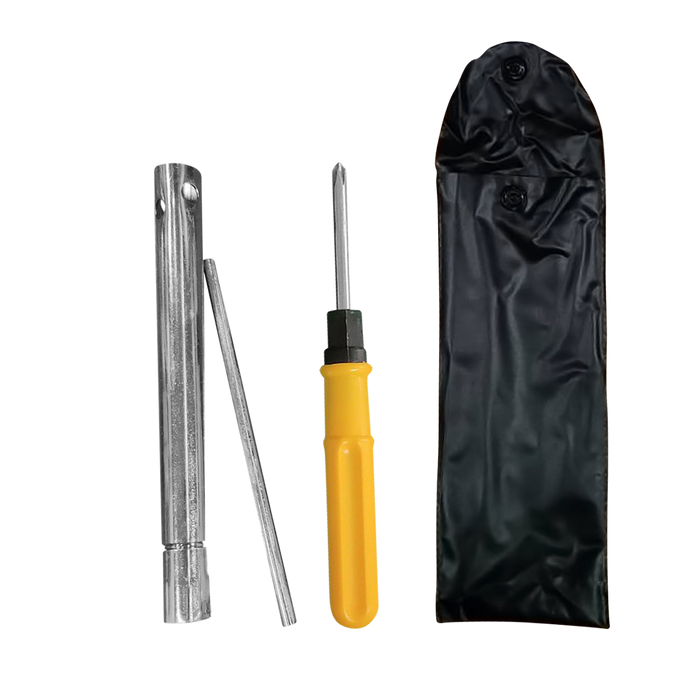

Included: screw-driver, candle key.

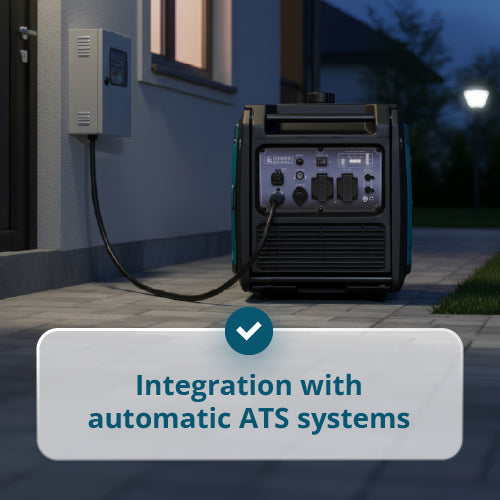

Automatic transfer switch

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored. The ATS output features an 8-pin connector for connecting the ATS unit KS ATS 4/25 Gasoline.

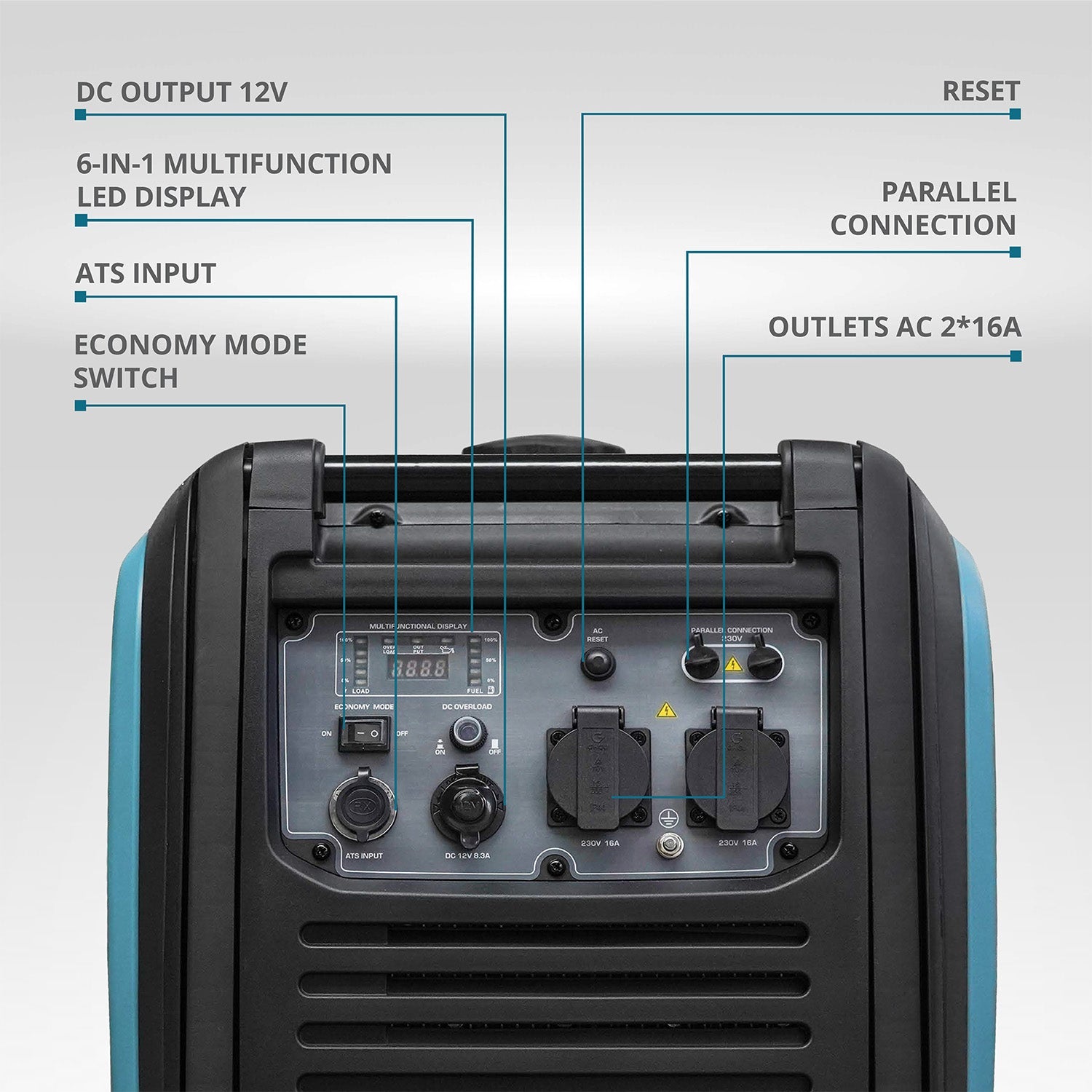

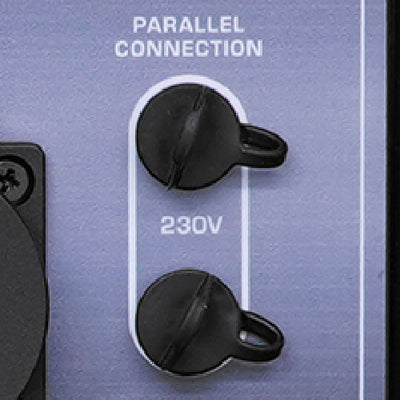

Parallel Connection

Possibility of parallel connection of two generators allows for the use of more powerful devices

2x16A AC Socketі

Two standard Schuko 230V outlets to power several devices

"Reset" button

For resets the control system and restores voltage supply

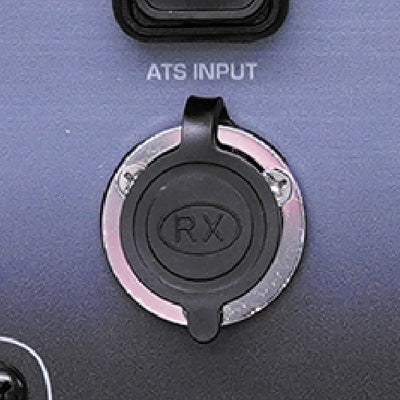

ATS Input

For connecting the Automatic Transfer Switch (ATS) unit

6-in-1 Multifunction LED Display

Load indicator, fuel level indicator, hour meter, voltage, frequency, oil level indicator, overload indicator, working mode indicator

DC Output 12V

Powers portable 12V devices

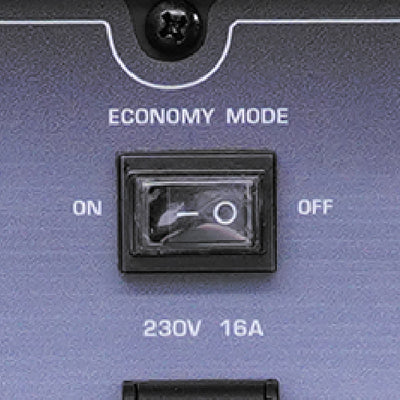

Economy Mode Switch

Reduces fuel consumption by up to 50% at small loads

Specification

Inverter generator KS 4000iE S

Voltage, V	230
Max power, kW	4.0
Nominal power, kW	3.5
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	17.4
Outlets	2 x Schuko 230 V
Engine start	Manual/electric
Fuel tank volume, l	12
Avg. working time (power 50%), h***	7.8
LED display	Load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator.
Noise level Lpa (7m)/Lwa, dB	66/91
Power output DC, V/А	12V/8.3A
USB-Outputs	-
Engine model	KS 240i
Engine cylinder volume, cm3	223
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	7.5
Possibility of parallel connection	+
Output for ATS	+
Crank case volume, l	0.6
Accumulator (A·h)	1.6
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	620х440х510
Gross dimensions (LxWxH), mm	630х475х570
Net weight, kg	40
Gross weight, kg	43.4
SKU	KS 4000iE S
Barcode	4260405363377

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
