3 phase generator KS 33-3DE-G
₴529 999
3 phase generator KS 33-3DE-G
₴529 999
3 phase generator KS 33-3DE-G
Available
₴529 999
Specification
| Voltage, V: | 230/400 |
| Engine brand: | Deutz |
| Max/Nominal power (400V), kVA: | 30/33 |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (400V), kVA | 30/33 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max), A | 47.63 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 400 V 16 A, 1 x CEE 400 V 32 A |
| Avg. working time (power 50%), h*** | 15 |
| Fuel consumption***, l/h | 3.7 (at 50% load) |
| Housing type | soundproof, moisture-proof, all-weather, anti-vandal, anti-corrosion galvanic coating |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Control unit | multifunctional digital controller |
| Controller model | Datakom D300 |
| Alternator type | Stamford type, synchronous, excitation system, AC brushless, four-pole |
| Engine type | Water-cooled four-cylinder four-stroke diesel engine |
| Engine brand | Deutz |
| Engine model | BFM3 G2 |
| Engine speed, U/min | 1500 |
| Cooling type | liquid |
| Engine speed control | electronic |
| Preheater | + |
| Output for ATS | + |
| Fuel tank volume, l | 57 |
| Crank case volume, l | 5.5 |
| Coolant volume, l | 10 |
| Power output controller | electronic voltage regulator, smart AVR |
| Accumulator (A·h) | 85 |
| Battery charger | integrated |
| Nominal voltage tolerance | max. 5% |
| Warranty | 1 year |
| Protection class | IP54 |
| Net dimensions (LxWxH), mm | 2160 х 950 х 1250 |
| Gross dimensions (LxWxH), mm | 2190 х 980 х 1270 |
| Net weight, kg | 856 |
| Gross weight, kg | 859.0 |
| SKU | KS 33-3DE-G |
| Barcode | 4260405365777 |
Delivery
-
Dear Customers,
Due to technical difficulties in the Sumy region, we kindly ask you to coordinate shipments to this area in advance with our manager by phone: +38 (067) 301 00 93
Thank you for your understanding.
Fast delivery via Nova Poshta: your order will arrive within 1–3 days!
Delivery
Payment
- Choose a convenient and reliable payment method:
Payment
Features
01
Low-speed reliable deutz engine
02
Water cooling
03
Preheater
04
CAPABILITY OF ATS CONNECTION
05
Digital controller
06
Soundproof anti-vandal housing
07
Easy maintenance
08
Commissioning in europe
09
Summary
Low-speed reliable deutz engine
The modern low-speed Deutz 1500 rpm engine provides optimal performance, has an increased service life for long-term use, as well as economical fuel consumption, making the German brand power stations one of the most cost-effective units.The electronic engine speed control system is a computer-assisted automatic engine speed controller that quickly responds to load changes, improves the quality of the electric power produced by the power station and guarantees the most stable frequency of 50 Hz.
Water cooling
The water-cooled engine system ensures reliable operation of the unit and prevents premature engine failure. The efficient cooling of the engine allows this generator set to be exposed to high ambient temperatures.
Preheater
The engine preheater facilitates the start-up of the power station with no load on the engine, even in sub-zero temperatures during the cold season. The system automatically pre-heats the engine's water jacket to the required temperature and maintains the engine temperature to facilitate the engine start-up in any weather.
CAPABILITY OF ATS CONNECTION

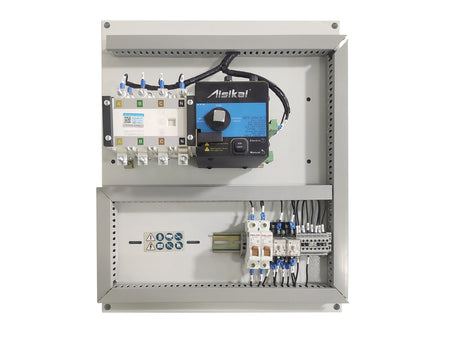

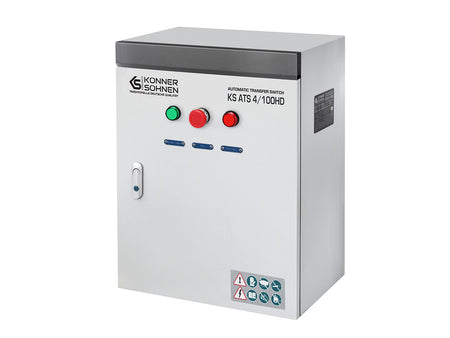

It features the capability to connect the ATS (automatic transfer switch) system. The unit automatically starts the generator and switches the load to it when the main power supply is disconnected and automatically stops the generator when the central power supply gets restored.
Digital controller
All operations are controlled via modern multifunctional digital controller. The controller provides monitoring of all operating indicators of the power station, convenient start-up and operation settings, monitoring of the battery status, engine speed and fuel supply adjusted to the load, and protection against overheating and low oil level. It also signals possible faults and reports the need for service maintenance.
Soundproof anti-vandal housing
The top-notch soundproof housing provides significant noise reduction during unit operation, improves the thermal distribution and protects the power station against ingress of moisture and condensation, exposure to adverse weather conditions and tampering. Special galvanic coating adds to the wear resistance, durability, oxidation resistance and corrosion resistance, thus greatly extending the unit's service life.
In addition, the low-noise low-speed engines mounted on anti-vibration pads contribute to quieter operation and reduce the load on the base.
The power station has an emergency stop button for quick engine shutdown in an emergency.
Easy maintenance
The housing has openings for transportation aids, facilitating shipment, transportation, and installation of the unit. Wide doors allow easy access to unit parts during maintenance.
Commissioning in europe
For failure-free operation in Europe, Könner & Söhnen diesel power stations undergo pre-run servicing and a test run with monitoring of all operating parameters at our in-house service center. A special loading bench is used to check the power output of the power station in different operating conditions and to fine-tune the electronics control unit.
Summary
The Könner & Söhnen KS 33-3DE-G diesel power station is a professional unit based on the reliable Deutz engine with the best performance indicators. Reinforced parts and mechanisms, strengthened fasteners and joints reduce wear and tear and ensure long and reliable operation of the generator set.
Meticulously monitoring every stage of Könner & Söhnen production, we have created a series of high-quality and reliable HEAVY DUTY Silent Diesel Generators that will serve our customers for many years to come.
All Könner & Söhnen power stations undergo rigorous testing and guarantee high performance and maximum productivity.
Specification
3 phase generator KS 33-3DE-G
| Voltage, V | 230/400 |
| Max/Nominal power (400V), kVA | 30/33 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max), A | 47.63 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 400 V 16 A, 1 x CEE 400 V 32 A |
| Avg. working time (power 50%), h*** | 15 |
| Fuel consumption***, l/h | 3.7 (at 50% load) |
| Housing type | soundproof, moisture-proof, all-weather, anti-vandal, anti-corrosion galvanic coating |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Control unit | multifunctional digital controller |
| Controller model | Datakom D300 |
| Alternator type | Stamford type, synchronous, excitation system, AC brushless, four-pole |
| Engine type | Water-cooled four-cylinder four-stroke diesel engine |
| Engine brand | Deutz |
| Engine model | BFM3 G2 |
| Engine speed, U/min | 1500 |
| Cooling type | liquid |
| Engine speed control | electronic |
| Preheater | + |
| Output for ATS | + |
| Fuel tank volume, l | 57 |
| Crank case volume, l | 5.5 |
| Coolant volume, l | 10 |
| Power output controller | electronic voltage regulator, smart AVR |
| Accumulator (A·h) | 85 |
| Battery charger | integrated |
| Nominal voltage tolerance | max. 5% |
| Warranty | 1 year |
| Protection class | IP54 |
| Net dimensions (LxWxH), mm | 2160 х 950 х 1250 |
| Gross dimensions (LxWxH), mm | 2190 х 980 х 1270 |
| Net weight, kg | 856 |
| Gross weight, kg | 859.0 |
| SKU | KS 33-3DE-G |
| Barcode | 4260405365777 |
