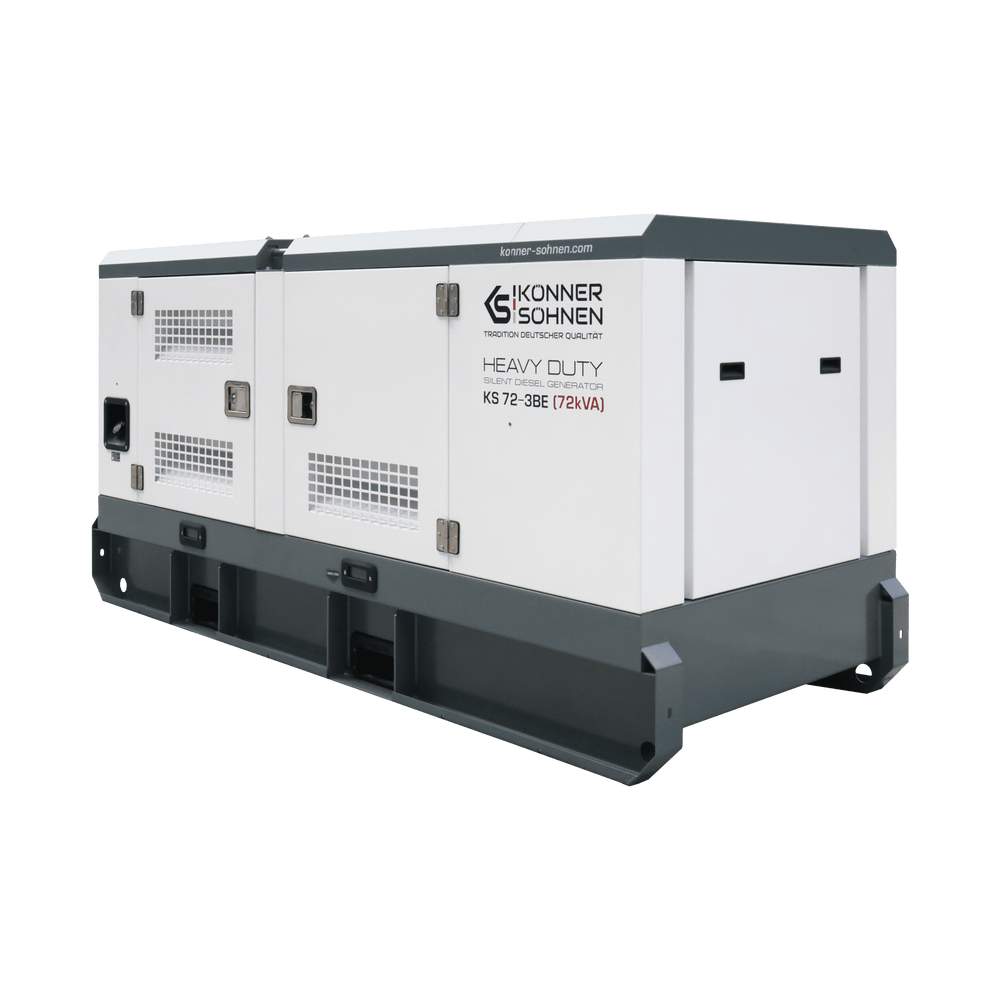

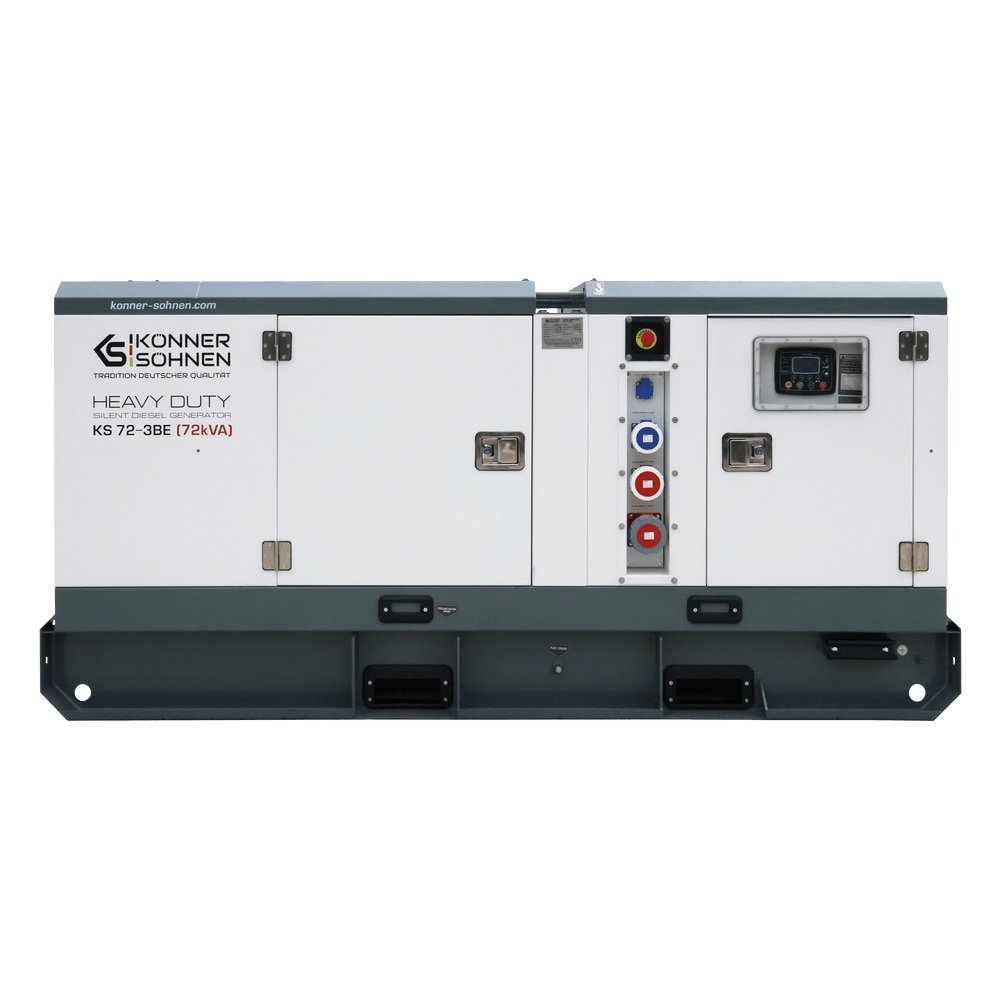

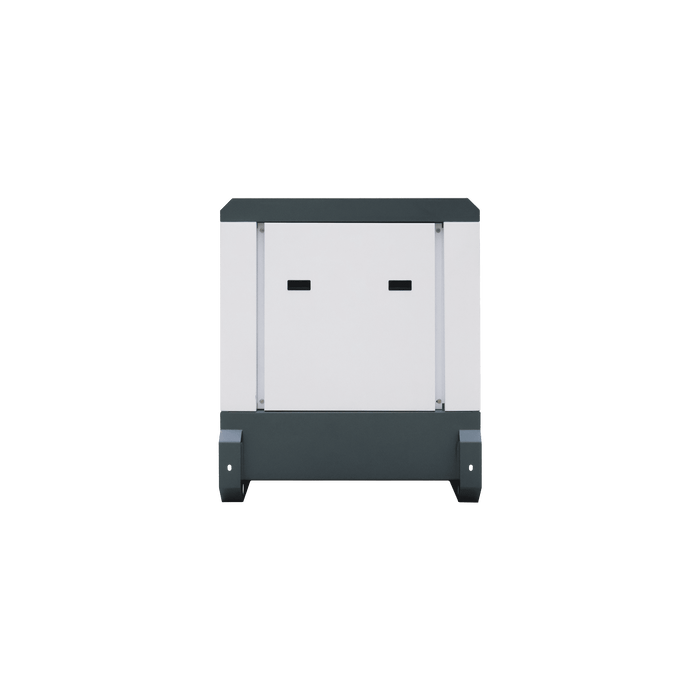

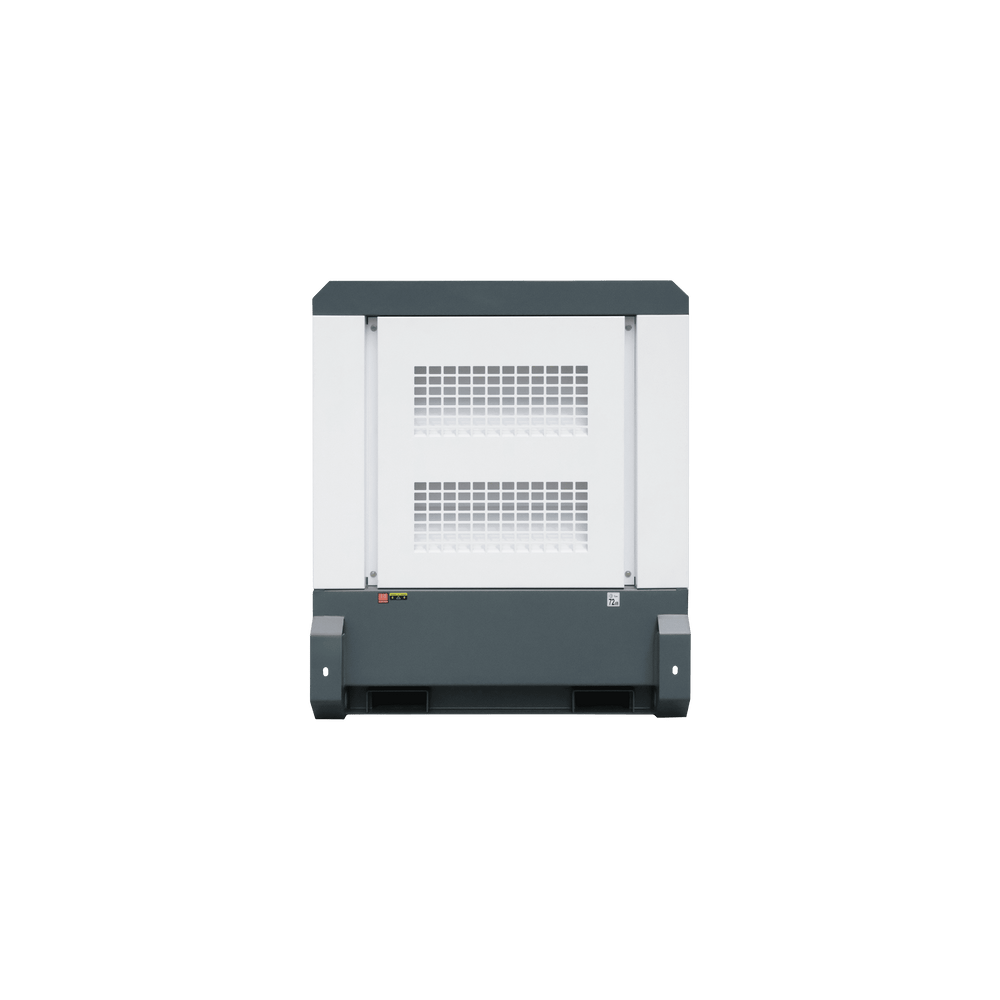

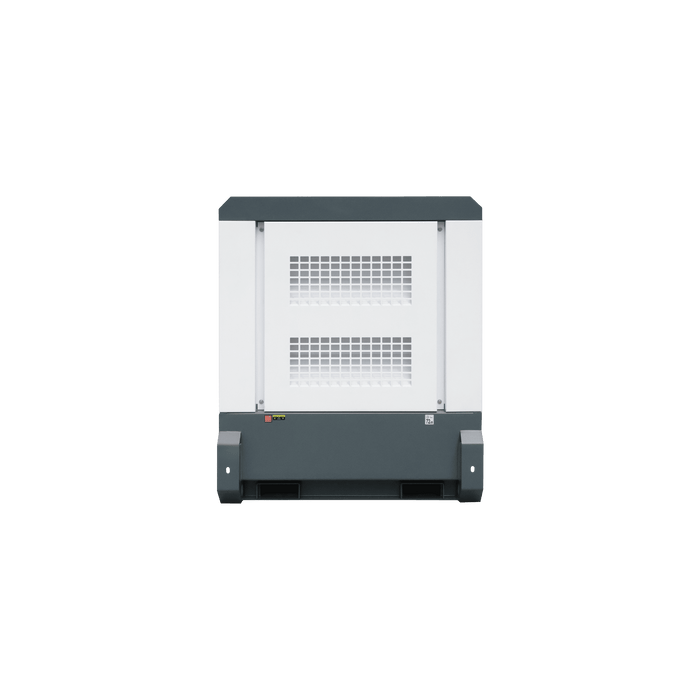

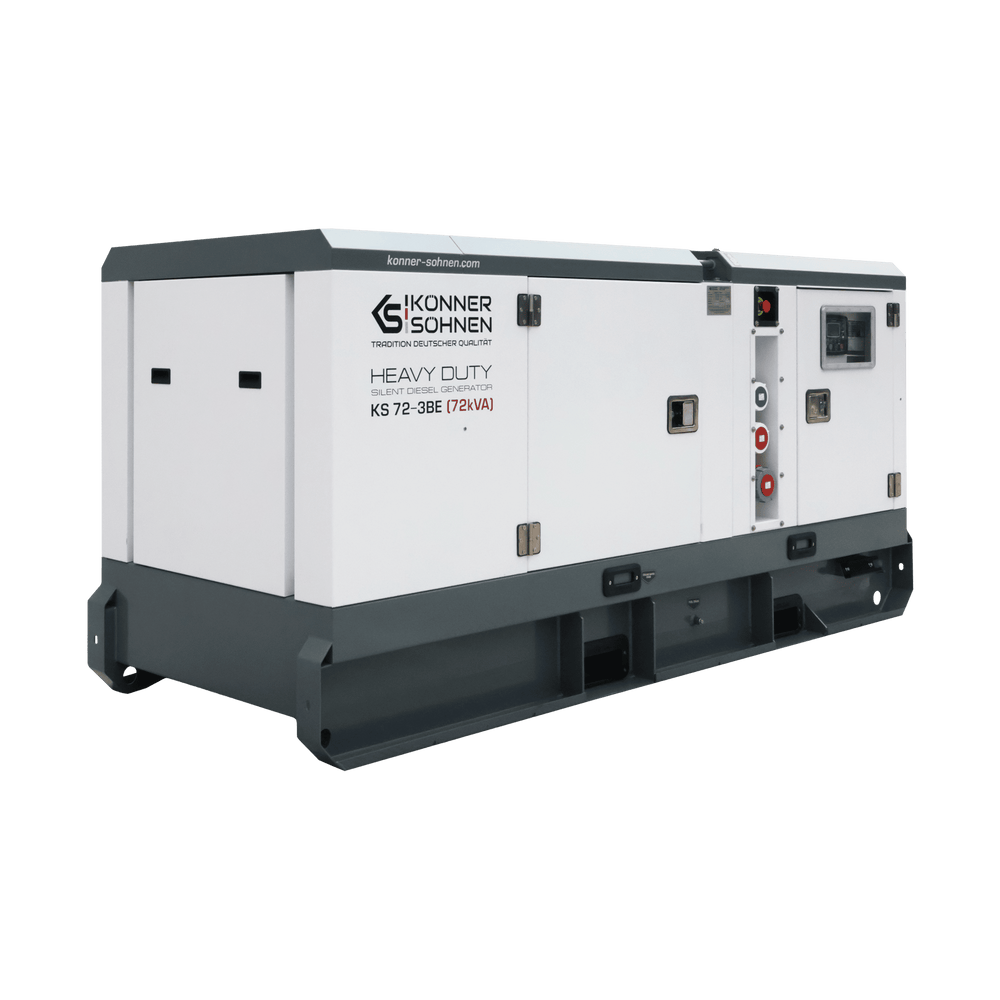

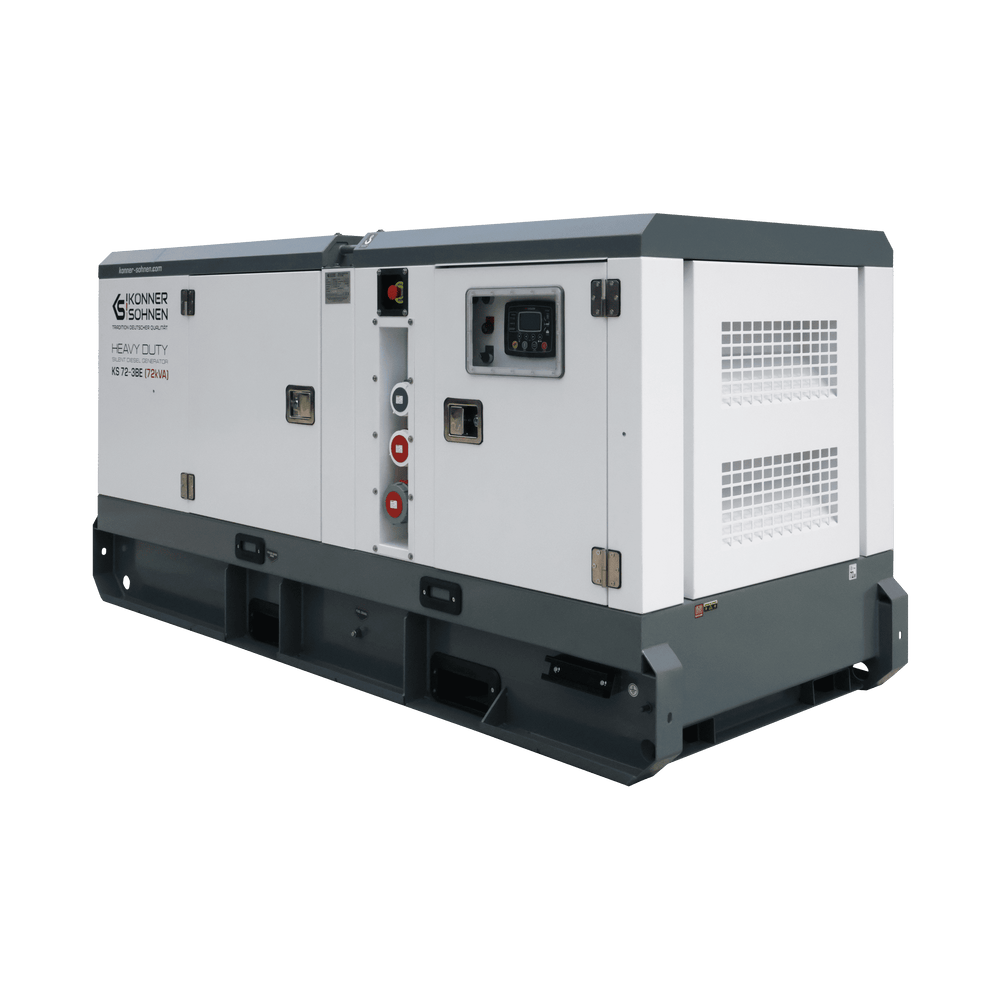

3 phase generator KS 72-3BE

Name: 3 phase generator KS 72-3BE
Brand: Könner & Söhnen
SKU: 4260405368150
Price: 699999.0 UAH
Availability: OutOfStock

Unavailable

₴699 999

Specification

Voltage, V:	230/400
Engine brand:	Baudouin
Max/Nominal power (400V), kVA:	72/65

Specification

Voltage, V	230/400
Max/Nominal power (400V), kVA	72/65
Frequency, Hz	50**
Current (max), A	102.8

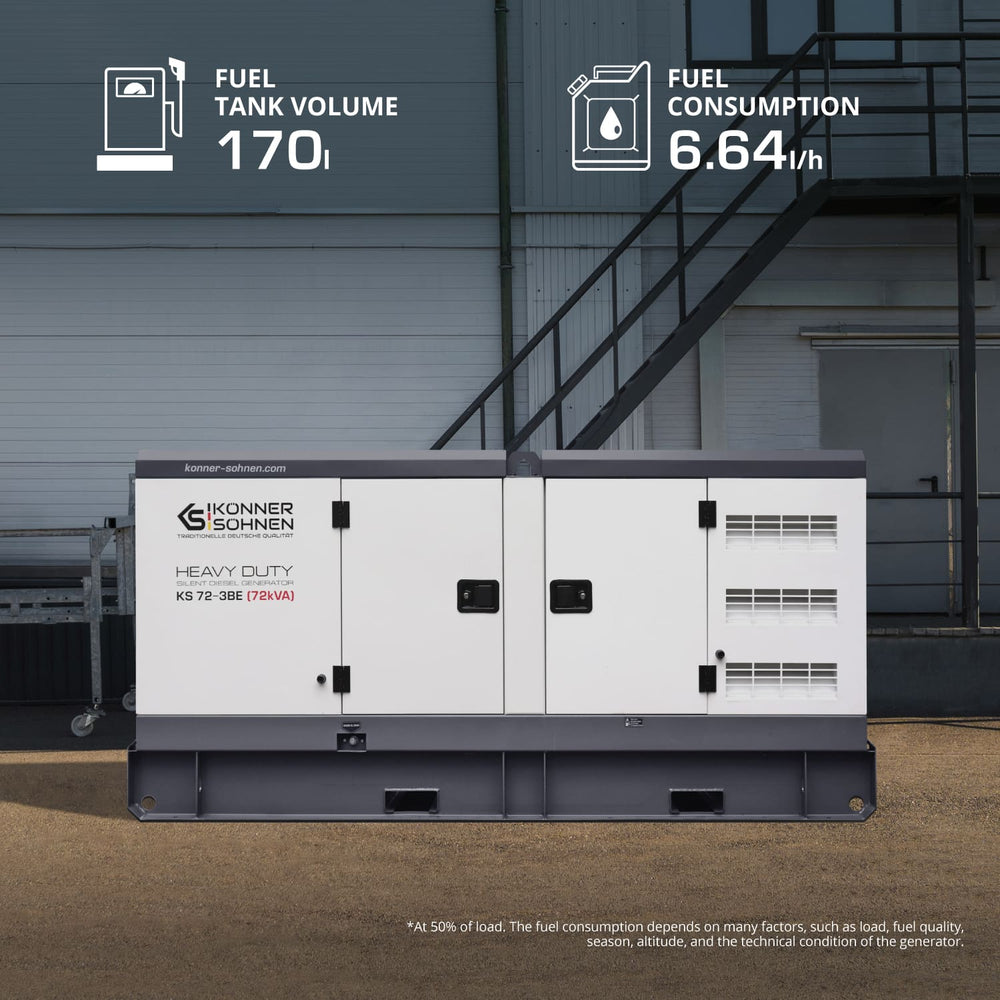

Fuel consumption***, l/h	6.64 (at 50% load)
Housing type	soundproof, moisture-proof, all-weather
Noise level Lpa (7m)/Lwa, dB	72/97
Control unit	multifunctional digital controller
Controller model	Datakom D300
Alternator type	Stamford type, synchronous, excitation system, AC brushless, four-pole
Engine type	Water-cooled four-cylinder four-stroke diesel engine
Engine brand	Baudouin
Engine model	4M10G70/5
Engine speed, U/min	1500
Cooling type	liquid
Engine speed control	electronic
Preheater	+
Output for ATS	+
Fuel tank volume, l	170
Crank case volume, l	13
Coolant volume, l	9.4
Accumulator (A·h)	100
Battery charger	integrated
Warranty	1 year
Alternator IP Rating	IP23
Net dimensions (LxWxH), mm	2550×950×1200
Gross dimensions (LxWxH), mm	2580×980×1270
Net weight, kg	1370
Gross weight, kg	1370.0
SKU	KS 72-3BE
Barcode	4260405368150

Variants

Max Power: 72 kVA

25.3 kVA 35 kVA 50 kVA 72 kVA 110 kVA

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

The 4-cylinder diesel power plants of the HEAVY DUTY series by the German brand Könner & Söhnen are based on reliable water-cooled engines from the French brand Baudouin.

The plants are equipped with an electronic engine speed control system and a pre-start coolant heating system. Power plants have galvanic coating, which is more resistant to corrosion and extends the service life of the units.

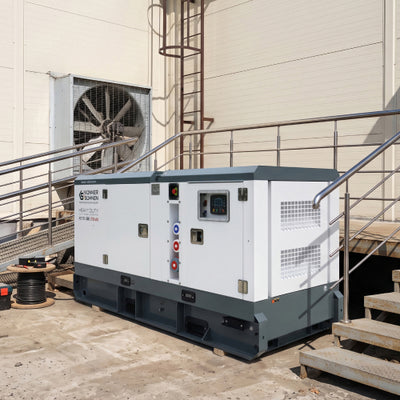

All of this ensures a long service life and uninterrupted operation of the plants. Even in the most challenging conditions, Könner & Söhnen power plants will operate stably and reliably, providing uninterrupted power supply covering a wide range of capacities, enabling the selection of an optimal solution for various facilities and their energy demands. This makes them the most appropriate solution for industries such as manufacturing, agriculture, construction, healthcare, as well as civil and critical infrastructure.

01 BAUDOUIN LOW-SPEED ENGINE

02 WATER COOLING

03 PRE-START HEATING

04 DIGITAL CONTROLLER

05 CAPABILITY OF ATS CONNECTION

06 MAXIMUM DEGREE OF SECURITY

07 SOUNDPROOF HOUSING

08 CONVENIENT TRANSPORTATION

09 GALVANIC COATING

10 COMMISSIONING IN EUROPE

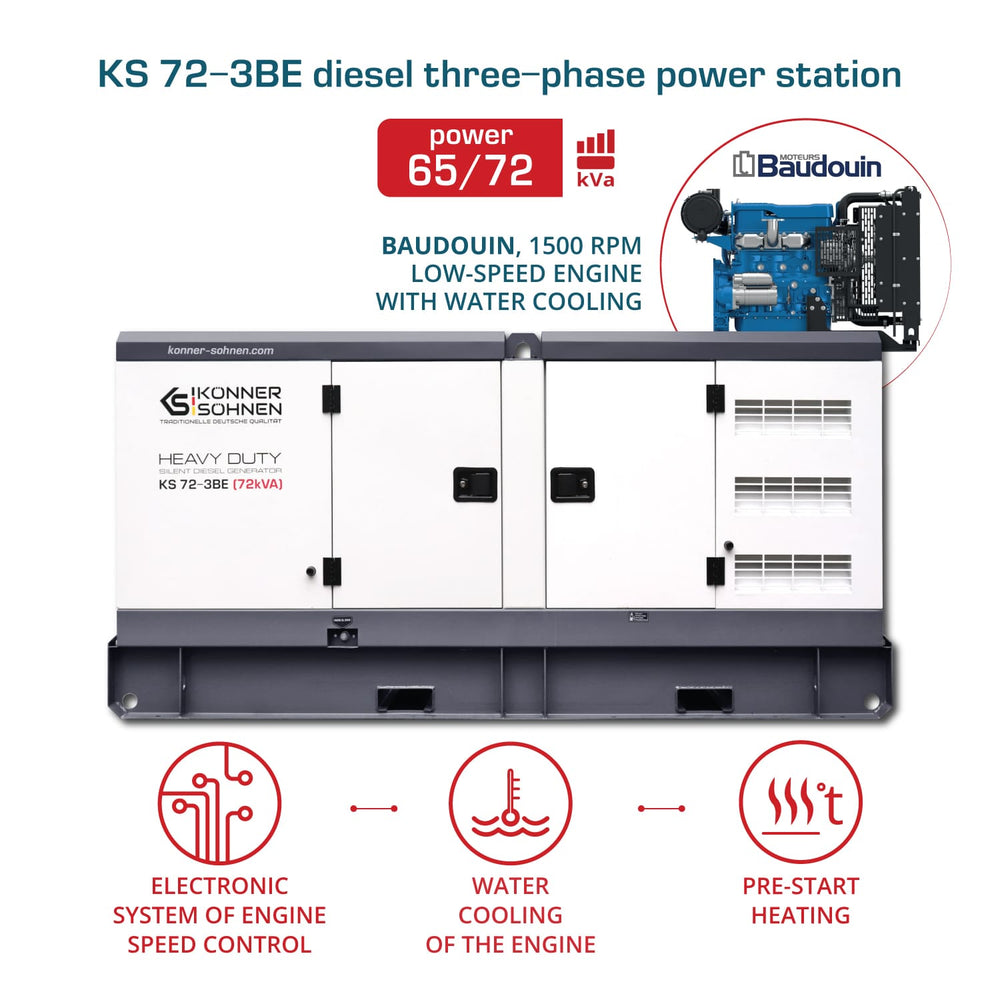

BAUDOUIN LOW-SPEED ENGINE

Reliable 4-cylinder low-speed water-cooled engines from the French company Baudouin, which has 100 years of experience in designing and manufacturing top-quality engines, fully comply with the highest European and international quality standards. Powerful and reliable, Baudouin engines are characterized by high performance.

WATER COOLING

The engine water cooling system ensures reliable operation and protects the engine from premature wear. Thanks to the efficient cooling of the engine, this generator can operate at high ambient temperatures.

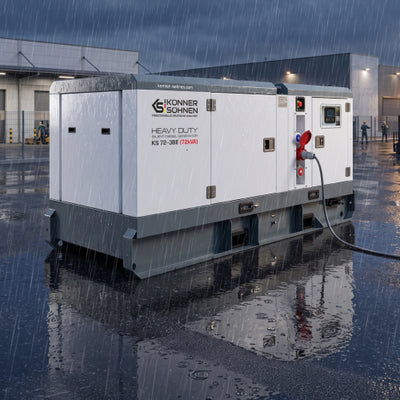

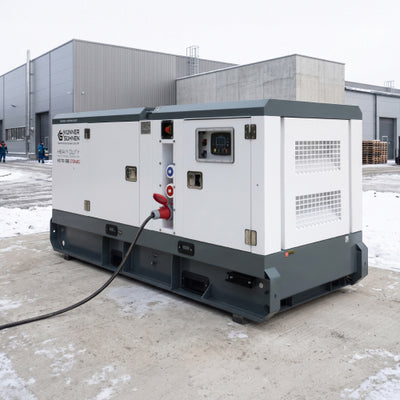

PRE-START HEATING

The integrated pre-start coolant heating system automatically maintains the necessary temperature for a safe engine start, enabling a quick startup of the power plant in subzero temperatures.

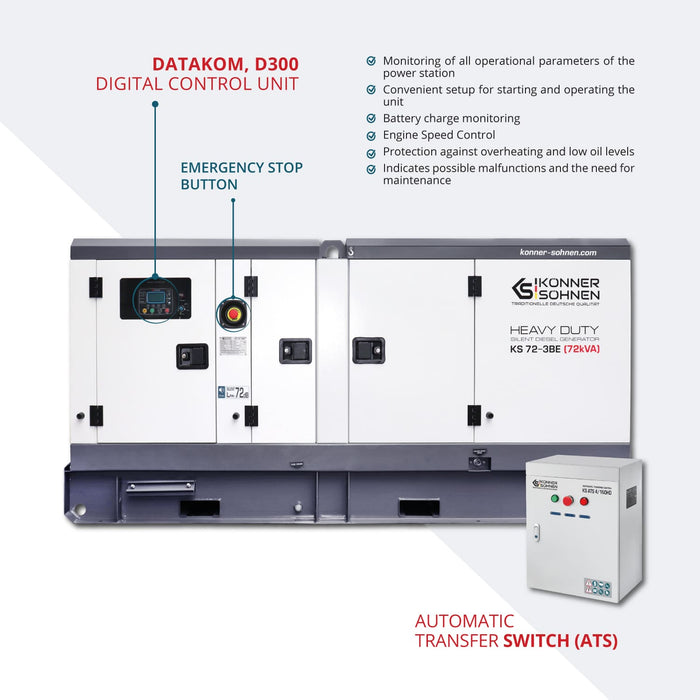

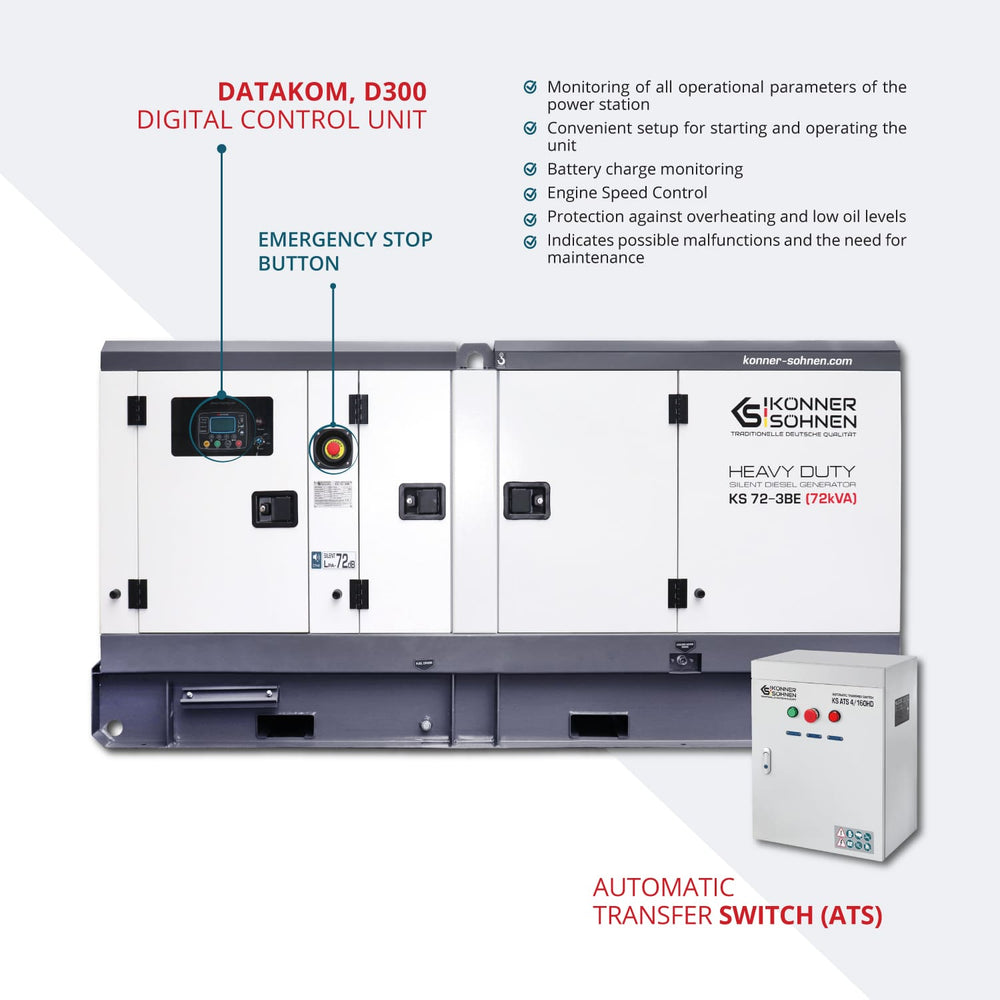

DIGITAL CONTROLLER

All work processes are controlled by a modern multifunctional digital control unit Datakom D300. The controller provides checking of all indicators of the power plant's operating status, convenient settings for starting and operating the plant, monitors the battery charge, controls the engine speed, protects against overheating and low oil level, signals possible malfunctions, and reports the need for service.

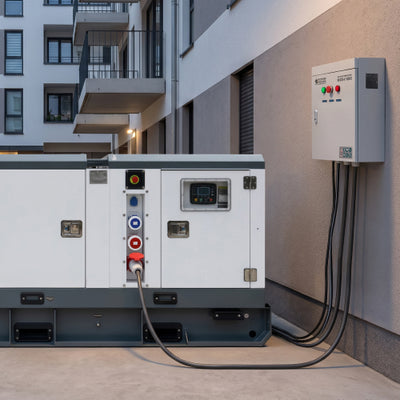

CAPABILITY OF ATS CONNECTION

The automatic transfer switch (ATS) automatically starts the power plant and switches the load to it when the main power source is disconnected. It also automatically stops the power plant when the central power supply is restored.

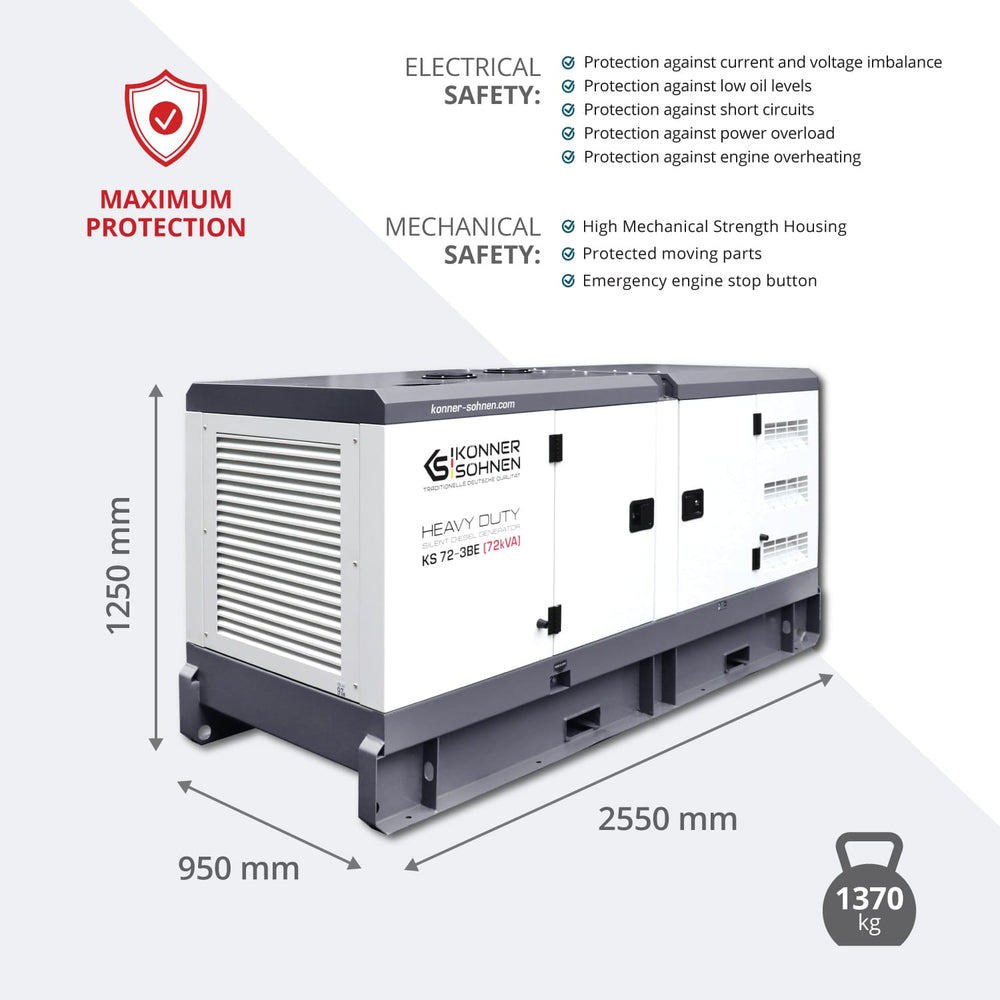

MAXIMUM DEGREE OF SECURITY

ELECTRIC SAFETY:
✔ protection against current and voltage imbalance
✔ protection against low oil level
✔ short circuit protection
✔ overpower protection
✔ protection against excessive temperature of the motor

MECHANICAL SAFETY:
✔ high mechanical strength housing
✔ protected moving parts
✔ emergency engine stop button

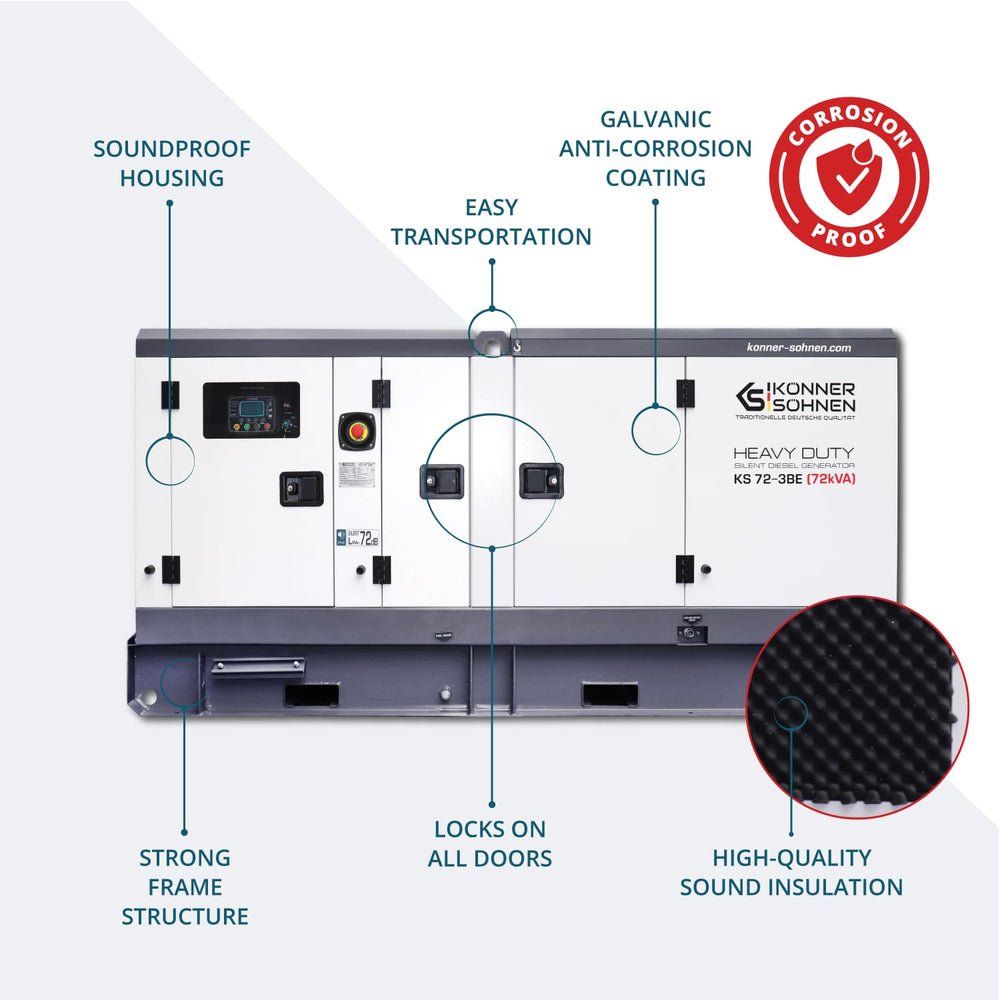

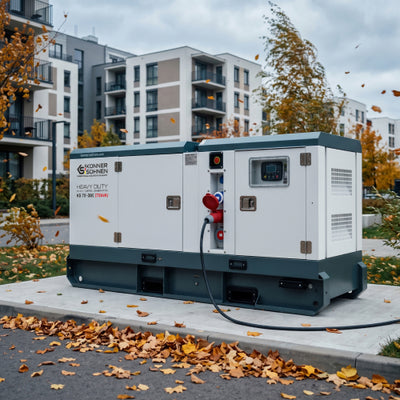

SOUNDPROOF HOUSING

The high-quality soundproof enclosure significantly reduces noise during the operation of the unit, provides improved heat distribution, and protects the power plant from moisture, condensation, adverse weather conditions, and unauthorized access. The power plant is equipped with an emergency stop button (STOP) for quickly shutting down the engine in case of an emergency.

CONVENIENT TRANSPORTATION

The enclosure is equipped with special mounting holes that simplify the movement of the unit, loading and unloading operations and ensure reliable fixation during transportation.

GALVANIC COATING

All power plant enclosures are covered with an anti-corrosion galvanic coating, which provides additional protection against corrosion and resistance to harsh weather conditions, significantly extends the service life of the equipment and reduces maintenance costs.

COMMISSIONING IN EUROPE

Könner & Söhnen diesel power generators go through pre-start preparation and test starts to ensure compliance with all European operational parameters at our own service center. A specialized loading bench is used to check the power output of the power plant under different operating conditions and to adjust the electronic control unit.

Specification

3 phase generator KS 72-3BE

Voltage, V	230/400
Max/Nominal power (400V), kVA	72/65
Frequency, Hz	50**
Current (max), A	102.8
Fuel consumption***, l/h	6.64 (at 50% load)
Housing type	soundproof, moisture-proof, all-weather
Noise level Lpa (7m)/Lwa, dB	72/97
Control unit	multifunctional digital controller
Controller model	Datakom D300
Alternator type	Stamford type, synchronous, excitation system, AC brushless, four-pole
Engine type	Water-cooled four-cylinder four-stroke diesel engine
Engine brand	Baudouin
Engine model	4M10G70/5
Engine speed, U/min	1500
Cooling type	liquid
Engine speed control	electronic
Preheater	+
Output for ATS	+
Fuel tank volume, l	170
Crank case volume, l	13
Coolant volume, l	9.4
Accumulator (A·h)	100
Battery charger	integrated
Warranty	1 year
Alternator IP Rating	IP23
Net dimensions (LxWxH), mm	2550×950×1200
Gross dimensions (LxWxH), mm	2580×980×1270
Net weight, kg	1370
Gross weight, kg	1370.0
SKU	KS 72-3BE
Barcode	4260405368150

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
