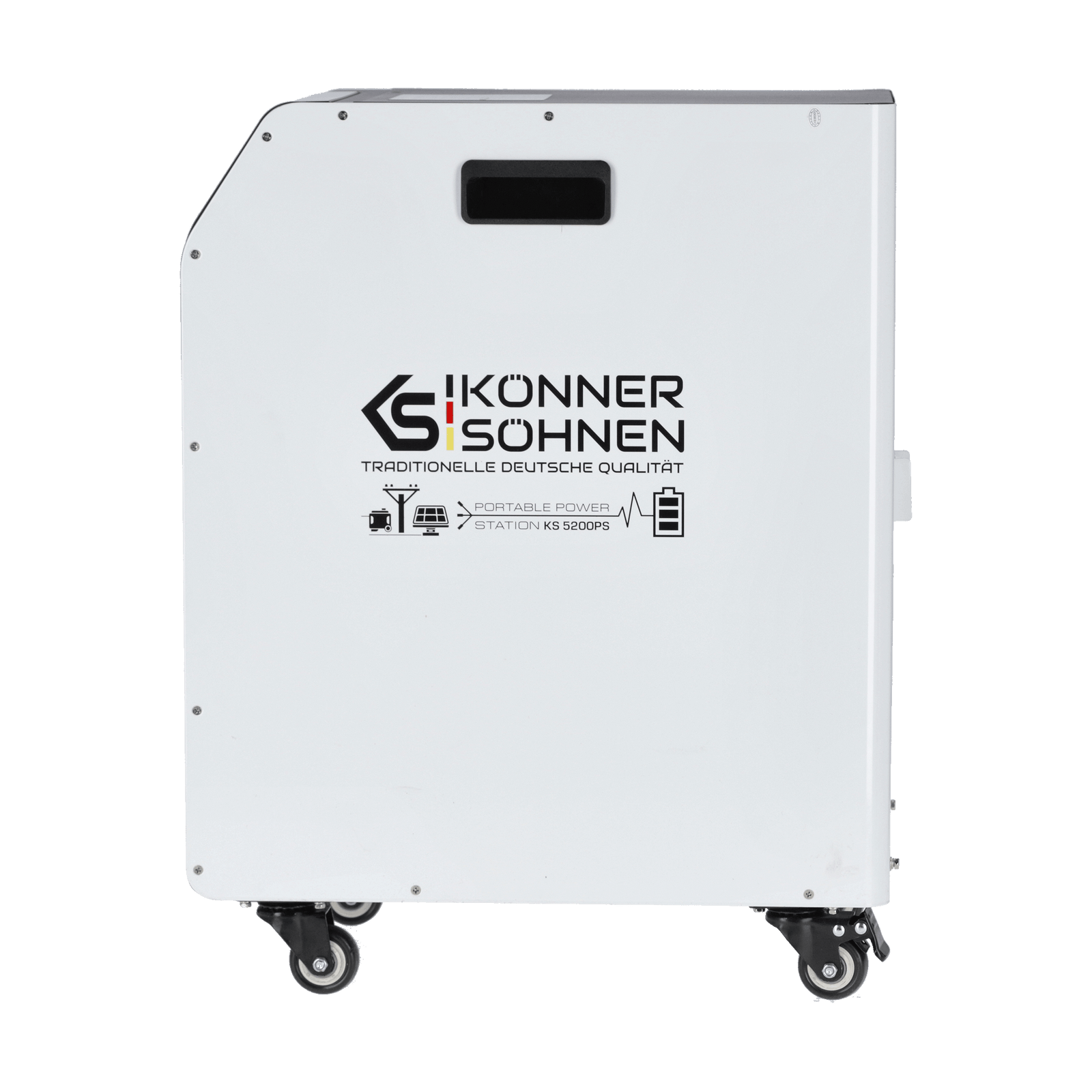

Portable Power Station 3-in-1 KS 5200PS thumbnail

More 13

Coming soon

≤ 6000 charging cycles

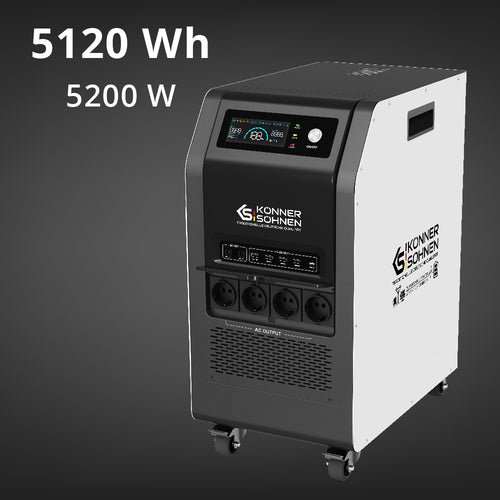

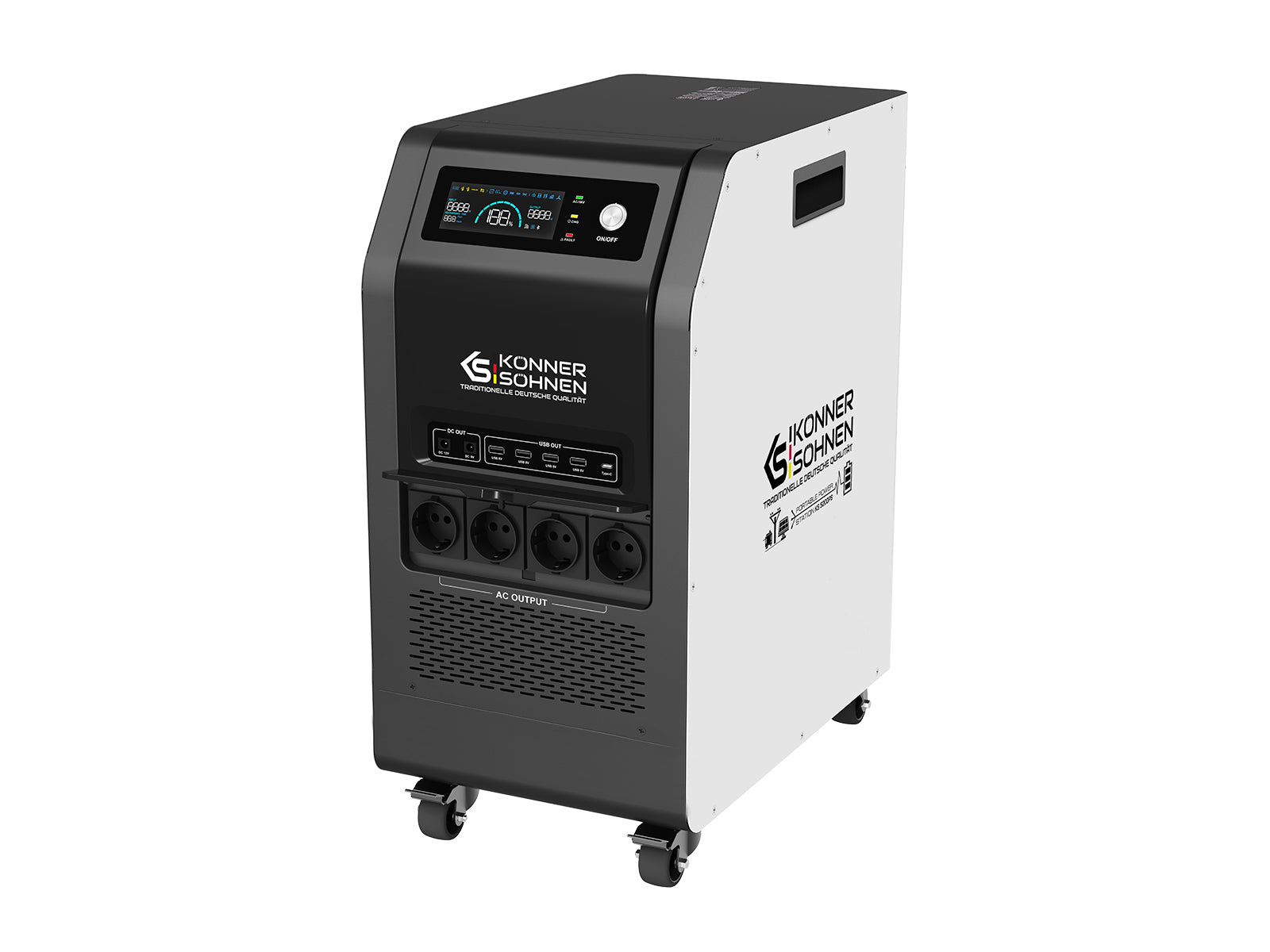

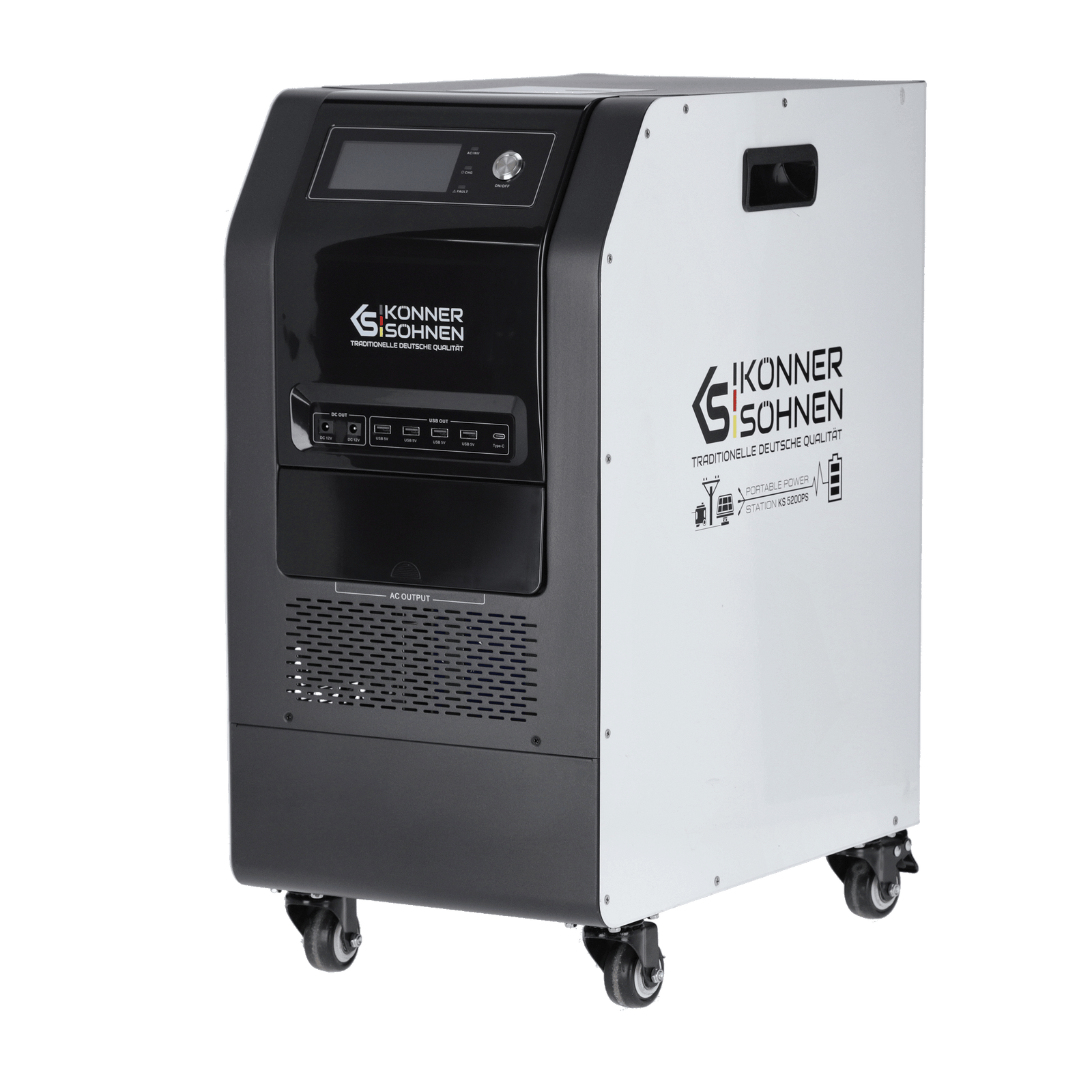

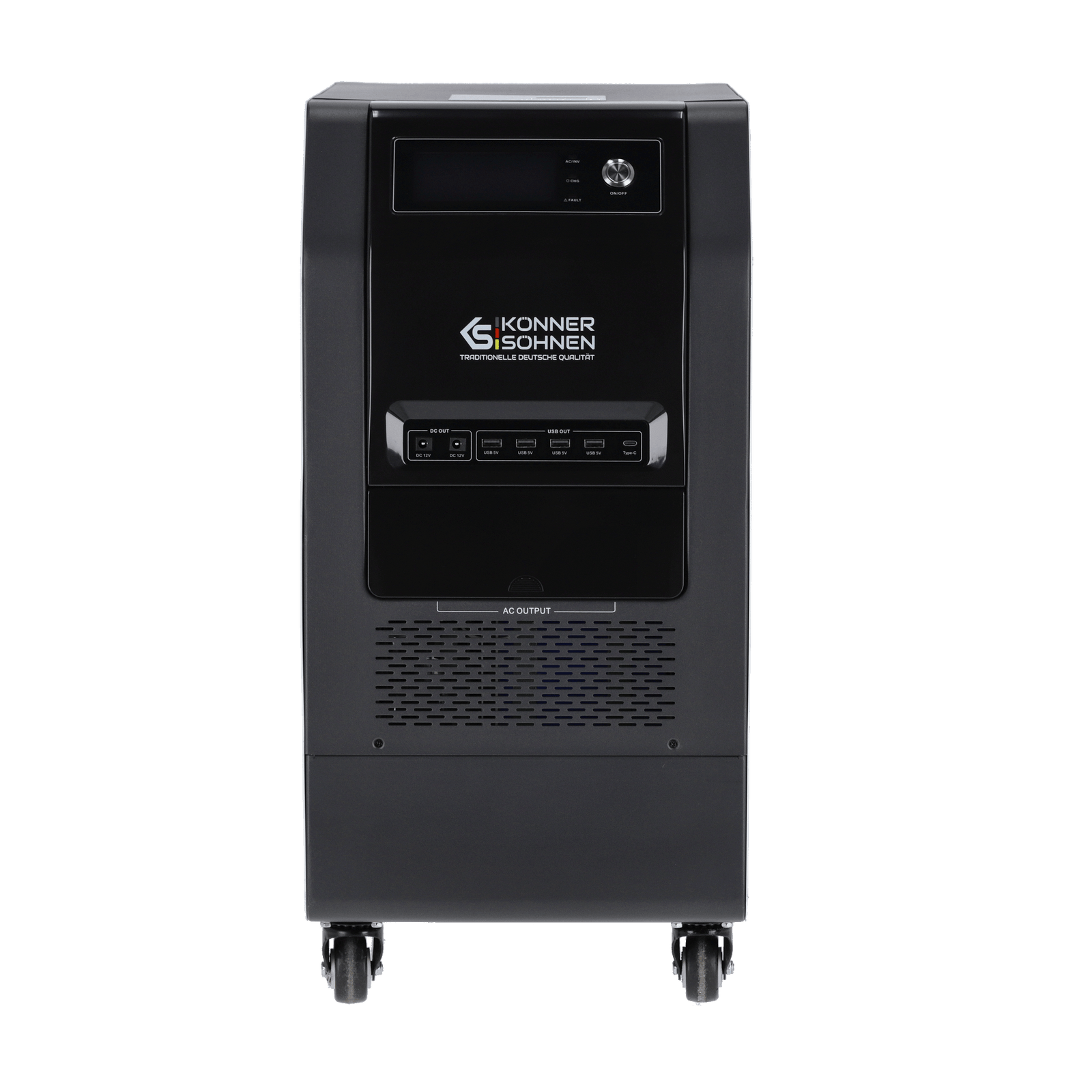

Portable Power Station 3-in-1 KS 5200PS

Name: Portable Power Station 3-in-1 KS 5200PS
Brand: Könner & Söhnen
SKU: 4260405368006
Price: 106099.0 UAH
Availability: OutOfStock

Unavailable

₴106 099

Specification

Rated power, W:	5200
Capacity, Wh:	5120
Battery type:	LiFePO₄ (lithium iron phosphate battery)
Lifecycle:	≤ 6000* cycles
Uninterruptible Power Supply (UPS):	+

Specification

Rated power, W	5200
AC output waveform	Pure Sine Wave
Inverter output voltage	230 V ±5 %
Frequency, Hz	50
Nominal built-in battery voltage, V	51.2
AC output conversion efficiency	90%
Battery capacity	100 Ah/5120 Wh
Battery type	LiFePO₄ (lithium iron phosphate battery)
Lifecycle	≤ 6000* cycles
Uninterruptible Power Supply (UPS)	+
Maximum discharge current, A	100
PV charging current, max, A	100
Maximum combined charging current, A	120
Maximum MPPT conversion efficiency	up to 98%
Maximum open-circuit voltage of solar array, V	450
Solar array operating voltage range, V	150~430
Nominal AC input voltage, V	230
AC Input Voltage Range, V	90-280
Maximum AC input current, A	16
Power switching response time, ms	10 (UPS); 20 (VDE4105, Home, GEN)
AC output	4 × Schuko 230 V + terminal on the rear panel
DC output	2 × 12V DC5521
USB output	4 × Type A (5V/2A)
Type-C output	1 × Type C (5V/2A)
Operation temperature, °C	0 °C to 45 °C Charge, -10 °C to 60°C Discharge
Includes	Power Station, USB cable for PC connection, GX20 plug for ATS output, 2x120A plugs for 48VDC terminal, 2×MC4 connectors for photovoltaic input, User manual
Net dimensions (LxWxH), mm	485×280×630
Gross dimensions (LxWxH), mm	599×404×682
Net weight, kg	56
Gross weight, kg	72.0
SKU	KS 5200PS
Barcode	4260405368006

Benefits

Mobility and scalability – the ability to connect a 48V-DC generator or additional batteries, or to pair two identical stations (e.g. 2 × KS 5200PS), combined with portability, creates a flexible hybrid system for various use cases – for home, business, or emergencies.
Four power supply options – mains power, efficient solar charging up to 80 % in 1 hour, DC generators, additional batteries, and instant switching between them when needed.
Durable and safe LiFePO₄ battery – lifespan up to 6000 cycles and more than 10 years of service ensure a reliable investment in energy independence.
UPS function for uninterrupted operation – automatic power switching < 10 ms protects sensitive equipment from failures, data – from loss, and business – from downtime.
Tandem Power compatibility – intelligent control when operating together with the KS 48V-DC generator: when the battery charge drops, the generator starts automatically, runs at maximum efficiency, and turns off once the station is charged.

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

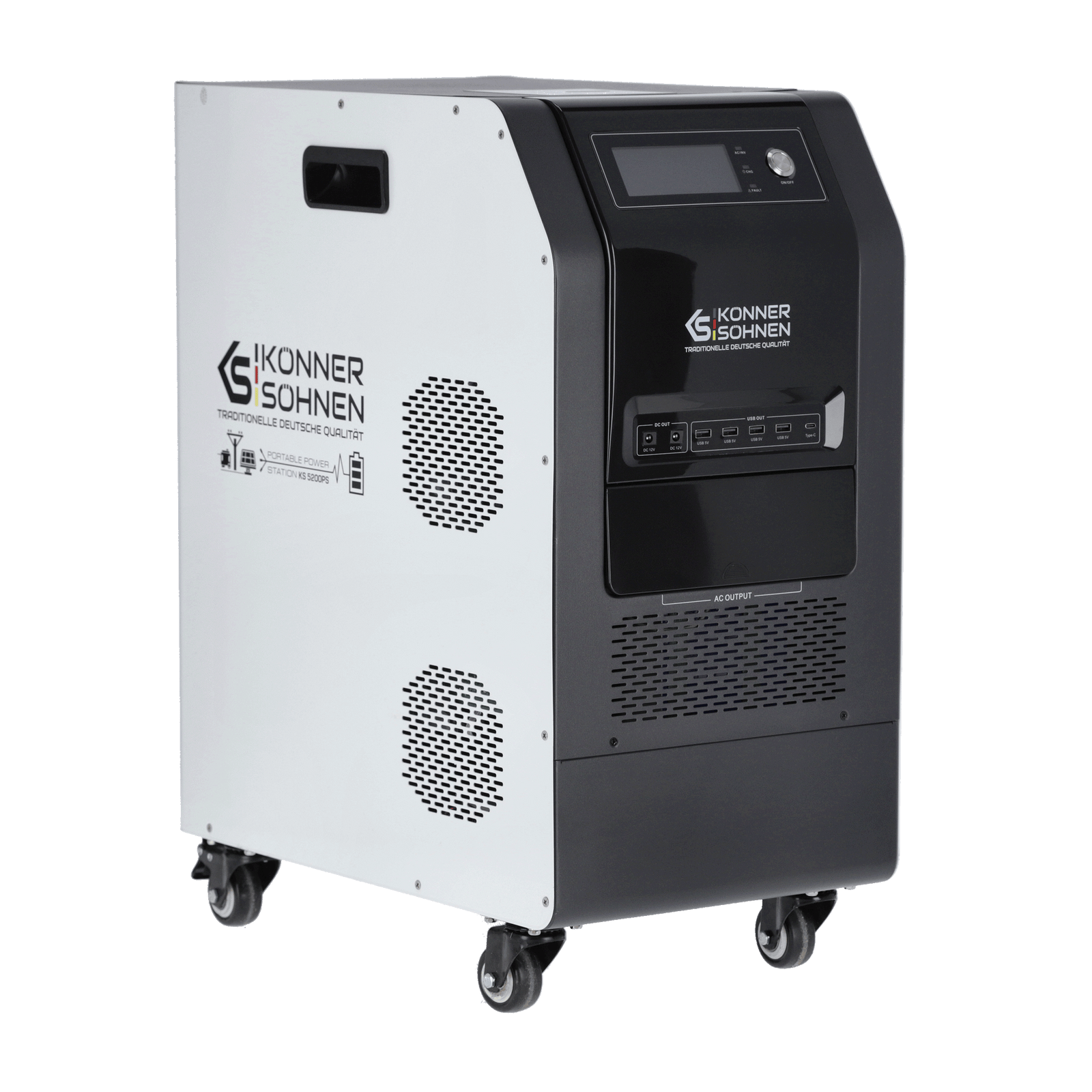

Könner & Söhnen KS 5200PS is the core of a hybrid energy hub – a multifunctional 3-in-1 power station combining a pure sine wave inverter, MPPT controller, and 5.12 kWh LiFePO₄ battery. The station can be charged from four sources – mains power, solar panels, external battery, or DC generator. Thanks to the 48V DC output, it supports integration with KS 48V-DC generators through the Tandem Power system, which automatically optimizes operation and reduces fuel consumption. Reliable and quiet, this station is ready for 24/7 autonomous use at home or in business operations during power outages.

Easy to use, the station requires no special permits or complicated procedures. It is ready for operation right out of the box and serves as a backup power source for essential devices, powers electric tools in locations without a permanent power grid, and provides electricity during planned power outages.

01 Full energy independence

02 Hybrid power source with DC generator

03 Operation from an external battery

04 MPPT solar charge controller

05 Uninterrupted power supply (UPS)

06 Battery lifespan over 10 years

07 Efficient energy consumption management

08 LCD Display

09 PC Connection

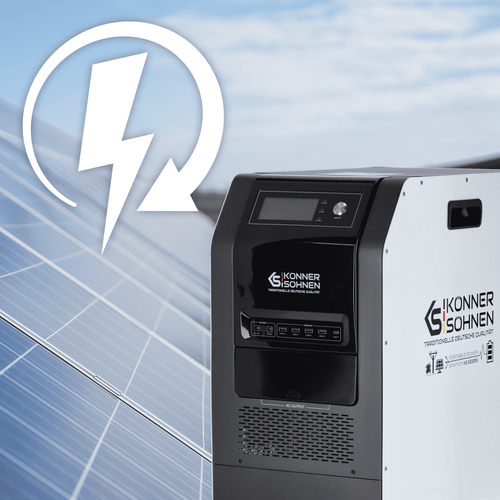

Full energy independence

Support for DC generators, additional batteries, and solar panels allows users to obtain free solar energy and operate autonomously for days or even weeks without grid connection in emergencies or prolonged outages.

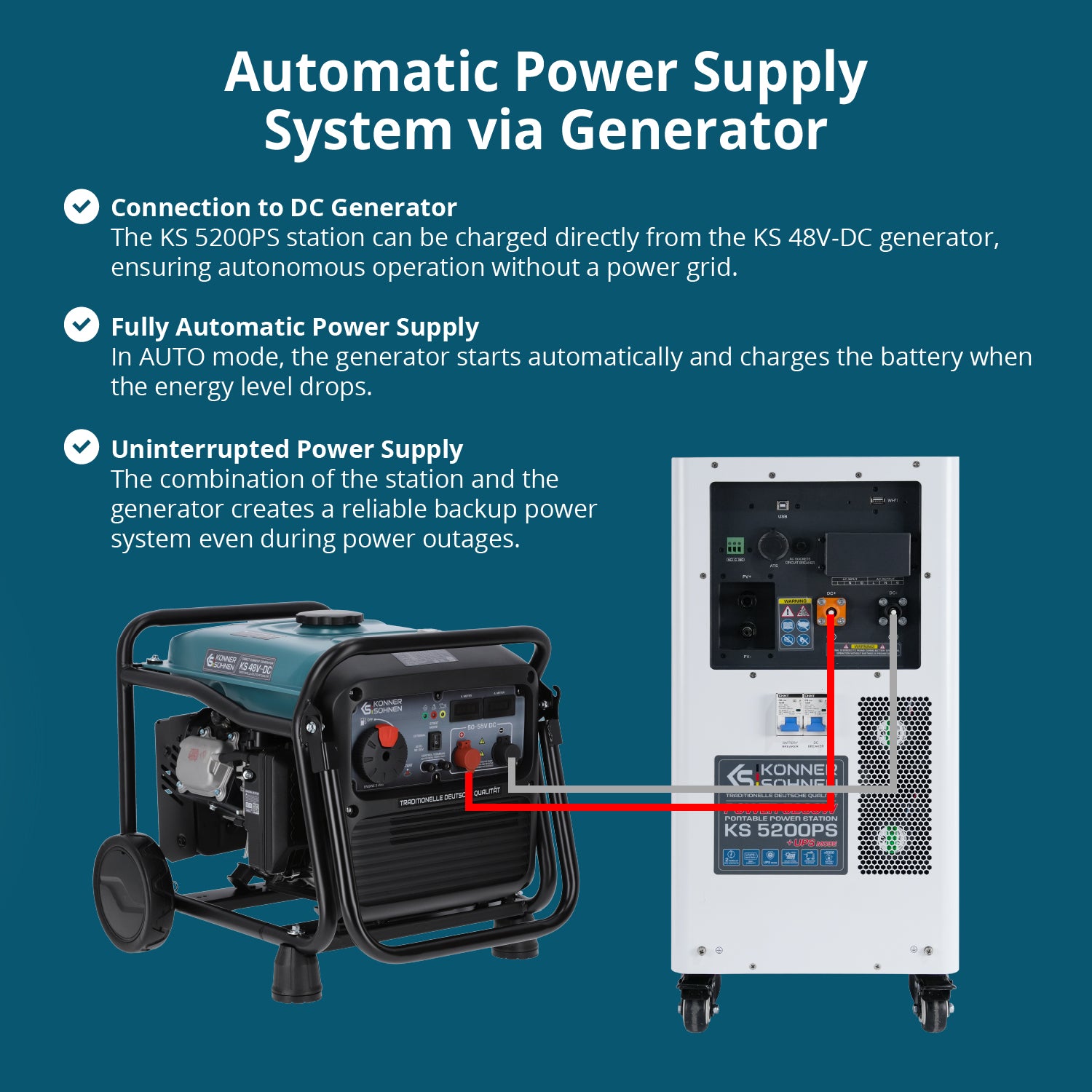

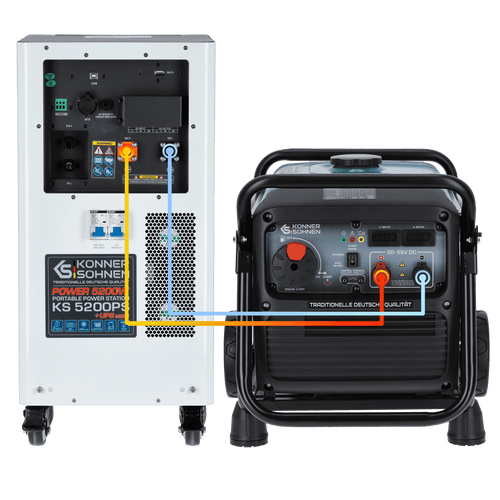

Hybrid power source with DC generator

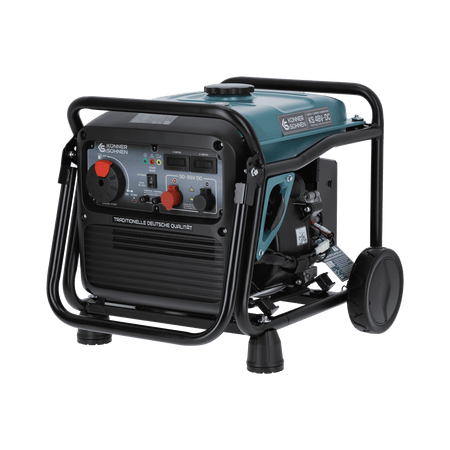

Using a KS 48V-DC series DC generator, you can quickly set up a fully automatic power supply system. The generator monitors battery voltage, automatically starts charging when needed, and stops when the battery is sufficiently charged.

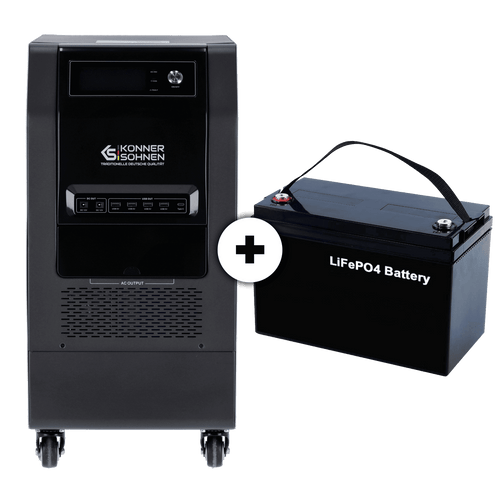

Operation from an external battery

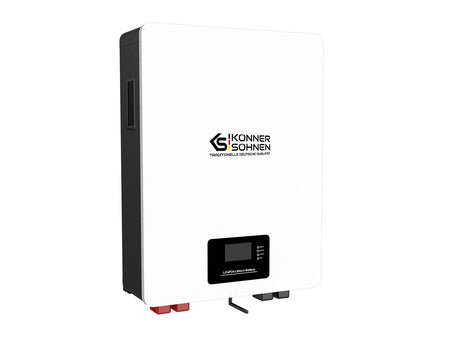

You can connect an additional battery (LiFePO₄ only, nominal capacity 5.12 kWh) to the DC terminal of the power station, which can either support or replace the built-in battery.

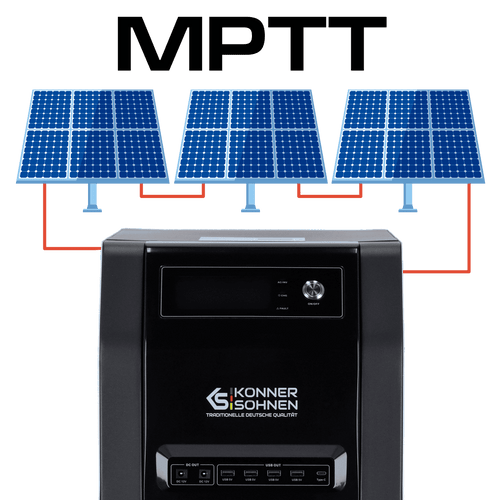

MPPT solar charge controller

The high charging capability from solar panels is a key advantage of this station. With sufficient solar panel power, the KS 5200PS charges your battery up to 80% in just 1 hour.

Uninterrupted power supply (UPS)

The power station ensures continuous operation of connected devices during power outages or voltage fluctuations. It switches power within milliseconds, protecting against data loss, equipment damage, and downtime.

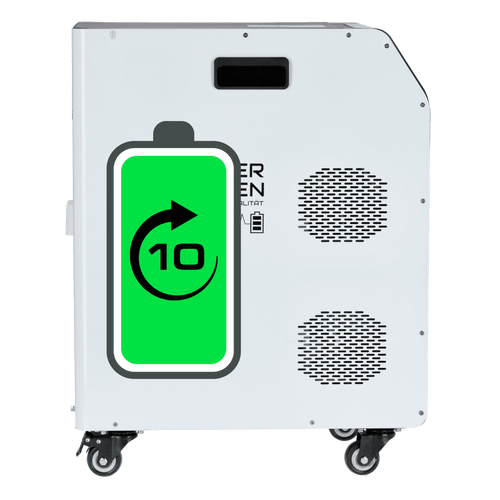

Battery lifespan over 10 years

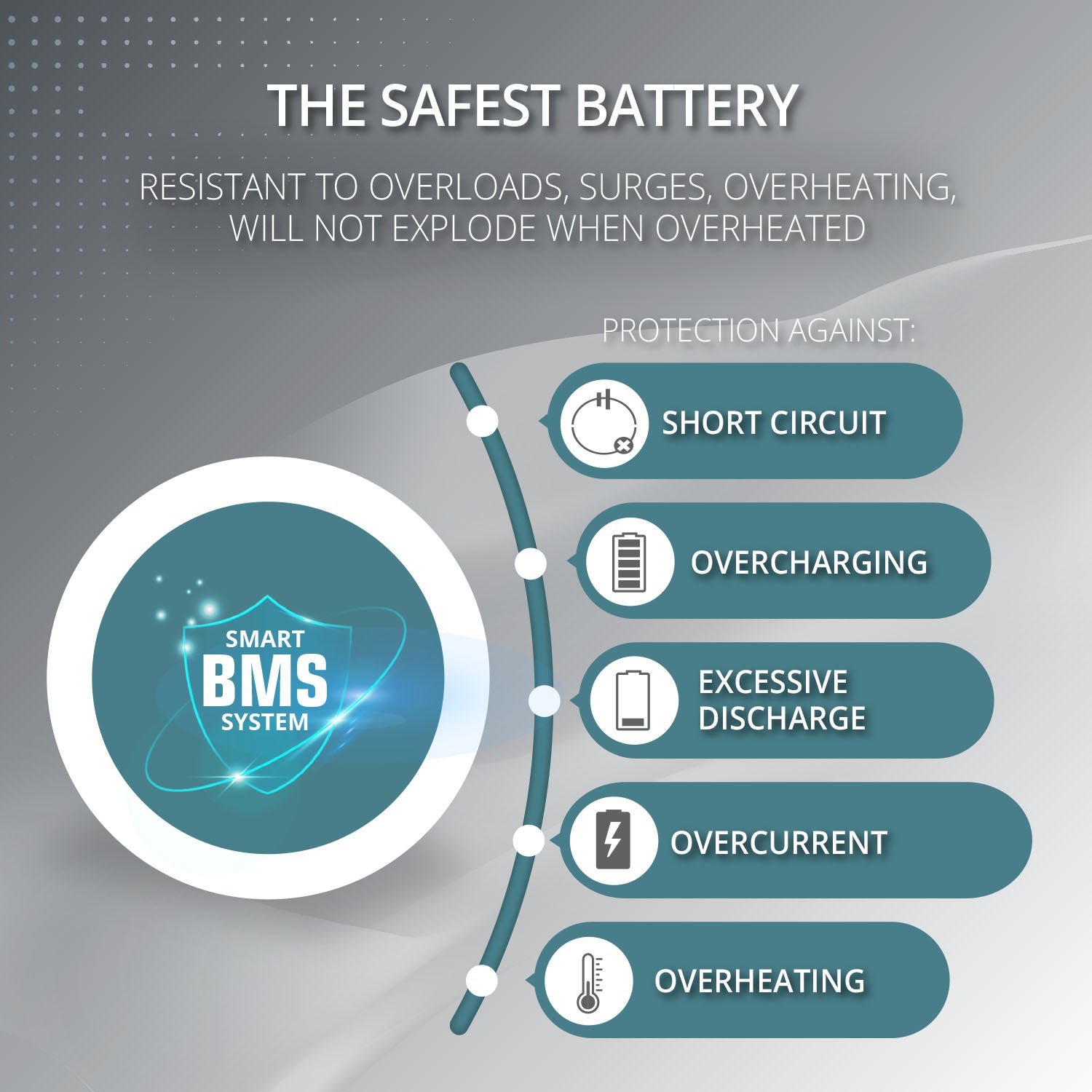

The solar power station is equipped with a lithium iron phosphate (LiFePO₄) battery rated for up to 6000 charge/discharge cycles*, ensuring stable performance for many years.

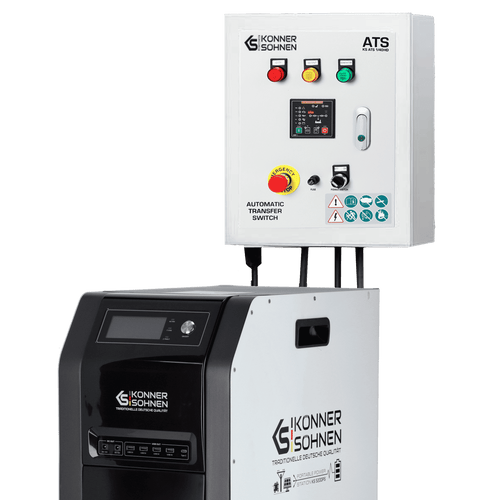

Efficient energy consumption management

The station features an ATS connection that allows control of an external automatic transfer switch, enabling redirection of excess solar energy to additional consumers, thus maximizing efficiency.

LCD Display

The control panel features an LCD that shows key operating parameters such as battery charge level, remaining runtime at current load, charging time, input and output power, output frequency (50/60 Hz), and warning messages.

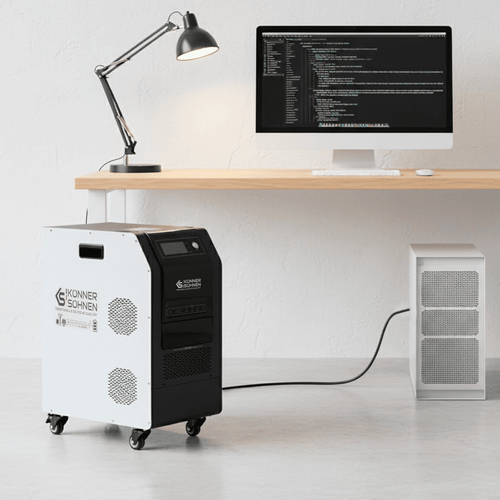

PC Connection

The package includes a USB cable for PC connection via the USB-B port on the rear panel. Installing the software on your computer allows you to monitor key station parameters and adjust settings

Benefits

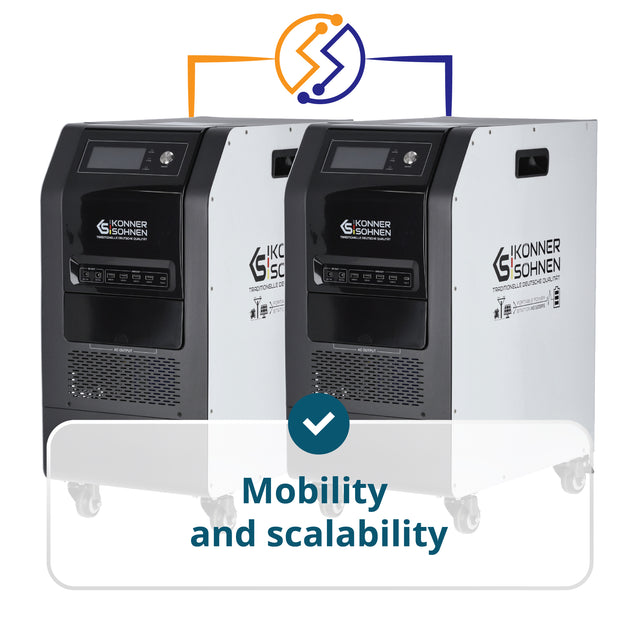

Mobility and scalability

the ability to connect a 48V-DC generator or additional batteries, or to pair two identical stations (e.g. 2 × KS 5200PS), combined with a portable design, creates a flexible hybrid system for various use cases – from home to business.

Four power supply options

mains power, efficient solar charging up to 80 % in 1 hour, DC generators, or additional batteries, with instant switching between them when needed.

Durable and safe LiFePO₄ battery

lifespan up to 6000 cycles and more than 10 years of service ensure a reliable investment in energy independence.

UPS function for uninterrupted operation

automatic power switching <10 ms protects sensitive equipment from failures, data from loss, and business from downtime.

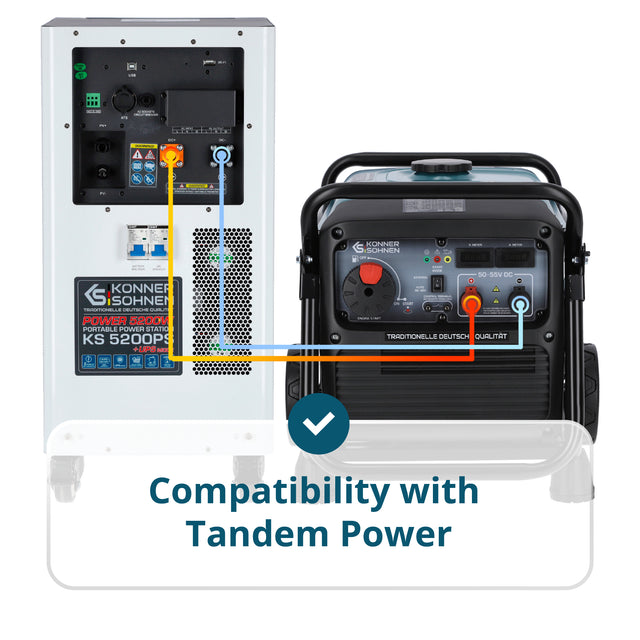

Tandem Power compatibility

intelligent control when operating together with the KS 48V-DC generator: when the battery charge drops, the generator starts automatically, runs at maximum efficiency, and turns off once the station is charged.

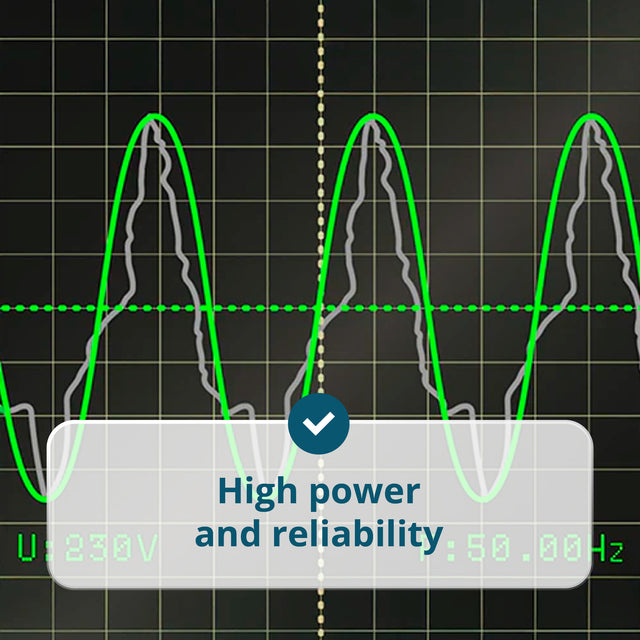

High power and reliability

inverter technology with pure sine wave ensures stable power supply even for energy-demanding devices, safe for sensitive electronics, and guarantees performance in critical situations.

Quiet comfort

no constant engine noise, no exhaust gases, no manual control required.

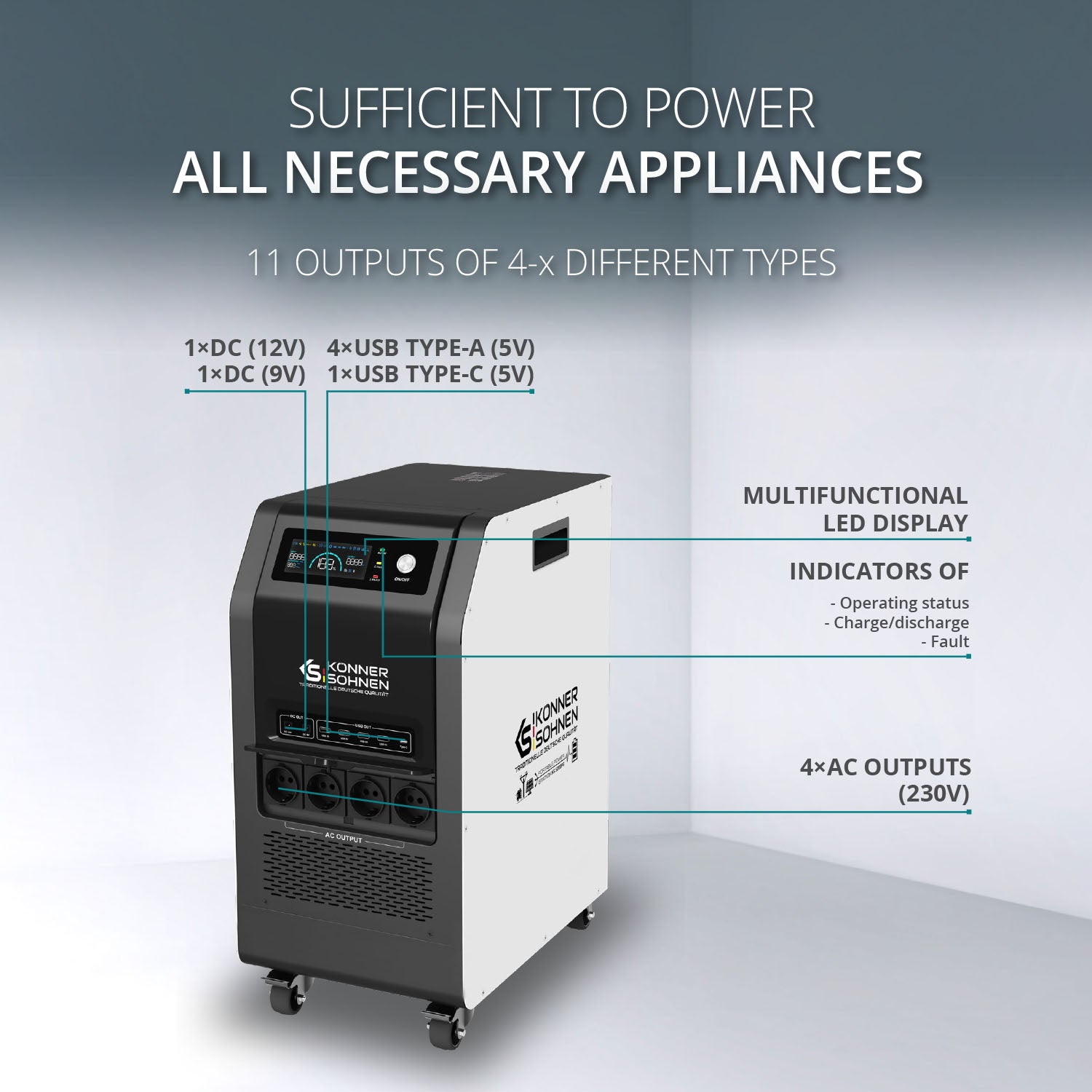

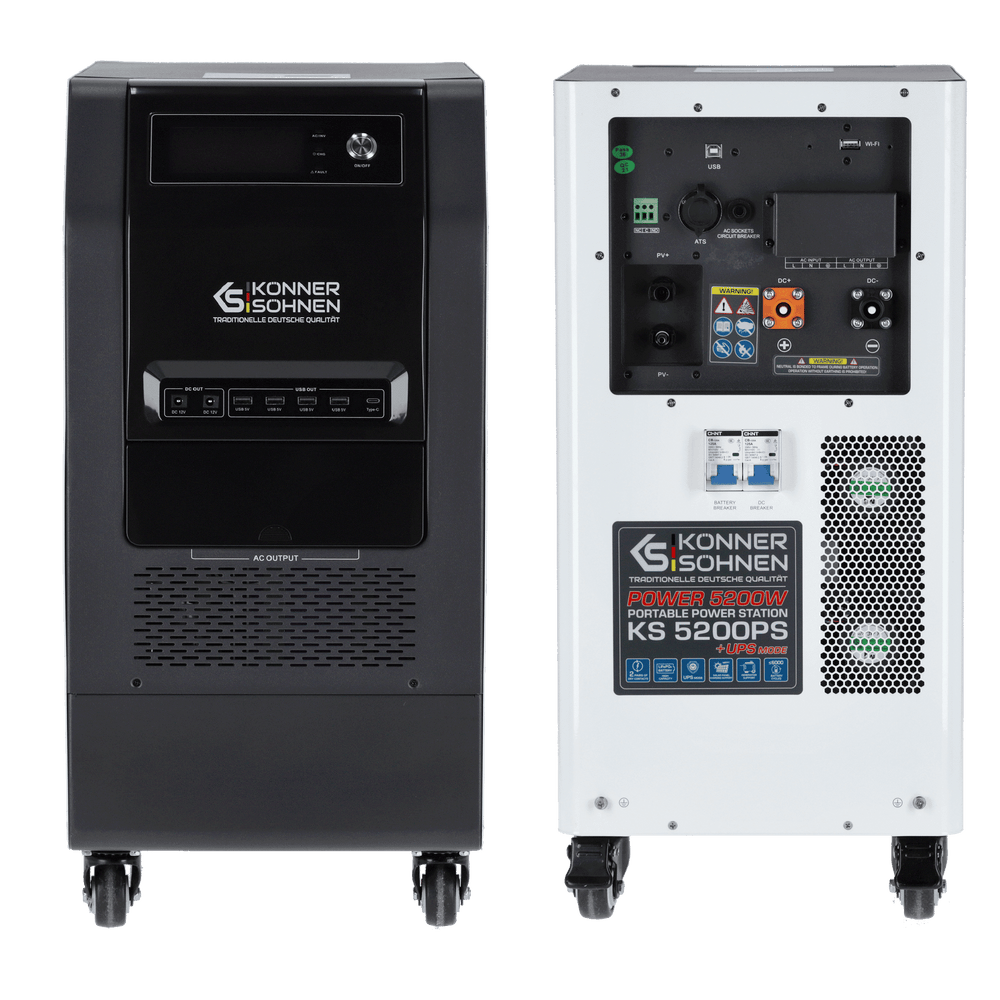

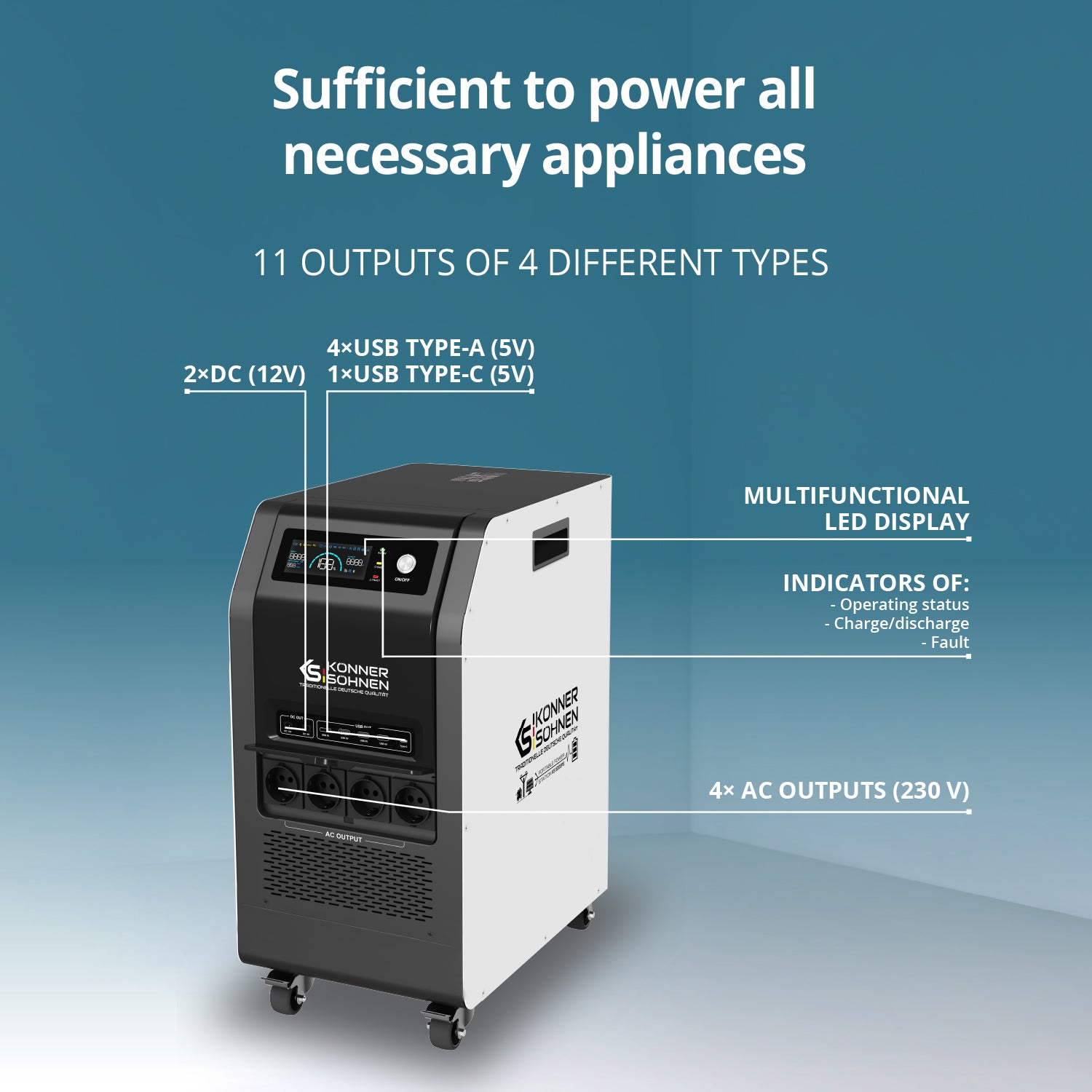

LCD display

shows the main operating parameters of the station

AC output status indicator

shows the presence of 230V output voltage

Charging indicator

signals the battery charging process

Fault indicator

warns of an error or malfunction

230V inverter module switch

turns AC output on/off

12V DC outputs (DC5521)

for powering or charging DC devices

USB 5V/2A and USB Type-C 1×5V/2A outputs

for charging mobile gadgets

230V AC sockets

standard outputs for household appliances

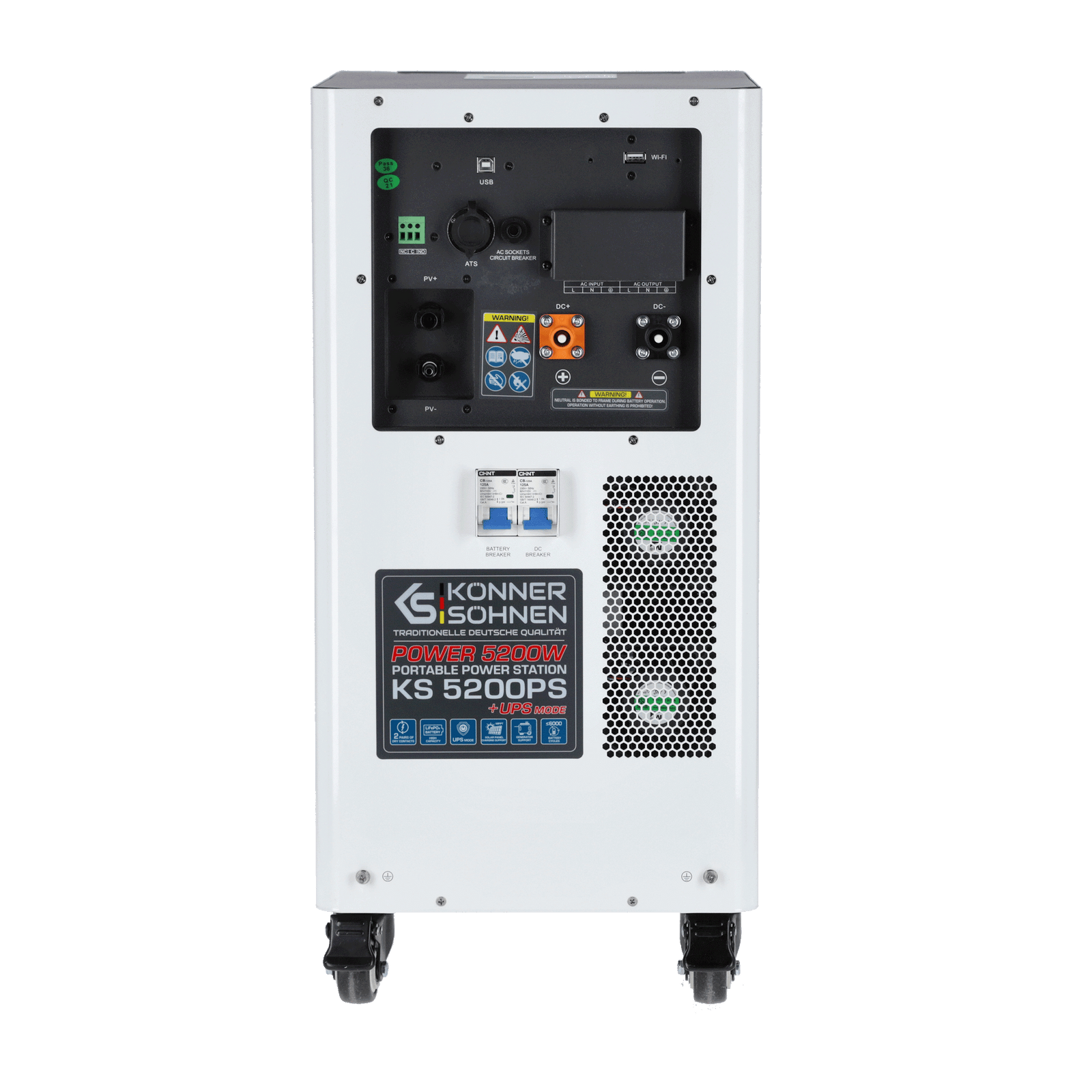

PV input (MC4)

for connecting solar panels for charging

AC input

used to charge the station from the power grid

C19 AC power connector

alternative power input for specific model

DC switch for internal battery and external DC source

allows selection of the power source

USB-B for computer

for data exchange with PC

USB-A for WLAN data logger (optional)

for connecting a wireless logger

ATS connection

for automatic power transfer

Generator control contacts

for remote generator start

DC Quick Plug connectors

quick connection for additional battery or KS 48V-DC series generator

Specification

Portable Power Station 3-in-1 KS 5200PS

Rated power, W	5200
AC output waveform	Pure Sine Wave
Inverter output voltage	230 V ±5 %
Frequency, Hz	50
Nominal built-in battery voltage, V	51.2
AC output conversion efficiency	90%
Battery capacity	100 Ah/5120 Wh
Battery type	LiFePO₄ (lithium iron phosphate battery)
Lifecycle	≤ 6000* cycles
Uninterruptible Power Supply (UPS)	+
Maximum discharge current, A	100
PV charging current, max, A	100
Maximum combined charging current, A	120
Maximum MPPT conversion efficiency	up to 98%
Maximum open-circuit voltage of solar array, V	450
Solar array operating voltage range, V	150~430
Nominal AC input voltage, V	230
AC Input Voltage Range, V	90-280
Maximum AC input current, A	16
Power switching response time, ms	10 (UPS); 20 (VDE4105, Home, GEN)
AC output	4 × Schuko 230 V + terminal on the rear panel
DC output	2 × 12V DC5521
USB output	4 × Type A (5V/2A)
Type-C output	1 × Type C (5V/2A)
Operation temperature, °C	0 °C to 45 °C Charge, -10 °C to 60°C Discharge
Includes	Power Station, USB cable for PC connection, GX20 plug for ATS output, 2x120A plugs for 48VDC terminal, 2×MC4 connectors for photovoltaic input, User manual
Net dimensions (LxWxH), mm	485×280×630
Gross dimensions (LxWxH), mm	599×404×682
Net weight, kg	56
Gross weight, kg	72.0
SKU	KS 5200PS
Barcode	4260405368006

*≤6000 cycles at a charge current of 0.2 C and discharge current of 0.5 C at 80% DOD.

*≤4000 cycles at a charge current of 0.5 C and discharge current of 0.5 C at 80% DOD.
