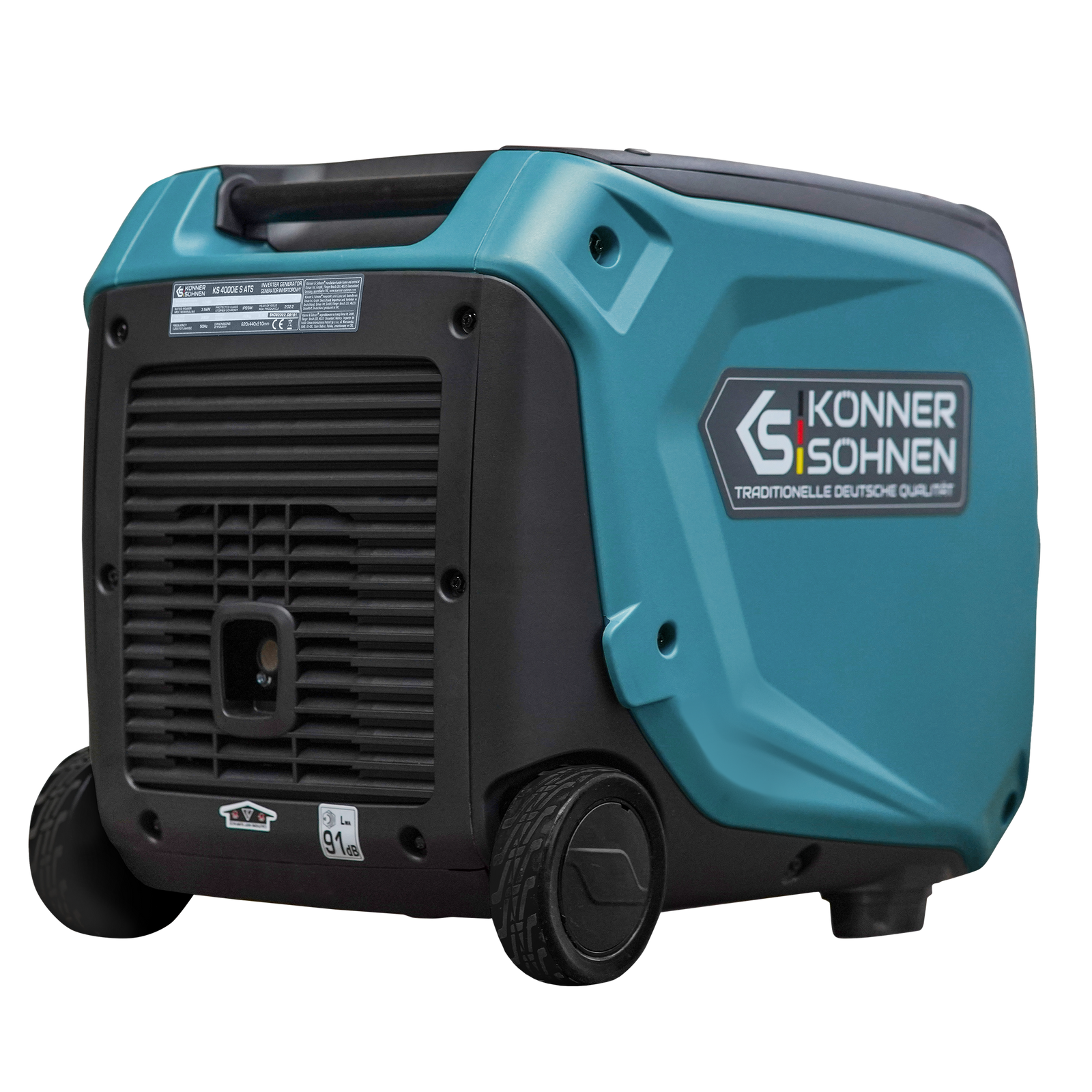

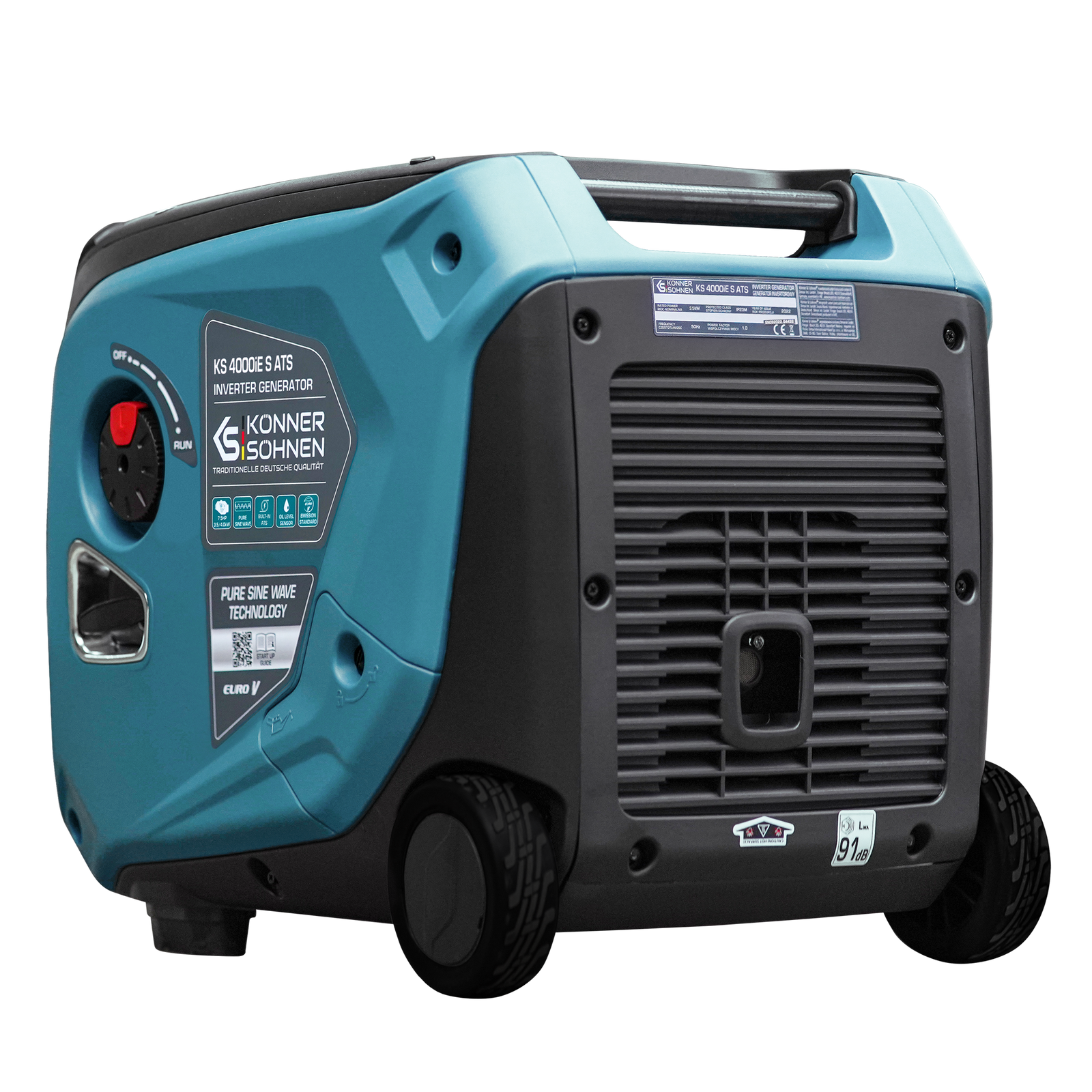

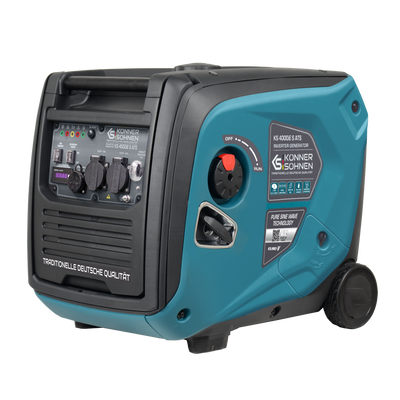

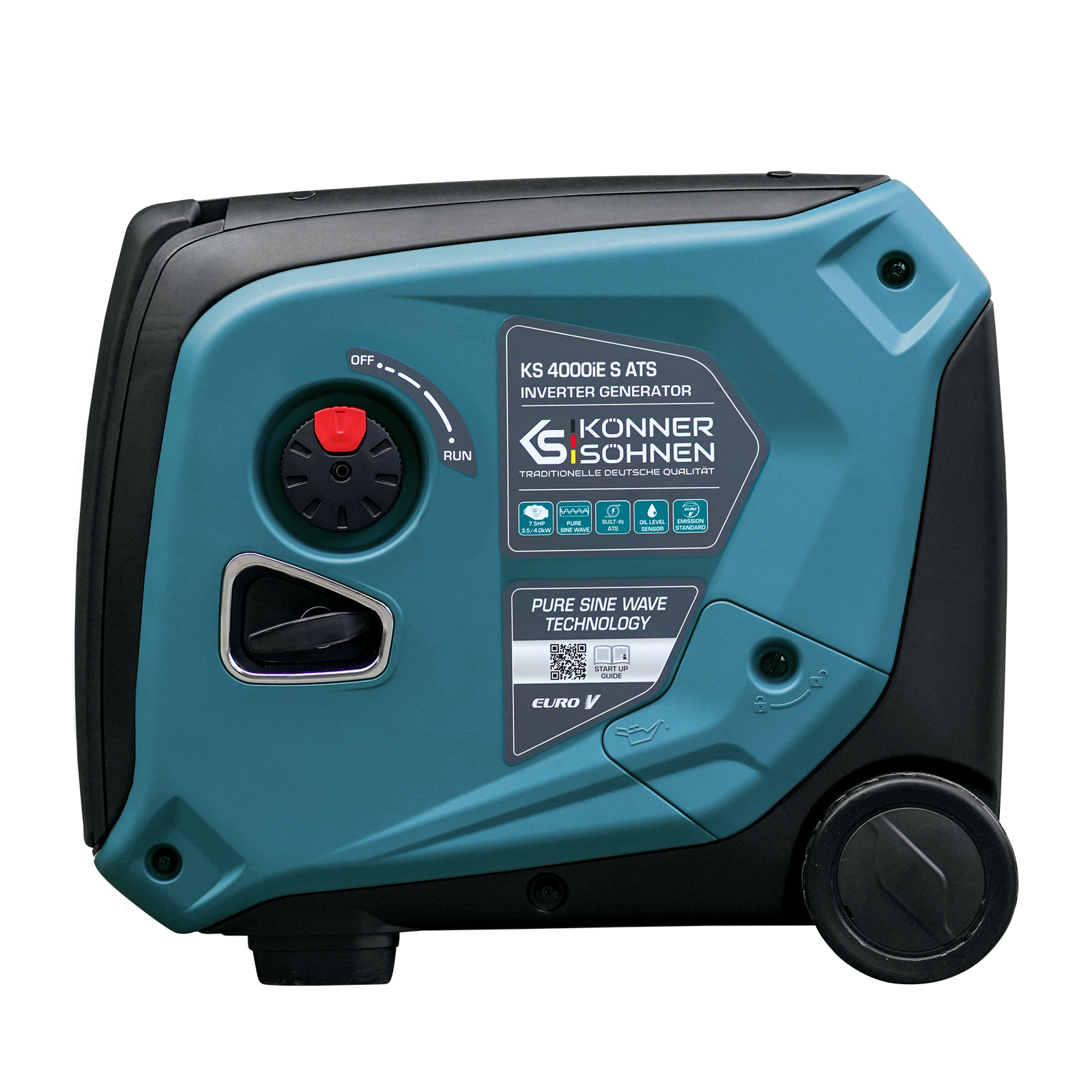

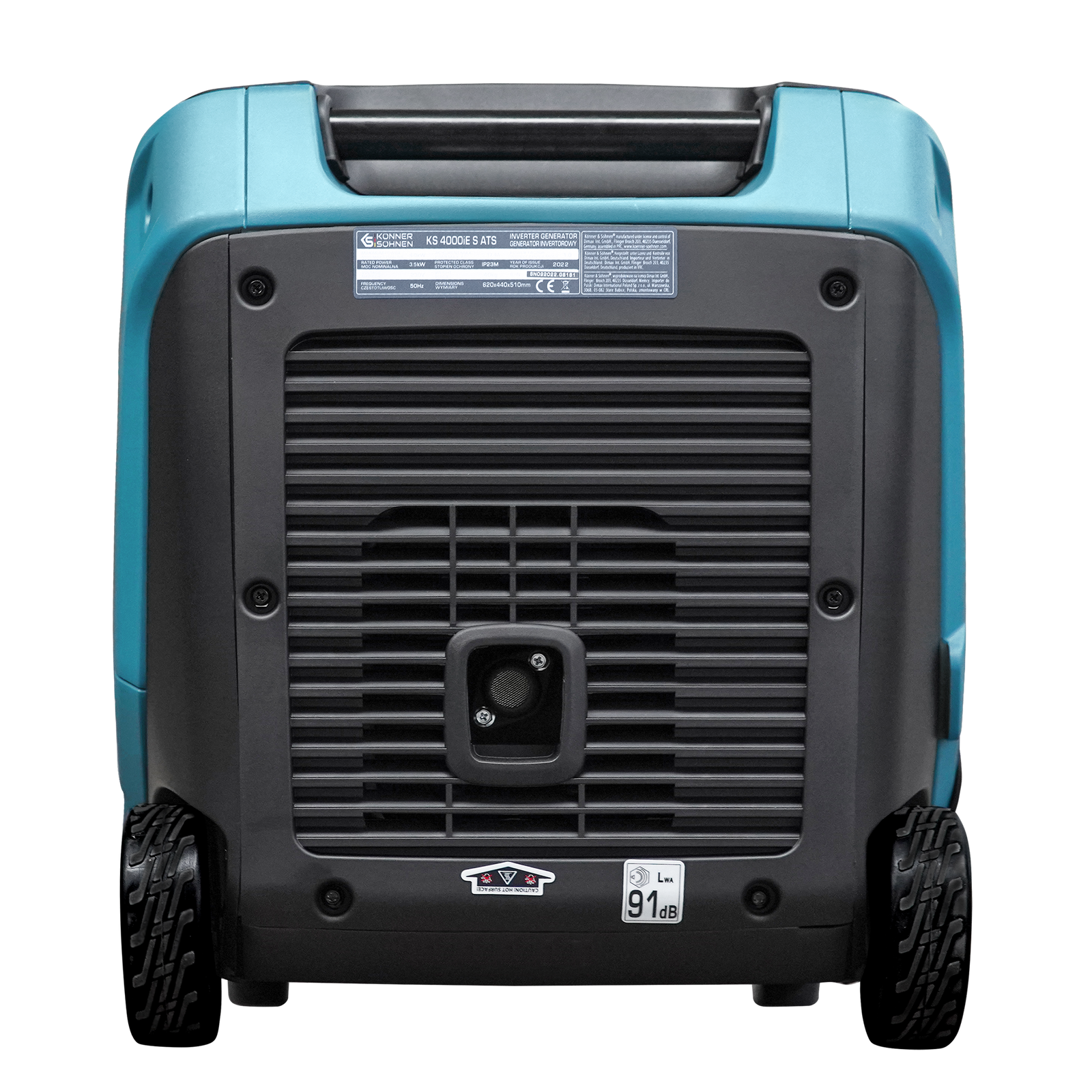

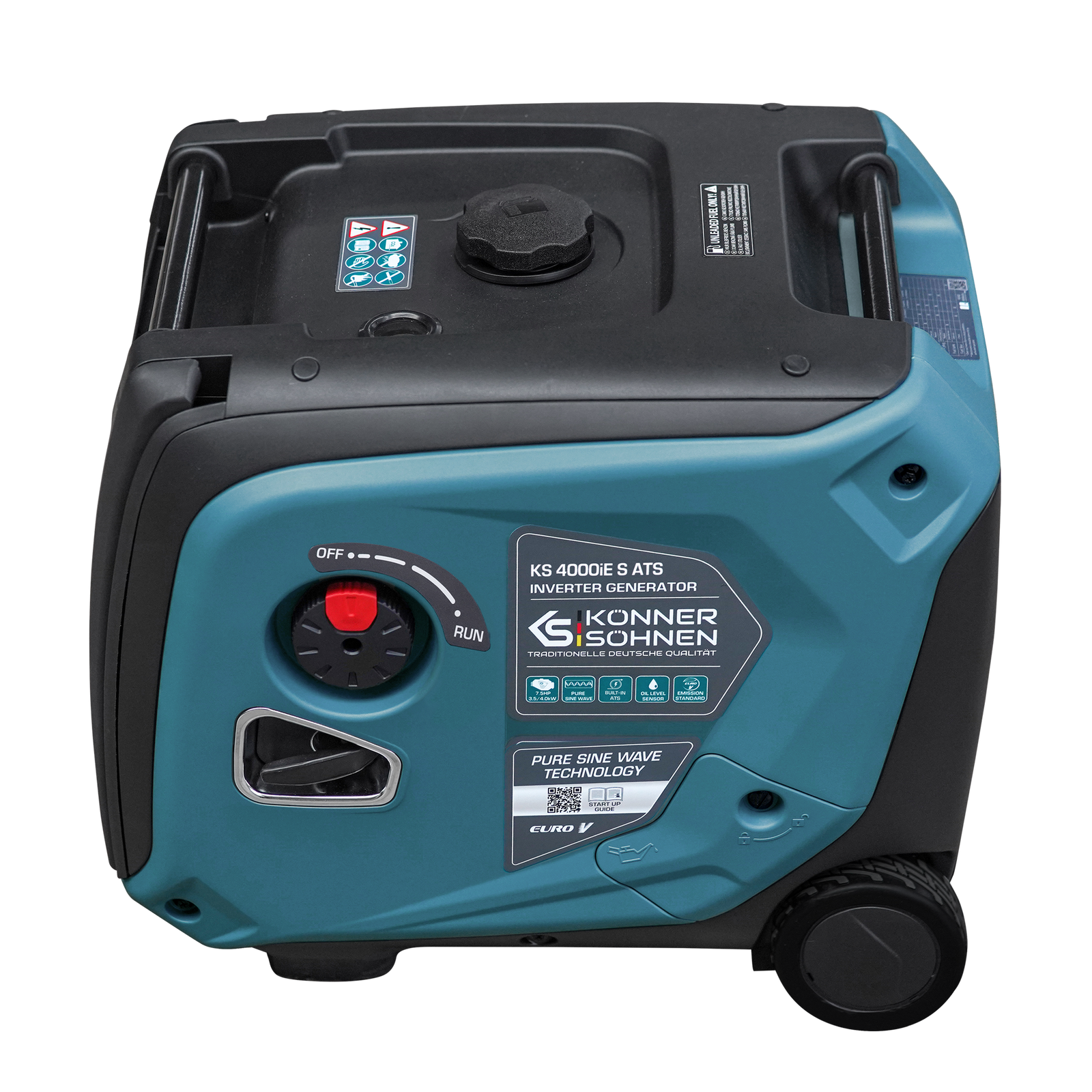

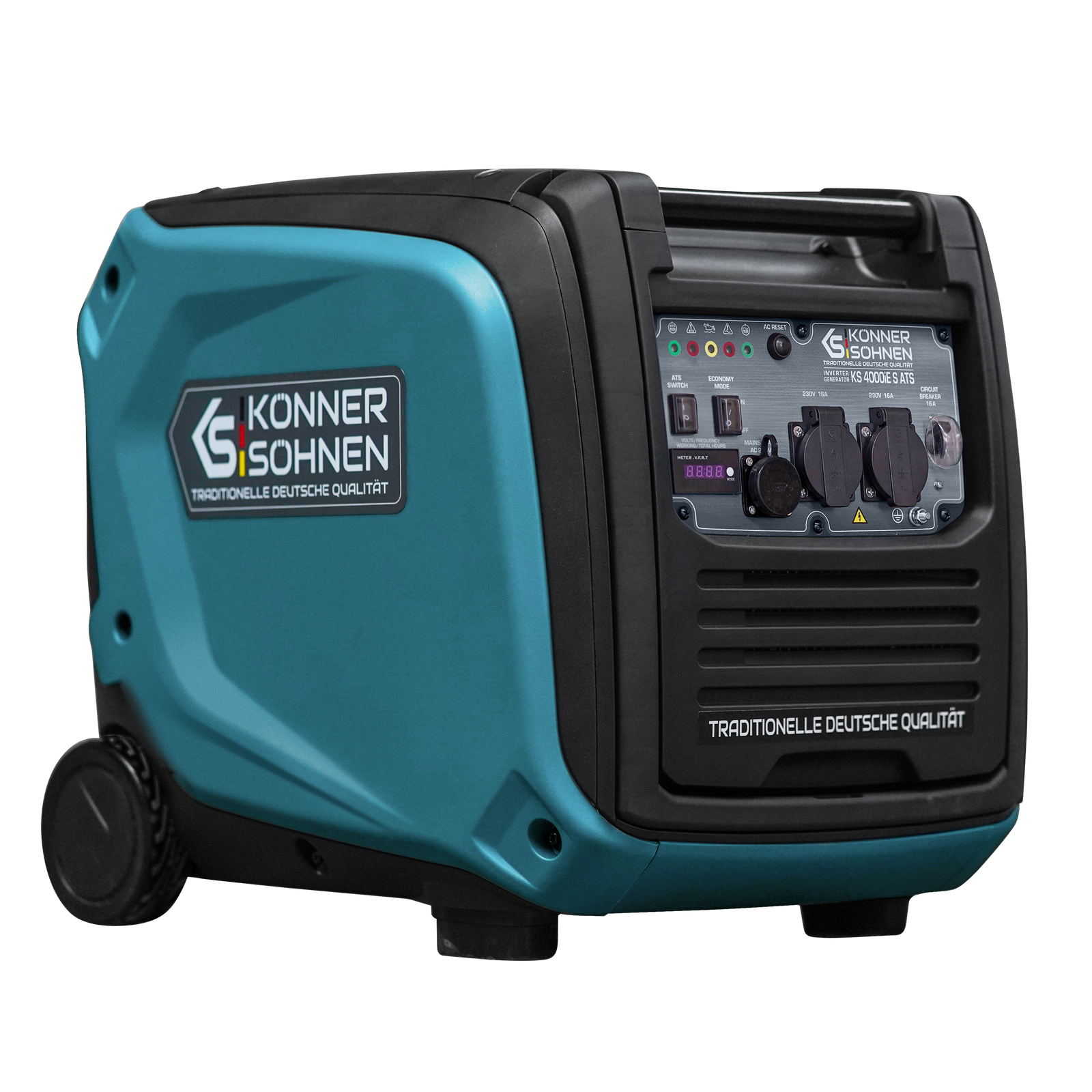

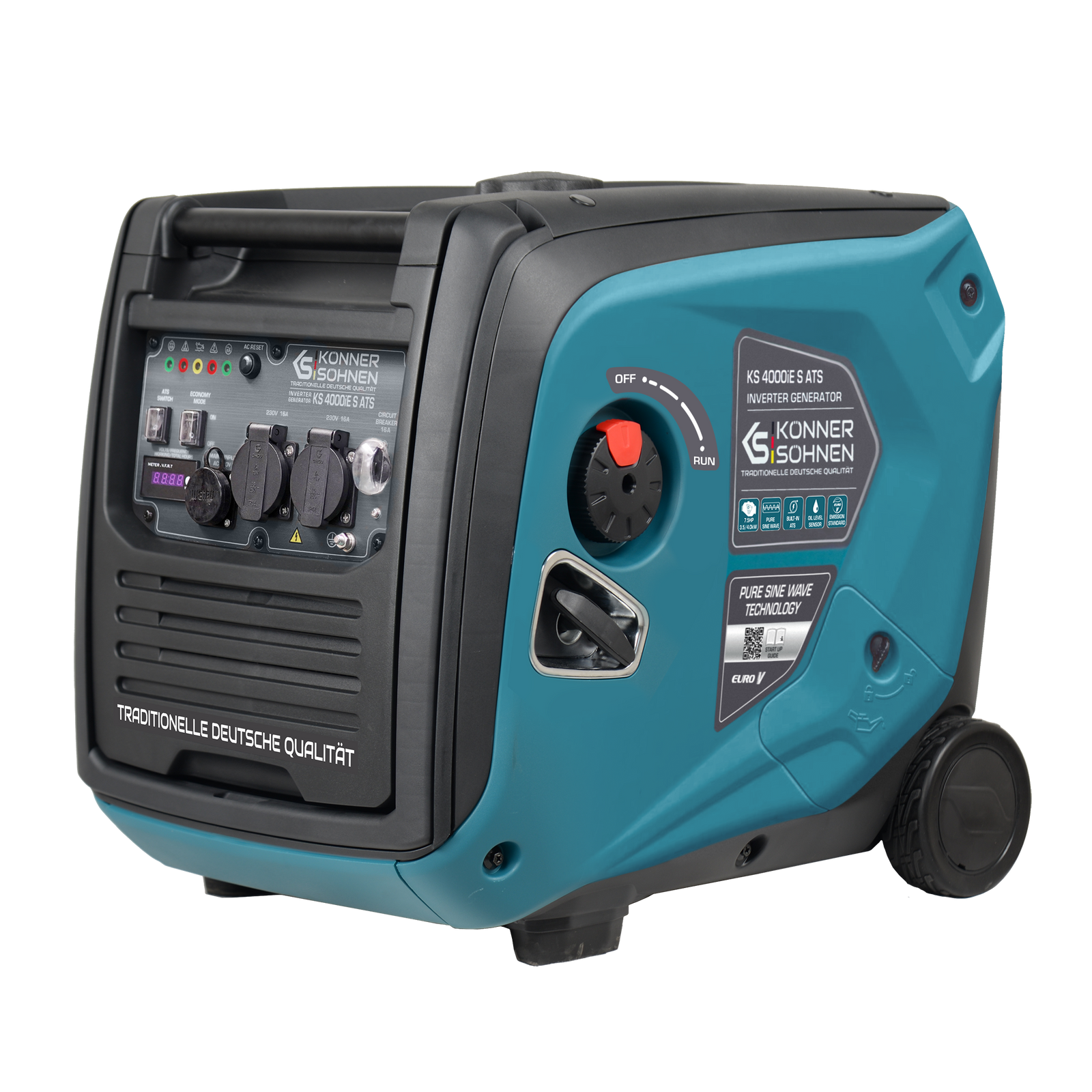

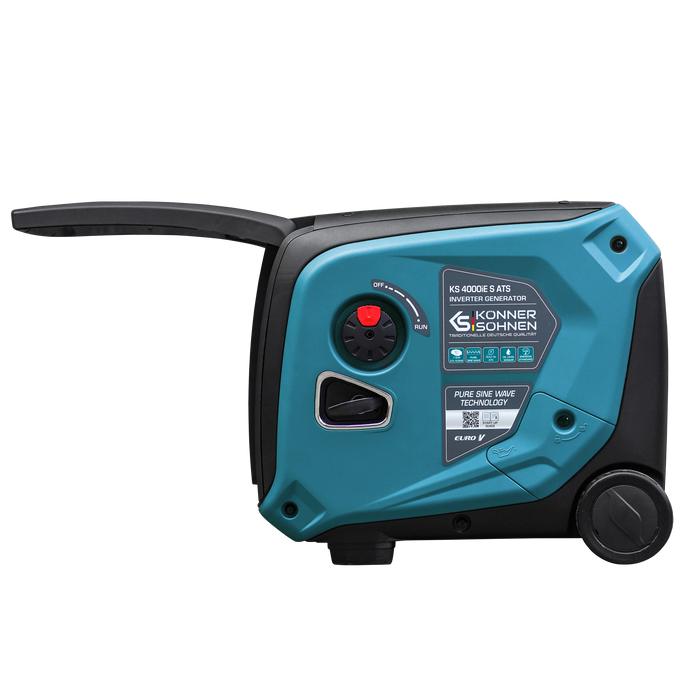

Inverter generator KS 4000iE S ATS

Name: Inverter generator KS 4000iE S ATS
Brand: Könner & Söhnen
SKU: 4260405365784
Price: 52079.0 UAH
Availability: OutOfStock

Unavailable

₴52 079

Specification

Max power, kW:	4.0
Nominal power, kW:	3.5
Engine start:	Manual/electric/auto
Outlets:	2 x Schuko 230 V
Voltage, V:	230

Variants

Max Power: 4.0 kW

4.0 kW 5.5 kW

Benefits

Inverter generator with built-in ATS system: No need to spend time starting the generator manually
Economical mode minimizes fuel consumption, and the efficient operation also reduces wear on components
Enhanced reliability: Copper windings ensure stable and reliable generator performance, even during intensive use
Noise-reducing enclosure ensures minimal noise levels
Low noise and minimal harmful emissions, making it an environmentally friendly option

Delivery

Dear Customers,

Due to technical difficulties in the Sumy region, we kindly ask you to coordinate shipments to this area in advance with our manager by phone: +38 (067) 301 00 93

Thank you for your understanding.

Fast delivery via Nova Poshta: your order will arrive within 1–3 days!

Payment

Choose a convenient and reliable payment method:

Features

01 Built-in ats system

02 Pure sine wave

03 Transportation kit

04 Ergonomic control panel

05 High quality alternator

06 Economy mode

07 Robust engine

08 Low noise level

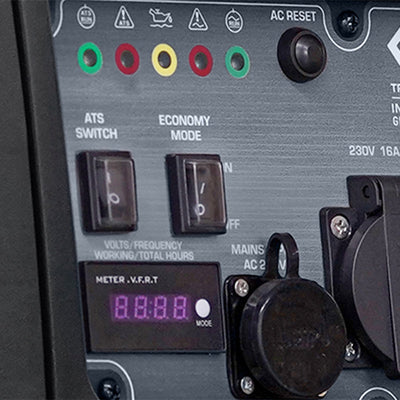

Built-in ats system

Built-in ATS (automatic transfer switch) system - the generator is equipped with an automatic transfer switch function. The built-in ATS unit allows the generator to monitor the incoming mains supply, automatically starts the generator when the mains supply is disconnected and then automatically stops the generator when the mains supply is restored with no user intervention.

Pure sine wave

The built-in electronic unit with microprocessor control monitors the operation of the generator and provides a stable output voltage of 230V 50Hz sinusoidal form, which is suitable for the reliable operation of sensitive electronics.

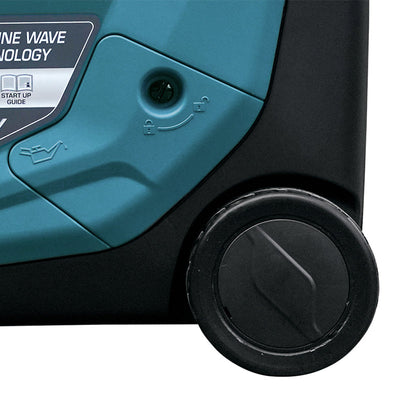

Transportation kit

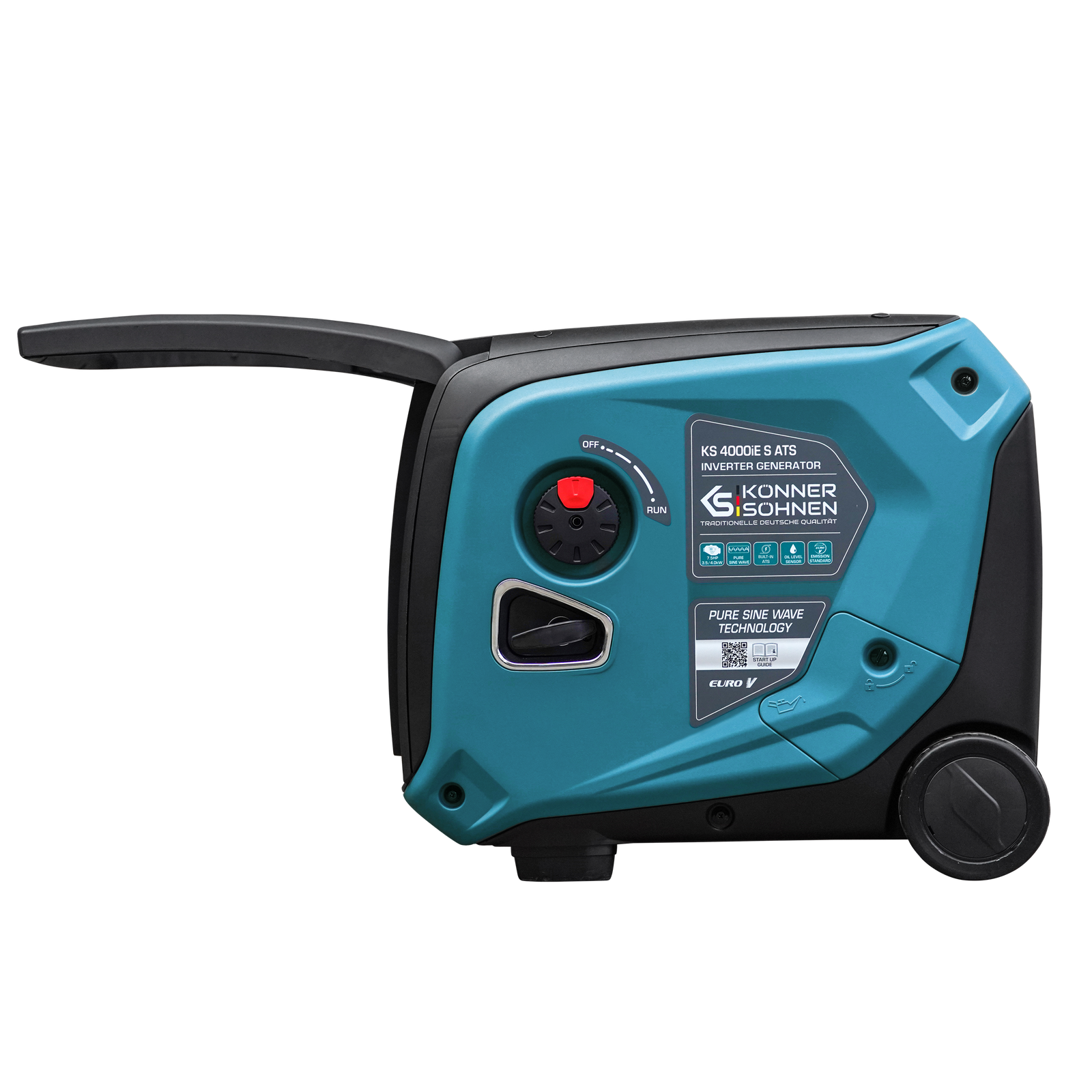

Könner & Söhnen Inverter generators are equipped with a transport system for easy movement. Two wheels and a handle that lifts when the generator is moved ensure comfortable transportation and mobility.

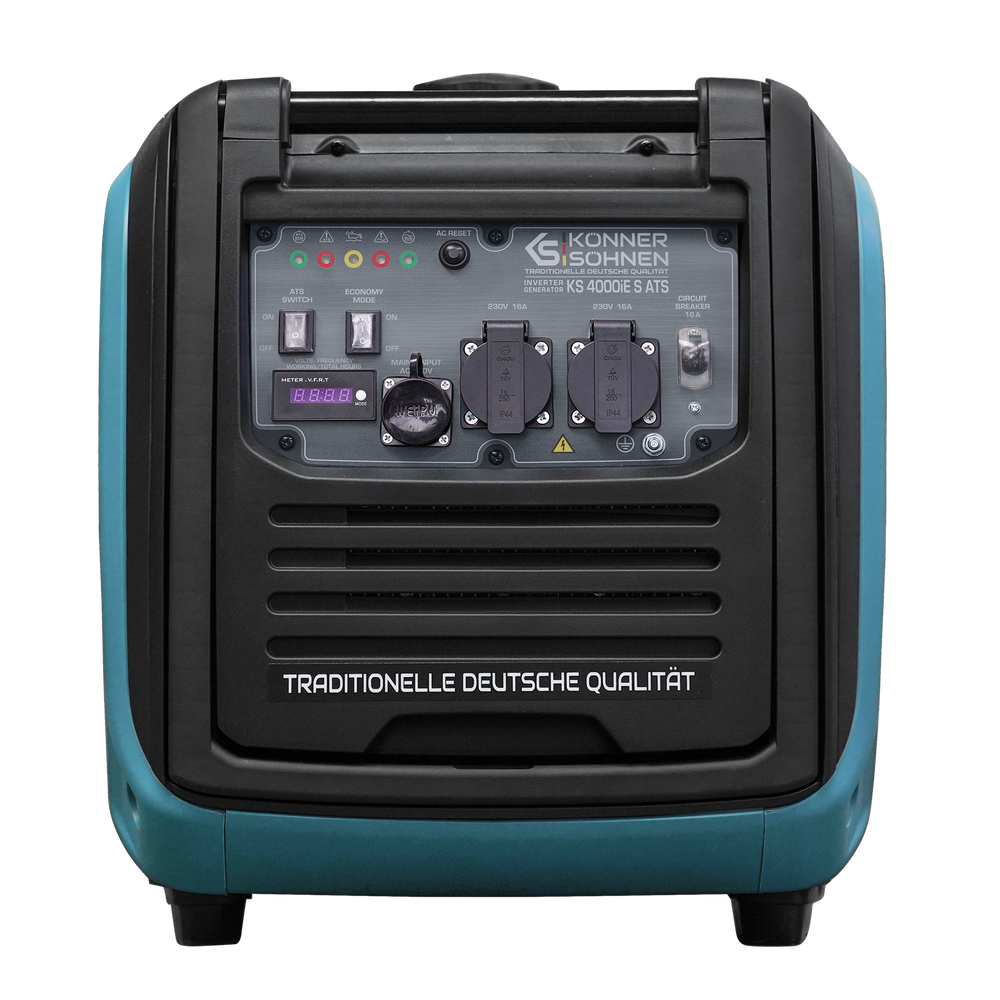

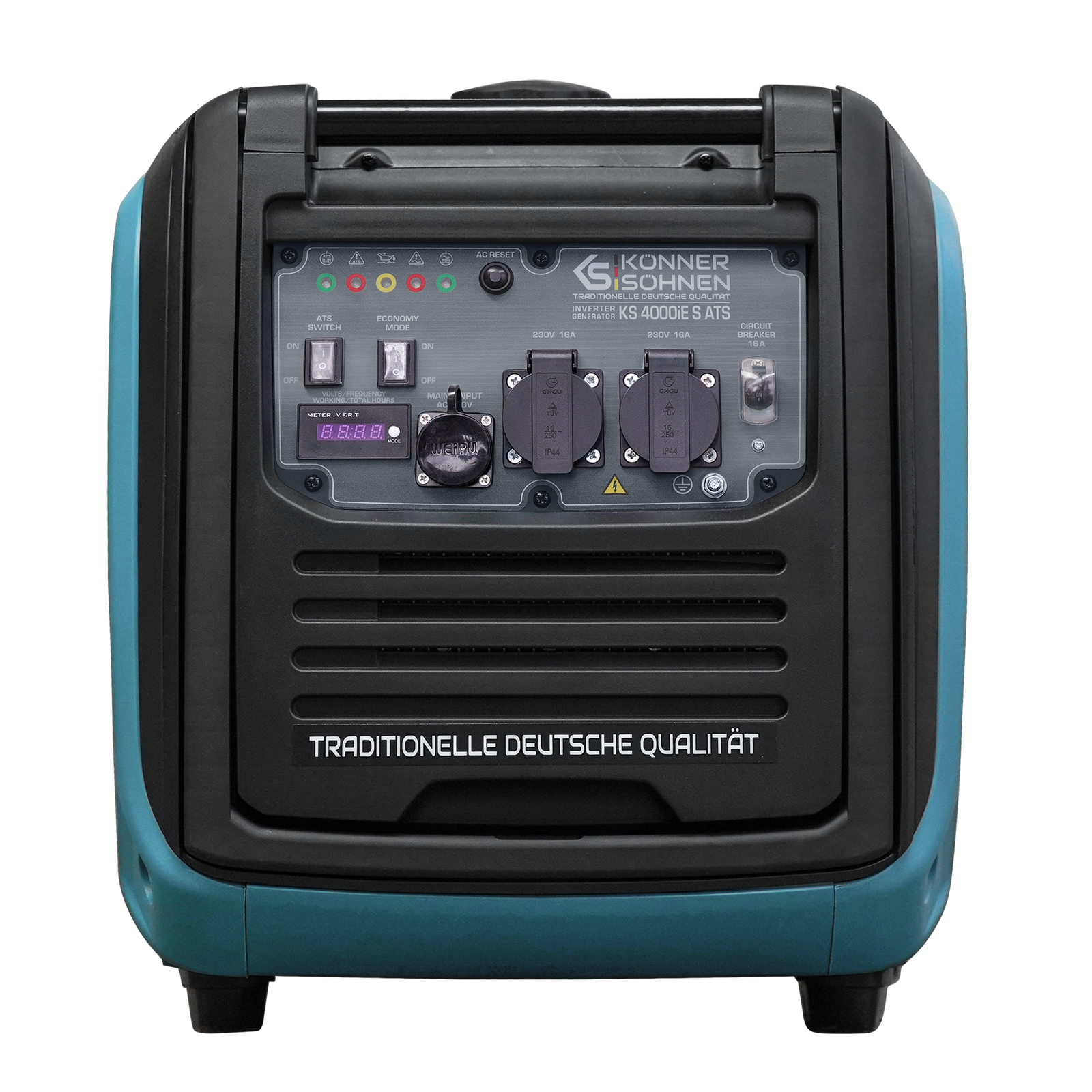

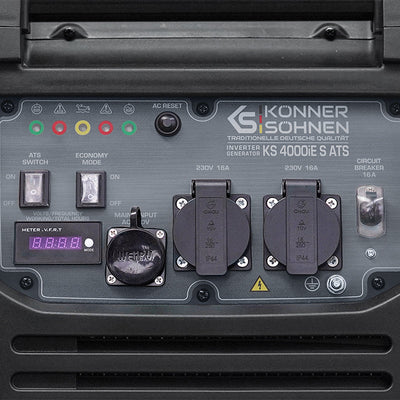

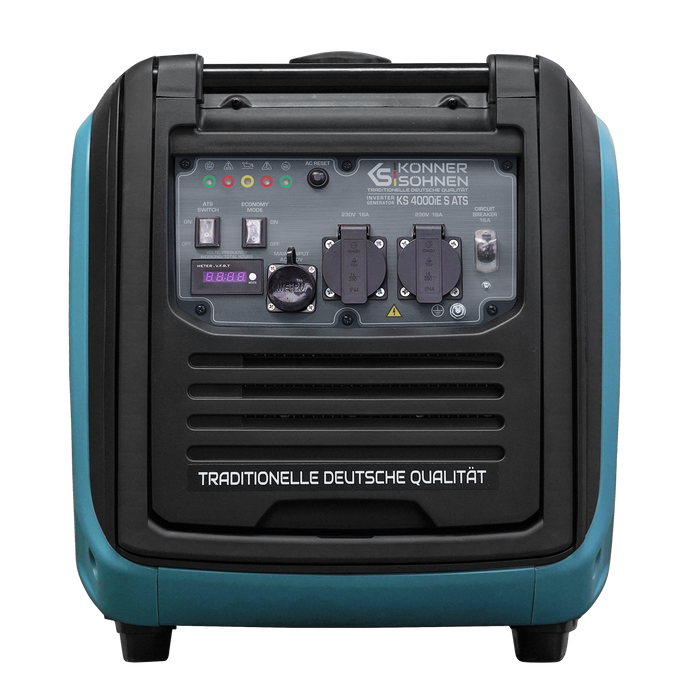

Ergonomic control panel

Ergonomic control panel is equipped with LED display, ECONOMY MODE switch, as well as RESET button for resetting the control system (upon tripping of the circuit breaker) and restoring power supply. Control of all main operating status indicators: overload protection, automatic engine stop at low oil level.

High quality alternator

Könner & Söhnen inverter generators are equipped with a robust brushless alternator with 100% copper winding. The high-end compact permanent magnet alternator is housed in a plastic casing and can withstand maximum loads without any damage to ensure long-term and reliable operation of the generator set.

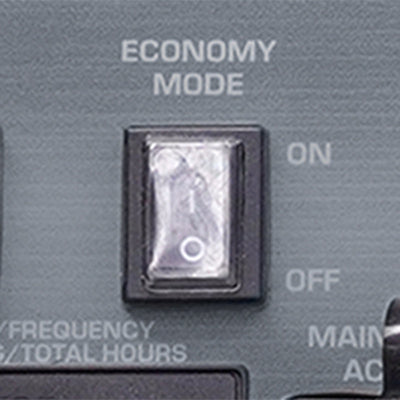

Economy mode

The ECONOMY MODE reduces fuel consumption up to 50% at low loads due to reduced engine speed.

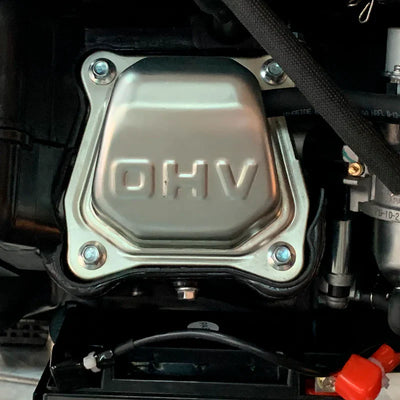

Robust engine

The reliable proprietary K&S engine is characterized by increased wear resistance, long-term and stable operation as well as meets all European quality standards, including the latest EURO V emission standards.

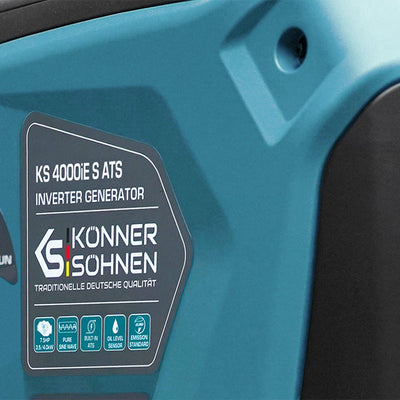

Low noise level

Soundproof housing provides noise 66 dB (Lpa 7 m), comfortable use and convenient transportation and is equipped with transport system for easy handling.

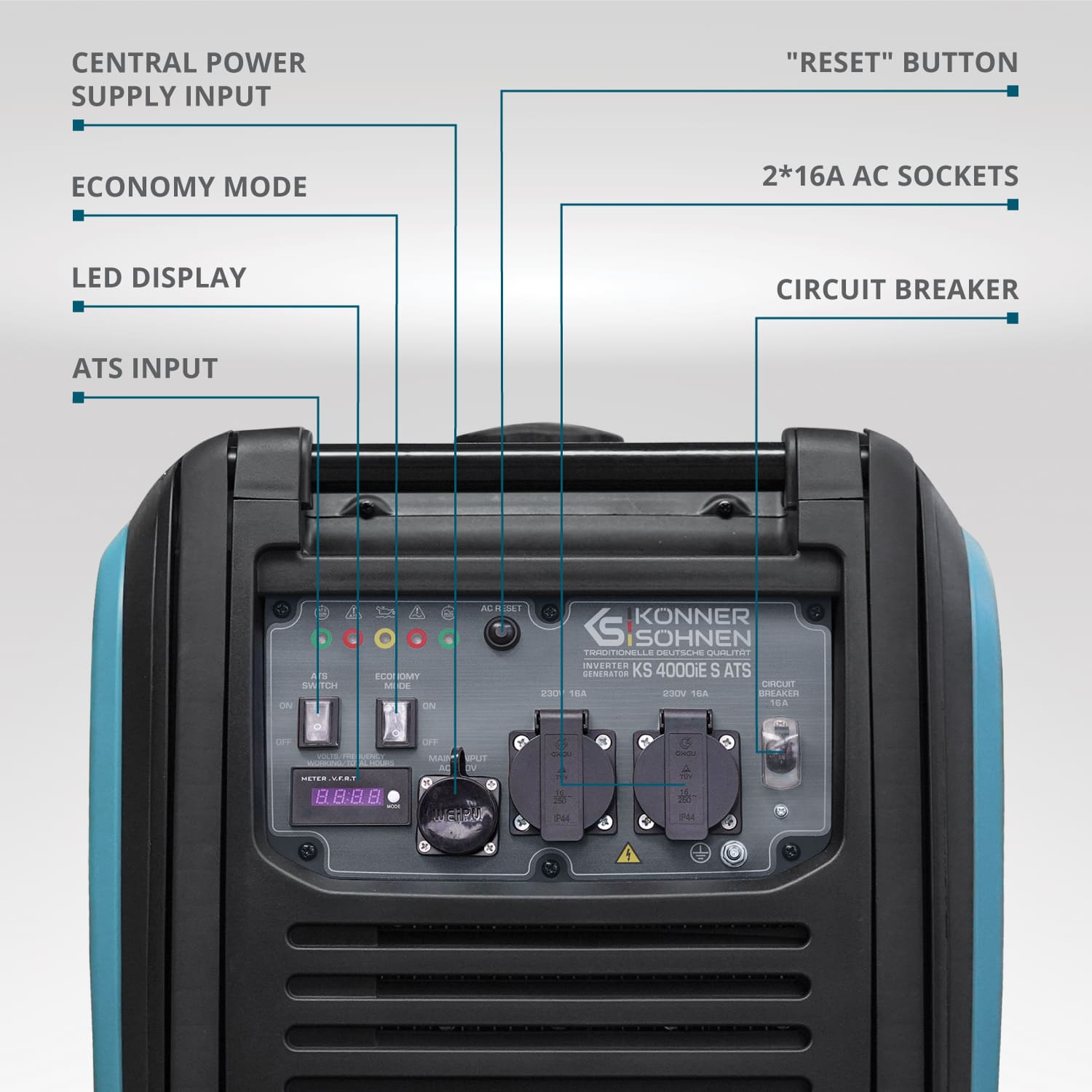

Economy Mode

Reduces fuel consumption by up to 50% at small loads

ATS Input

For connecting the Automatic Transfer Switch (ATS) unit

LED Display

Hour meter, frequency, voltage

Central Power Supply Input

The possibility of automatic operation without the need for permanent installation

"Reset" button

For resets the control system and restores voltage supply

2x16A AC Sockets

Two standard Schuko 230V outlets to power several devices

Circuit Breaker

Оverload and short circuit protection

Specification

Inverter generator KS 4000iE S ATS

Possible use	for individual electricity consumers only
Voltage, V	230
Max power, kW	4.0
Nominal power, kW	3.5
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	17.4
Outlets	2 x Schuko 230 V
Engine start	Manual/electric/auto
Fuel tank volume, l	12
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	66/91
Engine model	KS 240i
Engine cylinder volume, cm3	223
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp	7.5
Possibility of parallel connection	-
Output for ATS	Built-in ATS
Crank case volume, l	0.6
Accumulator (A·h)	1.6
Alternator winding	Copper

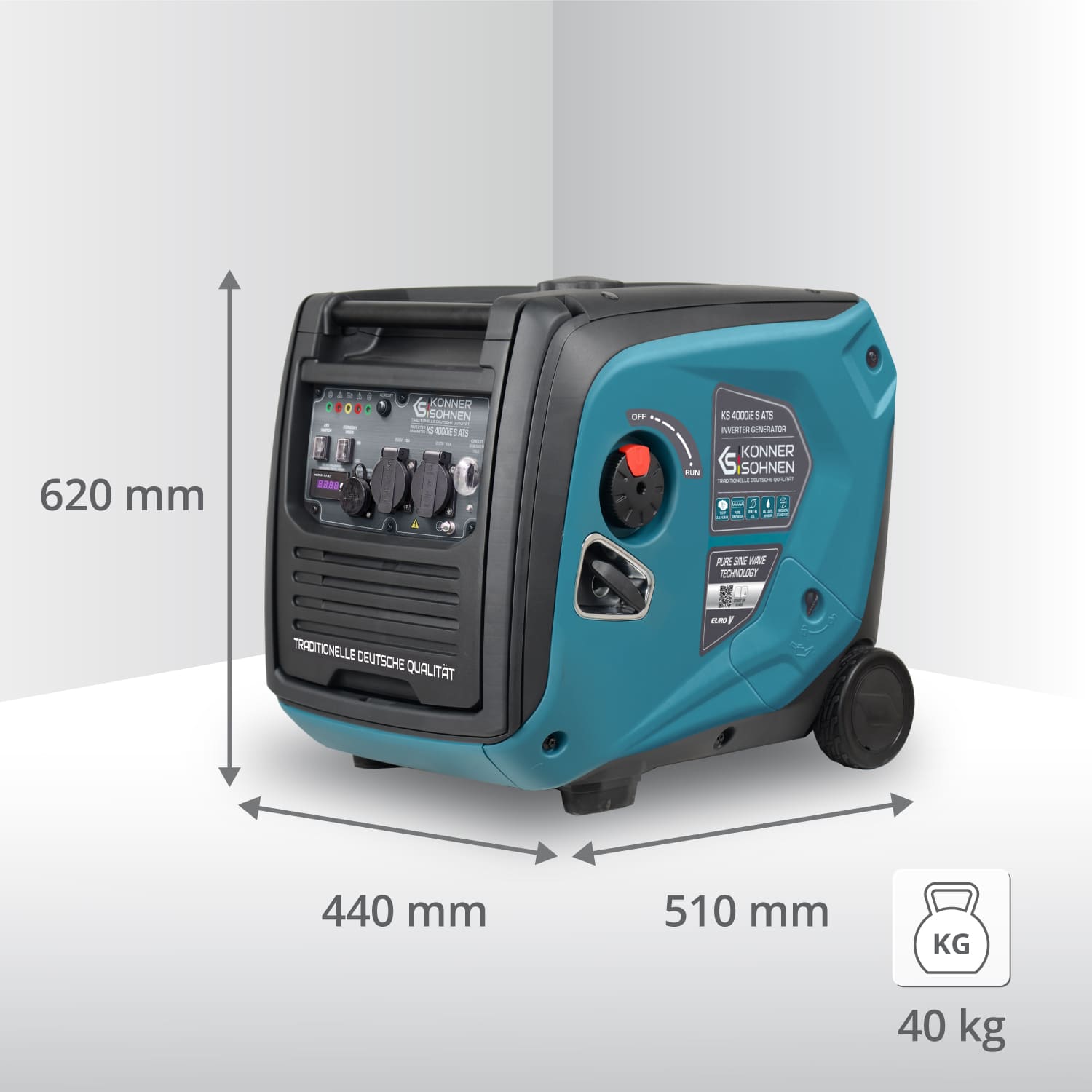

Net dimensions (LxWxH), mm	620х440х510
Gross dimensions (LxWxH), mm	630х475х570
Net weight, kg	40
Gross weight, kg	43.4
SKU	KS 4000iE S ATS
Barcode	4260405365784

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
