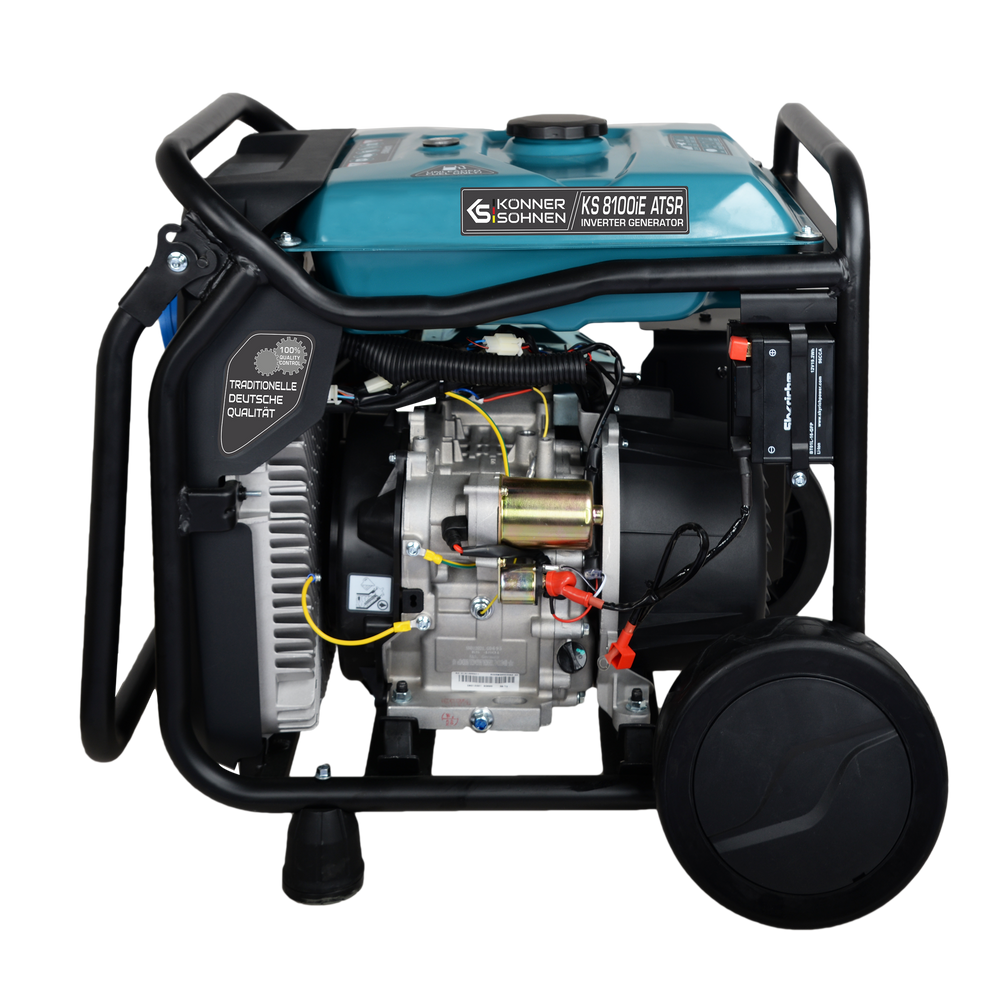

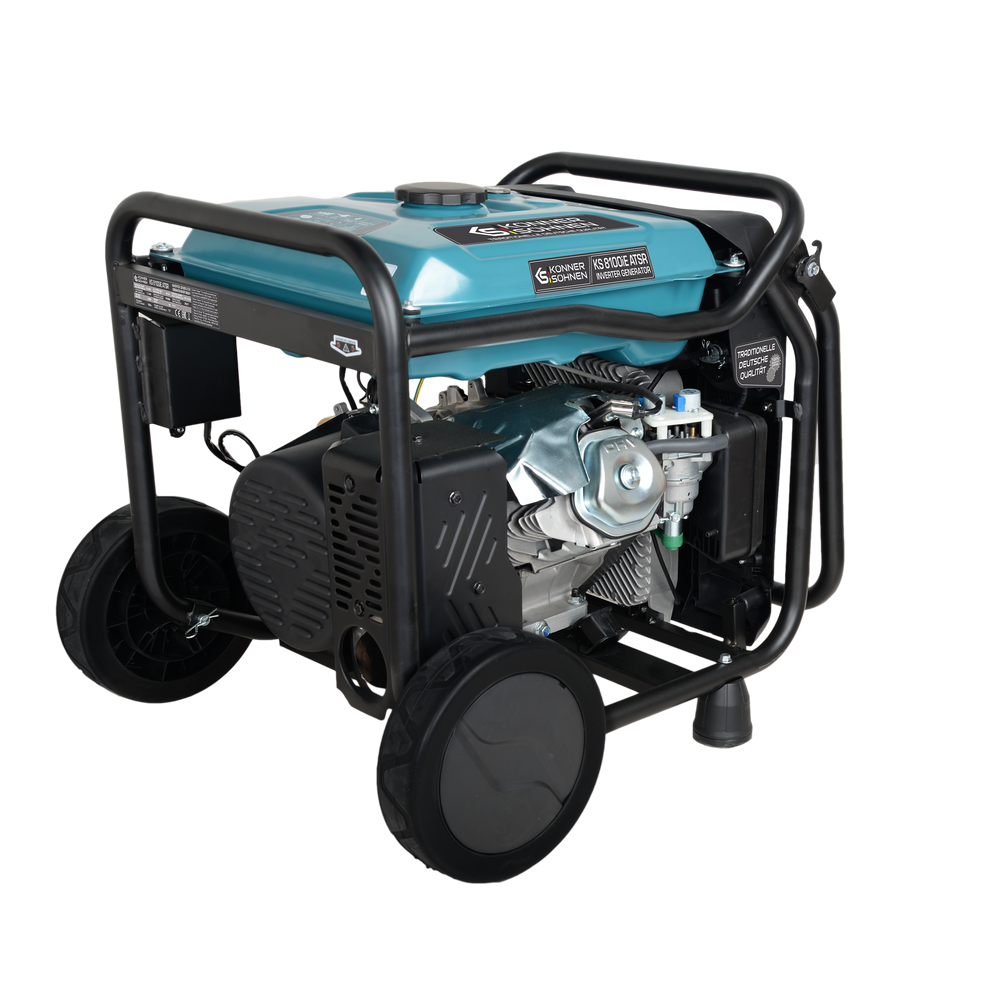

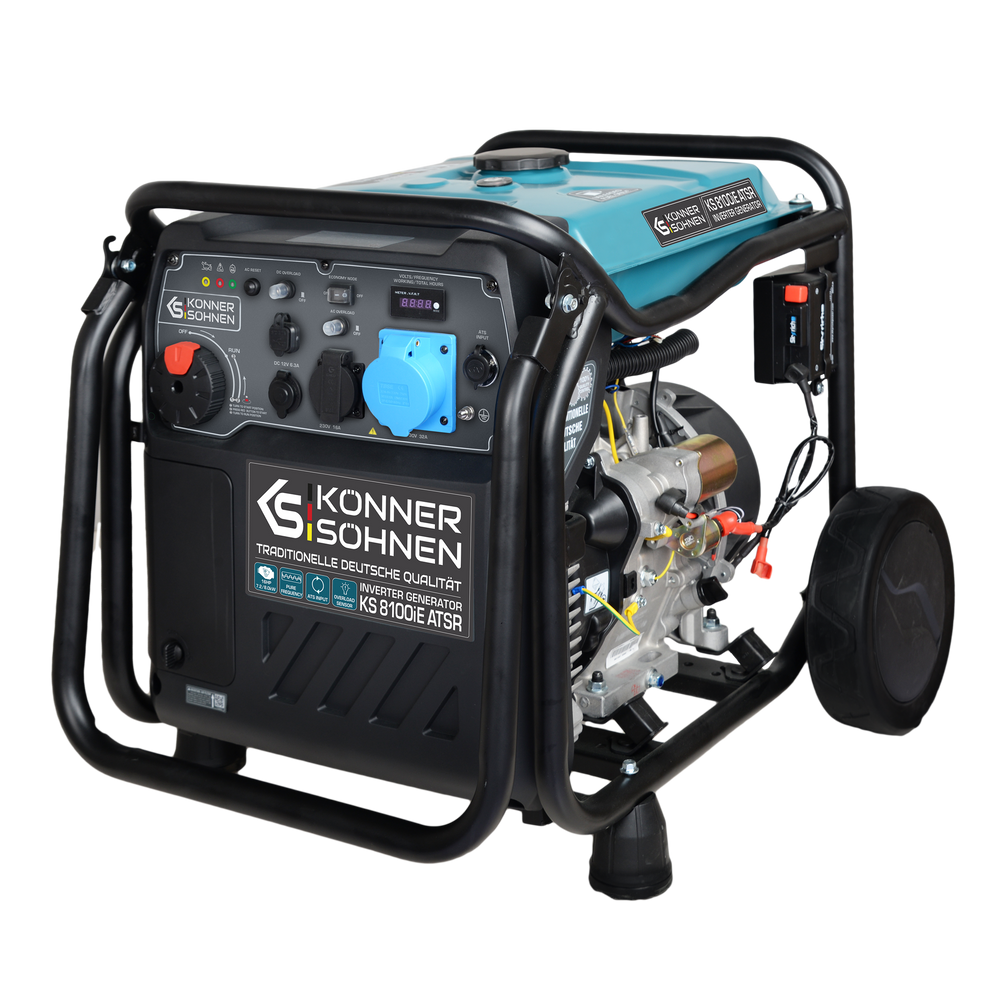

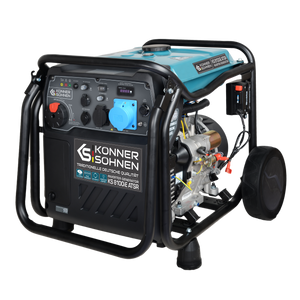

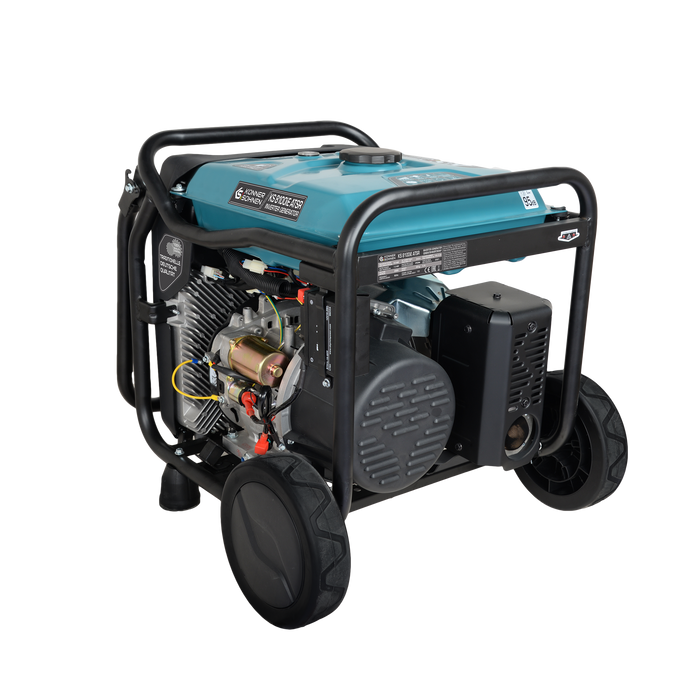

Inverter generator KS 8100iE ATSR
AvailableSpecification
| Max power, kW: | 8.5 |
| Nominal power, kW: | 8.0 |
| Engine start: | Electric |
| Outlets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Voltage, V: | 230 |
Specification
| Voltage, V | 230 |
| Max power, kW | 8.5 |
| Nominal power, kW | 8.0 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 34.8 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Engine start | Electric |
| Fuel tank volume, l | 20 |
| Runtime at 50% load, h*** | 7.1 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/97 |
| Power output DC, V/А | 12V/8.3A |
| USB-Outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 480i |
| Engine cylinder volume, cm3 | 458 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp | 16 |
| Possibility of parallel connection | — |
| Output for ATS | + |
| Crank case volume, l | 1.1 |
| Accumulator (A·h) | 1.6 |
| Alternator winding | Copper |
| Protection class | IP23M |

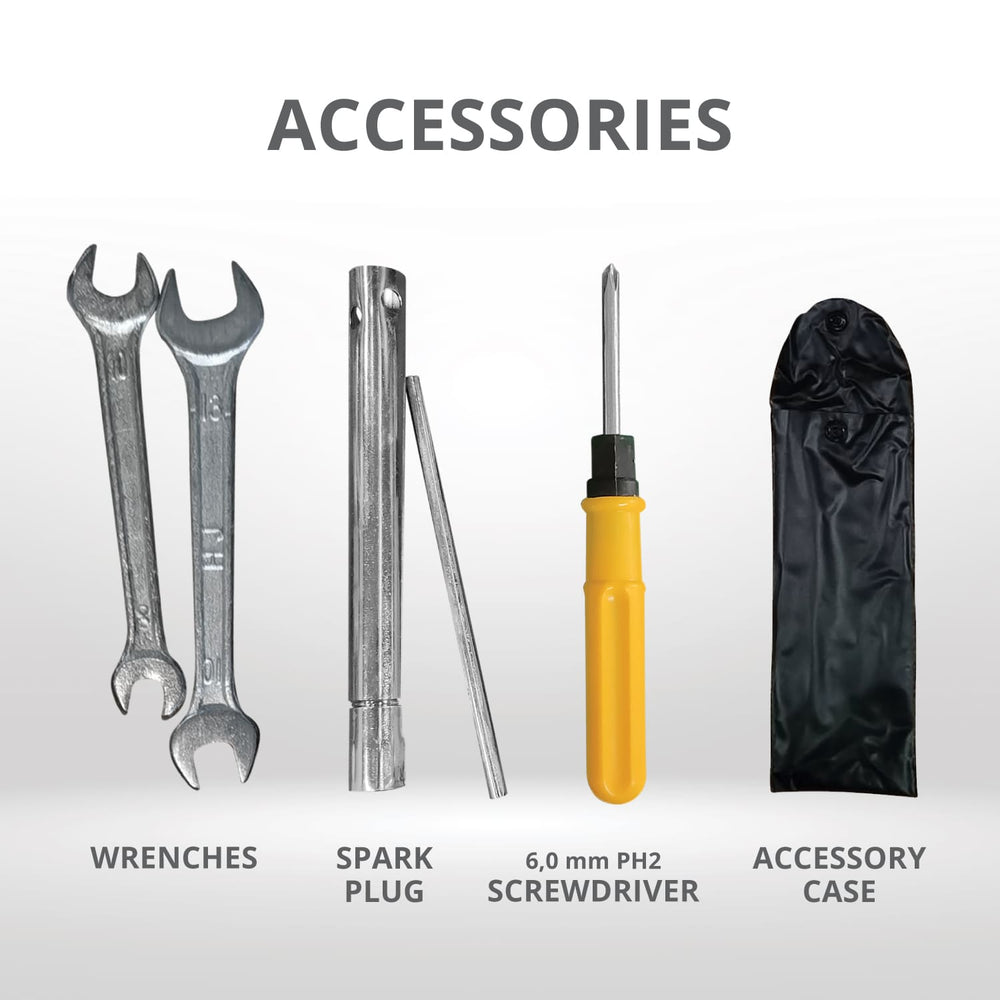

| Includes | Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Accessory bag |

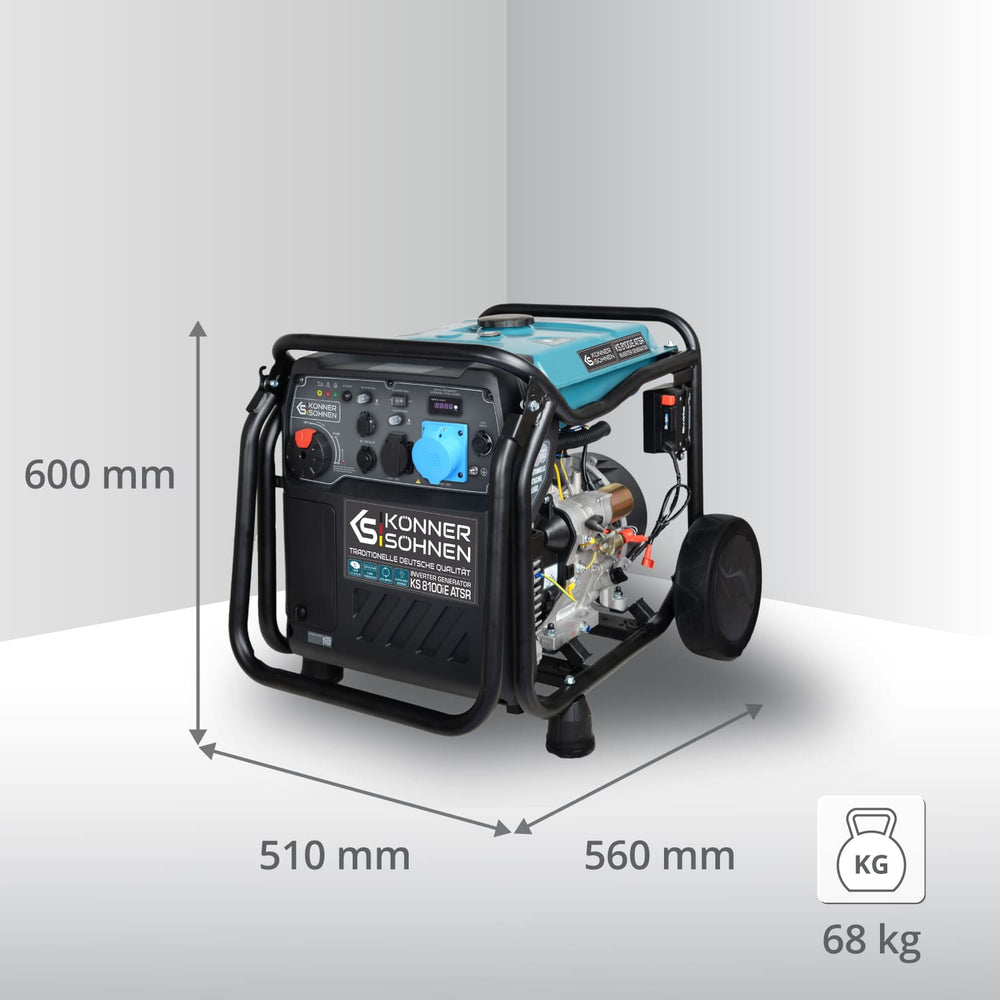

| Net dimensions (LxWxH), mm | 600x510x560 |
| Gross dimensions (LxWxH), mm | 730x520x580 |
| Net weight, kg | 68 |
| Gross weight, kg | 71.0 |
| SKU | KS 8100iE ATSR |
| Barcode | 4260405364725 |
Benefits
- Inverter with high power of 8 kW for reliable power supply to sensitive electrical devices and computers
- Adapted for automatic transfer switch (ATS) connection, ensuring seamless power supply when the main grid fails
- Reliability: includes low oil shutdown, overload protection, and short circuit protection
- Enhanced 3-in-1 engine start system for easy ignition
- High mobility with large wheels and a convenient handle for easy transportation
Delivery
-
Dear Customers,
Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.
However, our managers are doing everything possible to process and ship your orders as quickly as possible.
Thank you for your understanding.
Prompt order processing: Orders are processed within 1–2 business days. During the peak season (September–December), order processing may take 2–4 business days. However, our team does everything possible to process and ship your orders as quickly as possible.
Please note that the mentioned timeframe does not include the delivery time of the courier service.
Delivery to the branch: The network of Nova Poshta branches covers the whole of Ukraine, allowing you to pick up your order at a place convenient for you.
Targeted delivery: Nova Poshta courier service will deliver your order directly to your door. It is an ideal choice if you are unable to pick up the parcel yourself.
Your order will be delivered as quickly and reliably as possible.
Delivery of our products is carried out by the Nova Poshta carrier.
For orders over $2000 (according to the NBU exchange rate on the day of payment), delivery is free of charge.
Upon receiving your order, please make sure to inspect the package, and in case of any damage, draw up a Damage Report with the carrier.
The carrier applies the following rates:
- Cash on delivery: 2% commission of the order value + 20 UAH
- Declared value: 0.5% if the amount exceeds 500 UAH
You can view the full rates and calculate delivery costs at: novaposhta.ua/shipping-cost
Payment
- Choose a convenient and reliable payment method:
Cashless payment: You can pay for the order by bank transfer to the current account of Generator Alliance LLC (including VAT).Online payment: Pay easily and securely via popular payment systems such as LiqPay, Monobank, RozetkaPay, as well as Visa and MasterCard, Google Pay, and Apple Pay. Your personal data is securely protected.
Payment by installments: Use PrivatBank's Payment by installments service and distribute the cost of the goods into several comfortable payments.
Cash on delivery: Pay for the goods upon receipt at a Nova Poshta branch for orders up to UAH 5000. This is a convenient way for those who want to check the goods before paying.
Cashless payment: You can pay for the order by bank transfer to the current account of Generator Alliance LLC (including VAT).
For more information on each payment method, please contact our managers.
Features
Pure sine wave
Robust engine

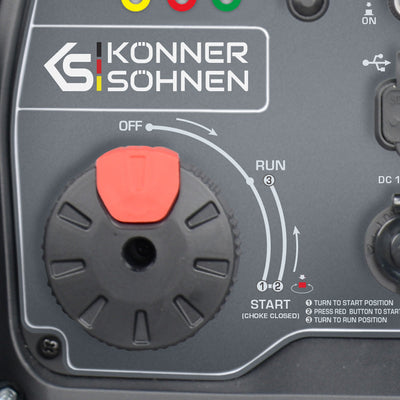

3-in-1 easy engine start

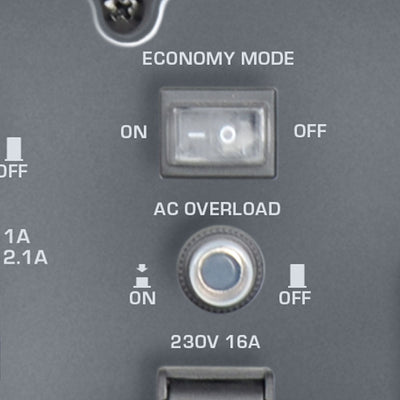

Economy mode

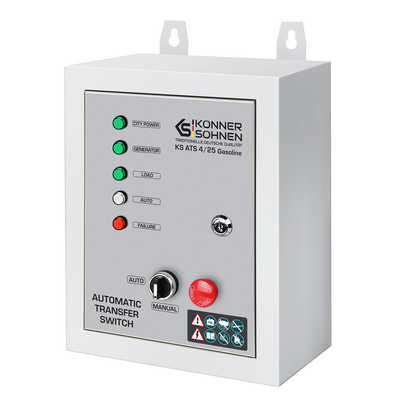

Automatic transfer switch

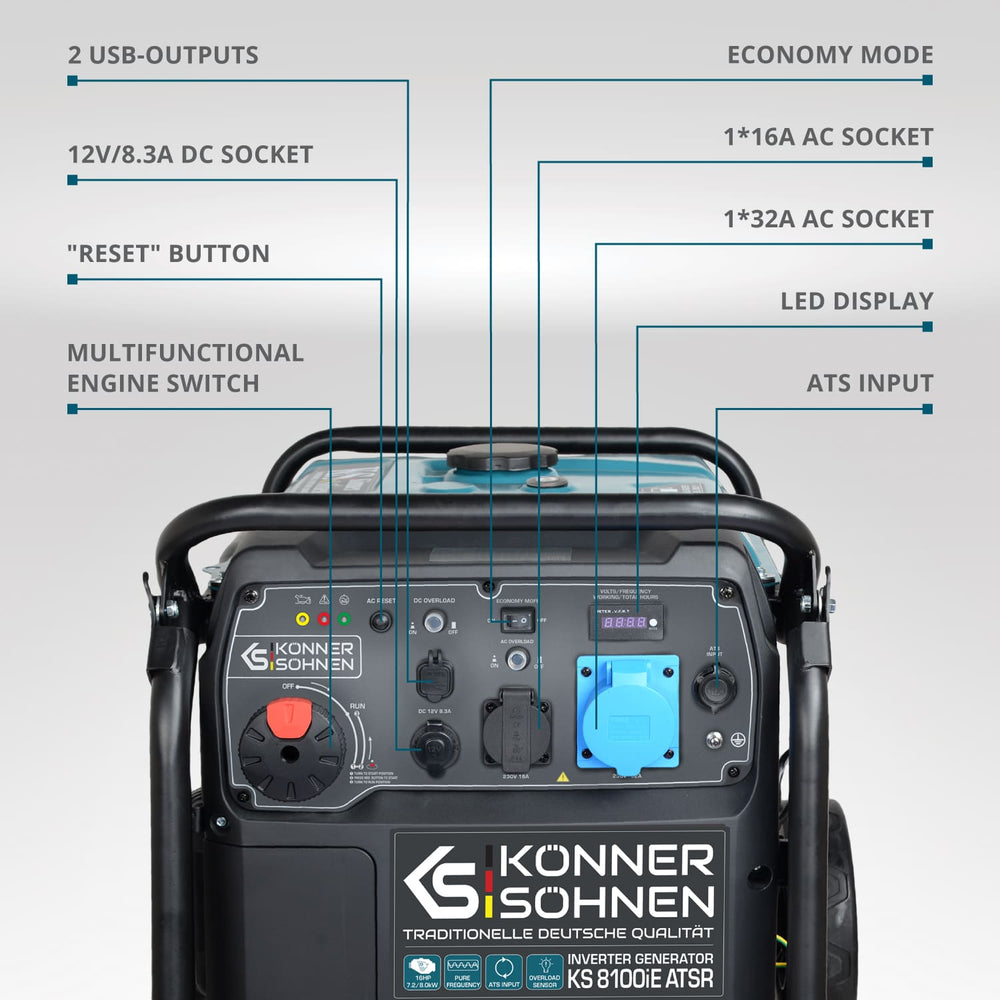

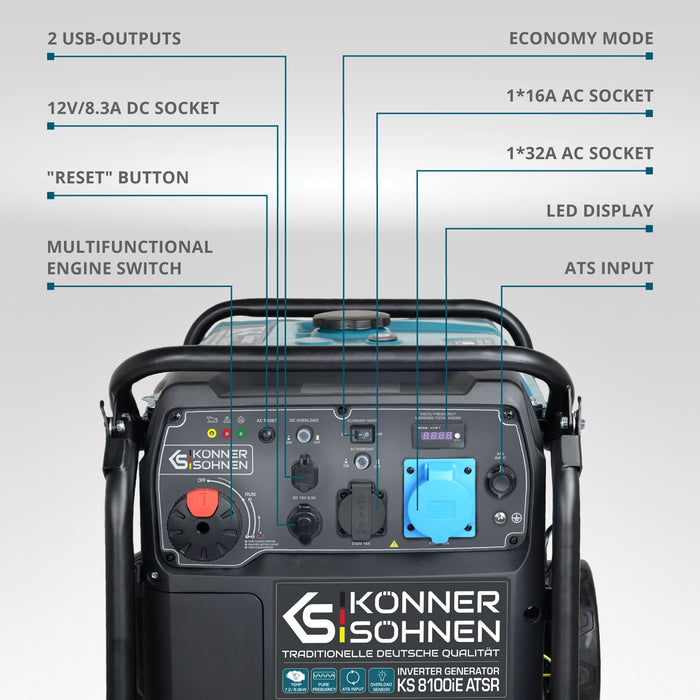

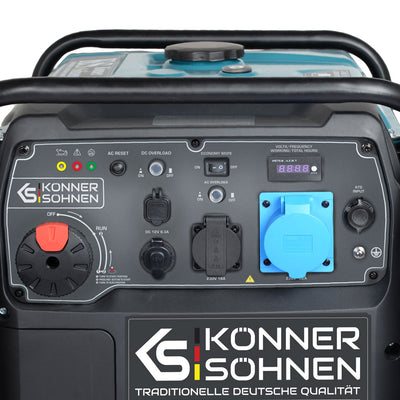

Ergonomic control panel
High quality alternator
Transportation kit

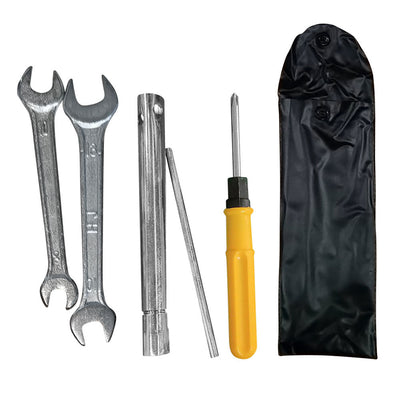

Additional accessories
Specification
Inverter generator KS 8100iE ATSR
| Voltage, V | 230 |
| Max power, kW | 8.5 |
| Nominal power, kW | 8.0 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50 |
| Current (max), A | 34.8 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |
| Engine start | Electric |
| Fuel tank volume, l | 20 |
| Runtime at 50% load, h*** | 7.1 |
| LED display | Voltage, frequency, working hours |
| Noise level Lpa (7m)/Lwa, dB | 70/97 |
| Power output DC, V/А | 12V/8.3A |
| USB-Outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 480i |
| Engine cylinder volume, cm3 | 458 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp | 16 |
| Possibility of parallel connection | — |
| Output for ATS | + |
| Crank case volume, l | 1.1 |
| Accumulator (A·h) | 1.6 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Includes | Generator, Packaging, Manual, Spark plug wrench, Screwdriver PH2 6.0 mm, Accessory bag |
| Net dimensions (LxWxH), mm | 600x510x560 |
| Gross dimensions (LxWxH), mm | 730x520x580 |
| Net weight, kg | 68 |
| Gross weight, kg | 71.0 |
| SKU | KS 8100iE ATSR |
| Barcode | 4260405364725 |
*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
Instructions
Video Reviews
Ich habe den Generator seit 2 ungefähr 2 Jahren und bin restlos zufrieden. Hier wird Qualität und Kundenservice noch groß geschrieben.
"Excellent experience – High quality and top service!"
Everything went smoothly, from the order on konner-sohnen.se to the final delivery. The KS 8100iE ATSR arrived on a non-returnable pallet and was well-protected against rain and snow thanks to additional plastic wrapping.
Assembly was quick and easy. After filling it with oil and gasoline and connecting the battery, it was ready for its first test run. I simply pressed the starter button, and it fired right up. The inverter is built very robustly, and you can really see the difference compared to cheaper products. This is true "Made in Germany" quality.
Last but not least, I have to mention the customer service. They responded quickly and competently to all my questions regarding the device and the initial planning, leaving no question unanswered. Bottom line: I am absolutely thrilled!
Best regards from Sweden! Thank you!
Groupe puissant, une notice un peu plus détaillée sur le découplage ou non des deux sorties serait appréciable.
Dieses leistungsstarke Inverter-Aggregat KS 8100iE ATSR kam sehr rasch und sogar heil per Spedition aus Polen im Karton auf einer Einwegpalette bei mir an. Der noch notwendige Zusammenbau (2 Räder u. 1 runterklappbarer Handbügel) war einfach.Danach noch Öl & Benzin eingefüllt, Zündkerze & Luftfilter nachkontrolliert, Batterie angeklemmt, gestartet und das Gerät sprang problemlos nach ein paar Umdrehungen an.Dieses Gerät hat keinen Seilzugstarter mehr, daher die Starterbatterie immer gut in Schuss halten.Nun kann sogar meine Frau das Teil im Notfall selber u. alleine starten.Die Starterbatterie war überaschenderweise eine Li-Ionen (LiFePO4) mit 12V / 19,2Wh / 96A (L:107*B:56*H:85mm). Idealladung 0,8A bis Schnellladung max. 8A erlaubt.Der fix angeschweißte Batteriehalter im Rahmen ist aber bedauerlicherweise nur für diese eine, kleine Batteriegröße ausgeführt, sodass ein ev. gleichwertiger günstiger Batterie-Ersatz mit zwar gleicher Leistung aber einer anderen Standard-Bauartgröße (L:113*B:69*H:85) leider nicht hineinpasst. Höchstens vorübergehend notgedrungen mit einem provisorischen kl. Spanngurt. Dazu wäre ein vorbeugender Nachbesserungsbedarf vom Hersteller gefragt, was ja kein Problem sein sollte, an so etwas auch zu denken.Zwecks künftiger Batterie-Wartung habe ich mir hier bei Amazon auch gleich noch ein dazupassendes „Optimate TM470 Lithium 4S, mit 12,8 / 13,2V / 0.8Amp Akku-Ladegerät/Testgerät/Wartungsgerät, Blue“ extra nur für diese Aggregat-Starter-Batterie dazugekauft. Auch das inkludierte verpolungssichere "OptiMATE O-01 Zubehör O1 (SAE), Blue"-Ladekabel mit PKW-Sicherungshalter ist hier sehr Bedienungs-/Frauenfreundlich.Im Moment bin ich noch sehr zufrieden mit dem Aggregat und hoffe, dass es im Notfall seine Arbeit gut u. Dauerhaft verrichtet.Wo ich in meiner Umgebung ev. später Mal die nötigen Motor-/Generator Service-/Reparaturarbeiten vornehmen lassen kann ist leider immer noch offen.
Der Invertergenerator macht einen sehr guten Eindruck bezüglich Verarbeitung aller Bauteile usw.Die Lieferung war durch Sped. Dachser sehr schnell und unproblematisch. Ich habe den Generator gemäß Betriebsanleitung in Betrieb genommen - alles Tip-Top. Ich bin sehr zufrieden und kann das Gerät selbstverständlich weiter empfehlen.
Similar products
Frequently Asked Questions
The 8.0 kW power is enough to start and maintain the operation of all the equipment in a large house. The generator easily copes with the starting currents of engines and compressors. Cook food on an electric stove, heat water, cool rooms with air conditioning and keep the automatic watering turned on - the backup network will withstand all the load at the same time.
