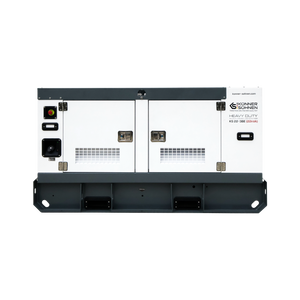

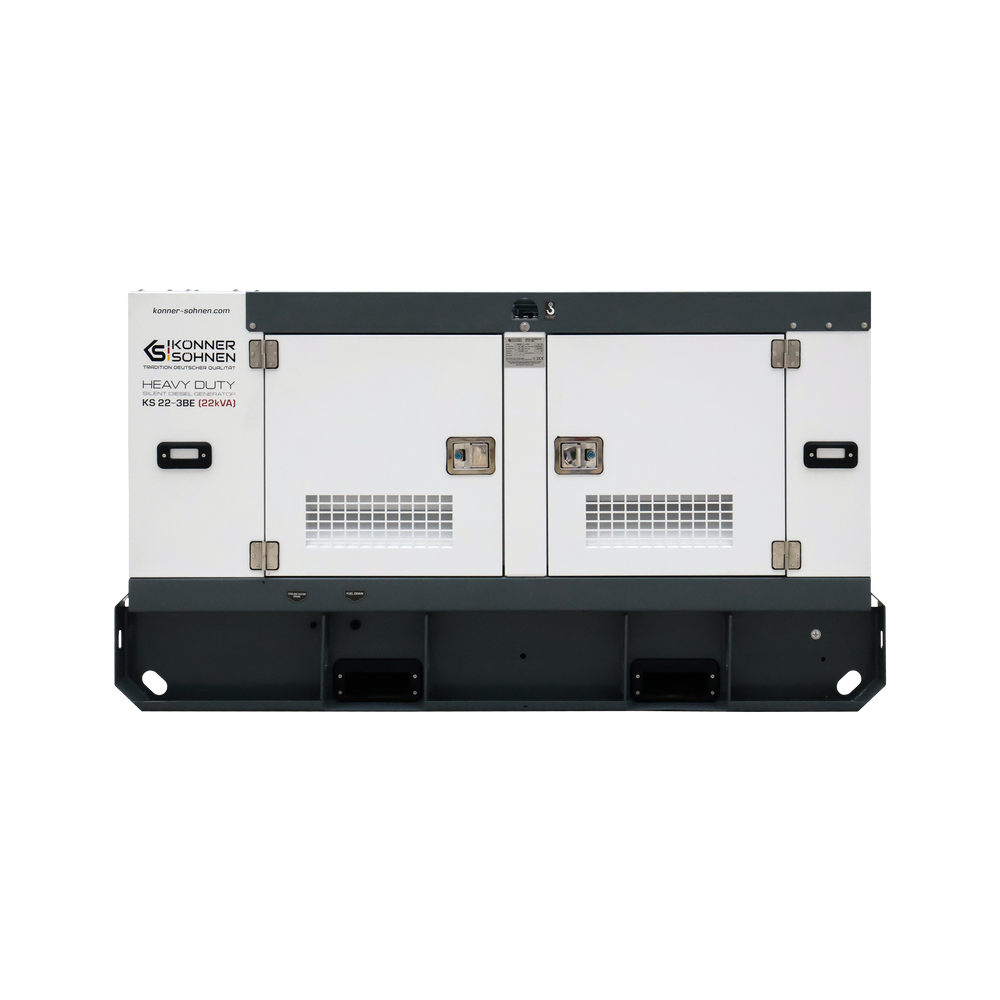

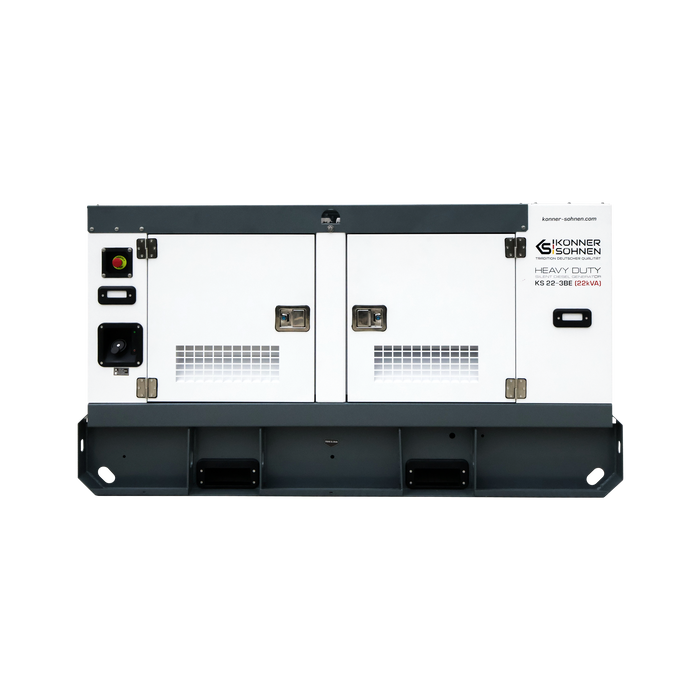

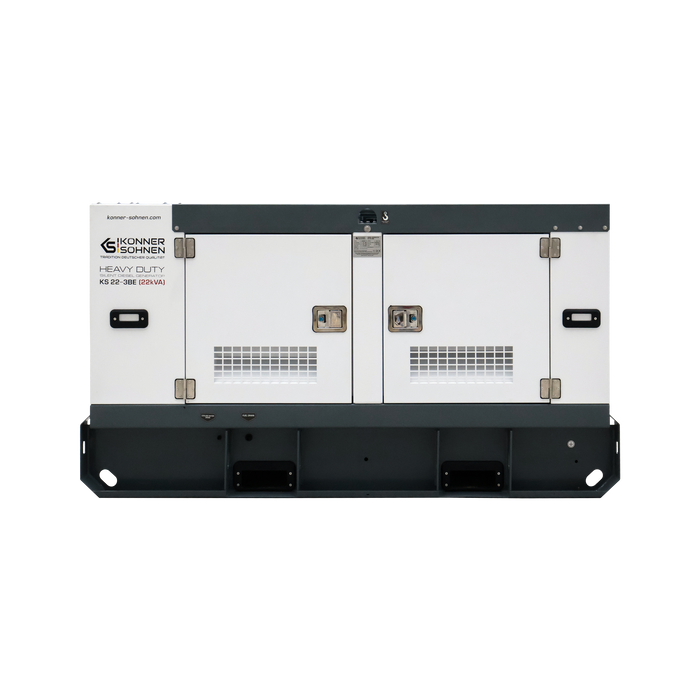

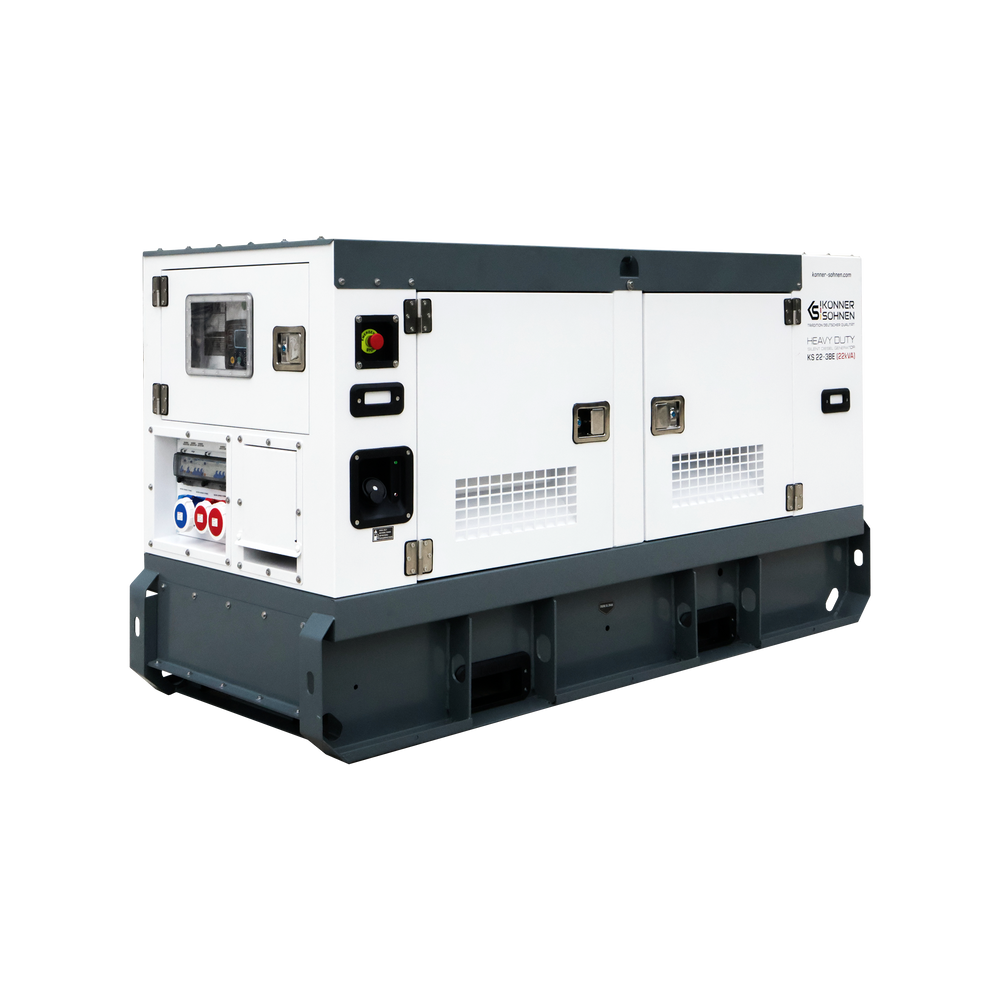

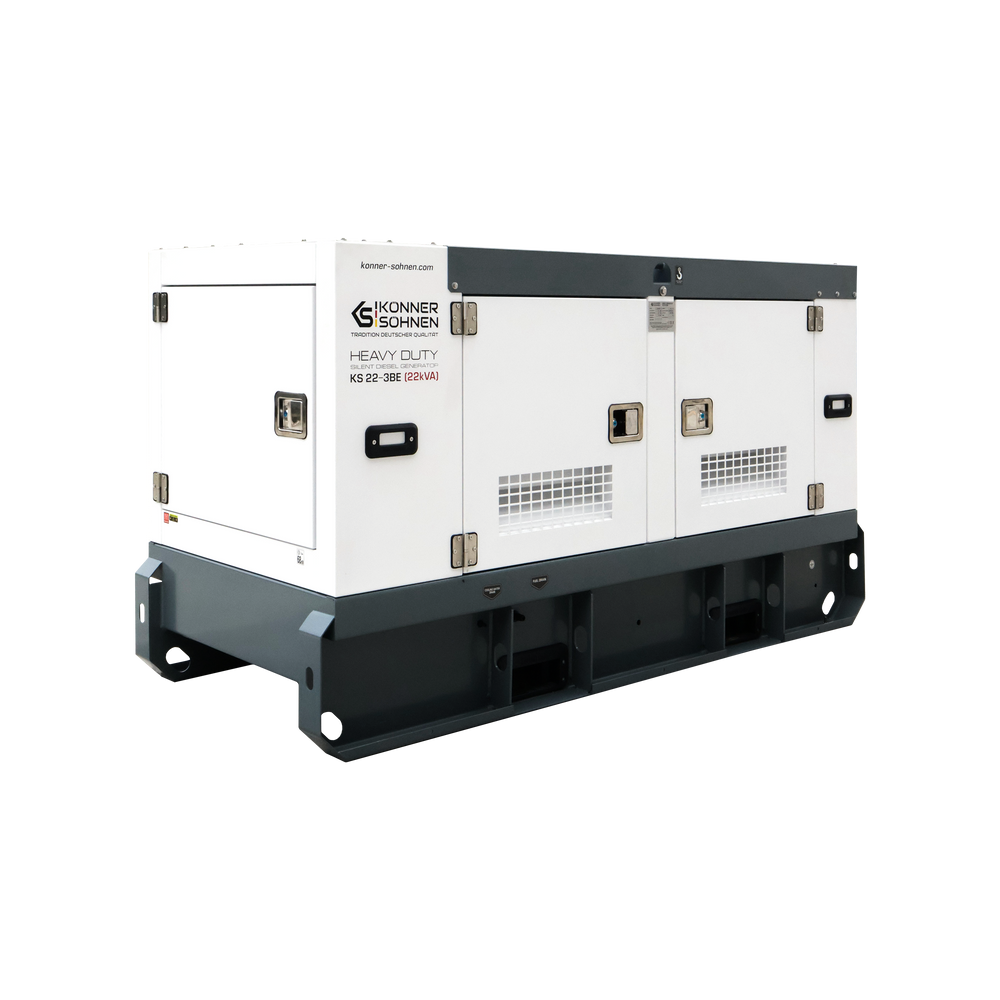

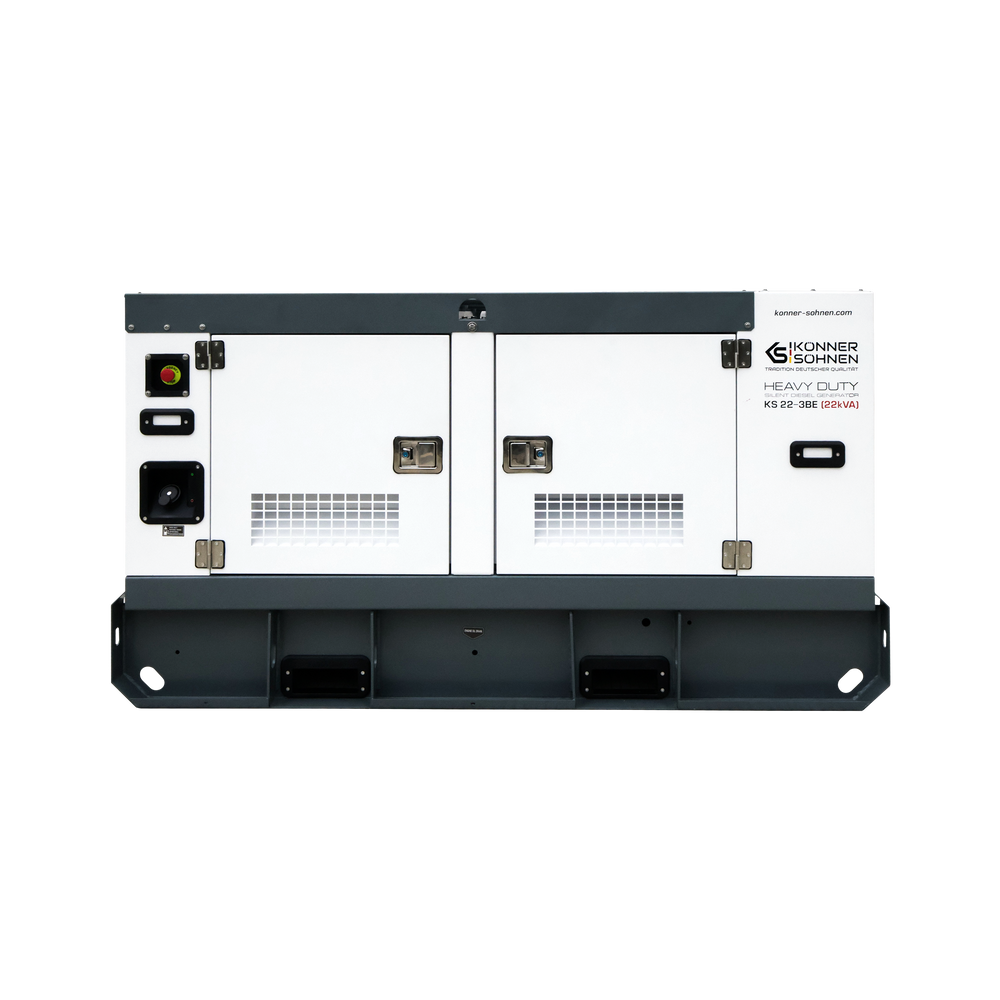

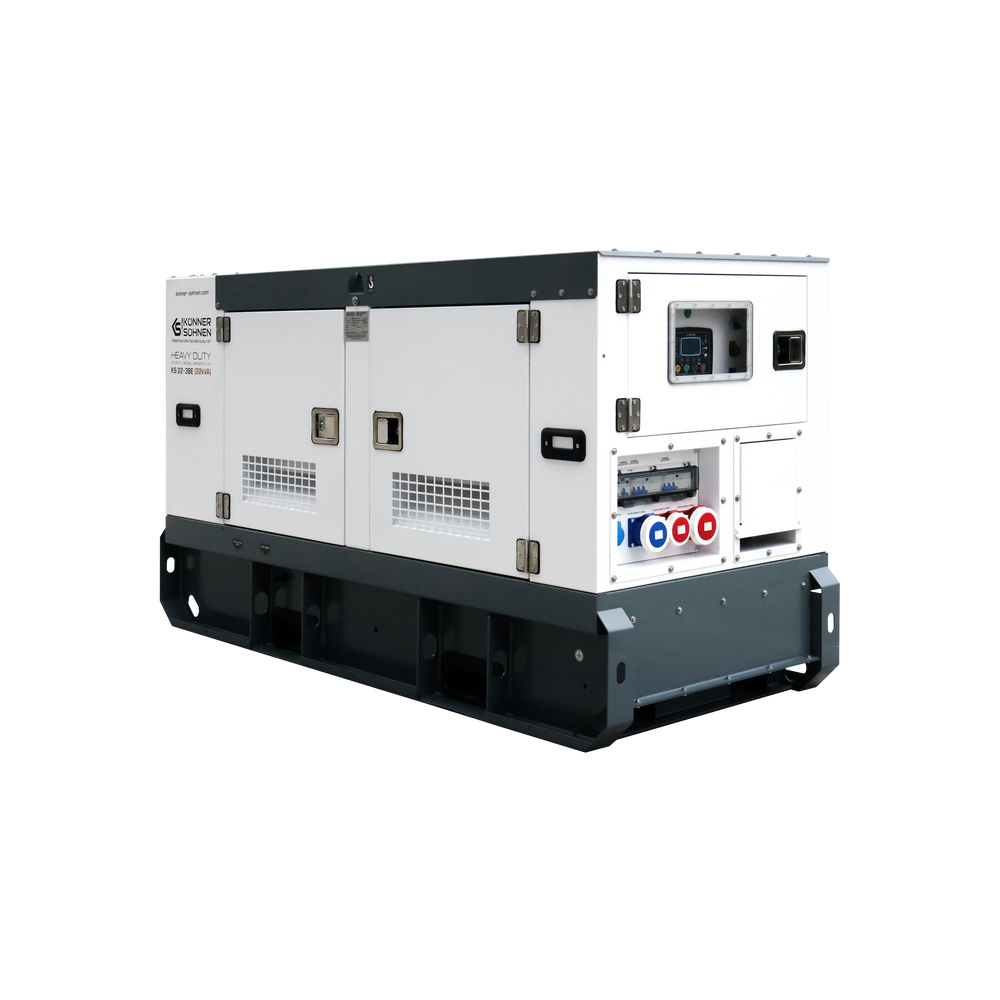

KS 22-3BE Three-Phase Diesel Power Station

KS 22-3BE is a three-phase diesel power station with a power output of 22/20 kVA (230/400V), based on a modern economical BAUDOUIN engine (Stage IIIA), which embodies the best practices of French engineering. The station is equipped with an advanced Common Rail electronic fuel injection system that guarantees maximum equipment efficiency. Equipped with a Datakom D300 controller with the possibility of connecting an external ATS unit. A noise-protective housing made of galvanized steel, CEE 230/400V sockets (16A/32A), a preheating system for confident starting in winter, and fuel savings of up to 15% make the generator a reliable solution for both industrial and residential backup power supply.

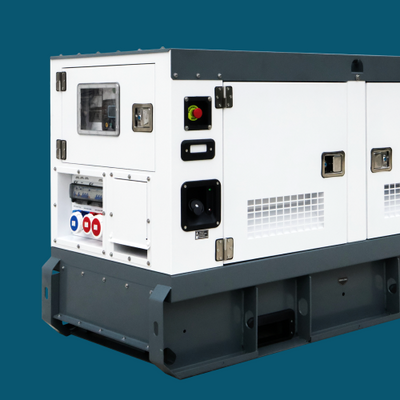

Three-phase diesel power station — designed for stable power supply to three-phase and single-phase consumers and industrial equipment, ensures even load distribution between phases and reliable system operation.

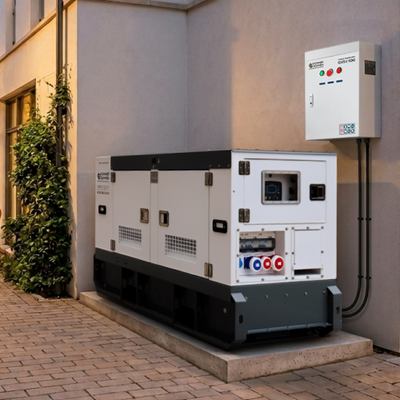

Possibility of connecting an ATS — allows integration with automatic transfer switch systems, ensuring automatic start of the power station and load switching by an external ATS unit without human involvement.

Maximum power 22 kVA (18 kW) — makes it possible to supply energy to production facilities, workshops, agricultural enterprises and other critical infrastructure with high energy consumption.

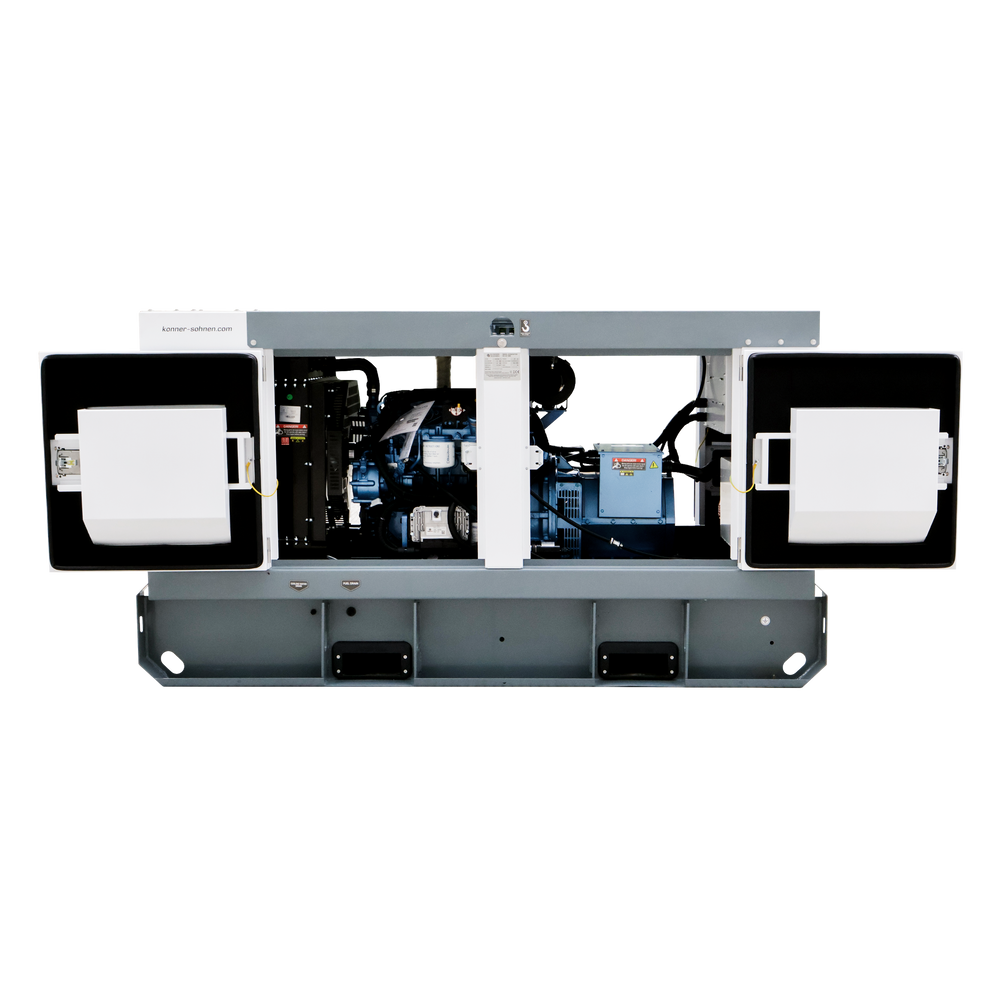

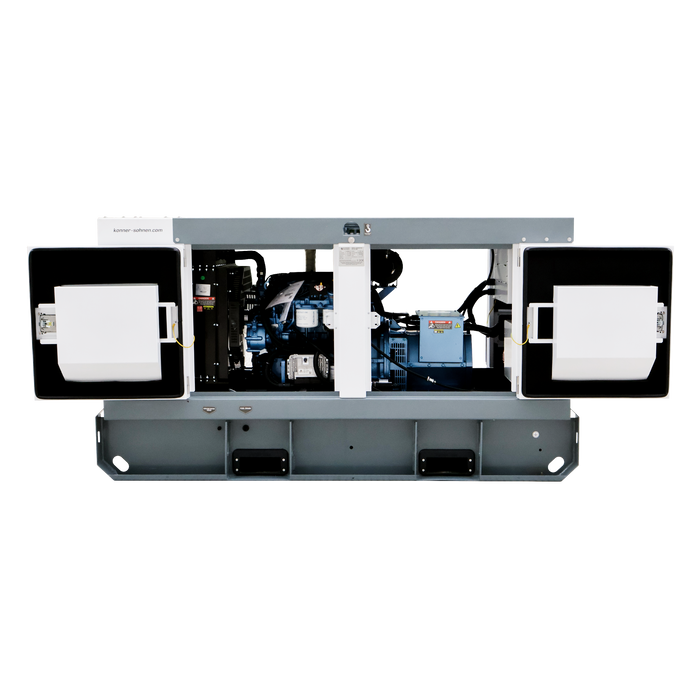

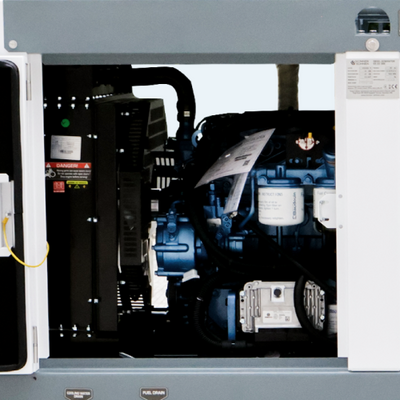

Four-cylinder Baudouin diesel engine – embodies the best practices of French engineering. With proper and regular maintenance, it guarantees absolute reliability and flawlessly stable operation. Compliance with Stage IIIA means reduced NOx and PM emissions compared to the basic requirements, allowing the station to be used at sites with strict environmental requirements.

80 l fuel tank — ensures long autonomous operation without frequent stops for refueling, which is especially important during emergency power outages.

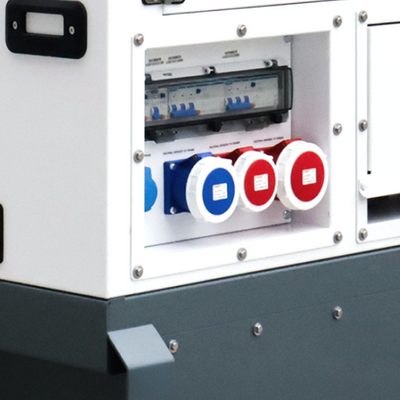

Maximum level of safety — the comprehensive protection system includes monitoring of key operating parameters, a main ABB circuit breaker with RCD (residual current device) function, a protective residual current circuit breaker on each socket, neutral grounding to the frame, a jumper for selecting the TN or IT system, and an emergency stop button; the electrical safety system includes: protection against current and voltage imbalance, low oil level protection, short-circuit protection, over-power protection, engine overtemperature protection, which increases overall operating reliability.

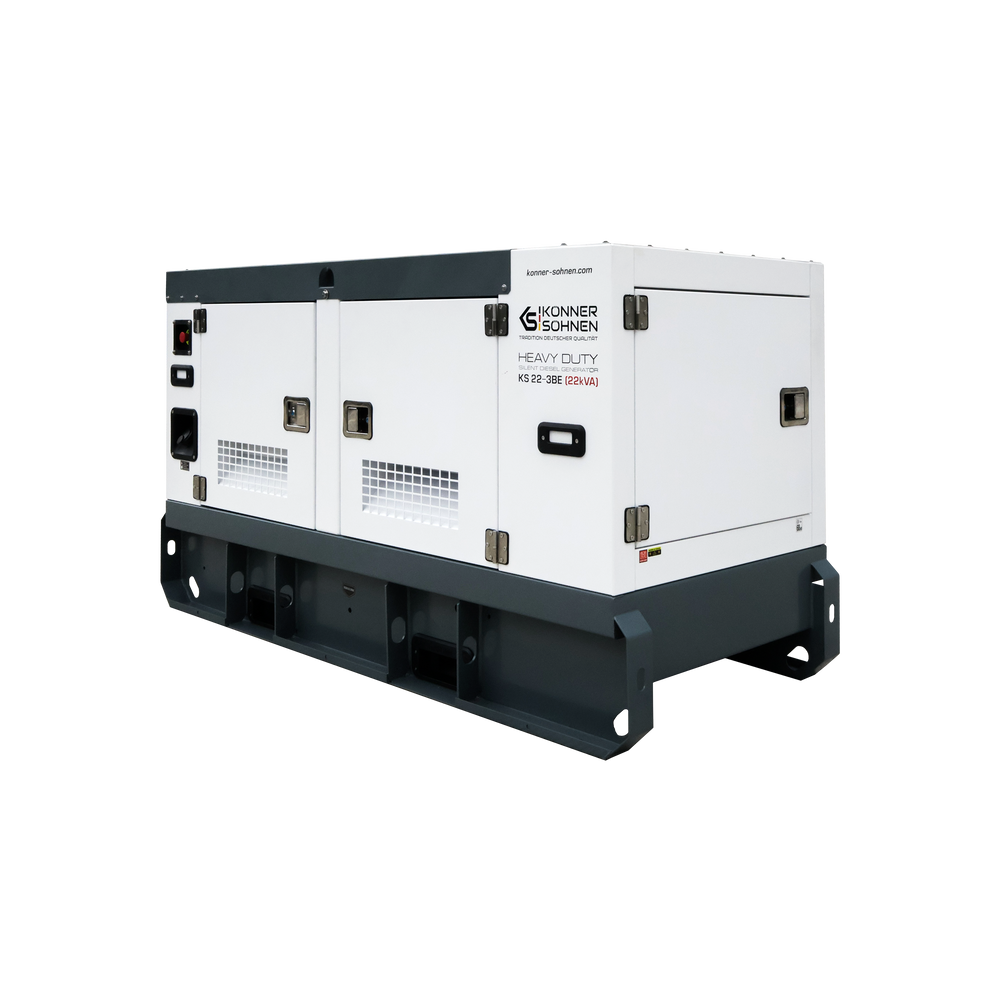

Noise-protective housing — reduces the noise level during operation, ensures comfortable use near residential or working areas and additionally protects the equipment.

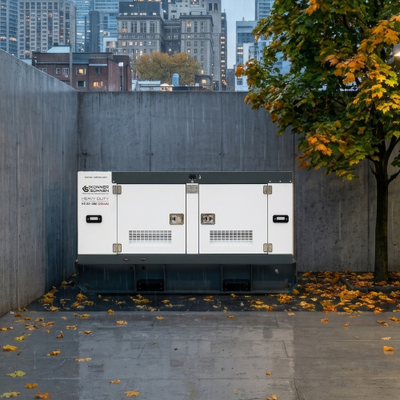

Galvanic coating of the housing — increases resistance to corrosion and negative environmental influences, extending the service life of the power station.

Possibility of control via dry contacts — provides integration with building automation systems, inverters and other external control devices. At the buyer's request, the Datakom D300 controller can be configured for remote start according to the automation scheme.

Water cooling of the engine — maintains the optimal operating temperature, reduces component wear and increases engine life under prolonged loads.

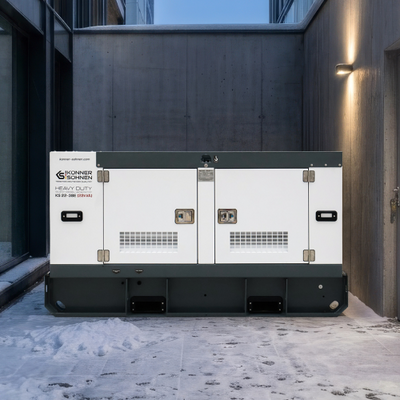

Pre-start heating — the built-in coolant preheating system automatically maintains the required temperature for safe engine starting, allowing the power station to be quickly started at sub-zero temperatures.

Digital control unit — all operating processes are controlled using the modern multifunctional Datakom D300 digital control unit. The controller displays the main operating parameters, alarm messages and maintenance reminders, and also provides settings for starting and operating the station.

Main ABB circuit breaker with RCD function — the main protective switch manufactured by ABB combines the functions of a circuit breaker and a residual current device (RCD) in one housing. It provides instant disconnection in the event of current leakage to the housing, protecting personnel from electric shock even in the event of insulation damage.

Stainless steel hinges and locks — all hinges and door locks of the housing are made of stainless steel. Increases the resistance of fastening elements to corrosion during prolonged outdoor operation or in rooms with increased humidity.

Fuel level indicator — a built-in “quick” fuel level indicator located near the tank cap allows the remaining fuel level to be quickly assessed without opening the housing and. Reduces the time required to check the station's readiness for operation during regular maintenance.

LED housing lighting — the built-in LED lighting inside the housing is powered by the power station's starting battery. Provides sufficient lighting for maintenance and troubleshooting in any conditions, including at night or in rooms without external lighting.

Protective covers for forklift openings — the forklift openings are equipped with protective covers that prevent mechanical damage to the housing during lifting and transportation. Preserve the integrity of the protective coating at the points of contact with the forks.

Grounding of all housing elements — all metal housing components are interconnected by a grounding wire, ensuring an equal electrical potential throughout the entire structure. Prevents the accumulation of potential differences between the housing panels and eliminates the risk of electric shock when touching any part of the station.
