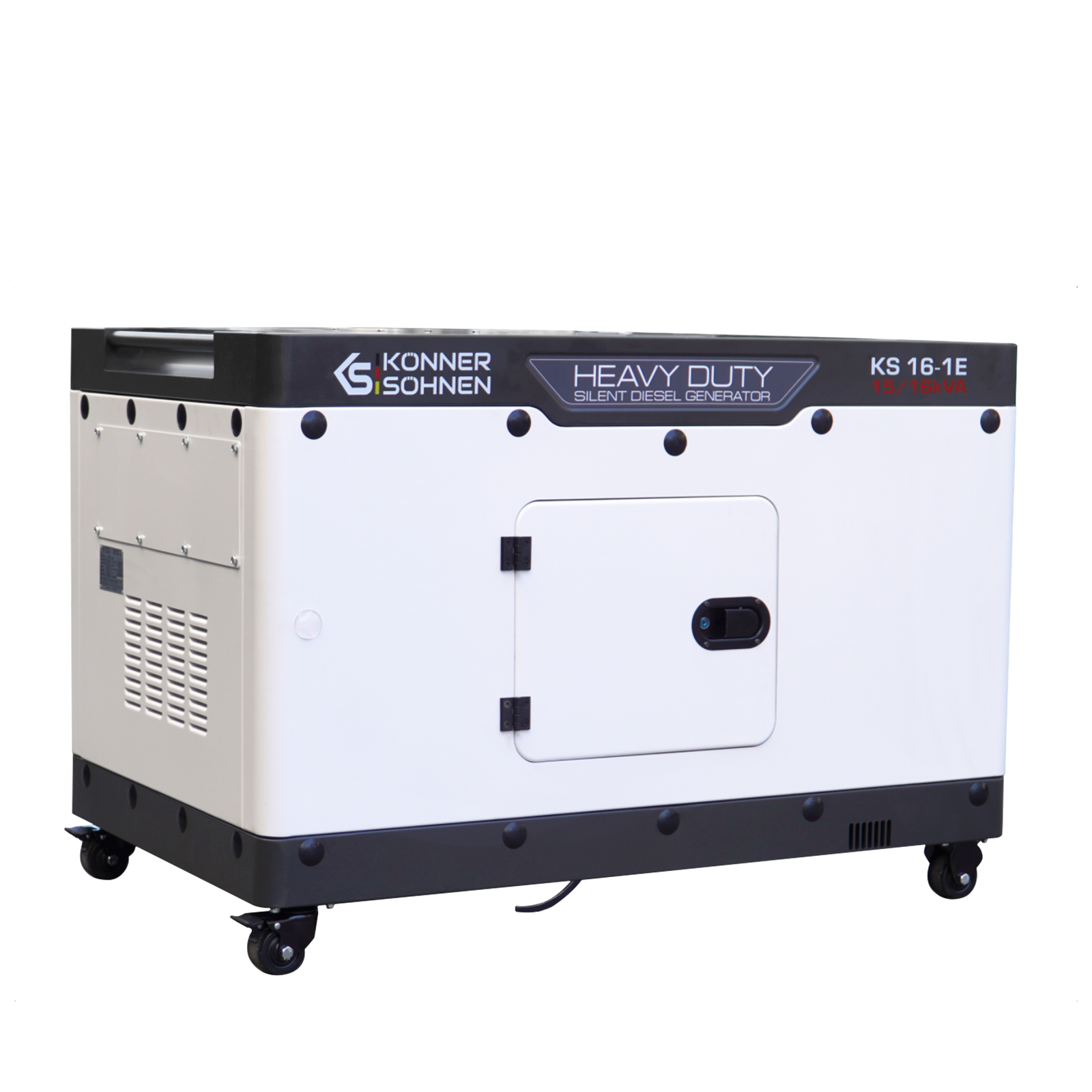

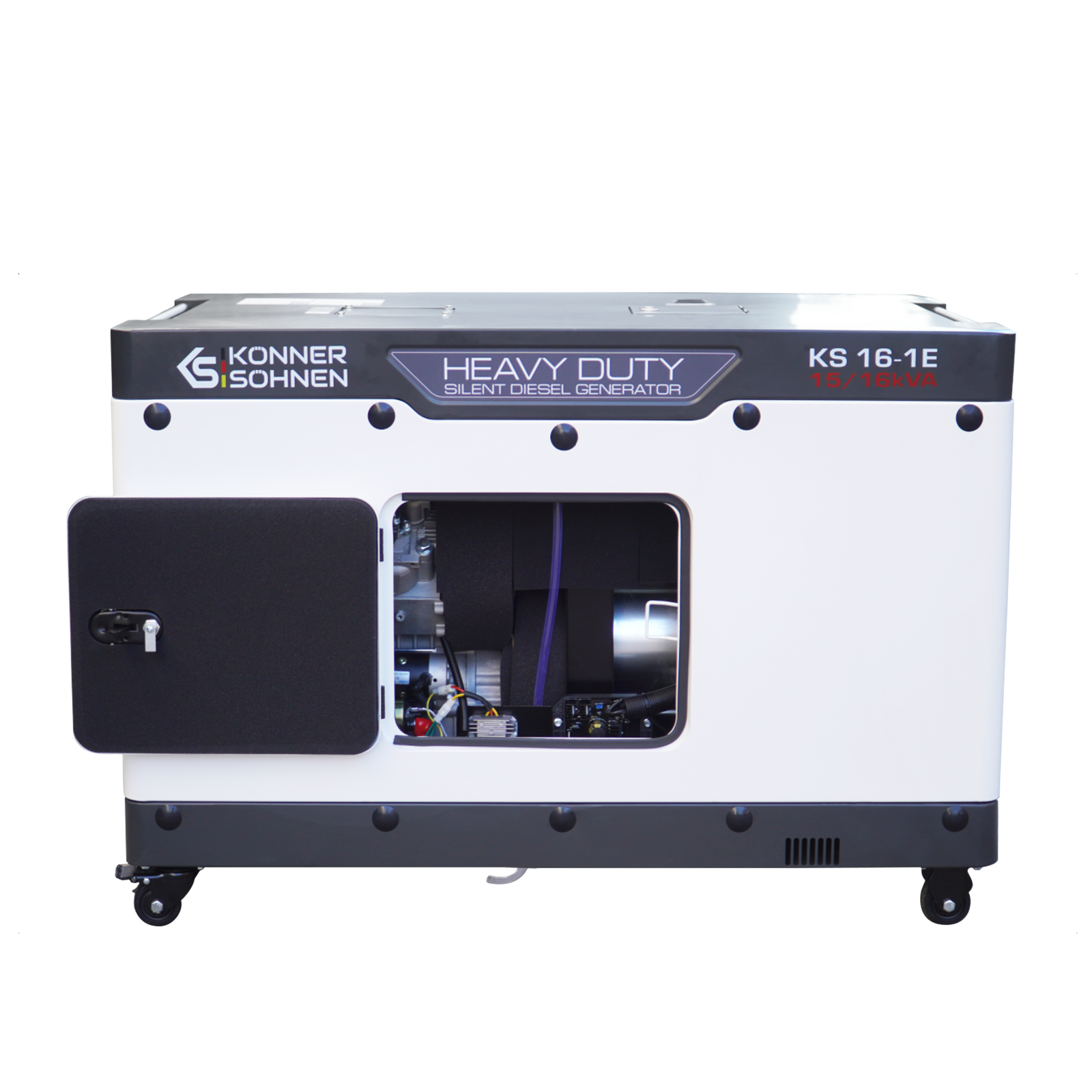

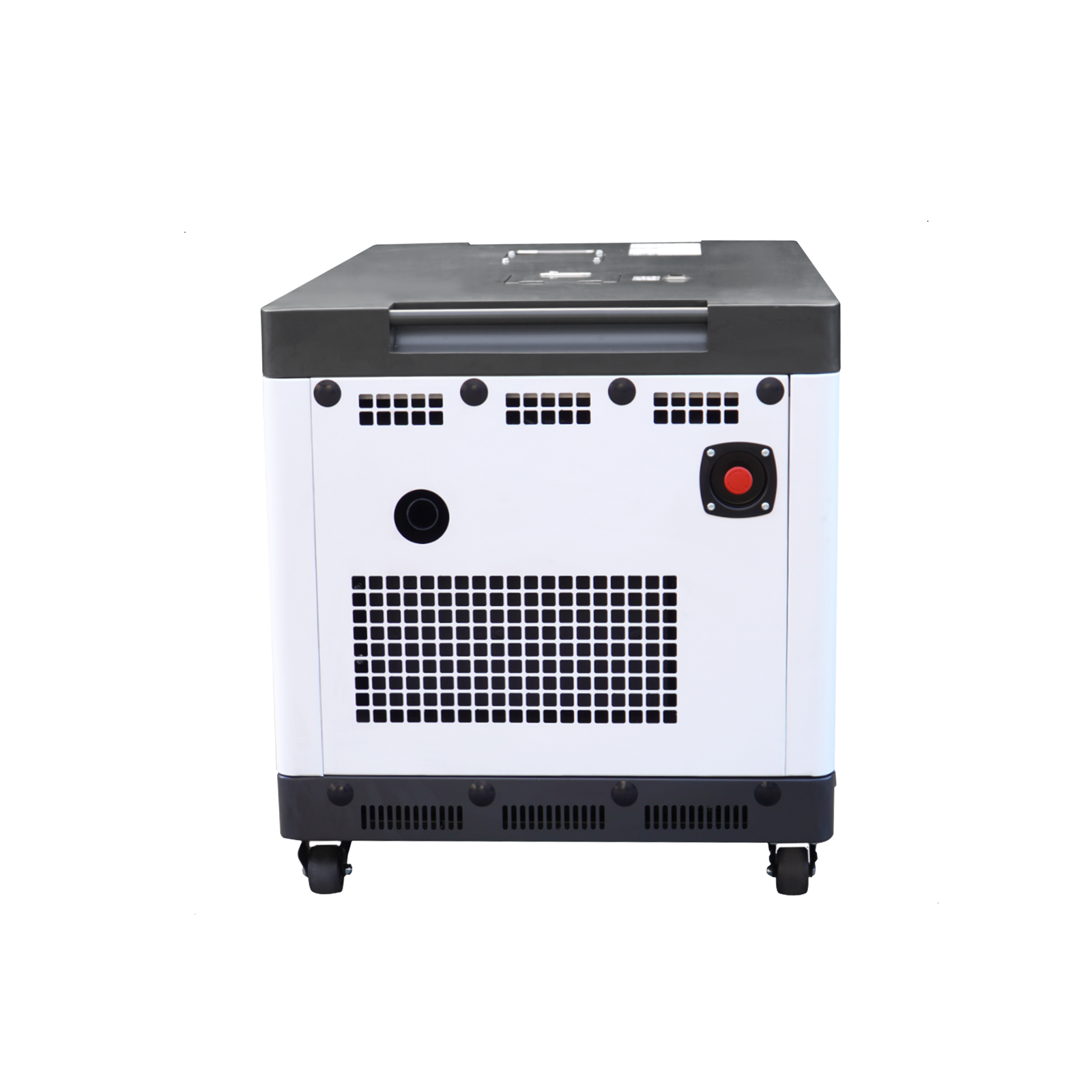

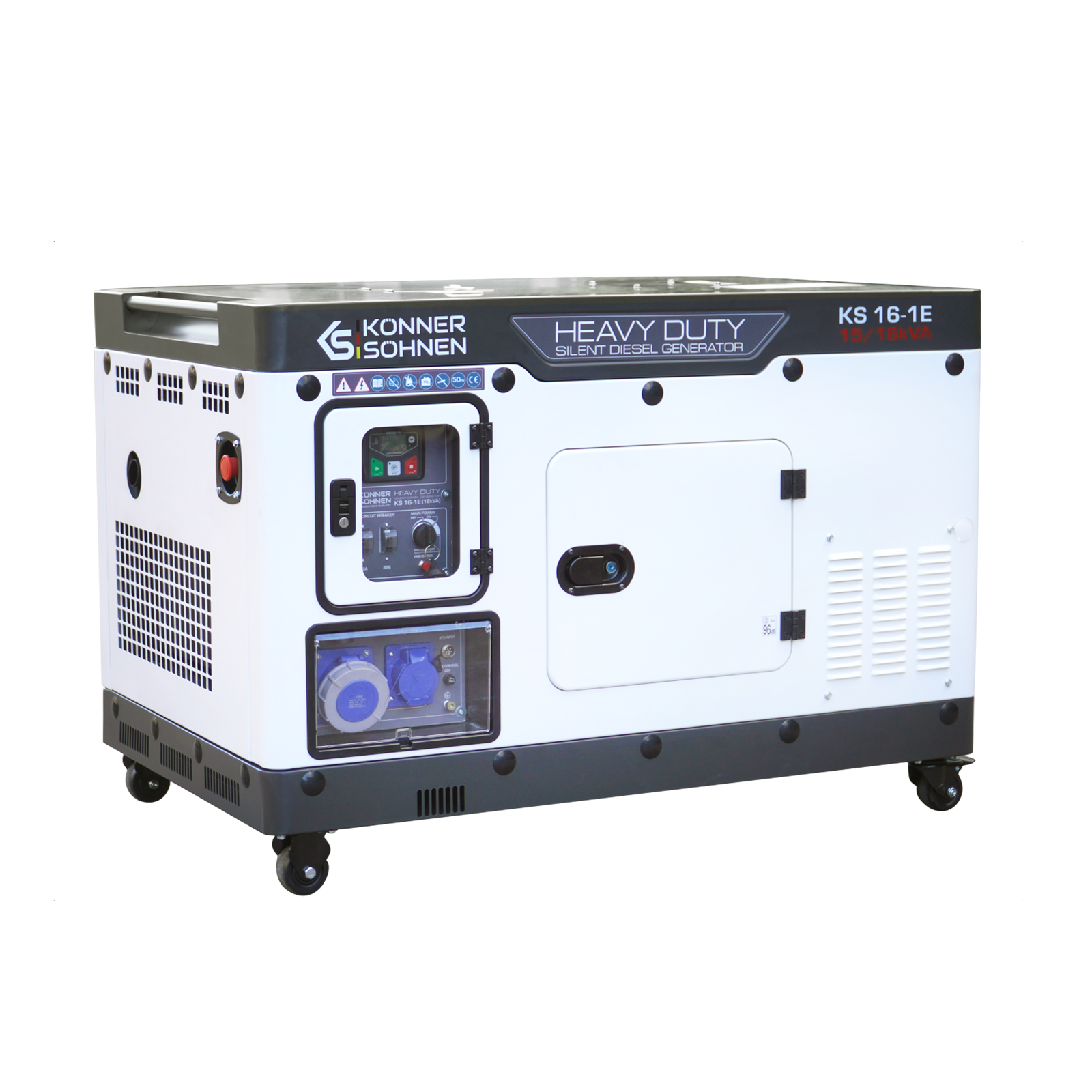

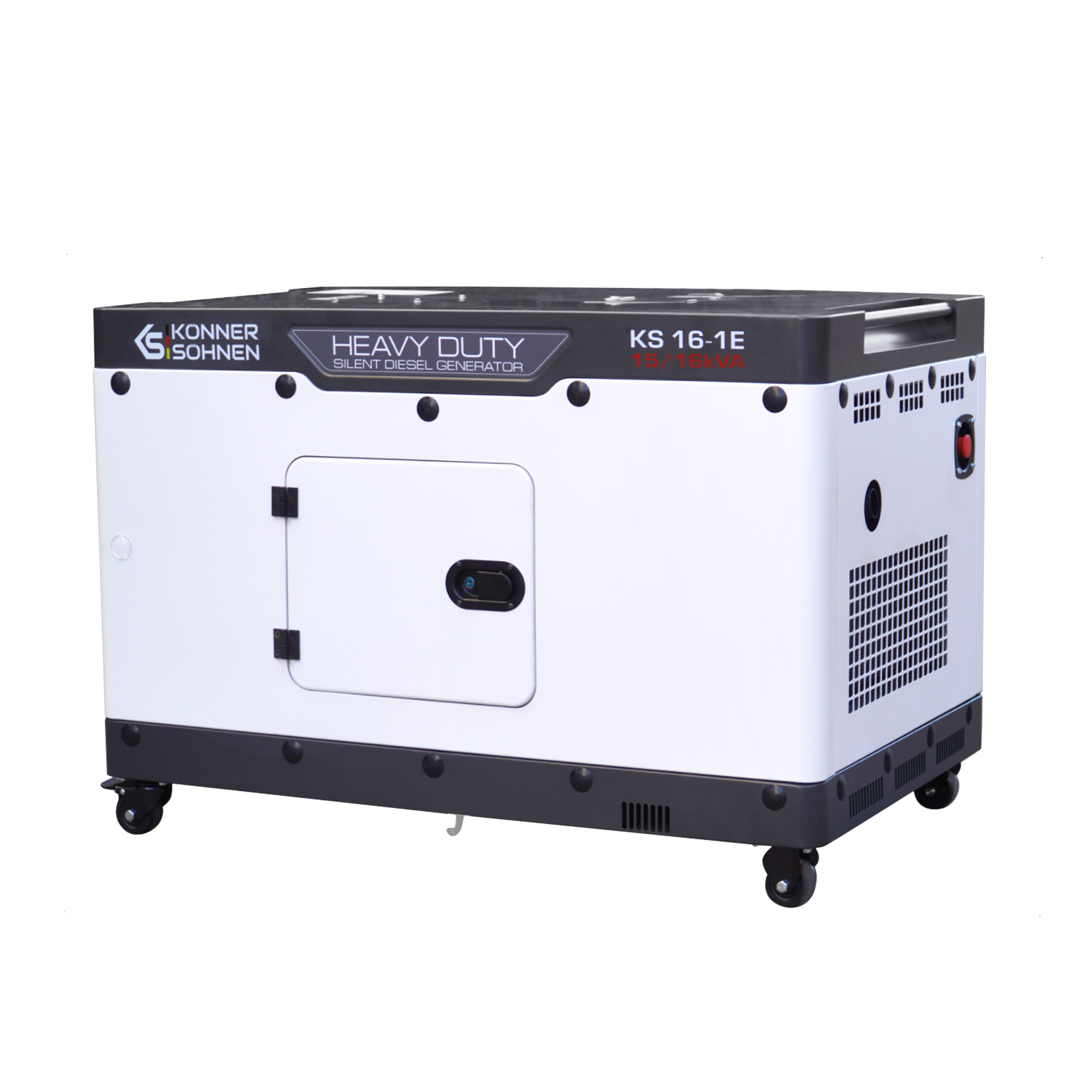

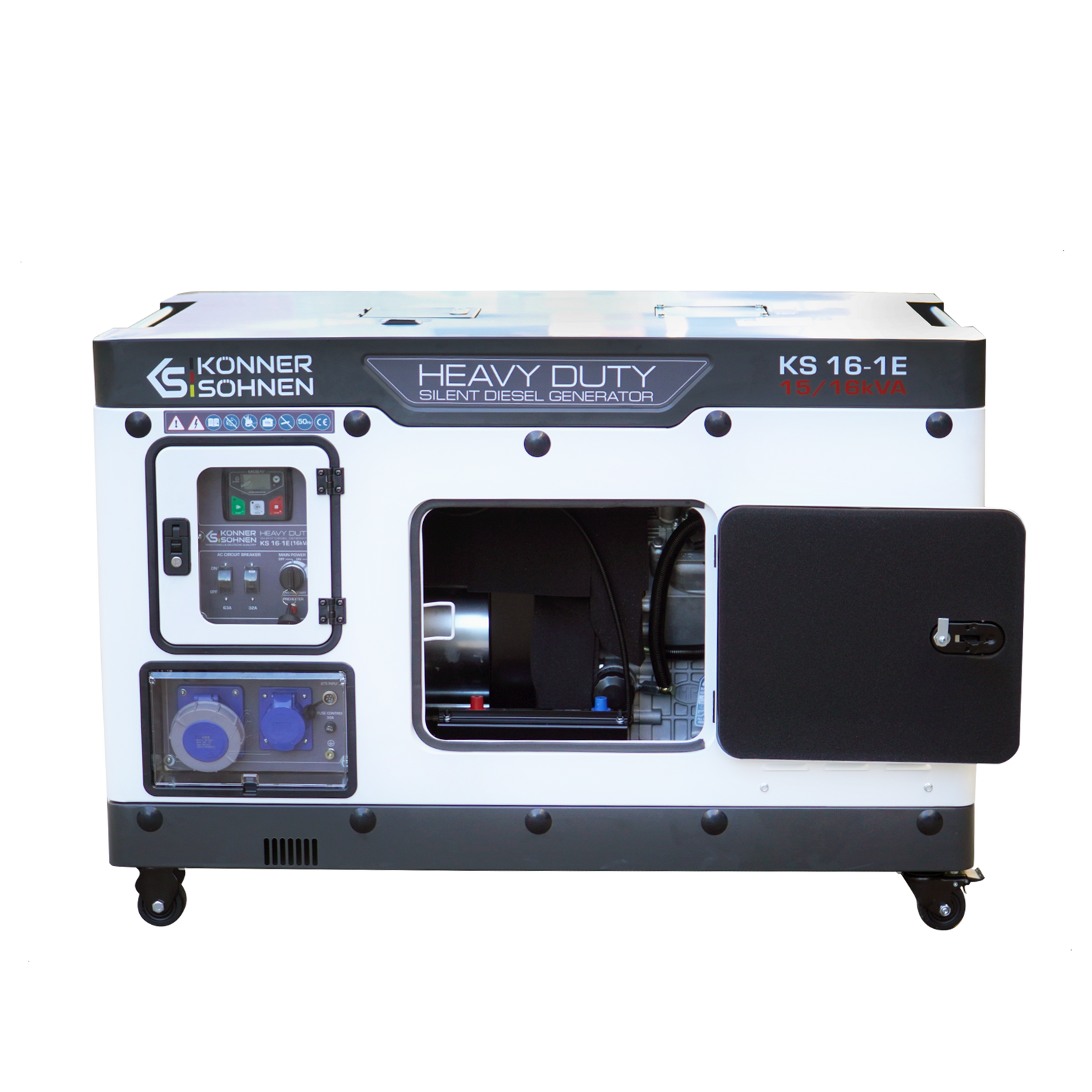

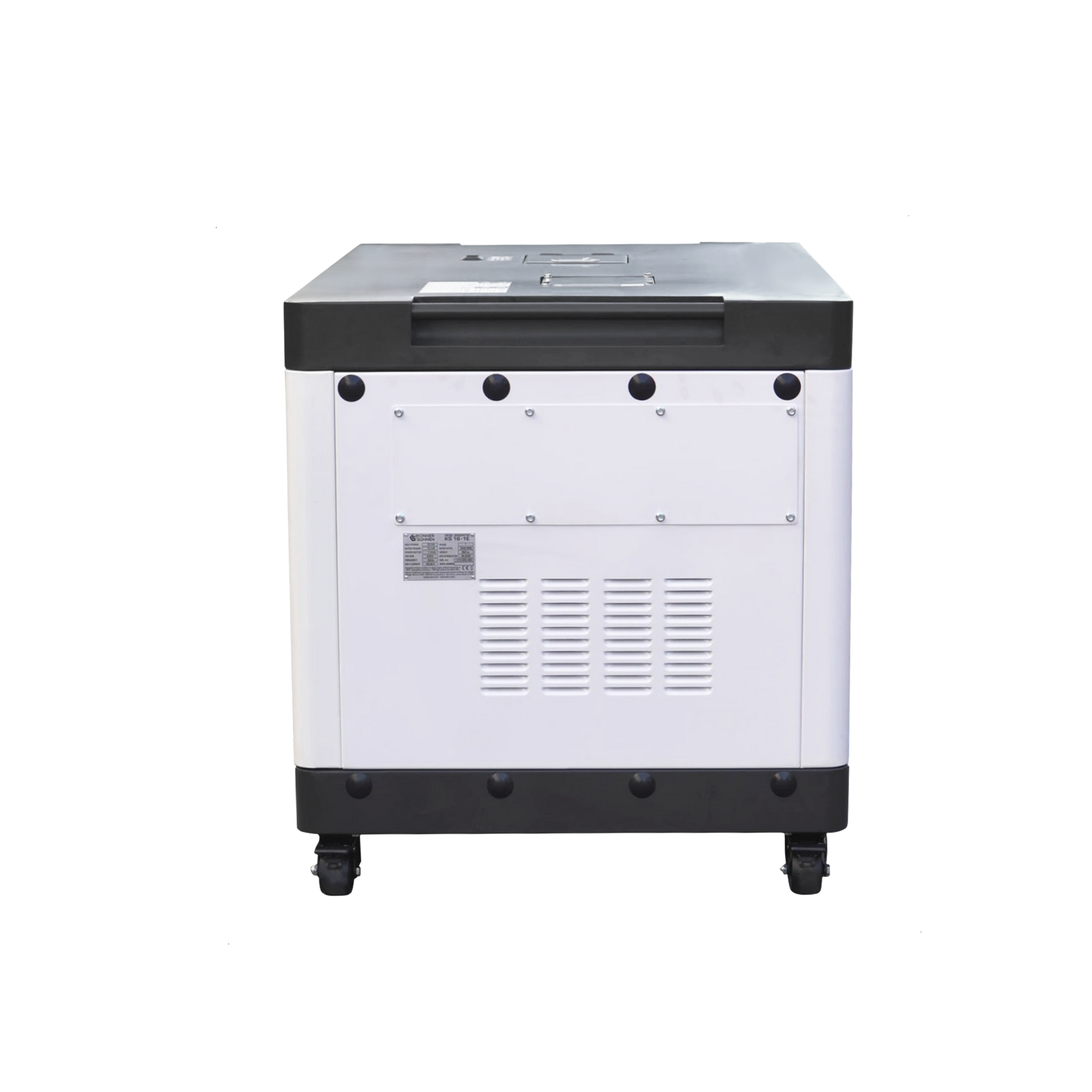

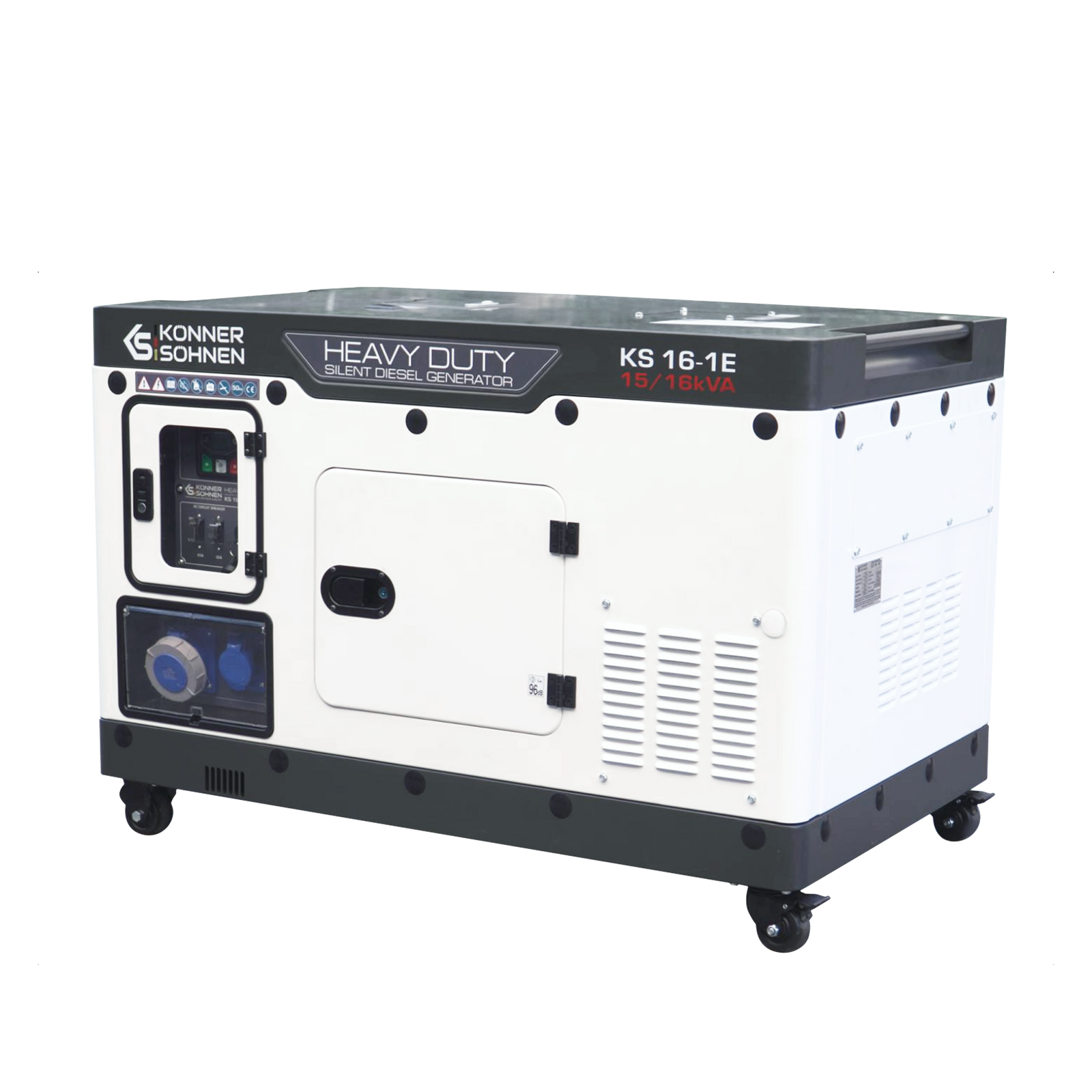

Diesel Generator KS 16-1E

Name: Diesel Generator KS 16-1E
Brand: Könner & Söhnen
SKU: 4260405368686
Price: 243999.0 UAH
Availability: OutOfStock

Unavailable

₴243 999

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kVA:	16/15
Fuel tank volume, l:	30
Fuel consumption***, l/h:	3.36 (power 50%)

Specification

Voltage, V	230
Max/Nominal power (230V), kVA	16/15
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	69.56
Outlets	1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel consumption***, l/h	3.36 (power 50%)
LED display	Multifunctional digital control unit HGM501
Noise level Lpa (7m)/Lwa, dB	76/96
Engine type	Diesel, 2-cylinder, 4-stroke with air cooling
Engine model	KS 1400HD
Engine speed, U/min	3000
Engine power, hp/kW	30/22
Preheater	+
Fuel tank volume, l	30
Crank case volume, l	4
Engine cylinder volume, cm3	1326
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Accumulator (A·h)	45
Battery charger	integrated
Output for ATS	+
Protection class	IP23

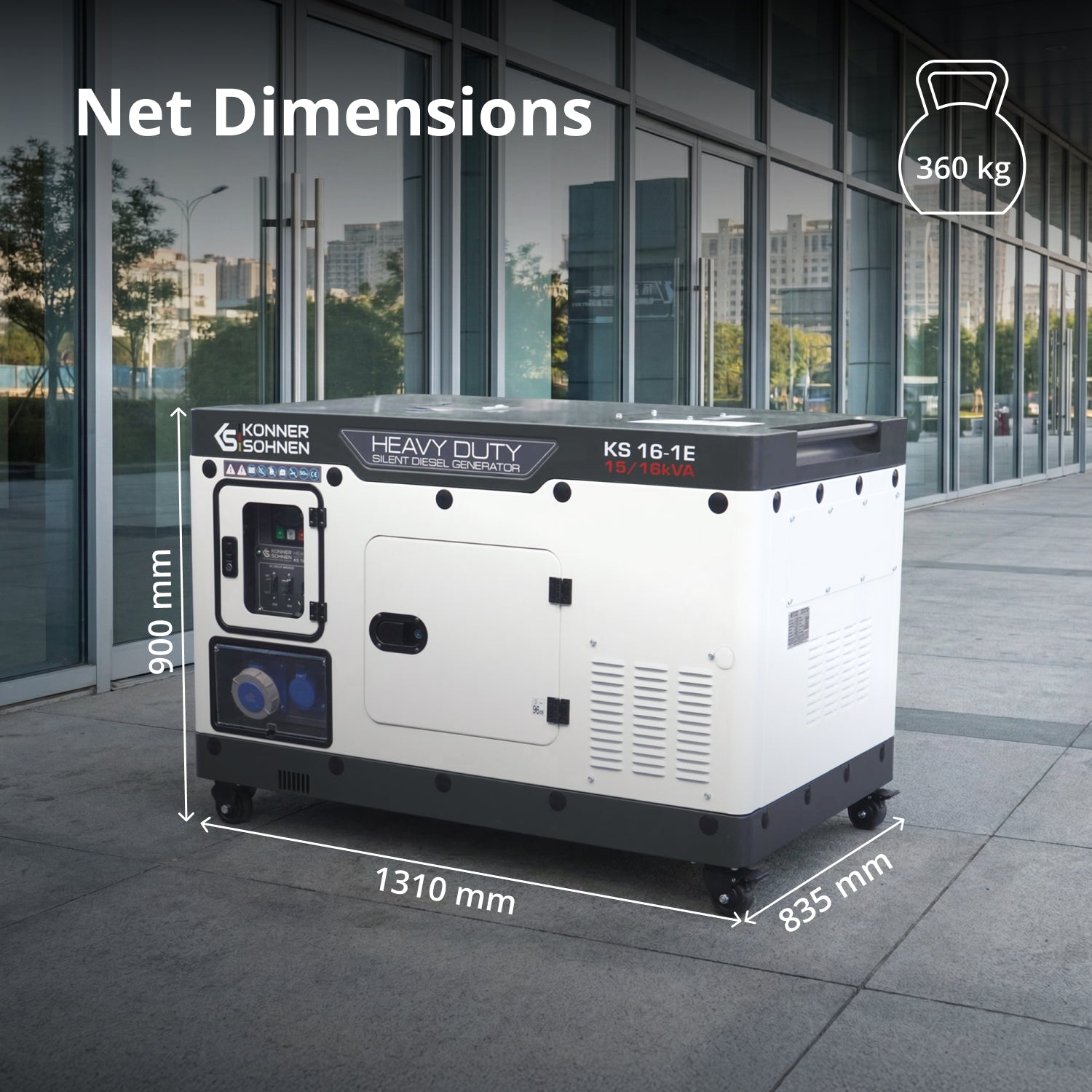

Net dimensions (LxWxH), mm	1320 × 820 × 880
Gross dimensions (LxWxH), mm	1330 × 830 × 930
Net weight, kg	360
SKU	KS 16-1E
Barcode	4260405368686

Delivery

Dear Customers,

Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.

However, our managers are doing everything possible to process and ship your orders as quickly as possible.

Thank you for your understanding.

Payment

Choose a convenient and reliable payment method:

Features

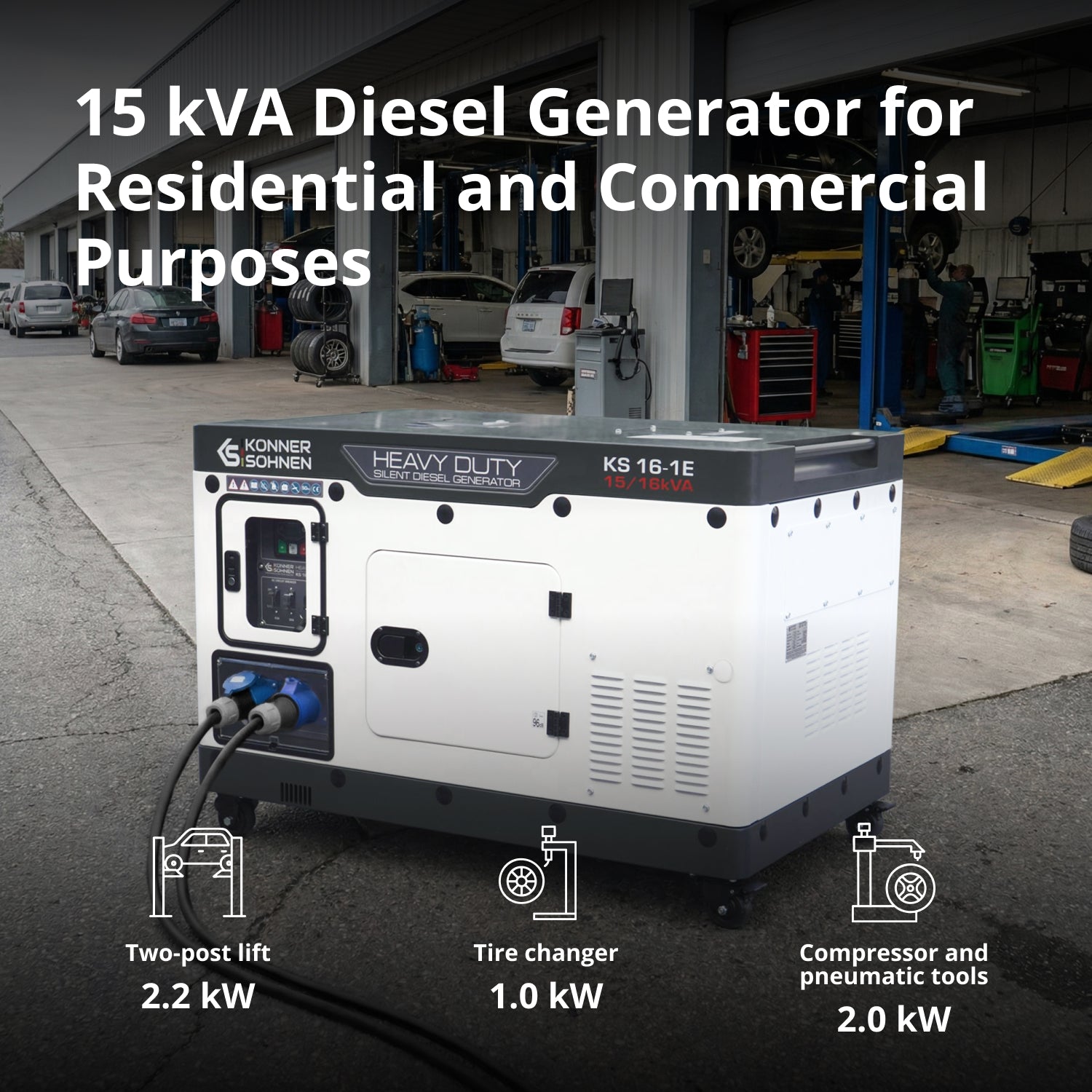

The KS 16-1E diesel two-cylinder generator is a reliable solution for backup power supply to residential and commercial properties. It ensures uninterrupted work and comfort even without centralized electricity, making it an ideal choice for household use, construction, or business facilities as a backup power source.

01 BRANDED ENGINE

02 ATS CONNECTION CAPABILITY

03 BACKUP POWER SOURCE

04 SMARTGEN MULTIFUNCTIONAL CONTROL UNIT

05 ENHANCED BATTERY

06 PRE-START HEATING

07 EMERGENCY STOP BUTTON

08 SOUNDPROOF HOUSING

09 EASY TRANSPORTATION

10 WARRANTY AND SERVICE MAINTENANCE

11 THE PACKAGE INCLUDES EVERYTHING REQUIRED

BRANDED ENGINE

The diesel generator engines are manufactured under the DIMAX Int. GmbH license and have a power reserve in relation to the alternator, ensuring stable voltage output across the entire voltage range. These engines comply with all European quality standards, including the latest EURO 5 environmental standard. The two-cylinder V-type engines are perfectly balanced, contributing to quieter and longer generator operation.

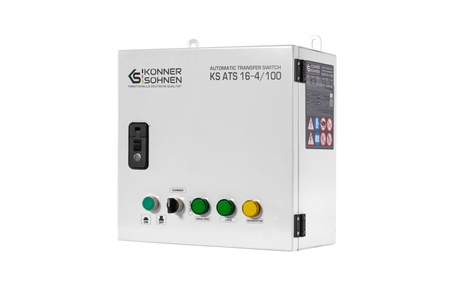

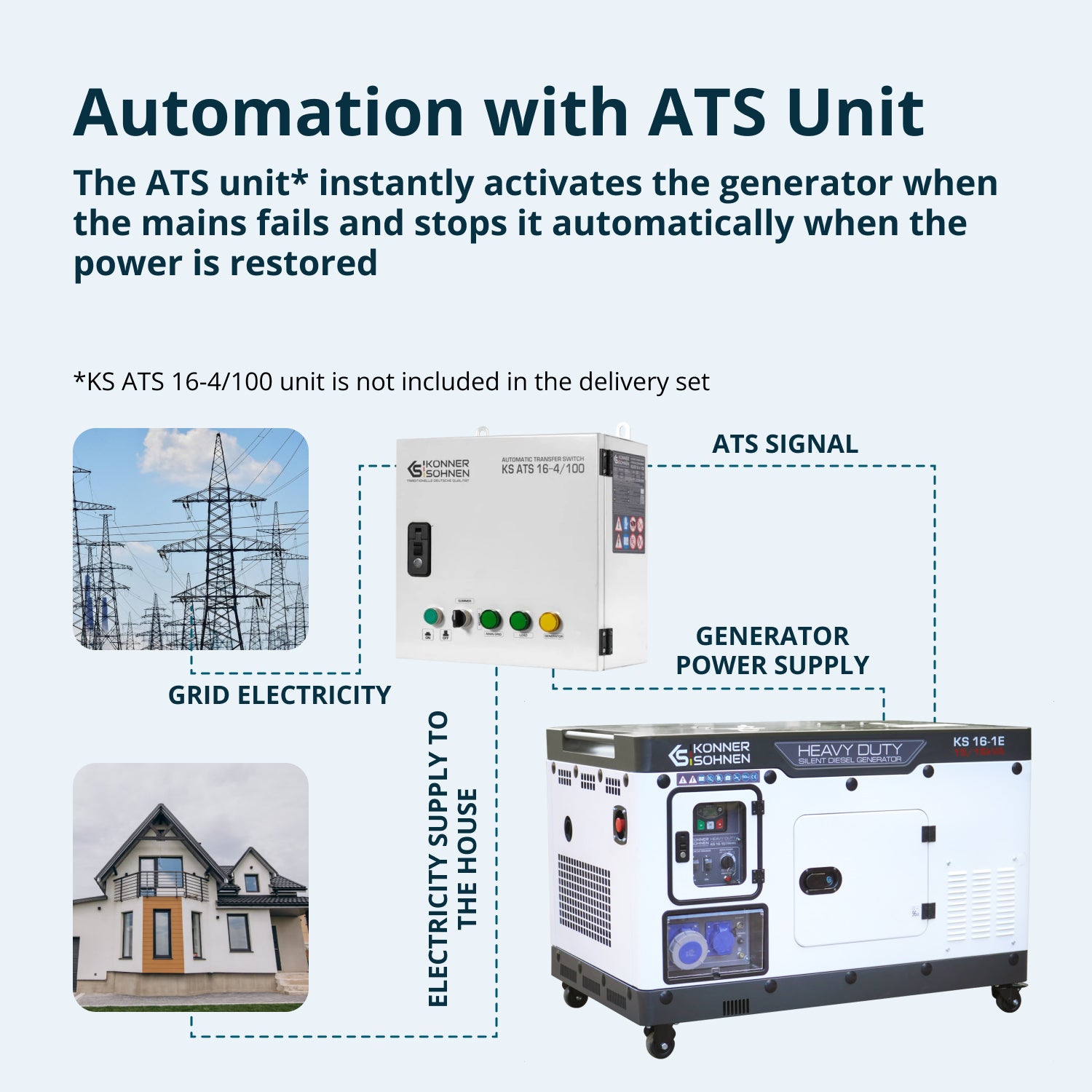

ATS CONNECTION CAPABILITY

The automatic transfer switch (ATS) module automates the process of switching to a backup power source, eliminating the need to manually start and stop the generator when the main power supply is restored.

BACKUP POWER SOURCE

The diesel generator provides a reliable backup power source, enabling the use of all necessary appliances during power outages.

SMARTGEN MULTIFUNCTIONAL CONTROL UNIT

The SMARTGEN HGM501 multifunctional control unit is an intelligent digital device that enables the setting of either automatic or manual operation modes for the generator. It is specially designed for highly efficient control of the unit operation, monitoring all key operational parameters, and protecting the generator during both autonomous and backup operation modes. The generators are equipped with all necessary protective functions, and in case of a malfunction, the engine will be immediately shut down. The control unit indicators signal possible issues such as low oil pressure, high or low voltage, frequency fluctuations, overload, or overheating.

ENHANCED BATTERY

The 45 Ah battery provides sufficient starting current for quick and reliable diesel engine starts, even in low temperatures. This battery ensures stable operation and a long service life.

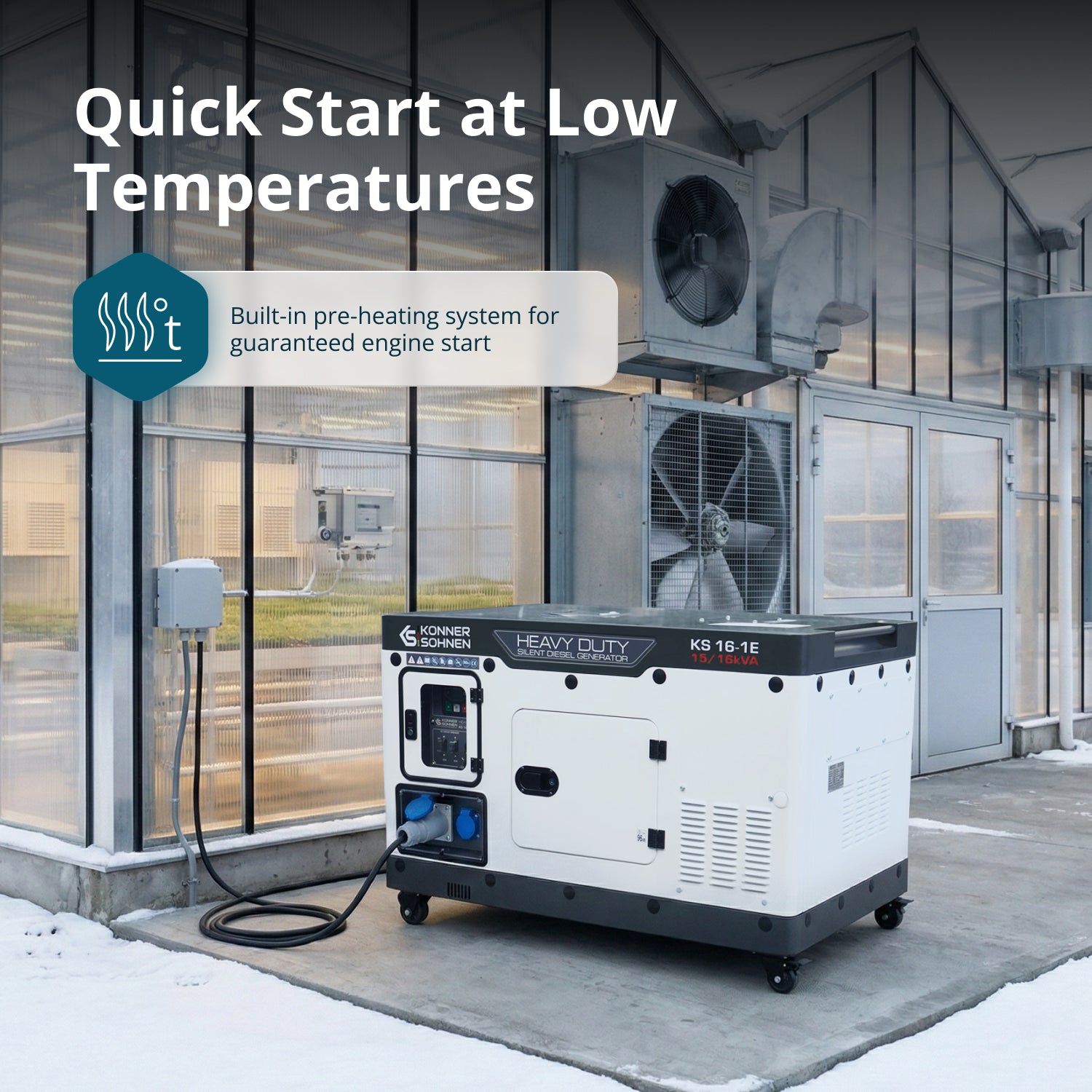

PRE-START HEATING

The integrated pre-start heating system automatically warms the air before the generator starts, ensuring safe engine startup and enabling quick generator activation even in subzero temperatures.

EMERGENCY STOP BUTTON

The "Stop" emergency stop button provides a quick and safe way to shut down the generator operation in case of unforeseen situations.

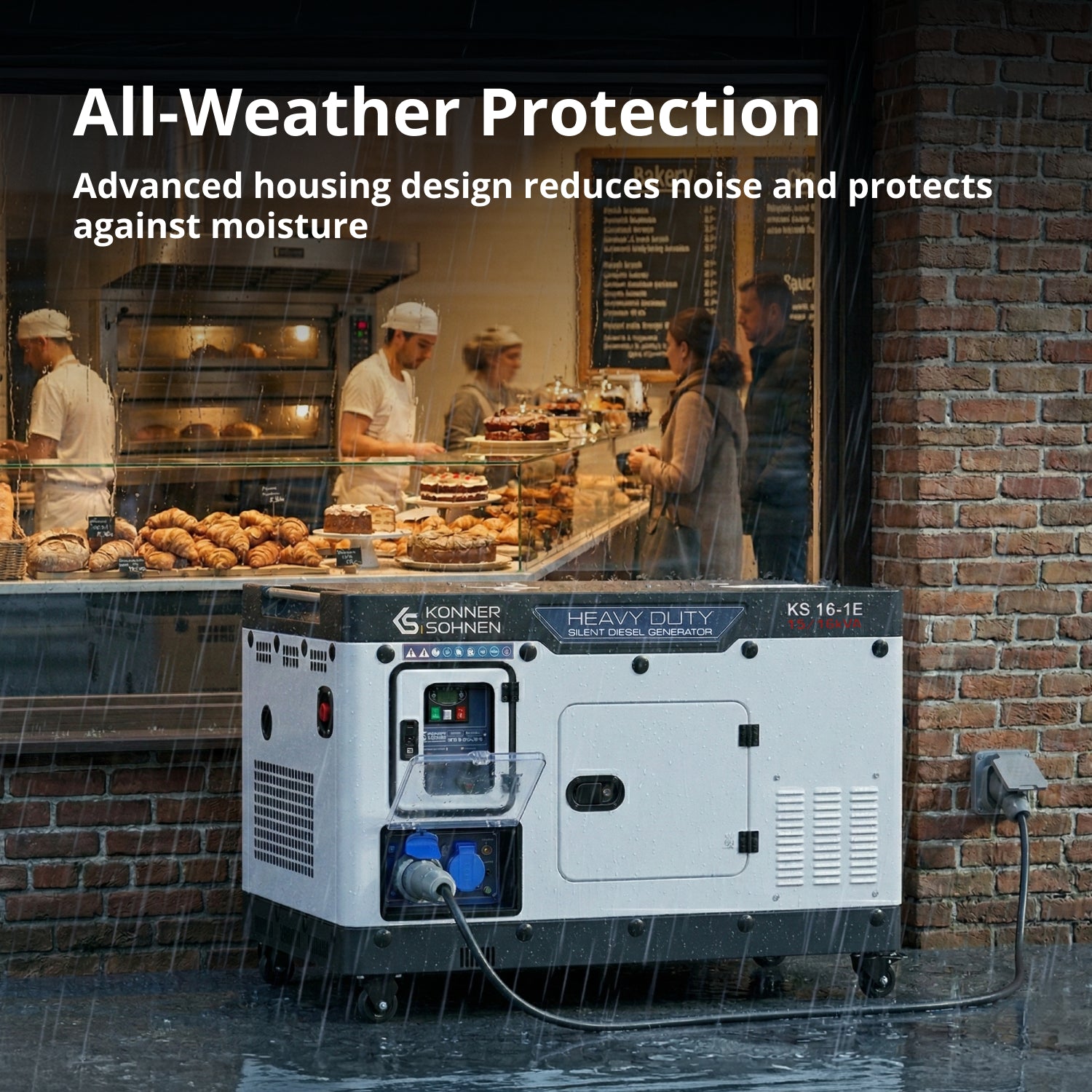

SOUNDPROOF HOUSING

The high-quality soundproof housing has an improved design to maximize protection from external weather conditions and prevent moisture ingress. Thanks to the dense insulating material, it significantly reduces noise levels during operation.

EASY TRANSPORTATION

The housing is equipped with six-inch and four-inch swivel wheels, making it easier to move the unit and ensuring secure fixation during operation. For additional convenience, the housing also features a wide handle on top.

WARRANTY AND SERVICE MAINTENANCE

The "HEAVY DUTY" diesel generators come with an extended warranty of 2 years. The central warehouse is stocked with a full set of spare parts. Our managers are always available for consultations.

THE PACKAGE INCLUDES EVERYTHING REQUIRED

• Storage bag for accessories
• Oil filling funnel
• Portable power plug 230V (63А)
• Plug 230V 32А
• Muffler and cylinder gaskets
• Fuel filter
• Open-end wrench 10×12 mm
• Open-end wrench 14×17 mm
• Screwdriver

The engines used in the generators are manufactured under the license of DIMAX Int. GmbH and comply with strict European quality standards. The V-type engine is perfectly balanced, which contributes to quieter and longer operation of the generator. These engines stand out for their high power, durability, and fuel efficiency.

The ergonomic control panel, the capability to connect to an automatic start/stop system, and the low noise level make operating the generator as comfortable as possible. The emergency stop button, overload protection, overheating protection, and other safety features ensure safe operation.

The integrated pre-start heating system and powerful 45 Ah battery ensure quick and confident engine start, even during the coldest days when temperatures drop significantly below zero.

The soundproof housing significantly reduces noise levels during generator operation, enabling it to be used in residential areas without causing discomfort to others. Additionally, the housing protects the generator from moisture, dust, and other environmental factors, extending its lifespan.

By choosing a diesel generator with these features, you gain a reliable assistant always ready to supply electricity. Regardless of weather conditions or time of day, you can rely on its stable operation. When electricity is lost, reliability and power become critically important.

Specification

Diesel Generator KS 16-1E

Voltage, V	230
Max/Nominal power (230V), kVA	16/15
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	69.56
Outlets	1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel consumption***, l/h	3.36 (power 50%)
LED display	Multifunctional digital control unit HGM501
Noise level Lpa (7m)/Lwa, dB	76/96
Engine type	Diesel, 2-cylinder, 4-stroke with air cooling
Engine model	KS 1400HD
Engine speed, U/min	3000
Engine power, hp/kW	30/22
Preheater	+
Fuel tank volume, l	30
Crank case volume, l	4
Engine cylinder volume, cm3	1326
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Accumulator (A·h)	45
Battery charger	integrated
Output for ATS	+
Protection class	IP23
Net dimensions (LxWxH), mm	1320 × 820 × 880
Gross dimensions (LxWxH), mm	1330 × 830 × 930
Net weight, kg	360
SKU	KS 16-1E
Barcode	4260405368686

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
