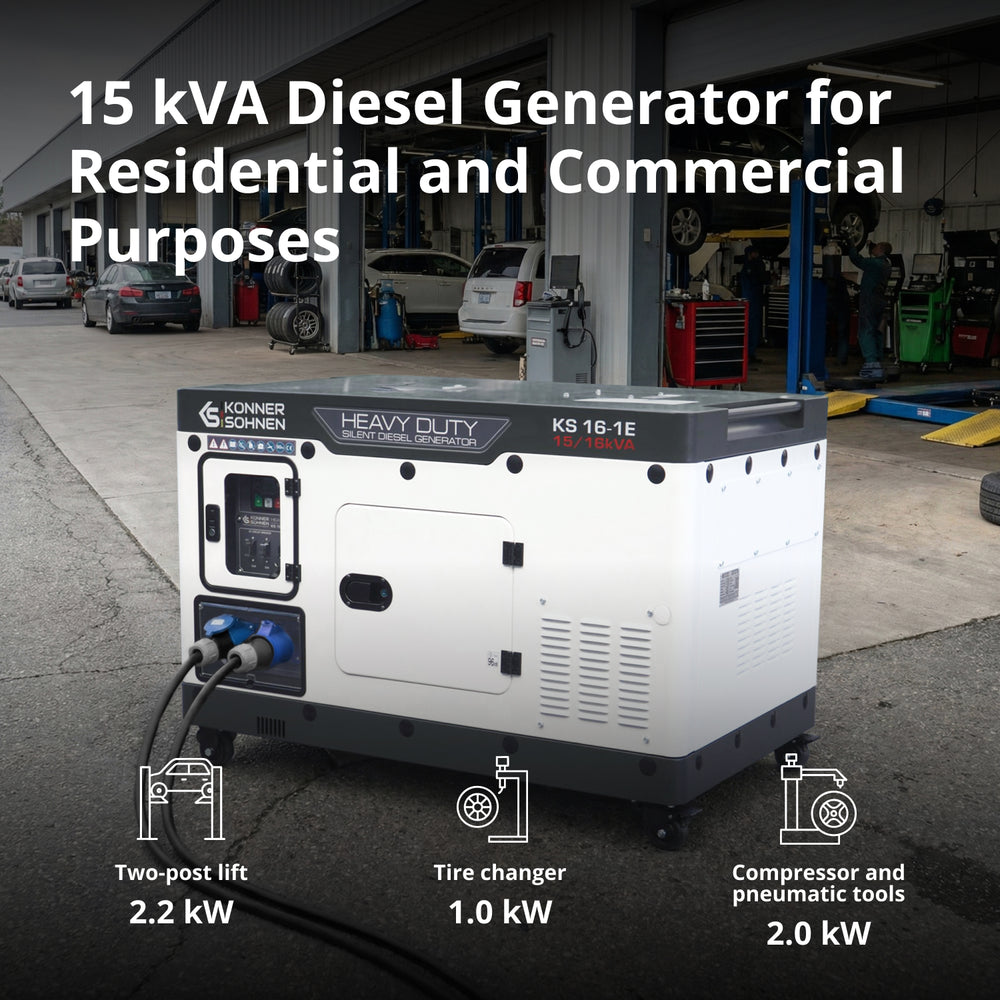

Diesel Generator KS 16-1E
₴261 499
Diesel Generator KS 16-1E
₴261 499
Diesel Generator KS 16-1E
Unavailable
₴261 499
Pay as you go
Payment in installments
Available during checkout via PrivatBank, Monobank or PUMB.
Payment in installments with no extra fees
Buy the products you want now and pay for them gradually! We support convenient installment services from PrivatBank and Monobank.
Benefits of buying in installments
- No commissions or extra charges: You only pay the actual cost of the product, divided into equal parts.
- Instant setup: Everything is done online during checkout in 1–2 minutes.
- No documents required: No need to provide a passport, tax ID, or proof of income.
- Easy tracking: All payments and the payment schedule are displayed in your bank's mobile app.
Partner bank conditions
PrivatBank ("Payment in installments")
- What you need: A credit card ("Universal" or Gold) with an available limit for the "Payment in installments" service.
- How it works: The first payment is deducted from the card at the time of placing the order, and subsequent payments are deducted monthly on the day of purchase.
Monobank ("Purchase in installments")
- What you need: A Monobank card with an established limit for "Purchase in installments" (you can check it in the app).
- How it works: The first payment is deducted immediately, and the remaining payments are automatically deducted from the card each month.
PUMB ("Purchase in installments")
- What you need: A PUMB card with an established limit for "Purchase in installments" (you can check it in the app).
- How it works: The first payment is deducted in a month, and the remaining payments are automatically deducted from the card each month.
How to place an order in installments?
- Add the product to your cart and go to the checkout page.
- In the "Payment" section, select "Payment in installments".
- Choose your bank (PrivatBank, Monobank or PUMB) and specify the desired number of payments.
- Click "Place Order" — you will be automatically redirected to the secure bank page (or receive a notification in the app).
- Confirm the purchase in your bank's mobile app (Privat24, Monobank or PUMB).
- Done! After successful confirmation, we will immediately start preparing your order for shipment.
Please note: Your card must have enough funds to cover the first monthly payment.
Specification
| Frequency, Hz: | 50** |
| Max/Nominal power (230V), kVA: | 16/15 |
| Fuel tank volume, l: | 30 |
| Fuel consumption***, l/h: | 3.36 (power 50%) |
Specification
| Voltage, V | 230 |
| Max/Nominal power (230V), kVA | 16/15 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50** |
| Current (max), A | 69.56 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A |
| Fuel consumption***, l/h | 3.36 (power 50%) |
| LED display | Multifunctional digital control unit HGM501 |
| Noise level Lpa (7m)/Lwa, dB | 76/96 |
| Engine type | Diesel, 2-cylinder, 4-stroke with air cooling |
| Engine model | KS 1400HD |
| Engine speed, U/min | 3000 |
| Engine power, hp/kW | 30/22 |
| Preheater | + |
| Fuel tank volume, l | 30 |
| Crank case volume, l | 4 |
| Engine cylinder volume, cm3 | 1326 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Electric |
| Accumulator (A·h) | 45 |
| Battery charger | integrated |
| Output for ATS | + |
| Protection class | IP23 |

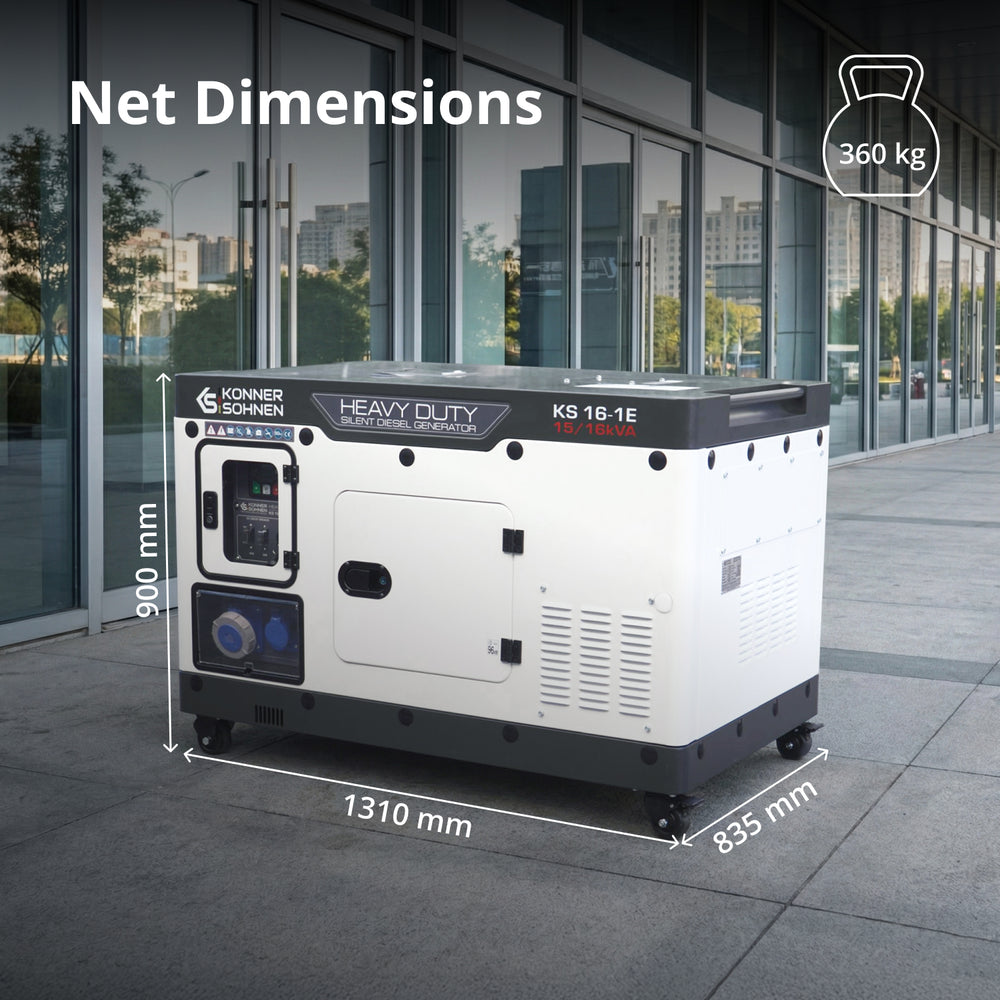

| Net dimensions (LxWxH), mm | 1320 × 820 × 880 |
| Gross dimensions (LxWxH), mm | 1330 × 830 × 930 |
| Net weight, kg | 360 |
| SKU | KS 16-1E |
| Barcode | 4260405368686 |
Delivery
-
Dear Customers,
Due to ongoing attacks in the region where our warehouse is located, as well as systematic power outages, the processing and shipping of orders may currently take up to 3–5 days.
However, our managers are doing everything possible to process and ship your orders as quickly as possible.
Thank you for your understanding.
Delivery
Payment
- Choose a convenient and reliable payment method:
Payment
Features
BRANDED ENGINE
The diesel generator engines are manufactured under the DIMAX Int. GmbH license and have a power reserve in relation to the alternator, ensuring stable voltage output across the entire voltage range. These engines comply with all European quality standards, including the latest EURO 5 environmental standard. The two-cylinder V-type engines are perfectly balanced, contributing to quieter and longer generator operation.

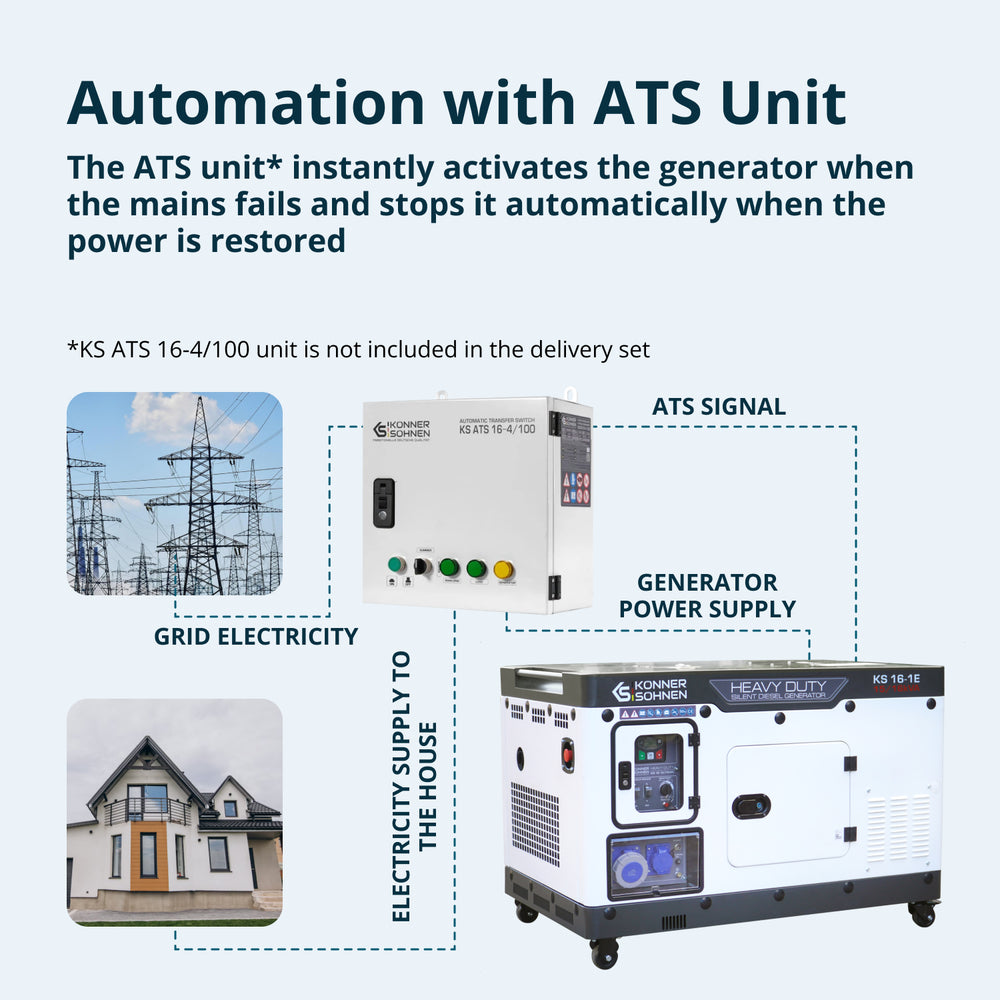

ATS CONNECTION CAPABILITY
The automatic transfer switch (ATS) module automates the process of switching to a backup power source, eliminating the need to manually start and stop the generator when the main power supply is restored.
BACKUP POWER SOURCE
The diesel generator provides a reliable backup power source, enabling the use of all necessary appliances during power outages.

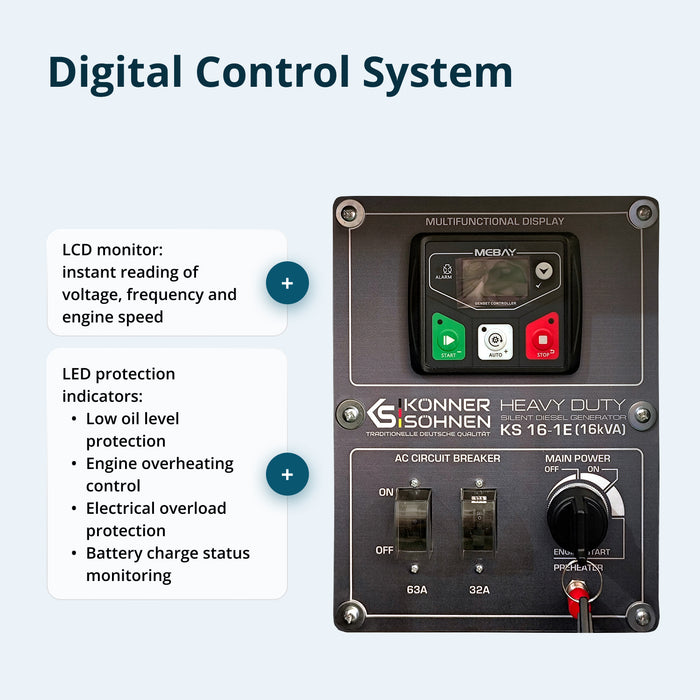

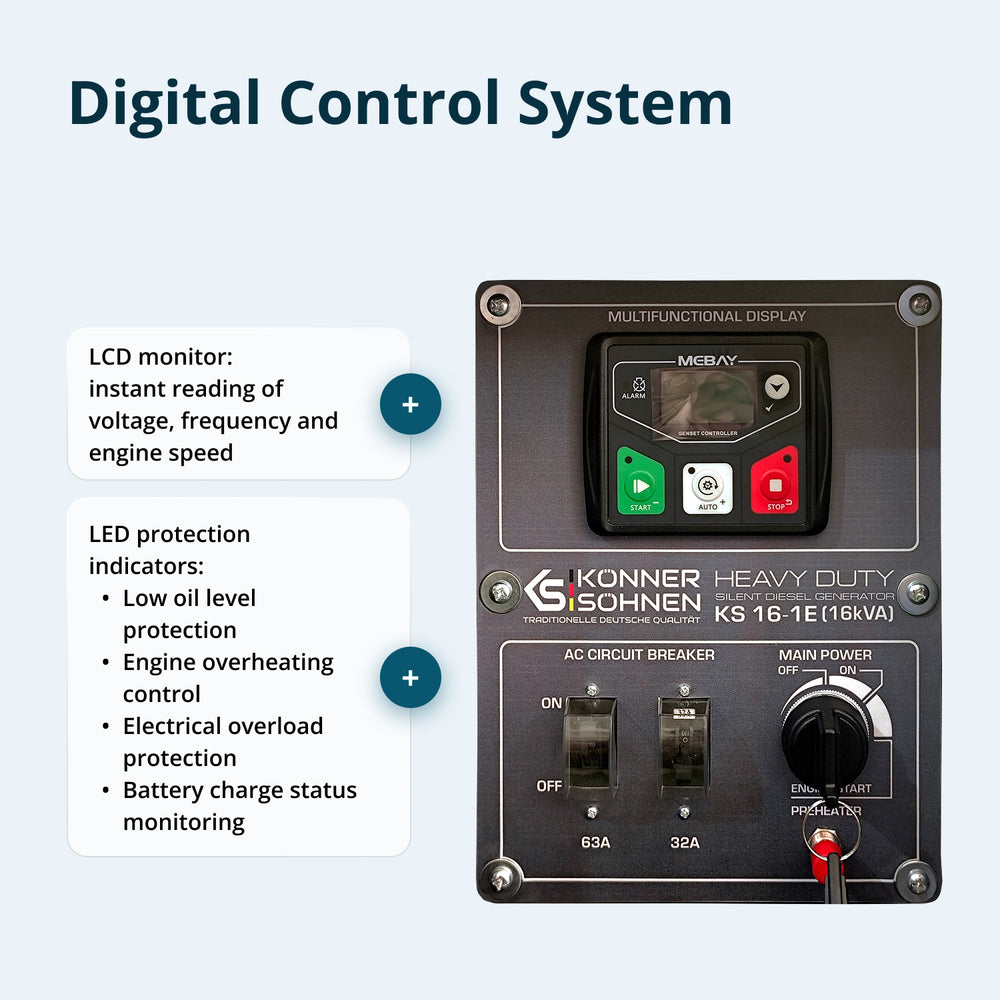

SMARTGEN MULTIFUNCTIONAL CONTROL UNIT
The SMARTGEN HGM501 multifunctional control unit is an intelligent digital device that enables the setting of either automatic or manual operation modes for the generator. It is specially designed for highly efficient control of the unit operation, monitoring all key operational parameters, and protecting the generator during both autonomous and backup operation modes.
The generators are equipped with all necessary protective functions, and in case of a malfunction, the engine will be immediately shut down. The control unit indicators signal possible issues such as low oil pressure, high or low voltage, frequency fluctuations, overload, or overheating.
ENHANCED BATTERY
The 45 Ah battery provides sufficient starting current for quick and reliable diesel engine starts, even in low temperatures. This battery ensures stable operation and a long service life.

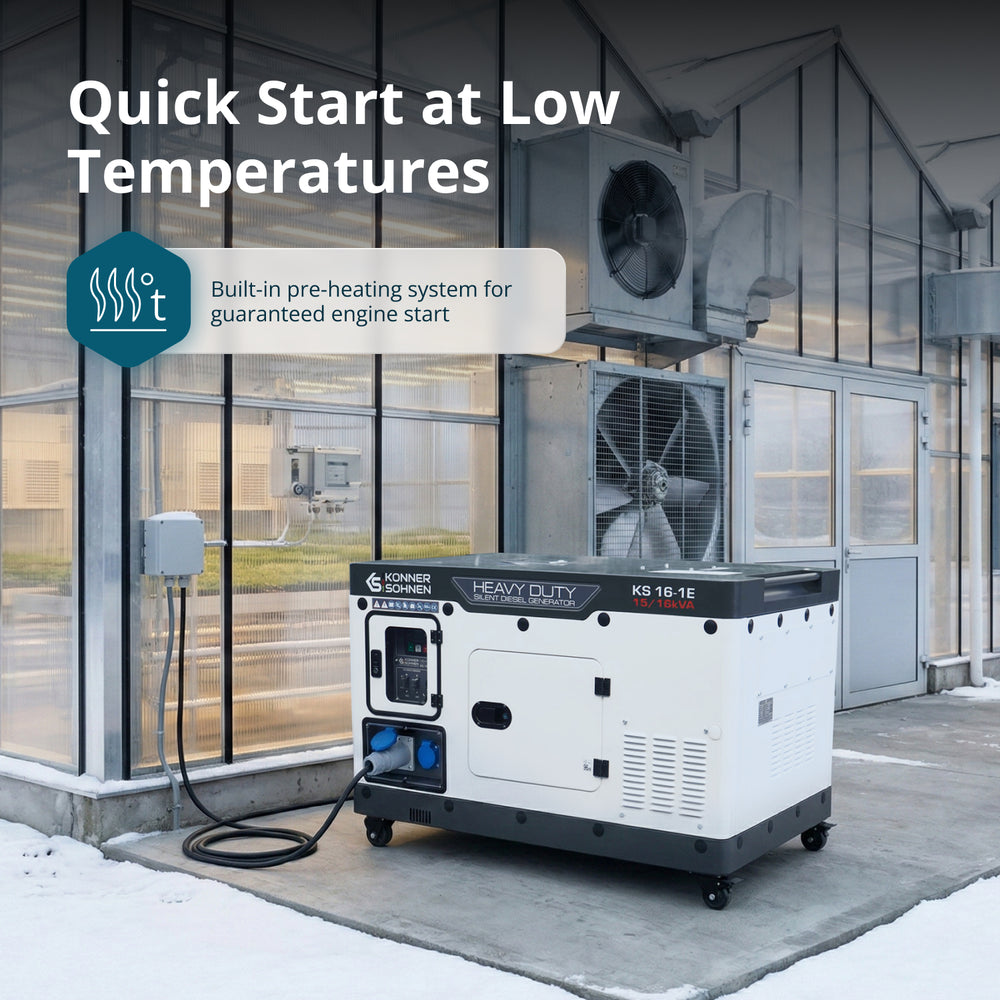

PRE-START HEATING
The integrated pre-start heating system automatically warms the air before the generator starts, ensuring safe engine startup and enabling quick generator activation even in subzero temperatures.
EMERGENCY STOP BUTTON
The "Stop" emergency stop button provides a quick and safe way to shut down the generator operation in case of unforeseen situations.

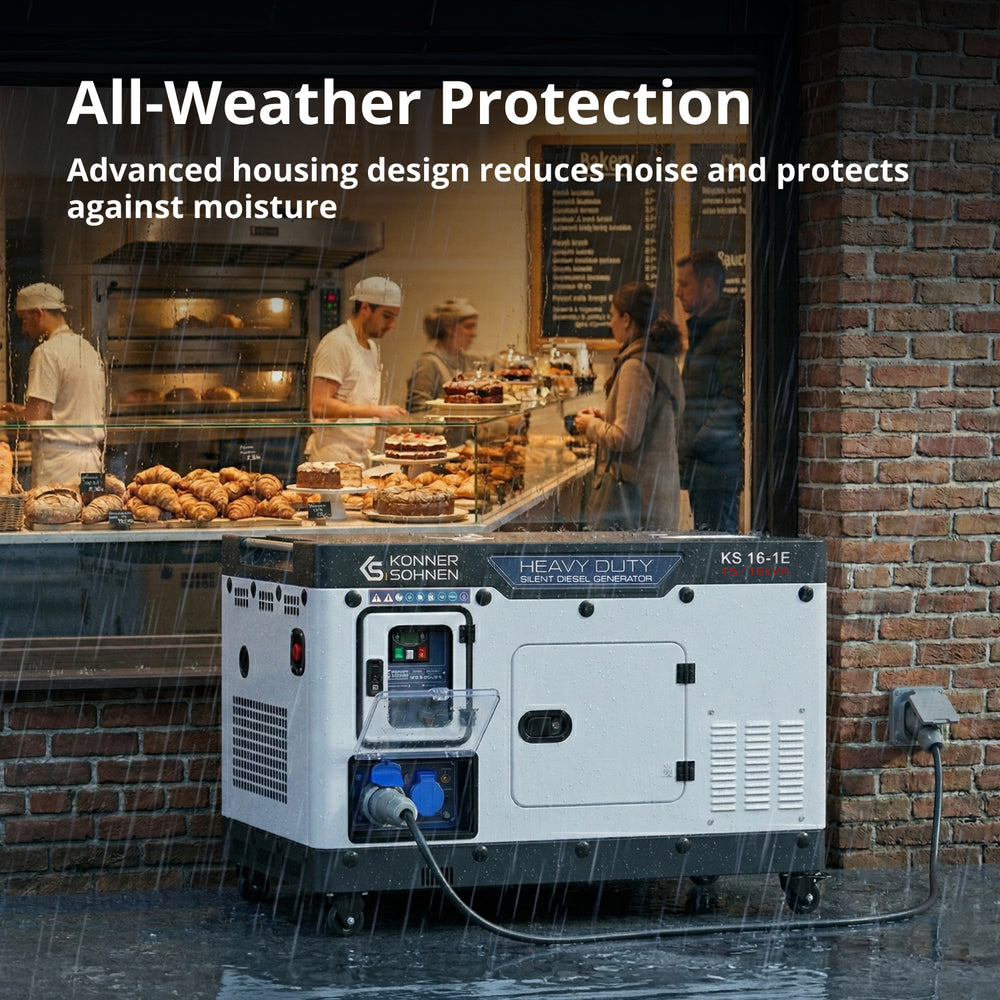

SOUNDPROOF HOUSING
The high-quality soundproof housing has an improved design to maximize protection from external weather conditions and prevent moisture ingress. Thanks to the dense insulating material, it significantly reduces noise levels during operation.
EASY TRANSPORTATION
The housing is equipped with six-inch and four-inch swivel wheels, making it easier to move the unit and ensuring secure fixation during operation.
For additional convenience, the housing also features a wide handle on top.
WARRANTY AND SERVICE MAINTENANCE
The "HEAVY DUTY" diesel generators come with an extended warranty of 2 years. The central warehouse is stocked with a full set of spare parts. Our managers are always available for consultations.

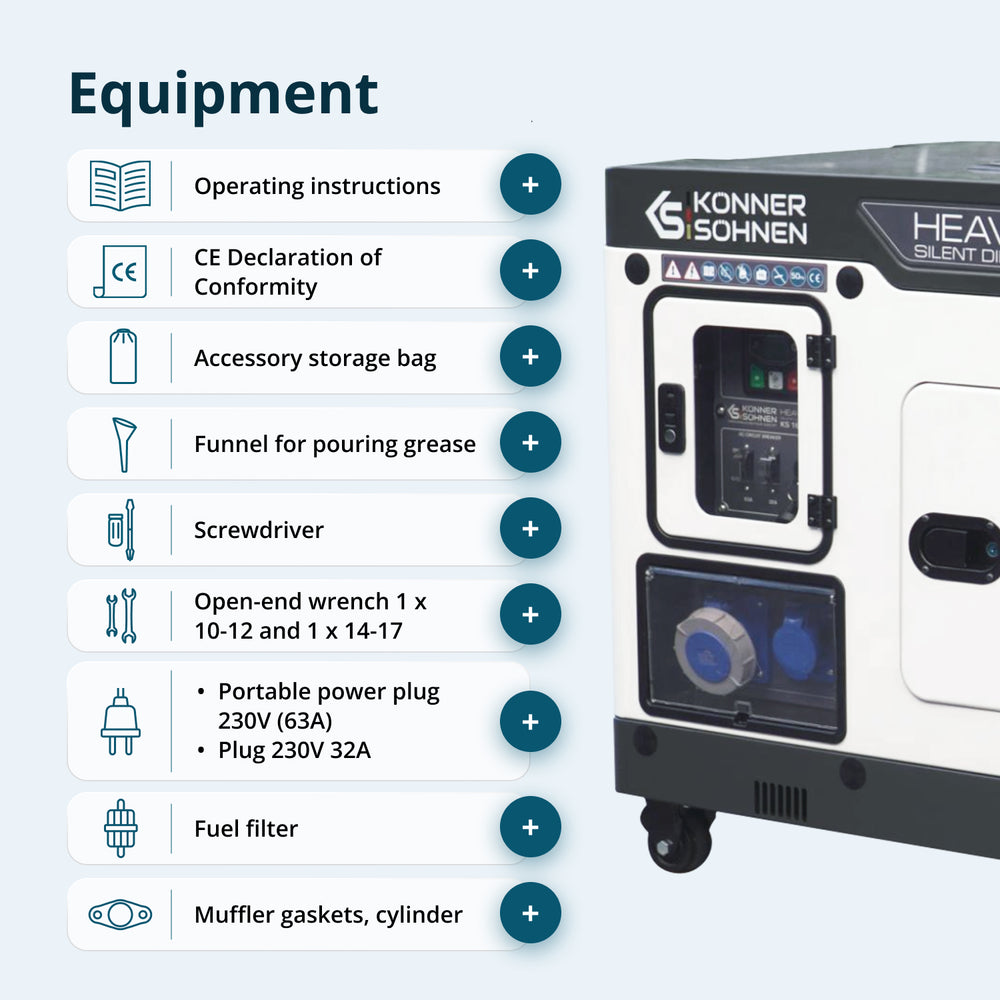

THE PACKAGE INCLUDES EVERYTHING REQUIRED
• Storage bag for accessories
• Oil filling funnel
• Portable power plug 230V (63А)
• Plug 230V 32А
• Muffler and cylinder gaskets
• Fuel filter
• Open-end wrench 10×12 mm
• Open-end wrench 14×17 mm
• Screwdriver
• Oil filling funnel
• Portable power plug 230V (63А)
• Plug 230V 32А
• Muffler and cylinder gaskets
• Fuel filter
• Open-end wrench 10×12 mm
• Open-end wrench 14×17 mm
• Screwdriver
Specification
Diesel Generator KS 16-1E
| Voltage, V | 230 |
| Max/Nominal power (230V), kVA | 16/15 |
| Power factor, cosφ | 1 |
| Frequency, Hz | 50** |
| Current (max), A | 69.56 |
| Outlets | 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A |
| Fuel consumption***, l/h | 3.36 (power 50%) |
| LED display | Multifunctional digital control unit HGM501 |
| Noise level Lpa (7m)/Lwa, dB | 76/96 |
| Engine type | Diesel, 2-cylinder, 4-stroke with air cooling |
| Engine model | KS 1400HD |
| Engine speed, U/min | 3000 |
| Engine power, hp/kW | 30/22 |
| Preheater | + |
| Fuel tank volume, l | 30 |
| Crank case volume, l | 4 |
| Engine cylinder volume, cm3 | 1326 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Electric |
| Accumulator (A·h) | 45 |
| Battery charger | integrated |
| Output for ATS | + |
| Protection class | IP23 |
| Net dimensions (LxWxH), mm | 1320 × 820 × 880 |
| Gross dimensions (LxWxH), mm | 1330 × 830 × 930 |
| Net weight, kg | 360 |
| SKU | KS 16-1E |
| Barcode | 4260405368686 |
